For 2005 - 2016 Yamaha YZ 125

Application:
2005 - 2016 Yamaha YZ 125

YAMAHA: 1C3-11651-00-00
Model : CN523M

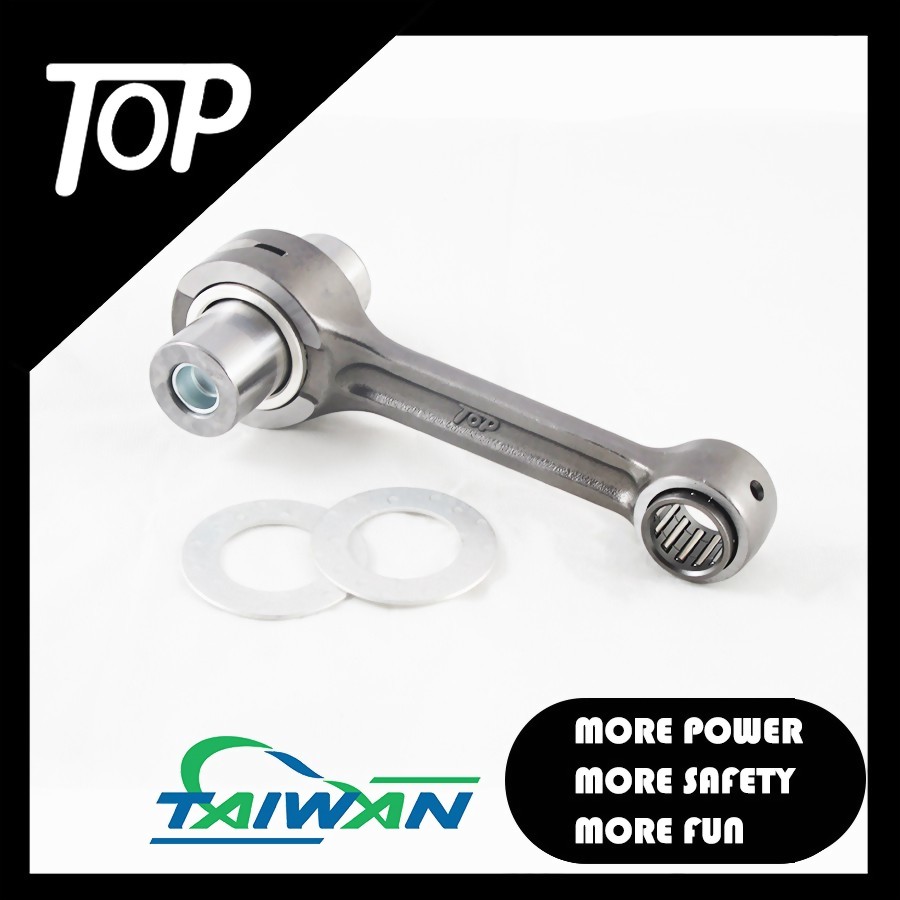

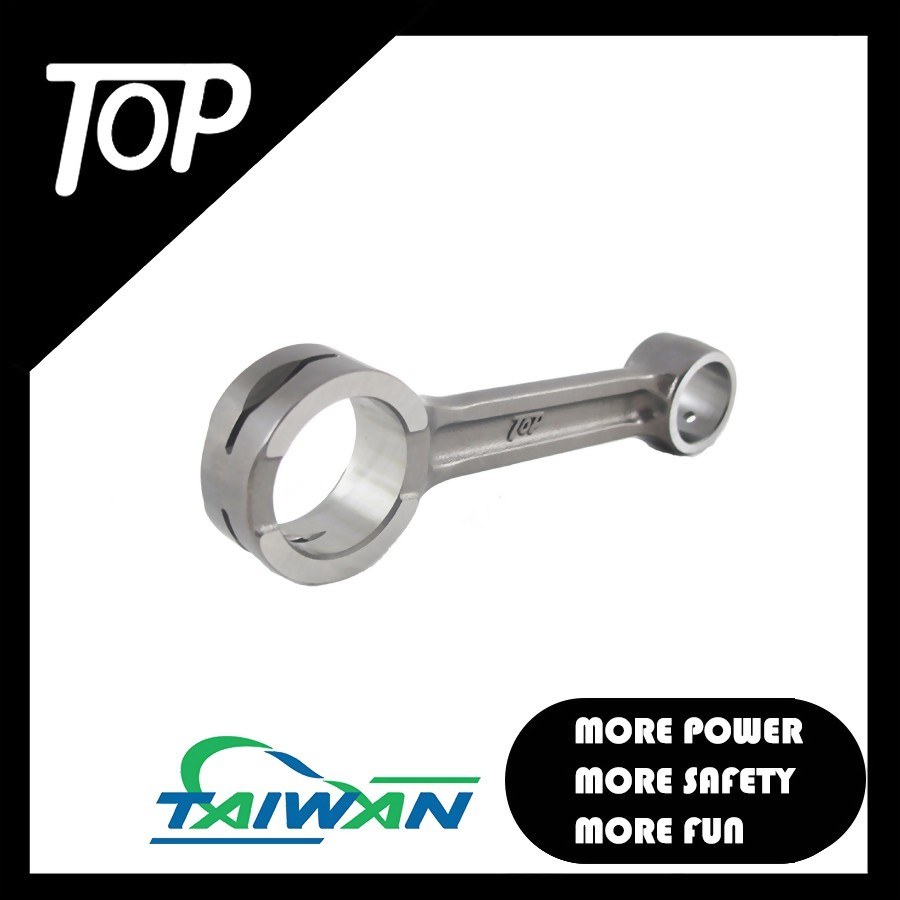

The CN523M connecting rod kit is for the famous Yamaha YZ125 engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Yamaha 2005-2016 YZ 125


Big-end Width (mm): 17

Small-end Width (mm): 16

Big-end Bore (mm): 29

Small-end Bore (mm): 19

Center-to-center (mm): 102

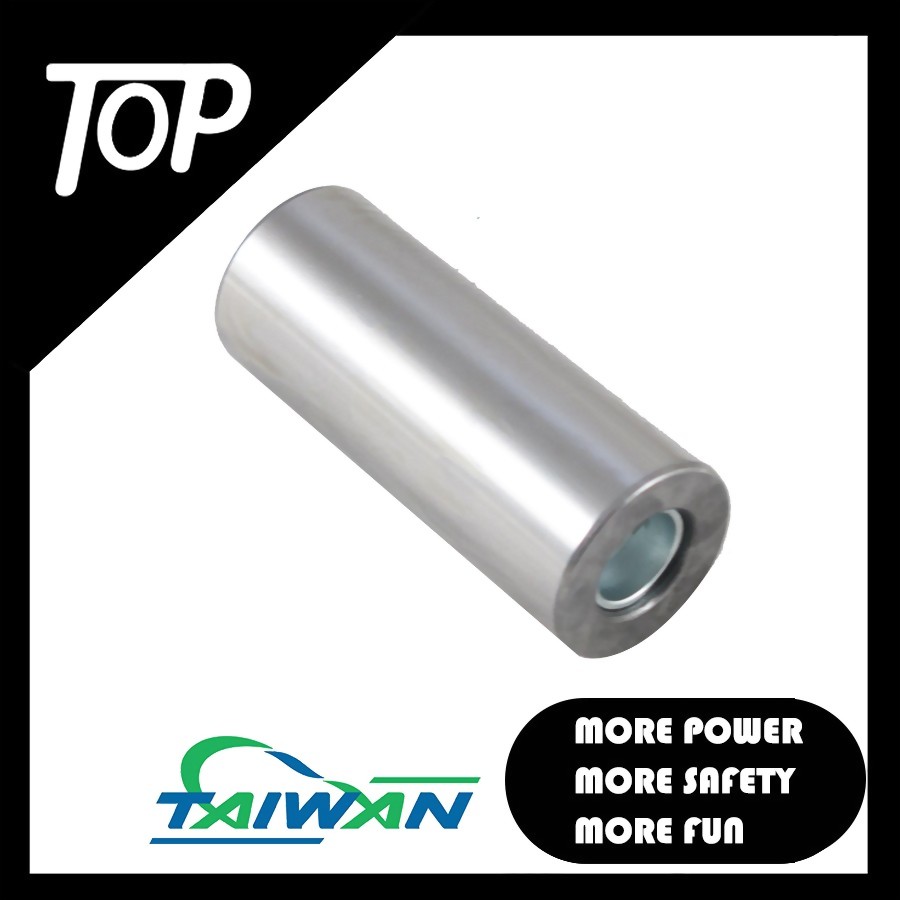

Pin Diameter (mm): 22

Pin Length (mm): 54.5

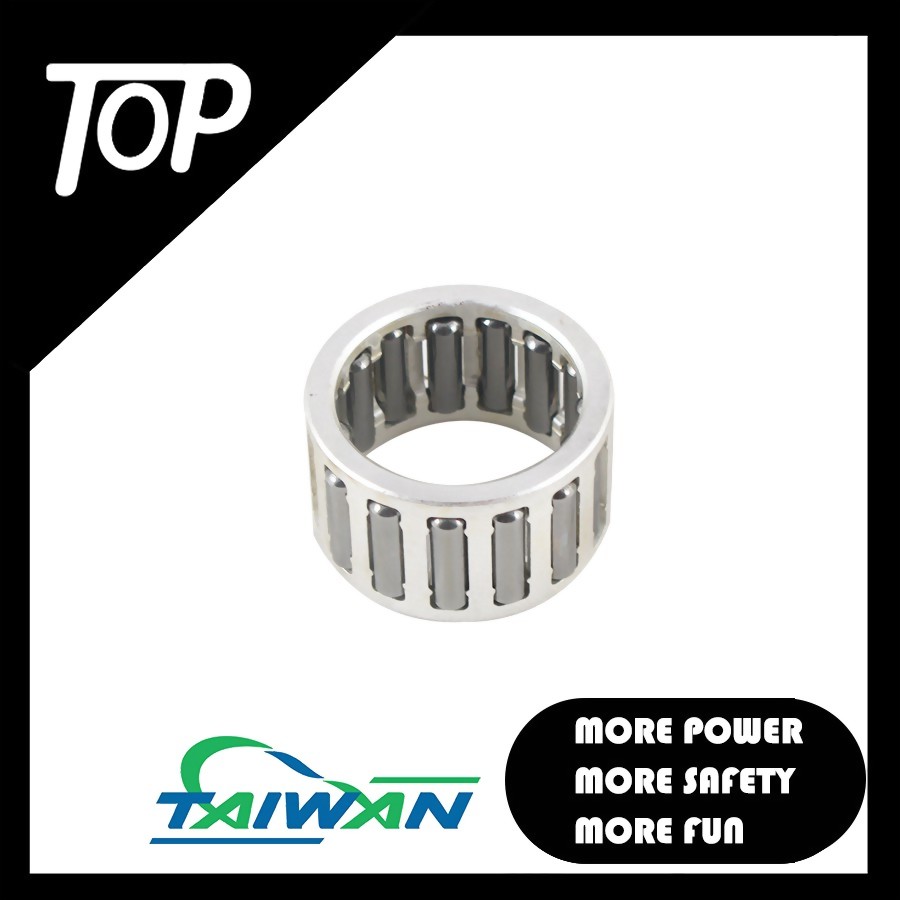

Big-end Bearing (mm): 22*29*17

Small-end Bearing (mm): 15*19*17

Washer Thickness (mm): 1.0
