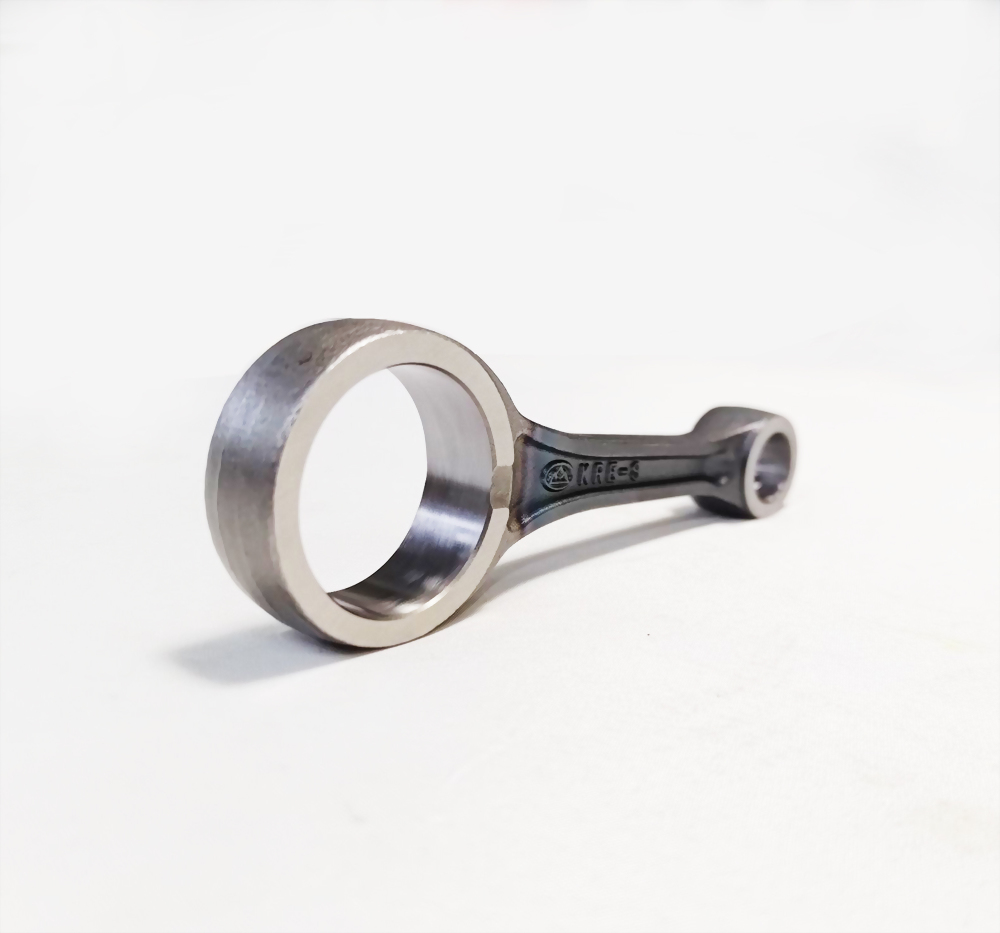

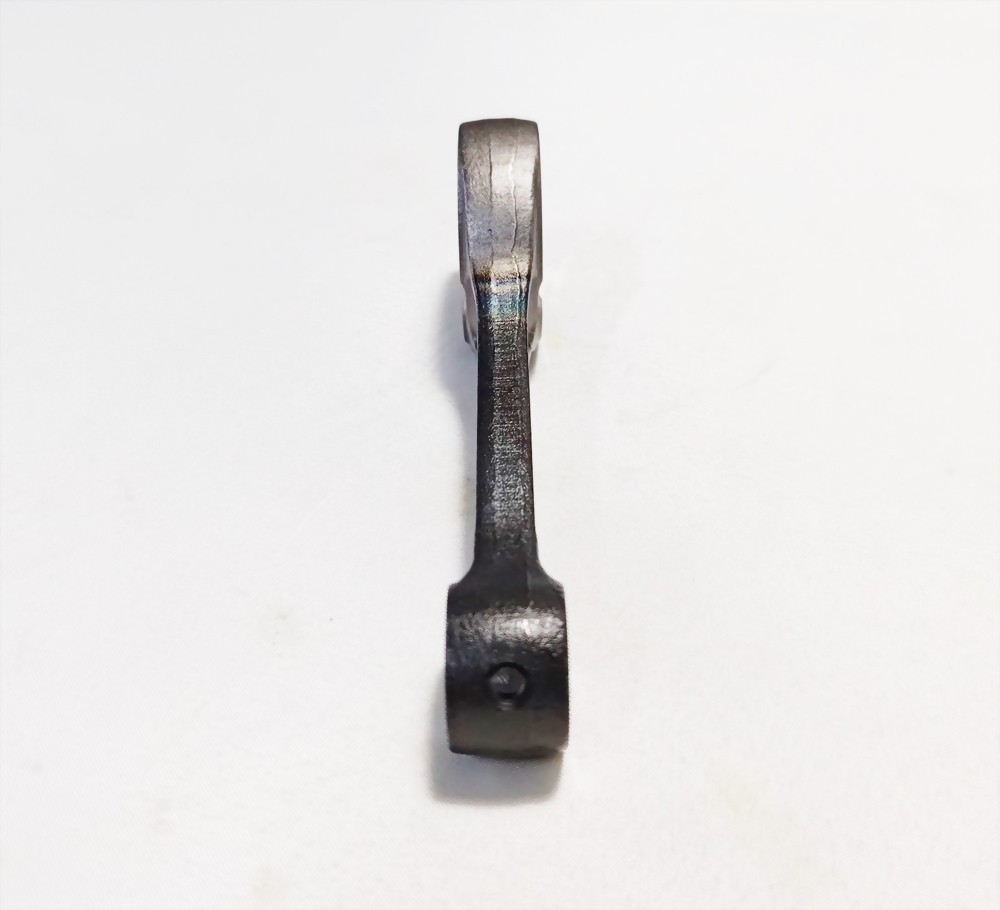

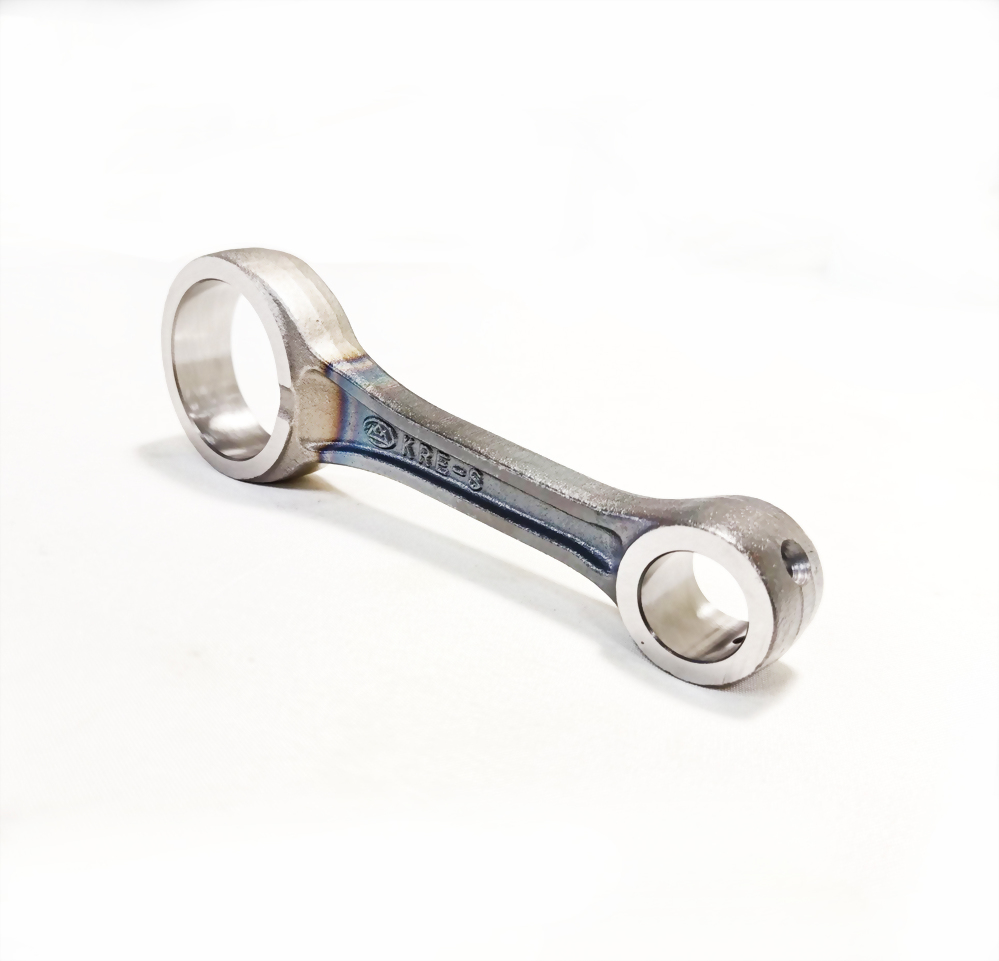

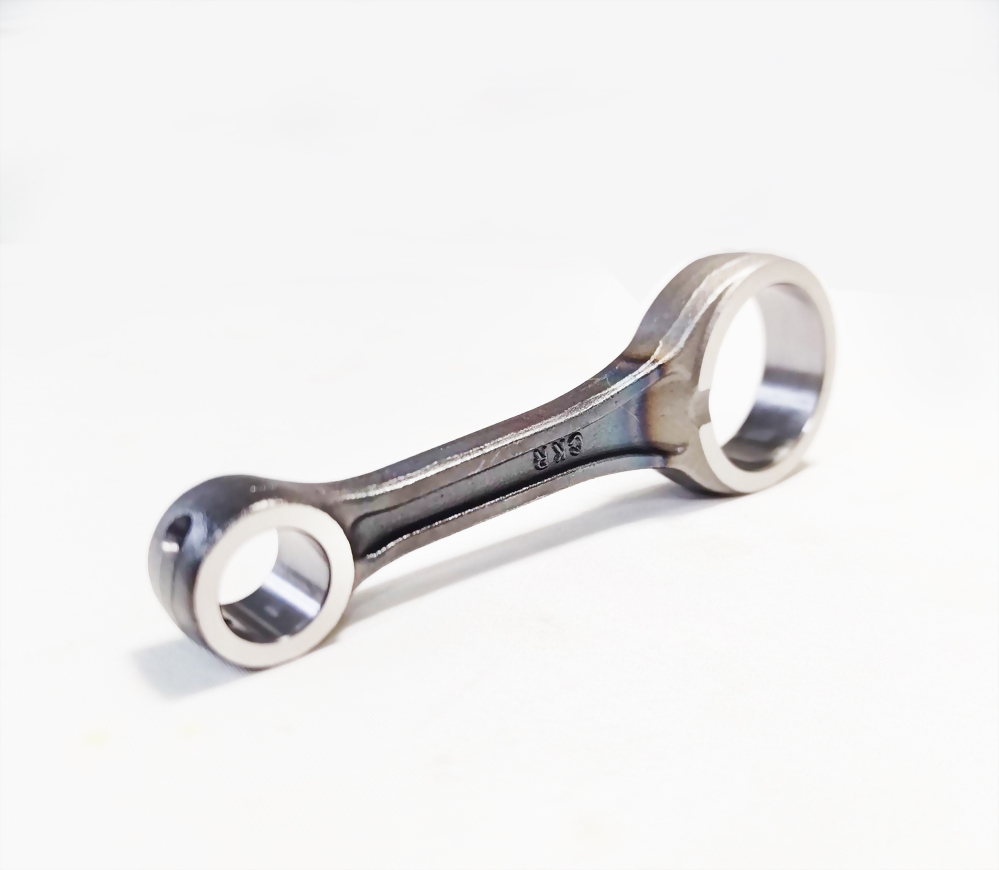

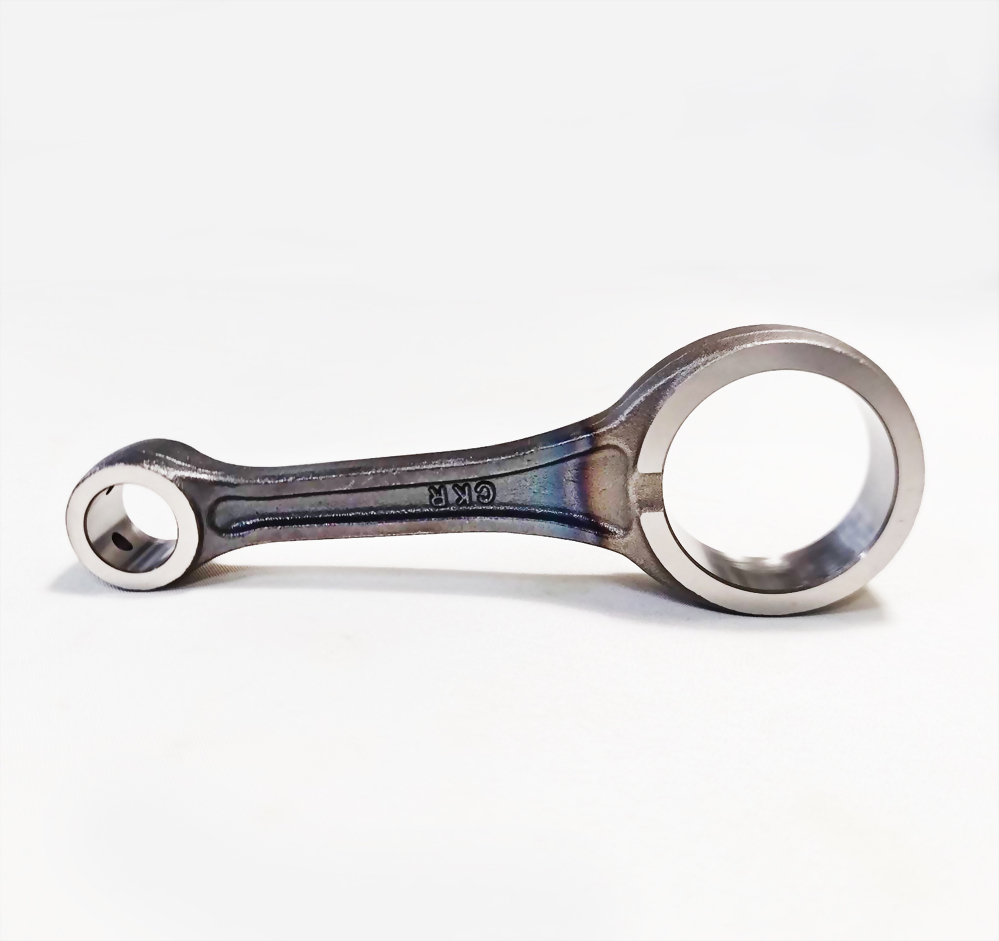

C.K.R KRE-S Connecting Rod Kit with a 104.5mm center-to-center length. Special size for modified and stroker engines. Made in Taiwan, OEM standard quality.
Model : KRE-S

Detailed Product Description:
The C.K.R KRE-S Connecting Rod Kit is designed for modified and stroker engines, offering precise fitment and durability. Manufactured to OEM standards, this high-quality connecting rod ensures reliable performance and smooth installation.

Specifications:

  • Big-end Width: 16mm
  • Small-end Width: 16mm
  • Big-end Bore: 36mm
  • Small-end Bore: 15mm
  • Center-to-Center Length: 104.5mm

Ideal for custom engine builds requiring a special-size connecting rod. Made in Taiwan with strict quality control for consistent performance and longevity.

For more details or to place an order, please Contact Us.
