High-End Application

We have worked on the high performance connecting rods for more than twenty years. High strength, high wear resistance, high compatibility of conrod kit ensures your engine more powerful, safer and lasting longer.

All - Terrain Vehicle (ATV)
Unit: mm


Part No.

Model

Big End Width

Small End Width

Big End Bore

Small End Bore

Center    to    Center

Honda

CN516-1

1981 - 1984 ATC 250R

17

19.9

31

22

125.4

CN516

1985 - 1986 ATC 250R

17

19.9

31

22

125.4

CR900M

1999 - 2008 TRX 400EX

2009 - 2014 Honda TRX 400X ATV

21

19

43

20

122.7

CN518

2006 - 2014 TRX 450ER,

2006 - 2009 TRX 450R

19.75

18

42

19

105.5

YAMAHA

29L

1987 - 2006  Banshee 350

17

18

29

21

110

30L

1987 - 2006  Banshee 350    LONG ROD (+5mm)

17

18

29

21

115

KAWASAKI

CN510

2003 - 2006 KFX 400,

21.8

20

43

20

107

ARCTIC CAT

CN510

2004 - 2008 DVX 400

21.8

20

43

20

107

SUZUKI

CN510

2003 - 2012 LTZ 400

21.8

20

43

20

107



Motor Cross
Unit: mm


Part No.

Model

Big End Width

Small End Width

Big End Bore

Small End Bore

Center    to    Center

YAMAHA

CN517

1991 - 1997 WR 250,

1990 - 1998 YZ 250

19.9

19.9

32

23

125

CN513

1999 - 2016 YZ 250

17

19.9

31

22

125

CN508

2003 - 2013 WR 250F

2003 - 2013 YZ 250F

18

15

40

16

93.5

CN502

2004 - 2006 WR 450F,

2003 - 2005 YZ 450F

20

18

42

18

103.5

CN503

2007 - 2011 WR 450F,

2006 - 2009 YZ 450F

20

18

42

18

103.5

HONDA

CN516

1983 - 2001 CR 250R,

17

19.9

31

22

125.4

CN512

2002 - 2007 CR 250R

16.5

20

32

22

125.3

CN505

2004 - 2015 CRF 250R,

2004 - 2016 CRF 250X

17.8

15

38

16

90

CN506

2002 - 2008 CRF 450R

19.75

18

42

19

105.5

CN504

2007 - 2017 CRF 150R,

2007 - 2017 CRF 150RB

15.75

14

32

14

75.4

CN507

2009 - 2016 CRF 450R

19.8

18

41

19

102.1

CN518

2005 – 2016 CRF 450X

19.75

18

42

19

105.5

KFB

2003 - 2009 CRF 230F

18

18

38

18

110

CN509

2004 - 2009 KX 250F

18

15.1

38

16

92.5

CN519

2010 - 2016 KX 250F

18

15

38

16

92.5

CN510

2003 - 2004 KLX 400

21.8

20

43

20

107

CN511-1

2008 - 2013 KLX 450R,

2007 - 2008 KX 450F

20

18

42

19

101

CN511

2009 - 2017 KX 450F

20

18

42

19

101

CN509

2004 - 2006 RMZ 250

18

15.1

38

16

92.5

CN510

2000 - 2015 DRZ 400,

2005 - 2015 DRZ 400SM,

21.8

20

43

20

107

CN515

2007 - 2015 RMZ 250

17.75

15

38

16

92.5

CN520

2008 - 2012 RMZ 450

19.75

16.5

42

19

105.6

KTM

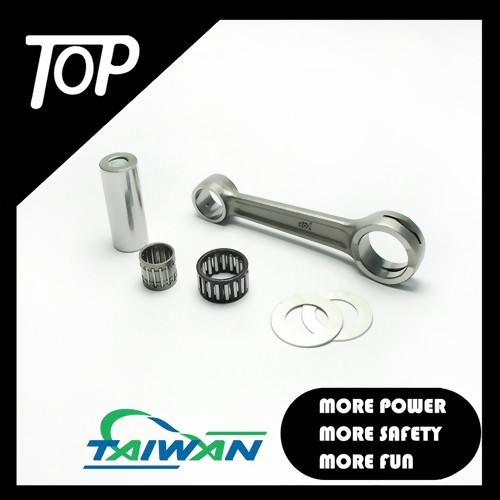

CN514

2004 - 2011 250 EXC,

2003 - 2015 250 SX,

2003 - 2007 250 SXS,

2004 - 2015 250 XC,

2004 - 2014 250 XC-W,

2004 - 2011 300 EXC,

2004 - 2011 300 MXC,

2004 - 2014 300 XC,

2004 - 2014 300 XC-W

16.9

16.9

31

22

124.9



Personal Watercraft (PWC)
Unit: mm


Part No.

Model

Big End Width

Small End Width

Big End Bore

Small End Bore

Center    to    Center

KAWASAKI

CR86M

2001 - 2002 900 STS,

1997 - 2006 900 STX, 1995 - 1997 900 ZXI,

1992 - 1995 JS 750

20

22

34

25

133

SEA-DOO

CR81M

1995 - 2002 720 HX,

1995 - 2002 720 XP

18

18

33

24

125

CR83M

1996 - 1999 785

18

18

35

24

140

CR80M

1996 580

17

17

31

22

125

CR85M

1998 - 2002 951 CARBURETED

19.9

19.9

36

25

140

YAMAHA

CR82M

1996 - 1998 Exciter 1100 Jetboat,

1998 - 1999 Exciter Jetboat,

1997 - 1999 GP 1200 Waverunner,

1999 - 2005 LST 1200 Jetboat,

1995 - 1996 RA 1100 Waveraider,

1998 - 2012 SJ 700,

1990 - 1993 SUPER JET 650,

1999 - 2004 SV 1200 Waverunner,

1999 - 2004 WAVE RUNNER XL 700,

1998 WAVE VENTURE 700,

1996 - 1997 WVT 1100 Waveventure,

1998 XL 1200 Waverunner

20

20

32

25

125

CR84M

2000 - 2002 GP 1200 Waverunner,

2003 - 2006 GP 1300 Waverunner,

1998 - 2005 GP 800,

1998 - 2005 GP 800R,

1999 - 2005 XA 1200 Waverunner,

2000 - 2001 XR 1800 Jetboat

21

21

34

27

135



Motocross, Dirt Bike, Racing Parts (23)

Connecting rod kits for motocross, dirt bike, supercross, motocross dirt bike racing parts

ATV, Four Wheelers (10)

Connecting rod kits for ATV, Four Wheelers, 4 Wheelers

Personal Watercraft, PWC, Jet ski, Jetski (8)

Connecting rod kits for Personal Watercraft, PWC, Jet ski, Jetski
