We have rich experiment on aftermarket motorcycle connecting rod and small engine connecting rod manufacturing. Besides, we have large database and a vast amount of forging mold tooling to save your time to development and design cost with good connecting rod price.

Aftermarket
Unit: mm

Part No.

Model

Big End Width

Small End Width

Big End Bore

Small End Bore

Center to Center

Honda

440

CG125 CG/83 18 18 38 15 103.5
KFI BIZ125 / KPH / Wave100 14 14 30.1 13 100
036
C50 / C70 / C75 14 14 28.1 13 91
178 C800 14 14 28.1 15 91
KVK CB300R / XRE300 21 21 41 18 103
KPF CBX250 / TWISTER250 18 18 41 17 102.5
KGA CG TITAN 2002 16 16 36 13 105.5
KYO CG TODAY / KCN 18 18 38 15 105.5
383 CG125 / CB100S 16 16 37 15 103.5
KWG
CG125 2009 / CBF125 16 16 36 13 96
KRM CG150 16 16 36 14 96
KFB
CRF230F / KPS 18 18 38 15 110
GB5 C70C / C90C 14 14 28.1 13 94
W2 DIO 13.5 13.5 24 17 80
GK4
C50D 14 14 24 13 94
GF6 C100 / DREAM / BIZ / EX5 / GN5 14 14 30.1 13 94
GW3 NH90 13.5 13.5 24 17 91
GY6
GY6 14 14 33 15 93.5
KG100 NH100 13 13 24 18 100
KG8 LEAD125 13.5 13.5 24 19 100
KW1 LD150 / CBX150
18 18 38 15 105.5
KW6 NSR150 16.85 16.85 31 21 110
GFM KVB / LEAD110 14 14 32 13 92.7
M100 CH100 14 14 30.1 13 88
M150 CH125 14 14 37 15 94
168 MB100 / NOVAS / H100S 14 14 26 19 100
AT50 NH50 12 12 22 14 80
428 XLR250 20 20 41 19 113
KGO XLX250 20 20 41 19 116
KL3 XLX350 / KV2 20 20 47 19 116
KZYA PCX150 / SH150i / CLICK150i / VARIO150 / FORZA125 14 14 36 14 95
KWNA PCX125 / SH125i / TECHNO125 / LEAD125 2005  14 14 36 13 95
KFM
WAVE100 / EX5 DREAM 14 14 30.1 13 97
KRE BROS160 16 16 36 14 104.5
K31 CB250 / TWISTER 2016 18 18 41 17 112
K62 POP110 14 14 32 13 98

YAMAHA

137

YB125 / YA6 15 16.5 30 20 120
164 YB100 / YL2G 14 14 28 18 100
1S4 FAZER250 / YBR250 20 20 40 17 100.5
AT50 PASSOL / SA50 / 2E9 / JOG50 12 12 22 14 80
2JG Y100 14 14 26.035 18 96
3KW FZR150 14 14 38 13 147.5
3RR TZR150 18 18 31 21 105
43G DT200 / 4AN 17 17 29 21 110
126 DT50 / YG1 / YF1 11.6 15.6 24.035 15 84
4CW1 CYGNUS125 14 14 31 13 98
5HV
CRYPTON 14 14 31 13 92
4Y2 RX125 / RXK / DT125 / DT175 16 16 28 20 100
5D9 SRL115Z / CRYPTON115 14 14 35 13 93.5
5HK XWZ100 14 14 31 13 88.5
5HM YD100 14 14 31 13 94
5MX CYGNUS125 / EGO / NOUVO115 / NEO115  14 14 35 15 93.5
2N4 DT175 / DT180 16 16 28 20 105
558 RX100 / DX100 15 15 28 18 100
4X8 RX115 / RXS 16 16 28 18 100
55K RXZ / RXZ135 16 16 29 20 105
517 V50 / V75 / YB50 11.6 11.6 24.035 15 84
1W7 Y80 / V80 11.6 11.6 26.035 15 94
29U XT225 / ST225 20 20 37 16 100.5
180 YB80 11.5 15.5 24 15 89
4LS YBR125 16 16 37 15 88.7
1ST FAZER150 16 16 36 15 98
3C1 FZ150 16 16 35 14 100
5YP
LC135 14 14 35 14 100
5HV
SRL110 / 5TN / JUPITER-Z / SPARK110 14 14 33 13 92
34X Y125Z 16 16 28 20 110
5VK
XT660 22 22 50 23 136
681 XMAX125 / YZF125 16 14 35 14 100.5
3TB XT600 22 22 43 22 135.5

SUZUKI

052

GS125 / INTRUDER125 16 16 36 14 106.4
12F5 YES125 16 16 36 14 109.75
20E2 BURGMAN125 16 16 36 14 108.1
120.39 A100 15.85 18 25 18 100
30D SHOGUN 17 14 34 14 98
350 A50 / F50 / FR50 12 12 22 16 80
AD50 ADDRESS50 12 12 22 14 75
21D AKIRA / RG110 / RD110 16 16 26 18 94
1411 AX100 17 17 26 18 100
G120 SMASH125 / G125  15 15 31 14 100
HD6 HYOSUNG125 16 17 36 15 99.5
HD6-1 CRUISER125 16 17 36 16 99.5
K90 RV90 16 16 25 18 95
KFL103 SMASH2 / CD110 13.85 13.85 30.1 13 103
04C AG100 / RC100 / V100 14 14 26 16 94
21F BURGMAN125 17 18 38 16 108

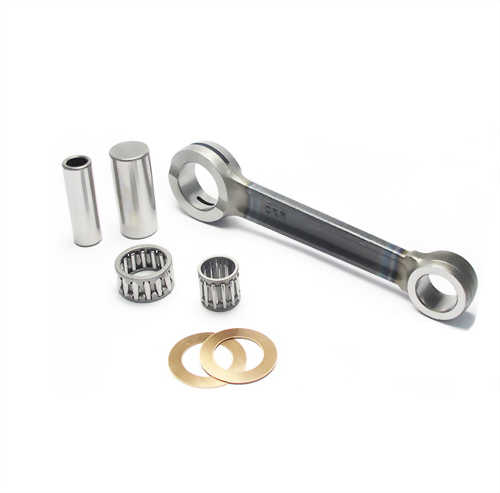

OTHERS

7015

AGRALE 16 16 29 20 110
KFI BAJAJ100 14 14 29 13 100
PA39 MZ TS250 20 20 35 22 130
382 JAWA250 16 23 29.91 22 160
JW350 JAWA350 15.8 15.8 29 20 144
JAWA50 JAWA50 12 12 24.2 18 84
MIG KAWASAKI GTO 14 16 28 18 99
1159 KAWASAKI KR150 17 17 29 19 104
MIN90
MINARELLI 12 17.5 26 17 100
3CK MOBYLETTE NEW 10 10 21 16 85
XC45 MOBYLETTE OLD 12 8.4 22.2 16 85
12-43.035 MZ125 16.9 16.9 31 19 125
31-43007 MZ150 20.15 20.15 35 19 125
29-43000
MZ250 22 22 40 22 130
2KL2 PEUGUOT PG50 NEW 12 12 22 15 76
2KL PEUGUOT PG50 OLD 12 12 20.11 15 76
BUXY PEUGUOT BUXY 12 12 22 15 80
SEF PIAGGIO TYPHOON50 12 12 22 17 80
593 PUCH50 10 10 18 15 90
593-1 TOMOS Φ12 10 10 21 15 90
593-2 TOMOS Φ10 10 10 21 14 90
SM50 SIMSON50 13 13 24 16 85
3750/S VESPA P150X 15.4 15.4 29 19 105
CK205 VESPA50 / CIAO 9.8 9.8 21 14 87
100 GO KART ENGINE 15 15 26 19 100
116 MODIFIED ENGINE 16 16 26 20 116
116 MODIFIED ENGINE
17 17 30 20 116
116 MODIFIED ENGINE
16 16 29 20 116
116 MODIFIED ENGINE
17 17 30 24 116
116 MODIFIED ENGINE
17 17 26 24 116
116 MODIFIED ENGINE
16 16 29 22 116
120 MODIFIED ENGINE
14 18 30 20 120
120 MODIFIED ENGINE
16 18 30 20 120
124
MODIFIED ENGINE
16 16 29 22 124
124 MODIFIED ENGINE
16 16 26 22 124

CHAINSAW ROD

1119

STIHL 038 8.5 13 22 16 62
1128 STIHL 044 8.7 15 22 15 62
1115
STIHL 056 10 14.5 22 17 70
1106 STIHL 070 13 19 25 19 73
1108 STIHL 08S 8.5 13 20.4 16 58
