For Arctic Cat 2004-2008 DVX 400

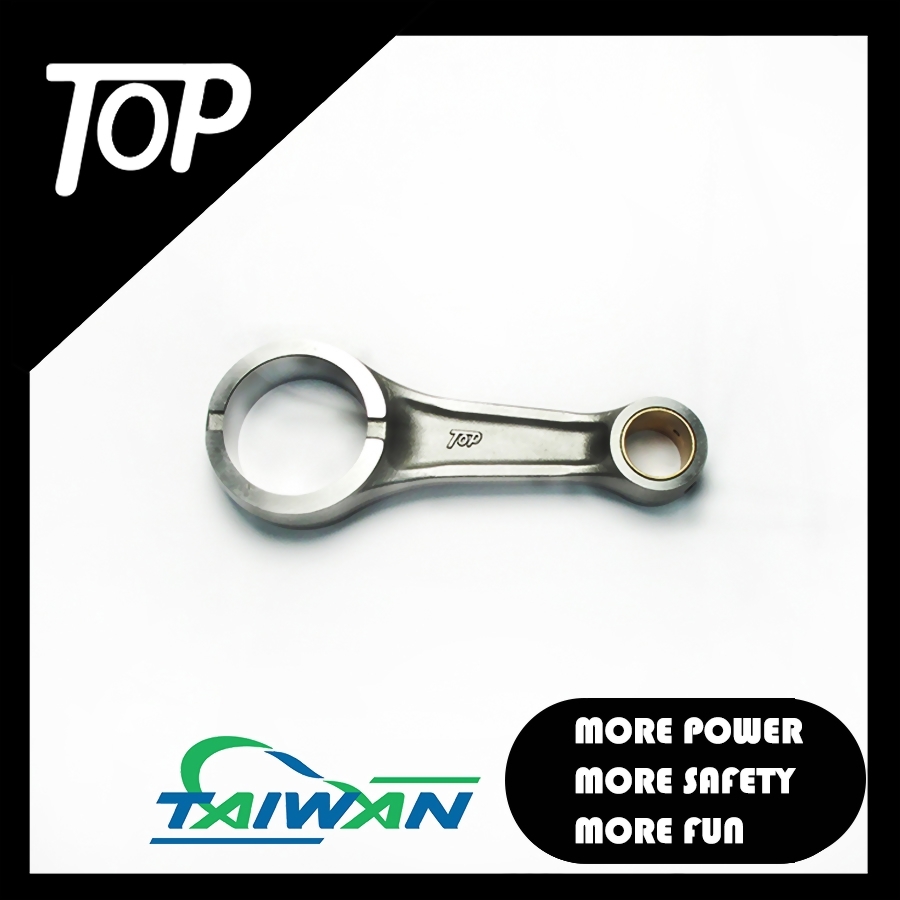

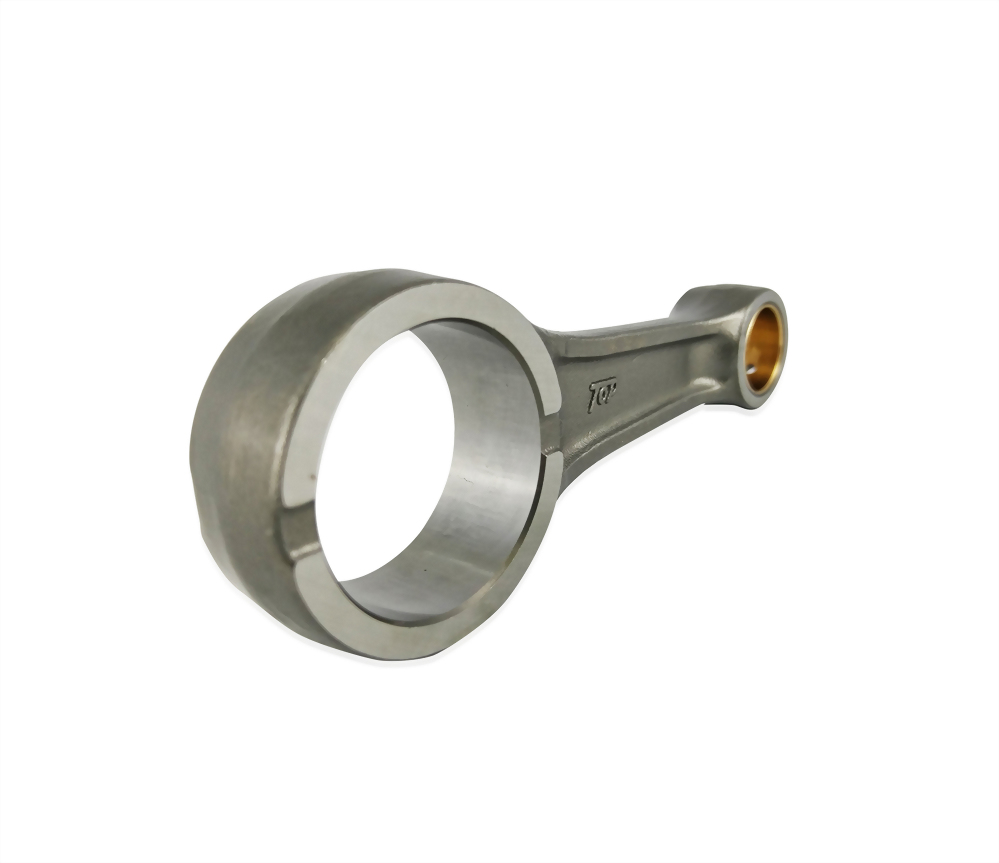

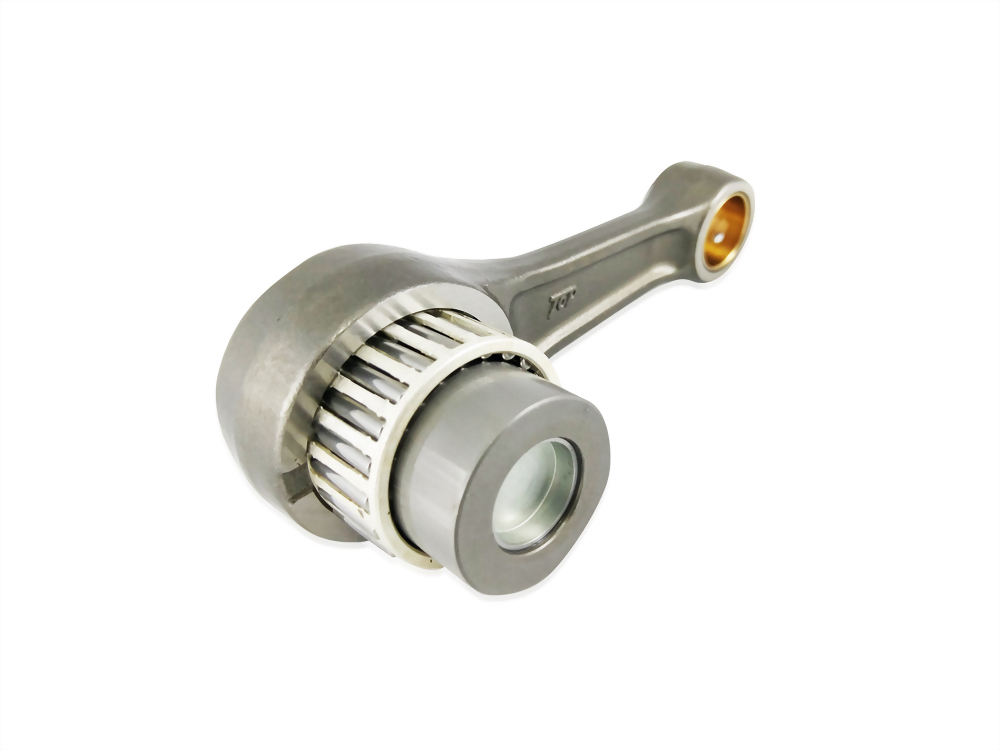

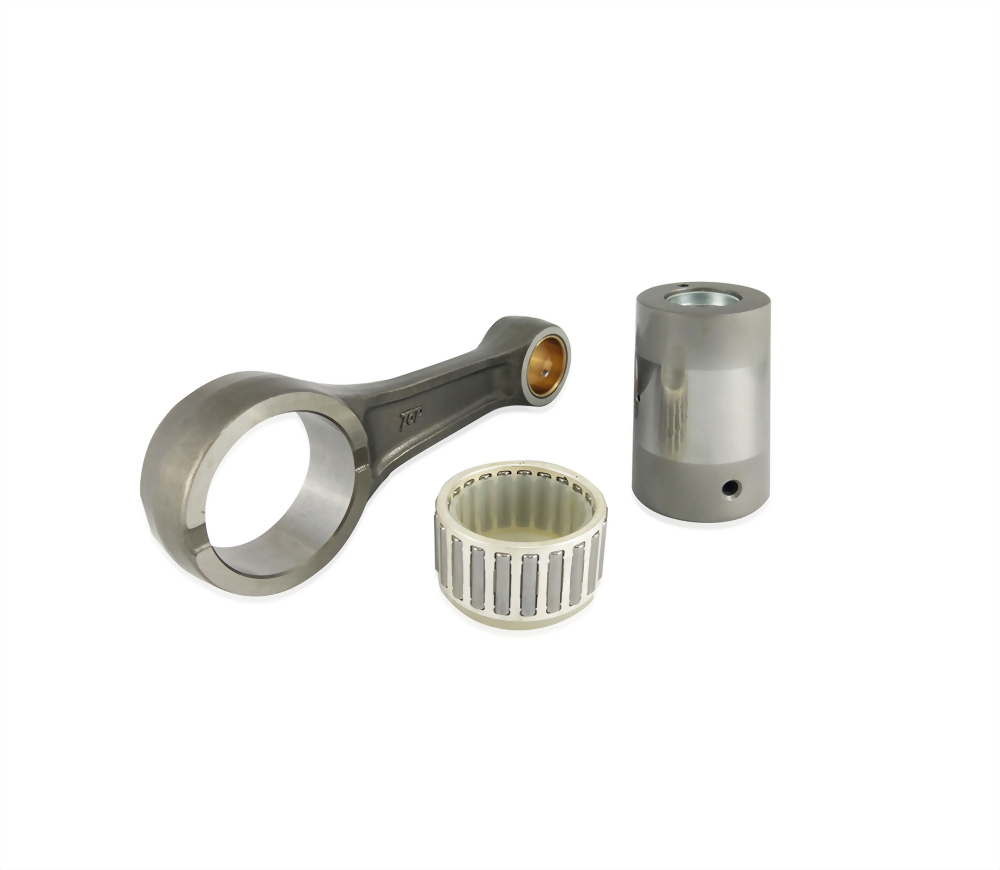

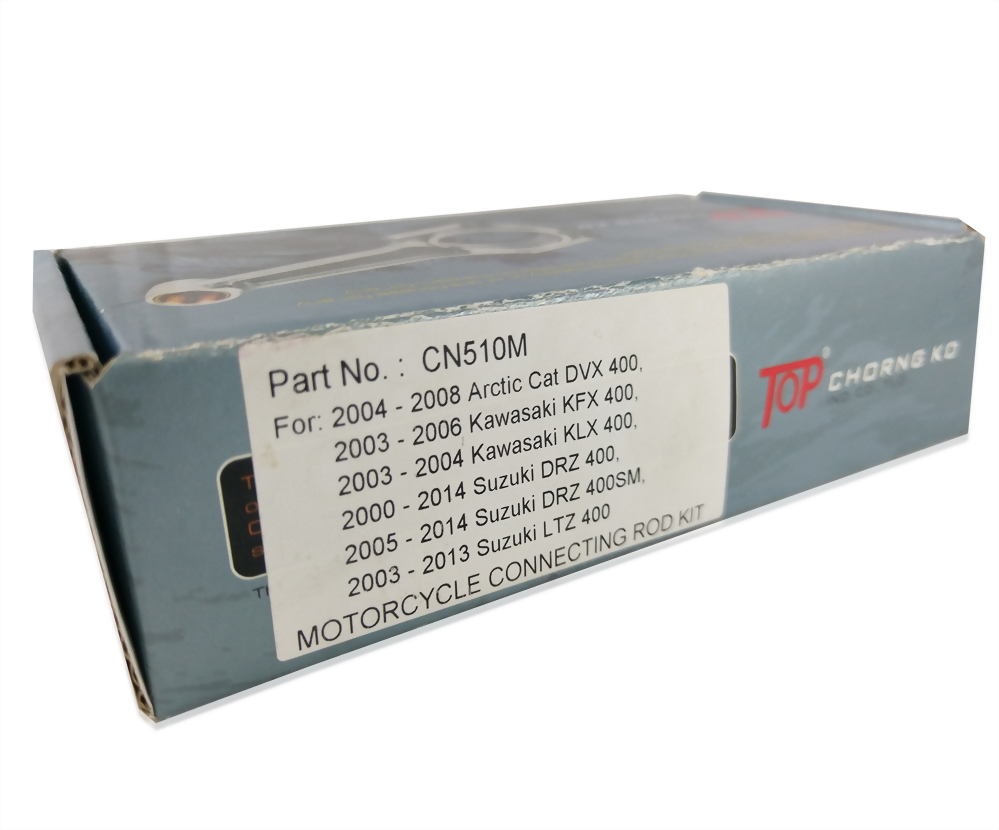

The CN510M connecting rod kit is for the famous Arctic Cat 2004-2008 DVX 400 engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.

Application:

Arctic Cat 2004-2008 DVX 400

Big-end Width (mm): 21.8

Small-end Width (mm): 20

Big-end Bore (mm): 43

Small-end Bore (mm): 20

Center-to-center (mm): 107

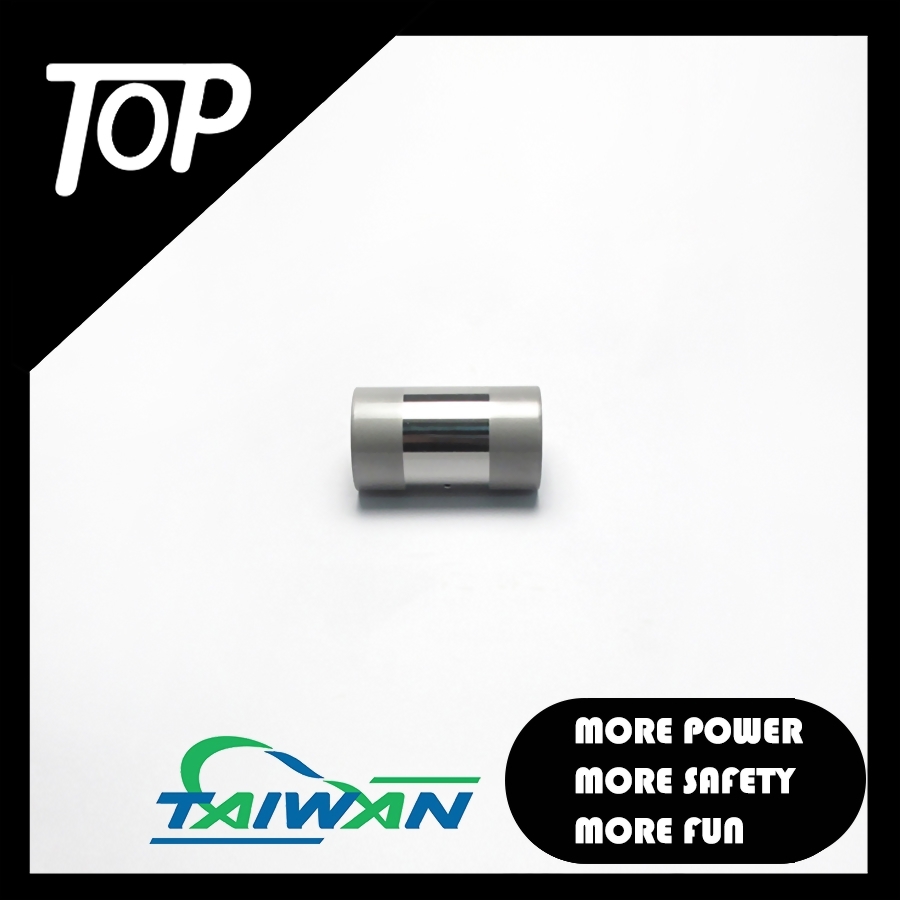

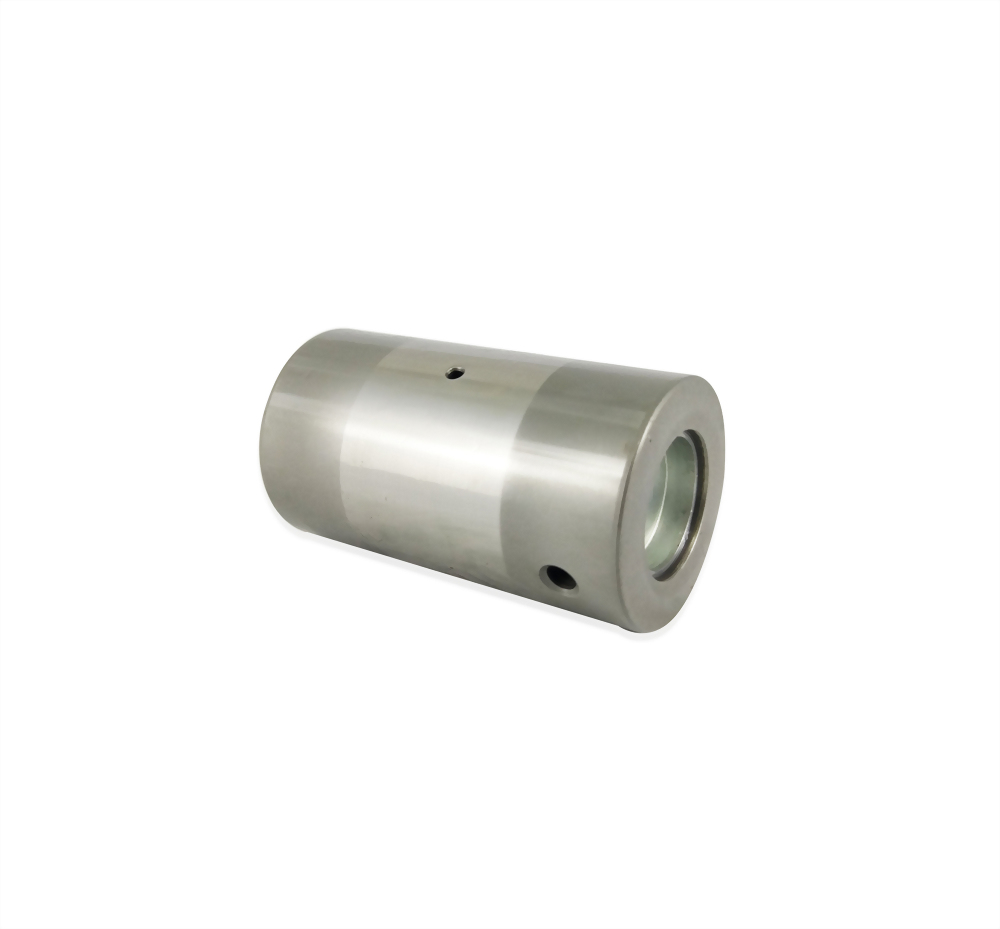

Pin Diameter (mm): 35

Pin Length (mm): 61.8

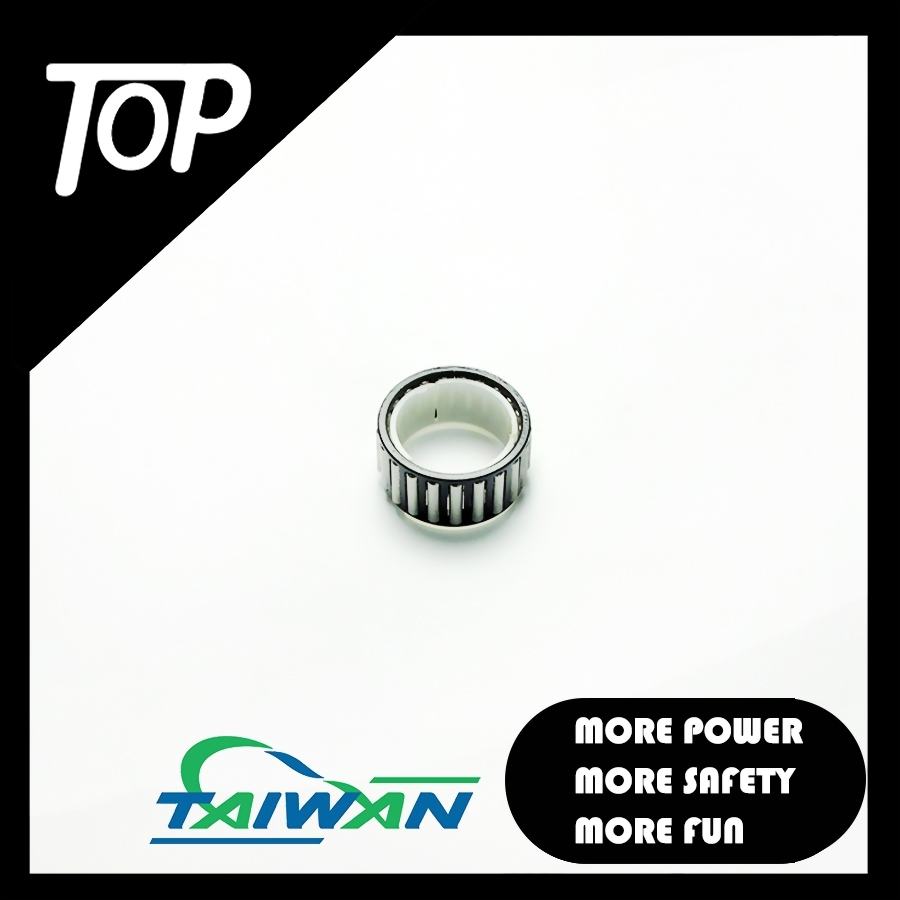

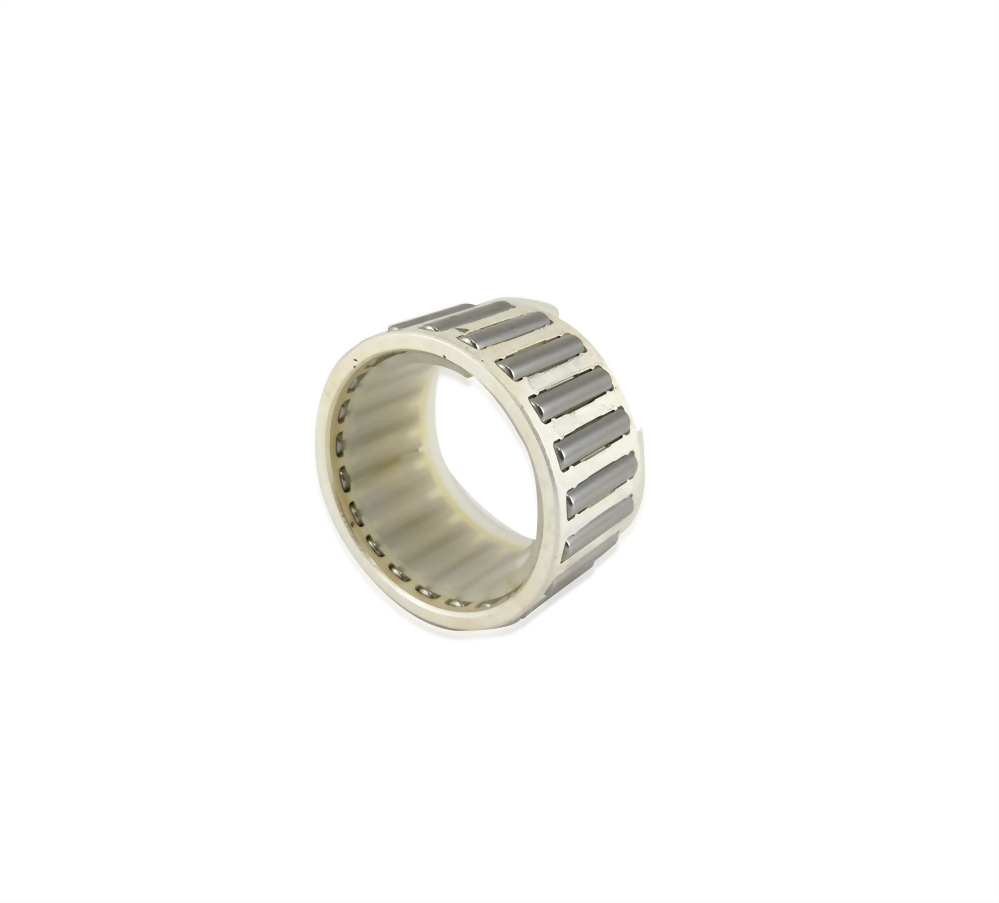

Big-end Bearing (mm): 35*43*22

Small-end Bearing (mm): Bush

Washer Thickness (mm): N/A
