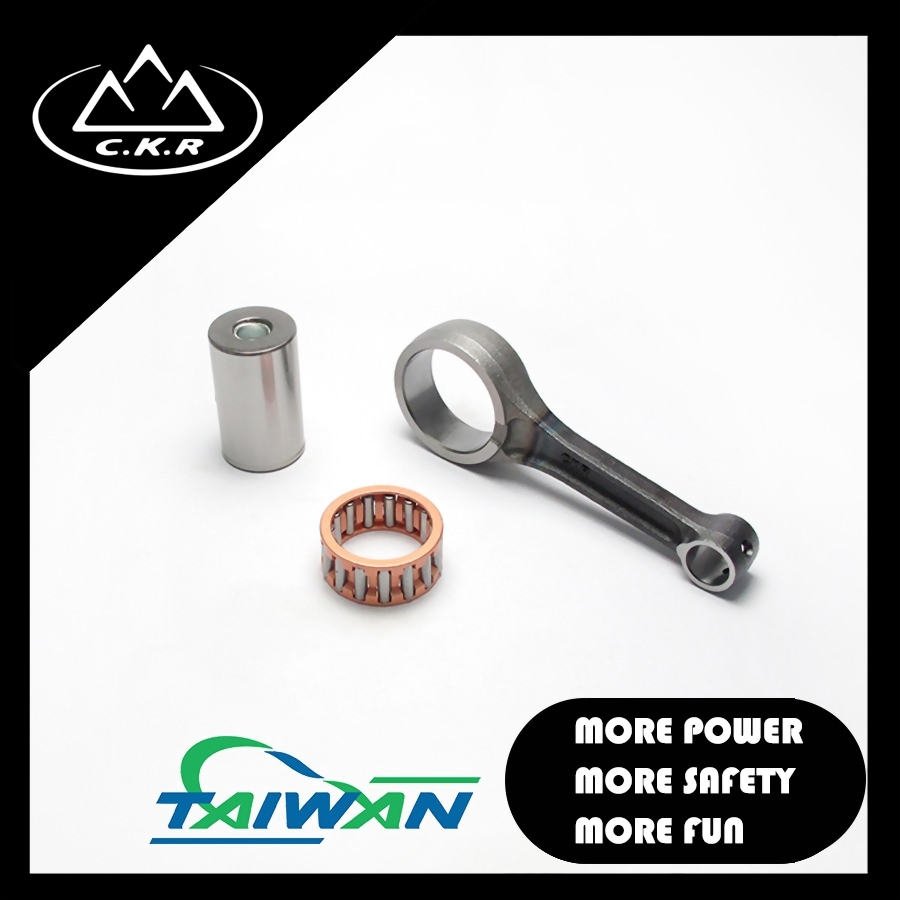

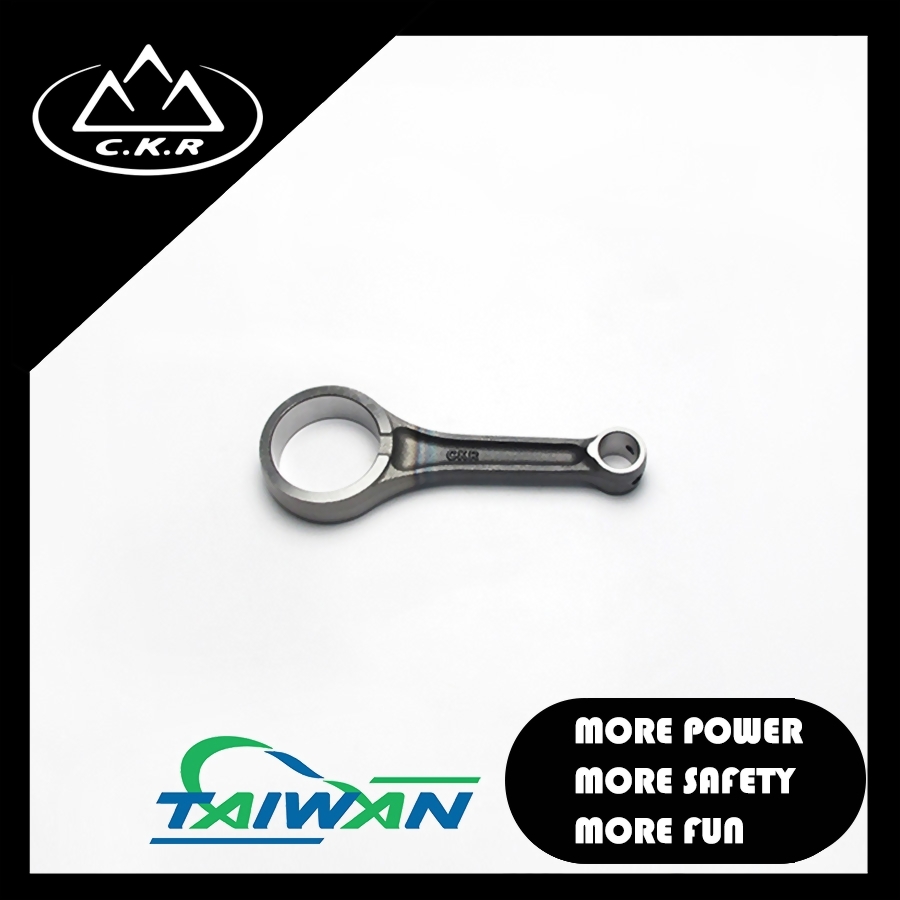

For Honda CG125 2009

Application:

Honda CG125 2009

OE NO. 13201-KWG-600
Model : KWG

Application:

Honda CG125 2009

OE NO. 13201-KWG-600


Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 36

Small-end Bore (mm): 13

Center-to-center (mm): 96

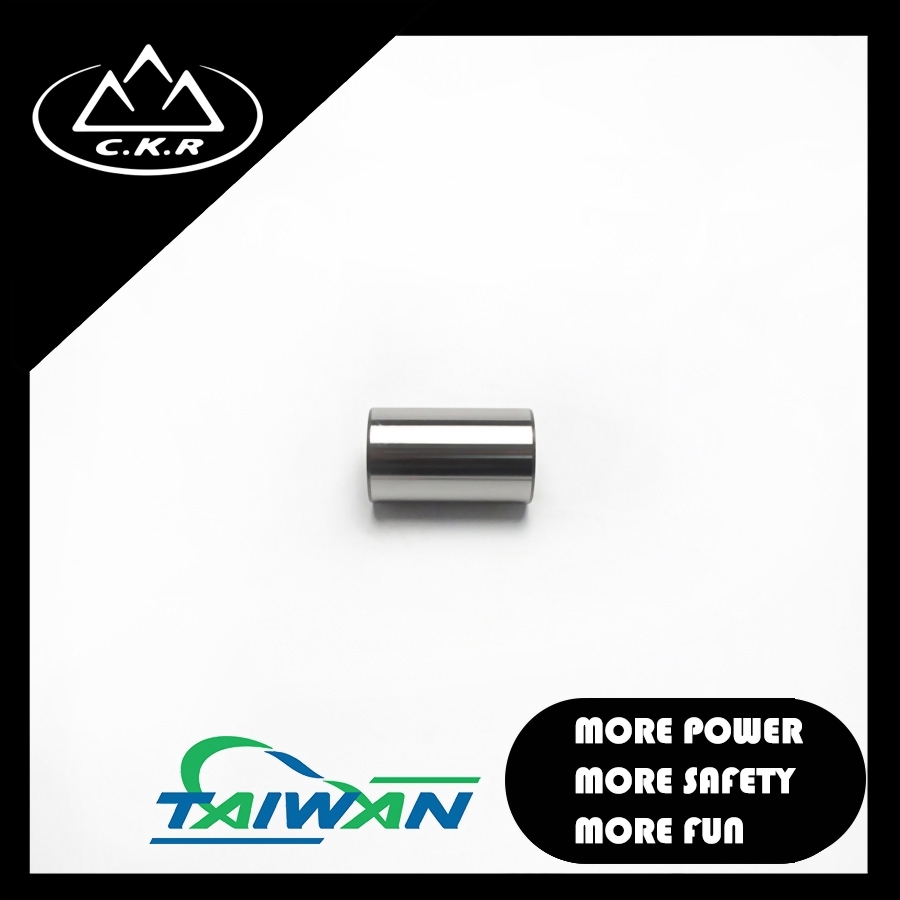

Pin Diameter (mm): 28

Pin Length (mm): 47

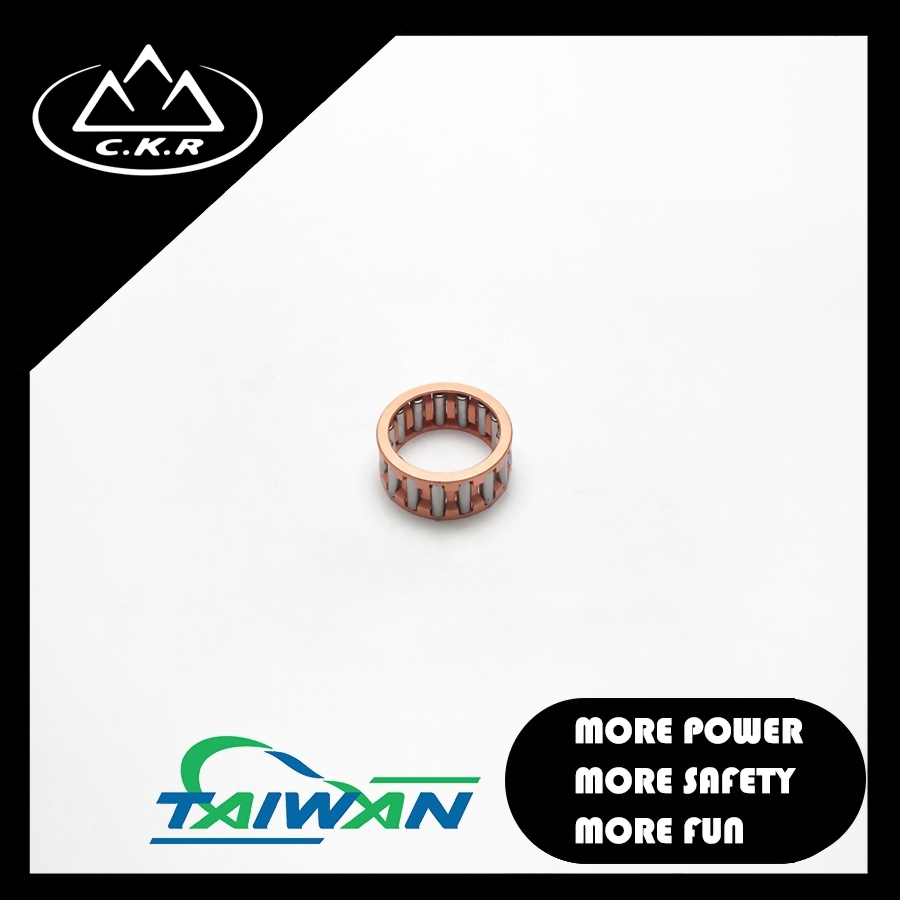

Big-end Bearing (mm):  28*36*16

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
