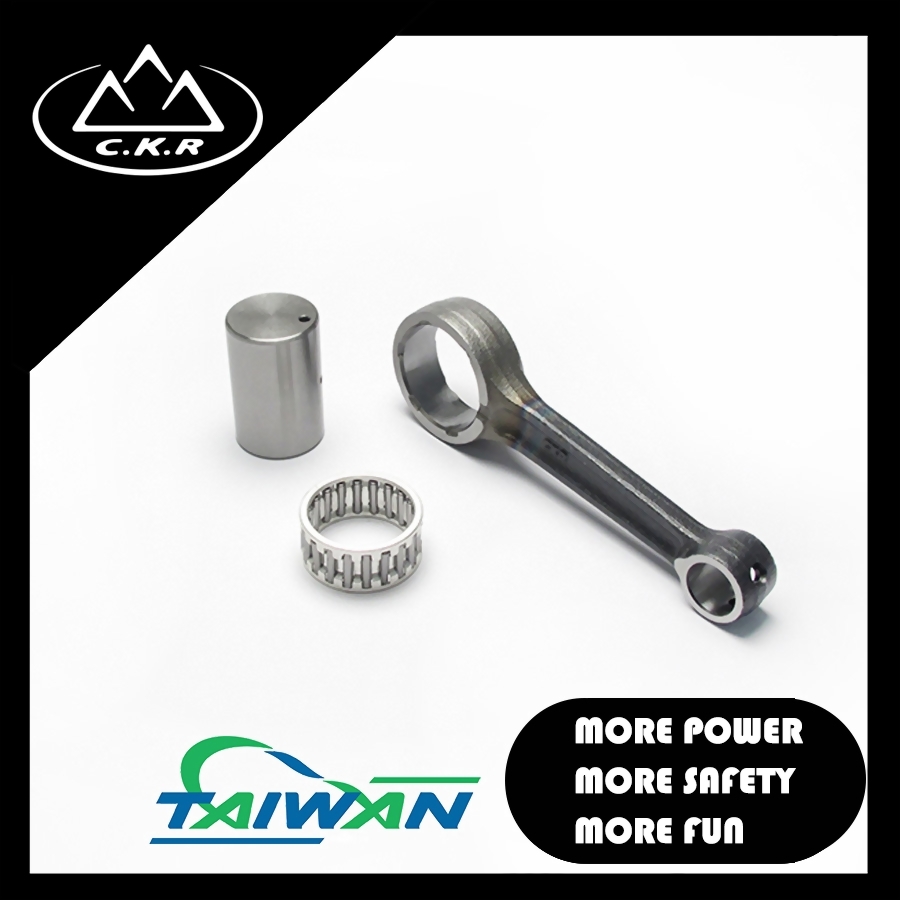

For Honda WAVE100 / EX5 DREAM

Application:

Honda WAVE100 / EX5 DREAM

OE NO. 06381-KFM-901
Model : KFM

Application:

Honda WAVE100 / EX5 DREAM

OE NO. 06381-KFM-901


Big-end Width (mm): 14

Small-end Width (mm): 14

Big-end Bore (mm): 30.1

Small-end Bore (mm): 13

Center-to-center (mm): 97

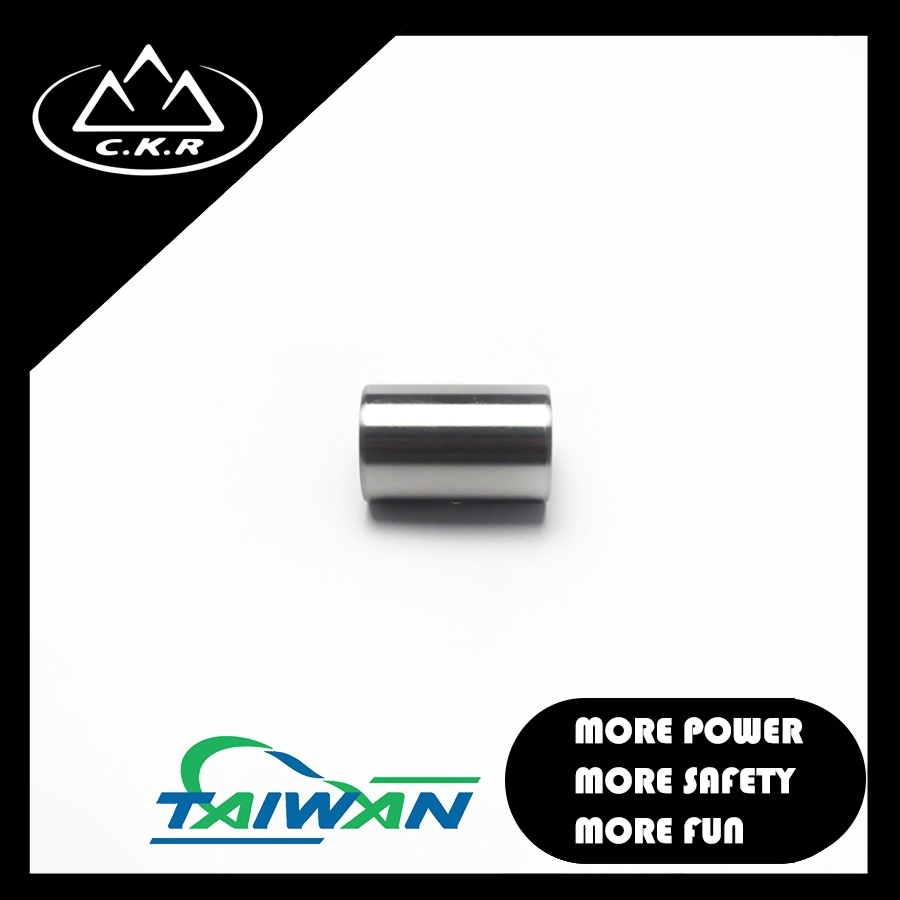

Pin Diameter (mm): 25.1

Pin Length (mm): 39

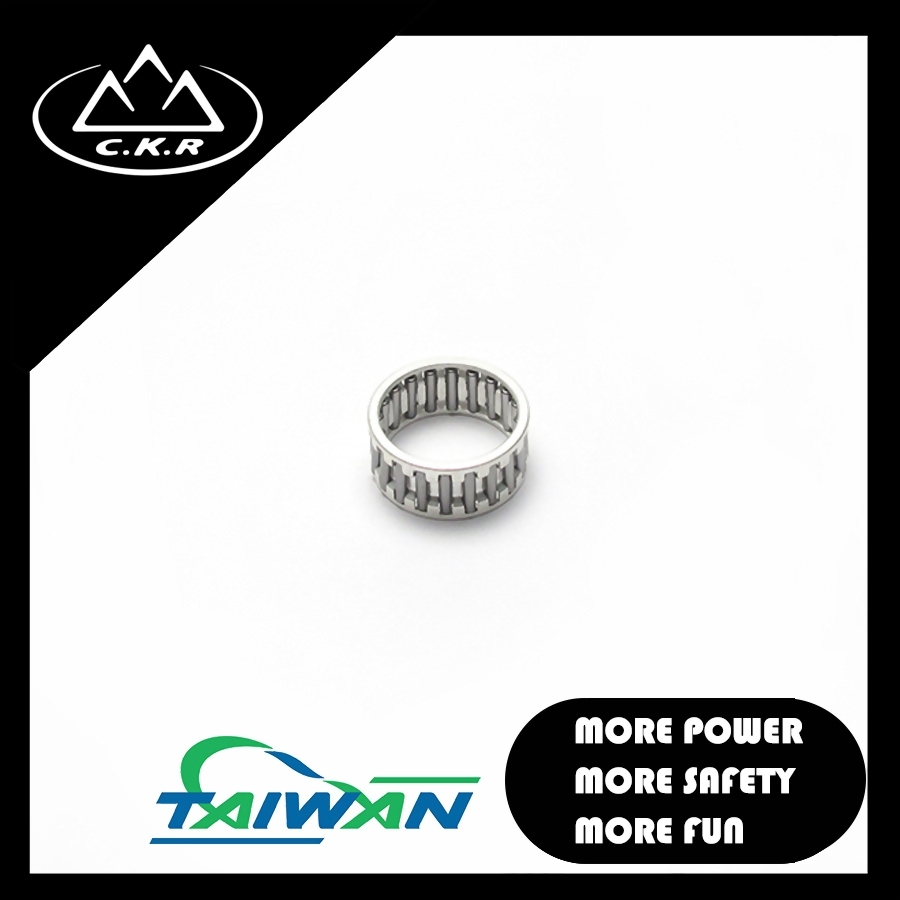

Big-end Bearing (mm): 25.1*30.1*14

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
