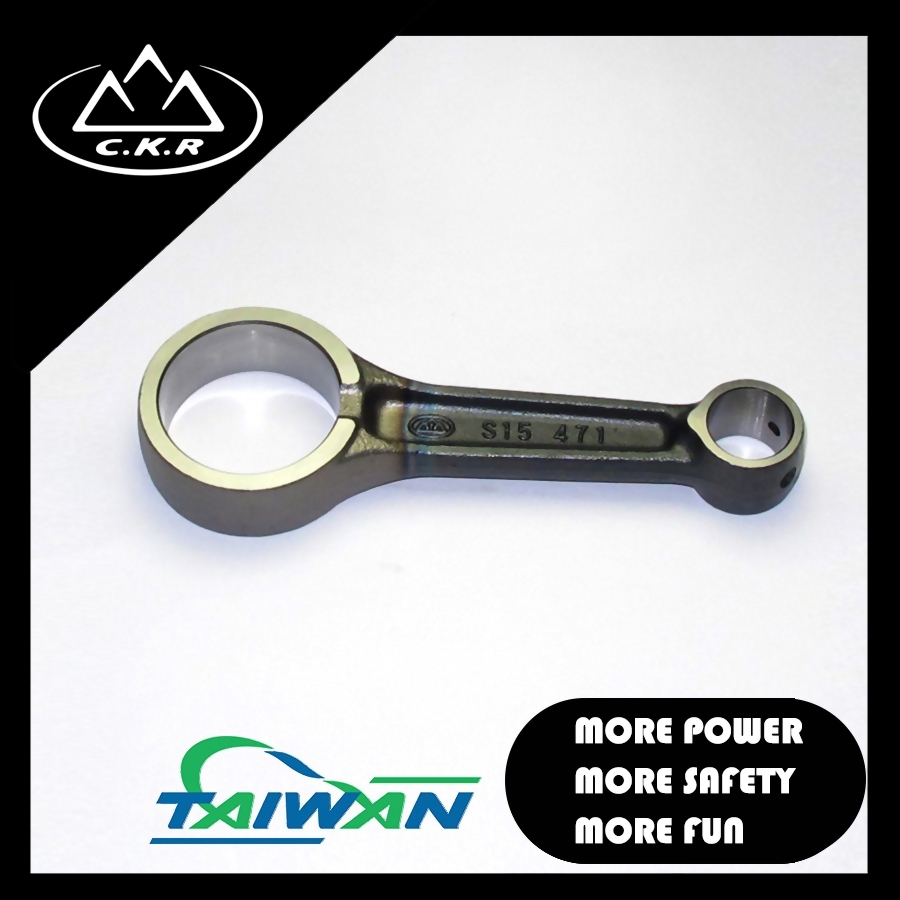

For Honda XLR250

Application:

Honda XLR250

OE NO. 13201-428-000
Model : 428

Application:

Honda XLR250

OE NO. 13201-428-000


Big-end Width (mm): 20

Small-end Width (mm): 20

Big-end Bore (mm): 41

Small-end Bore (mm): 19

Center-to-center (mm): 113

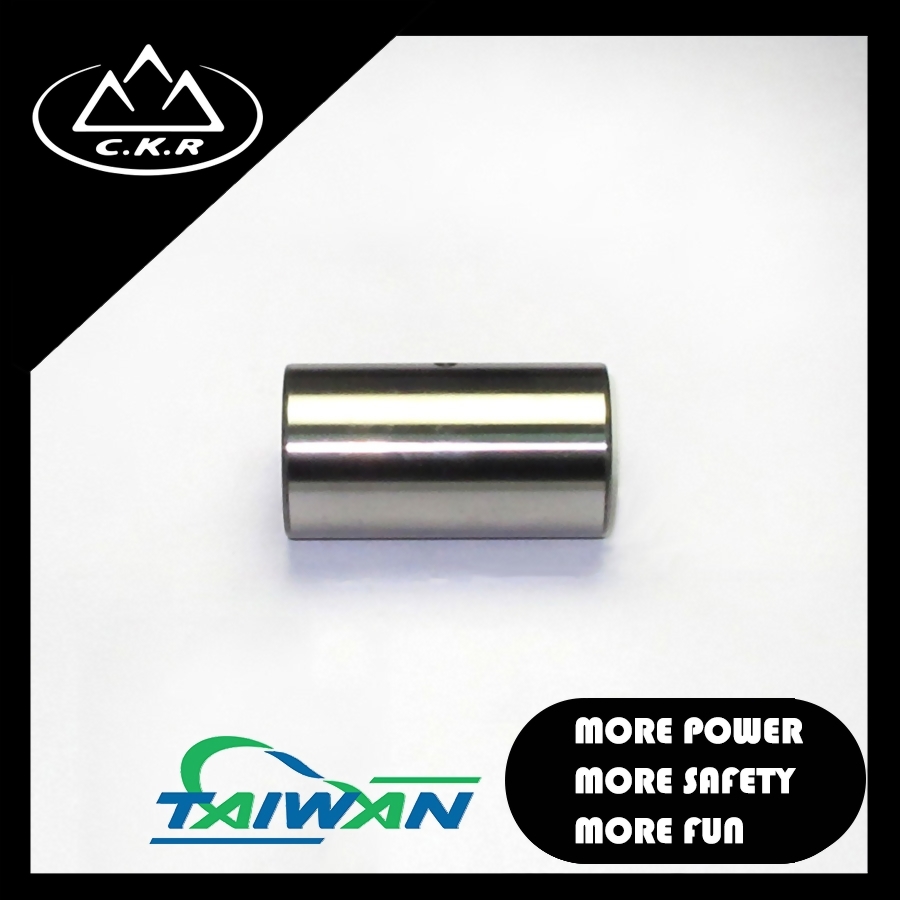

Pin Diameter (mm): 33

Pin Length (mm): 61

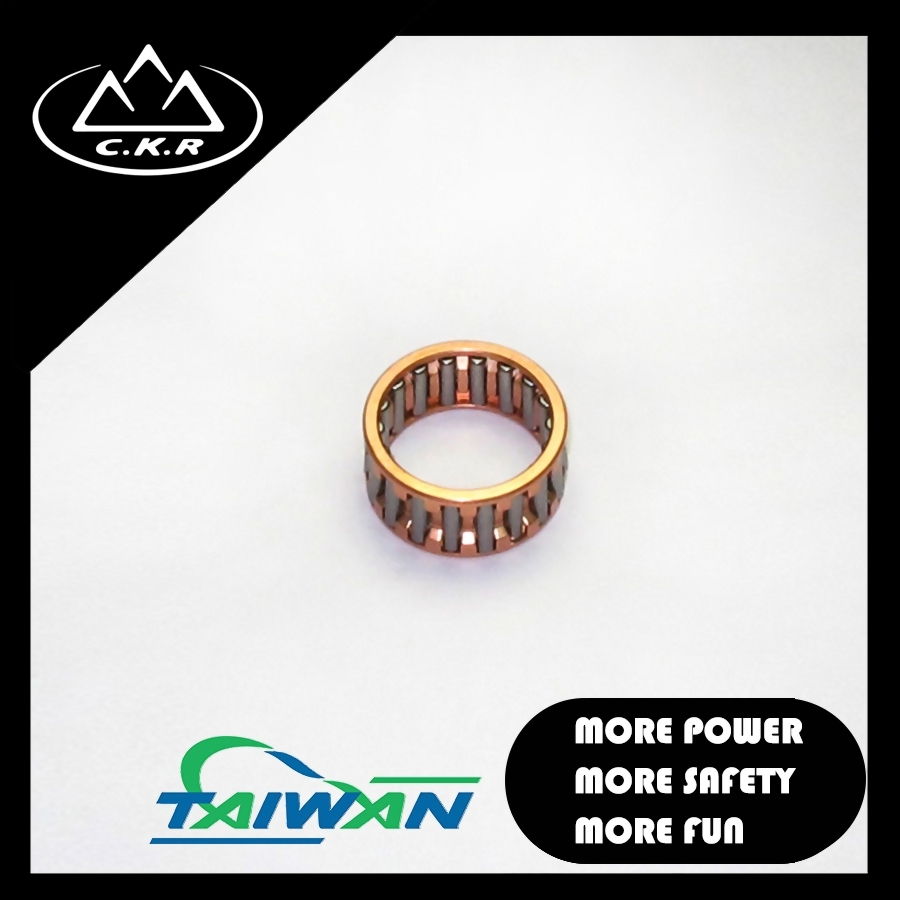

Big-end Bearing (mm): 33*41*20

Small-end Bearing (mm): N/A

Washer Thickness (mm): 1.0
