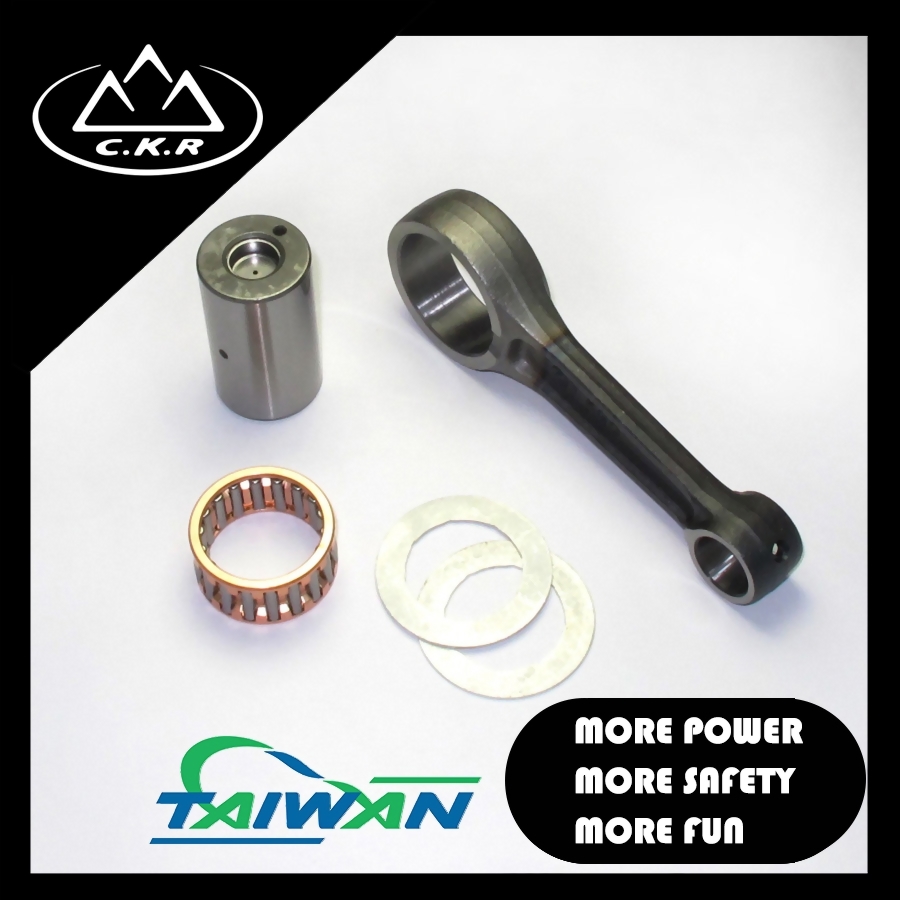

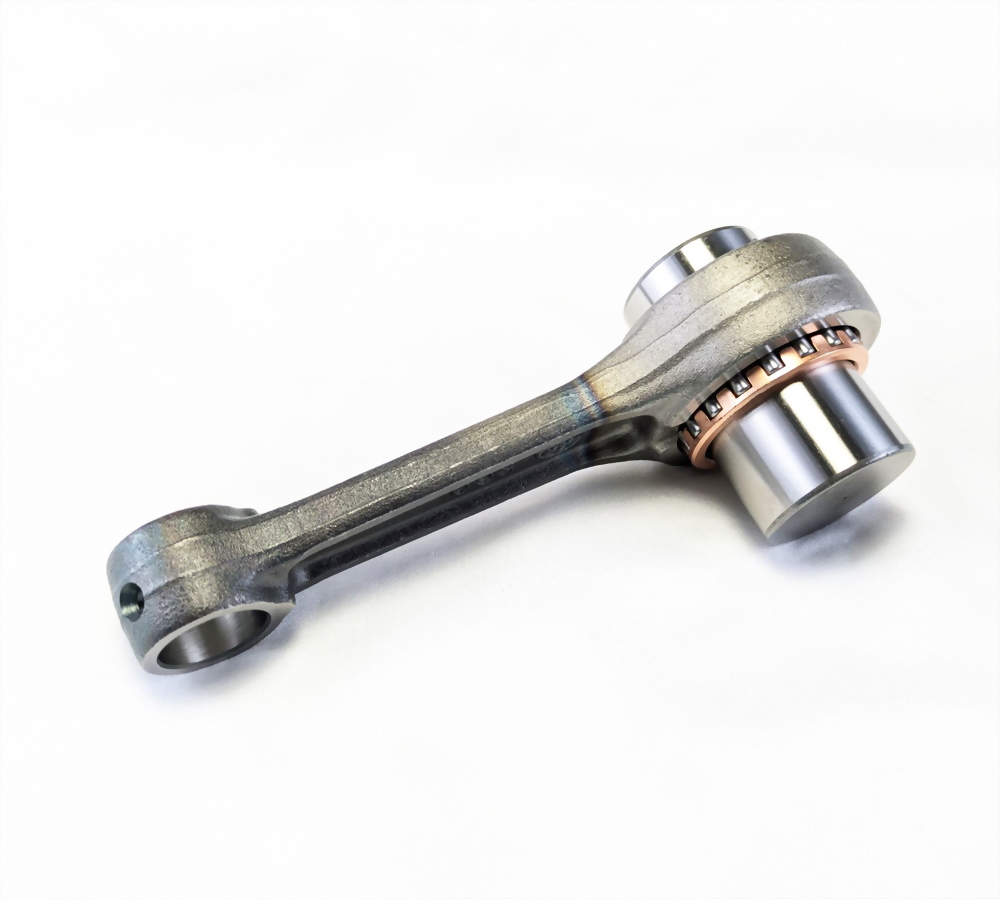

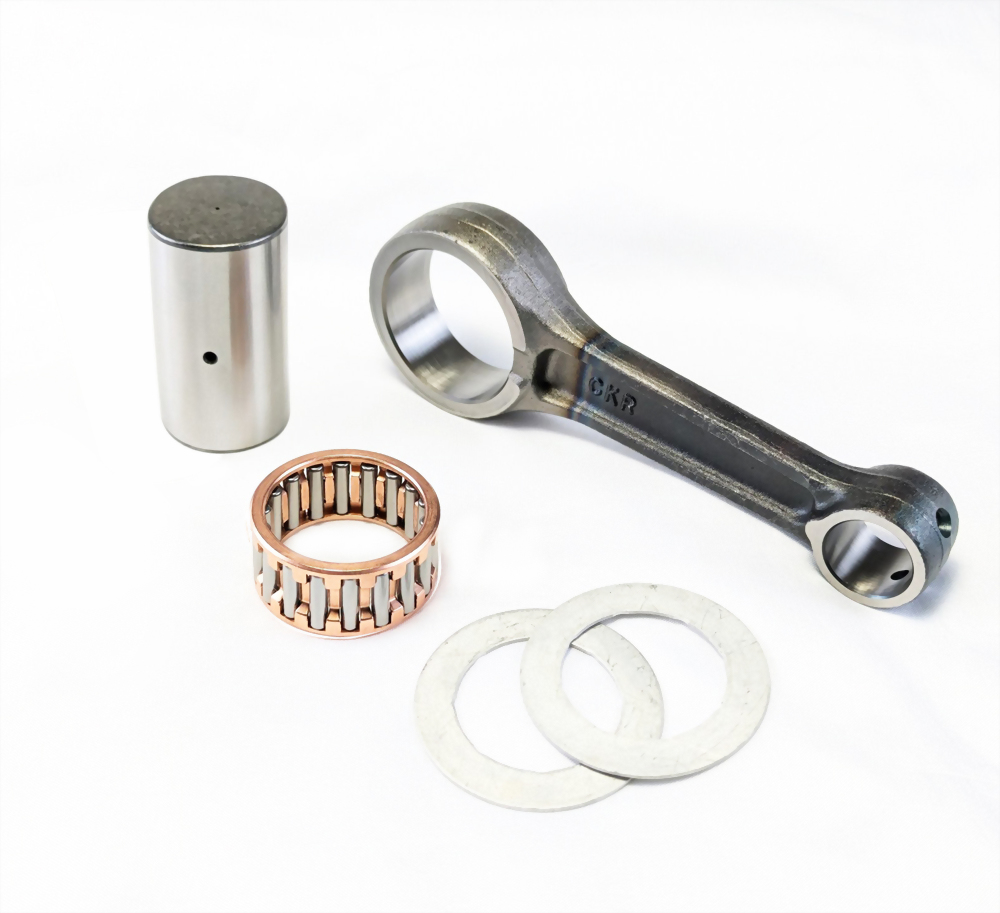

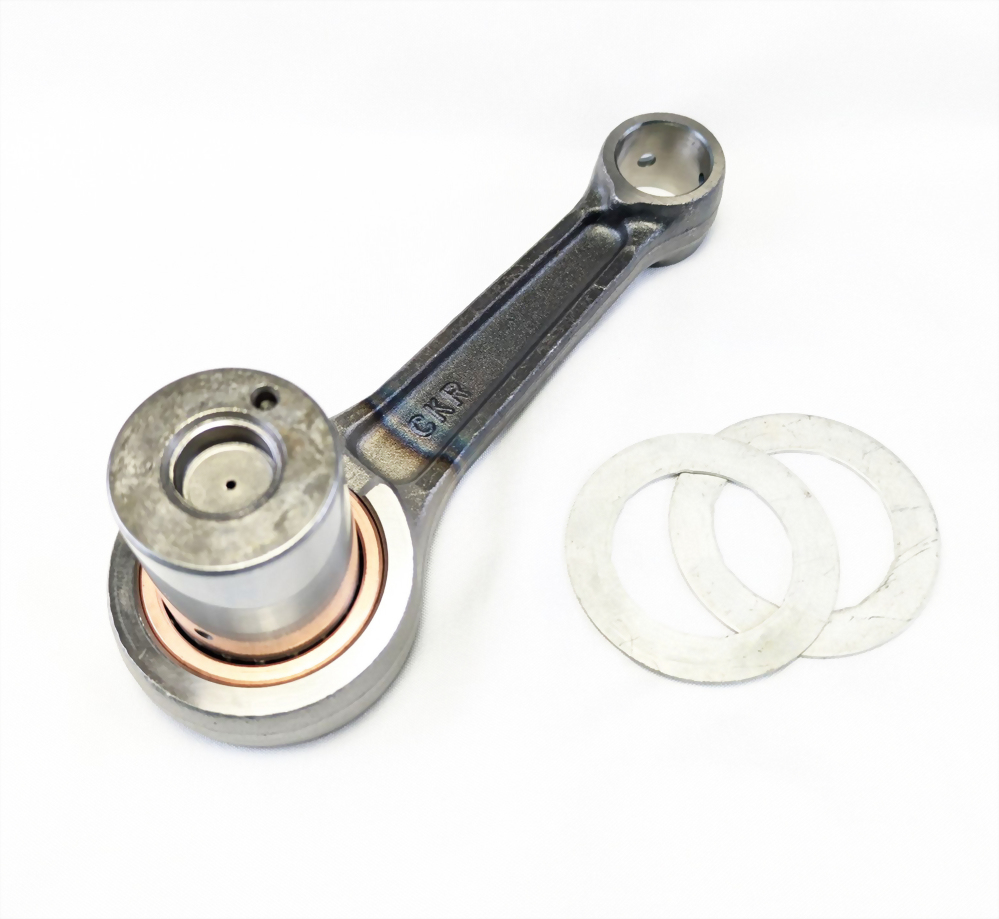

• Connecting rod kit for Honda XLX250

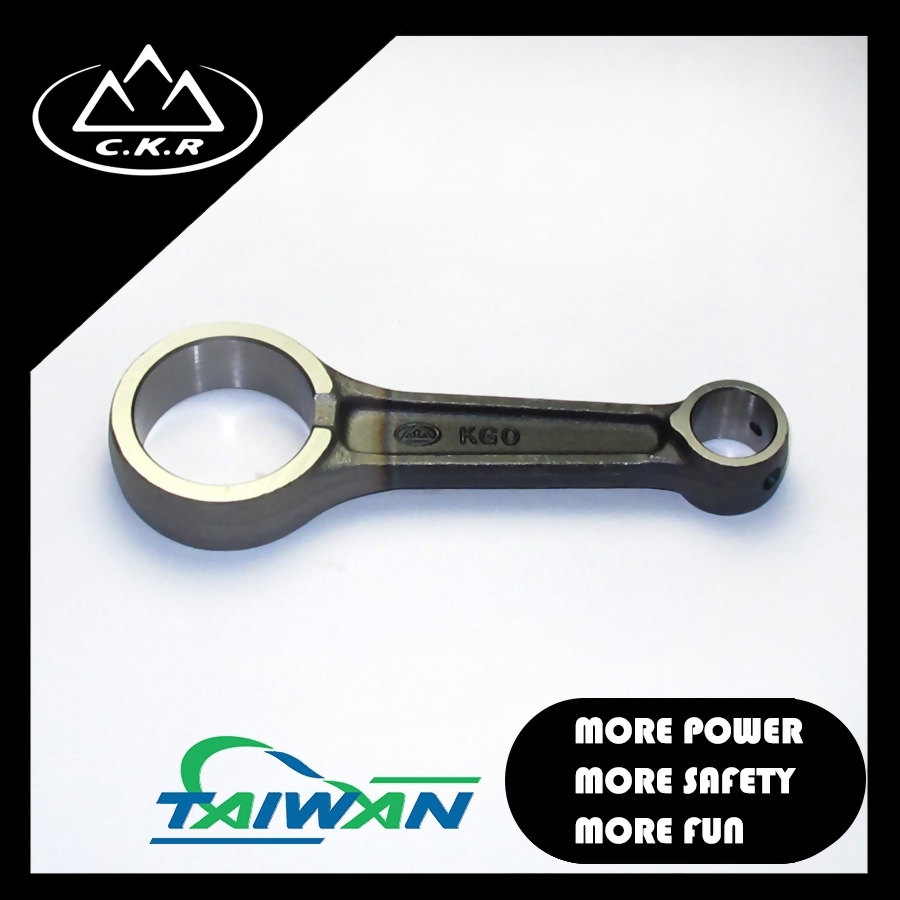

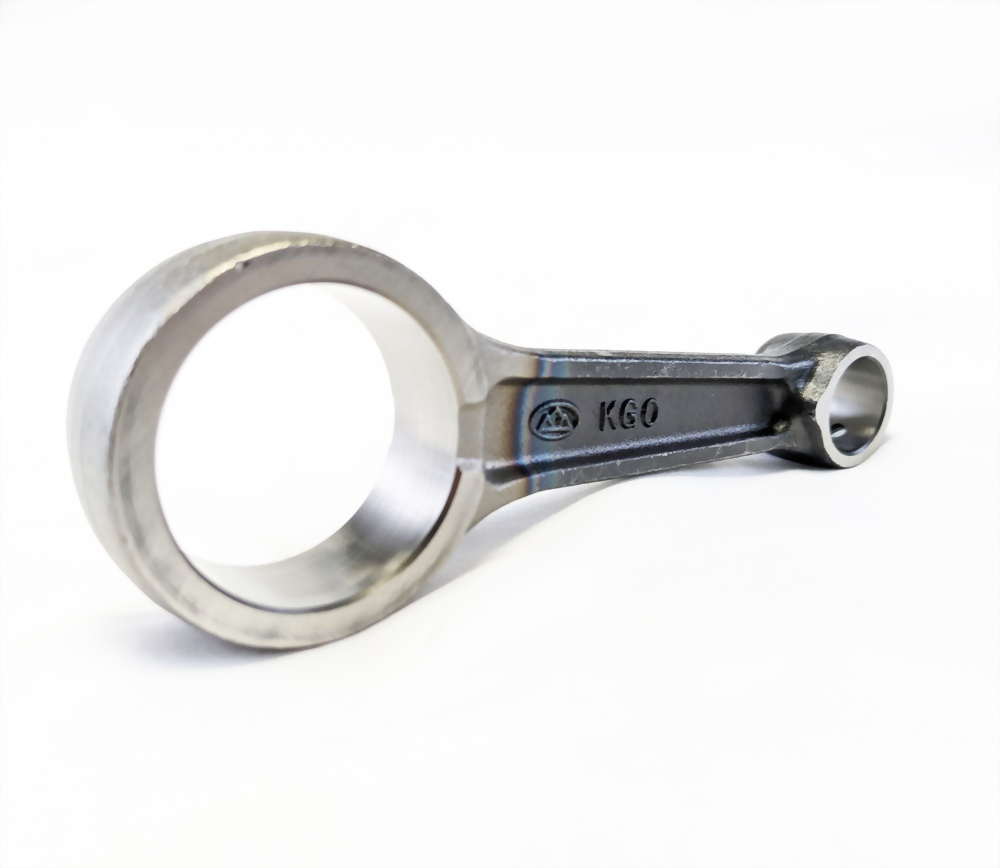

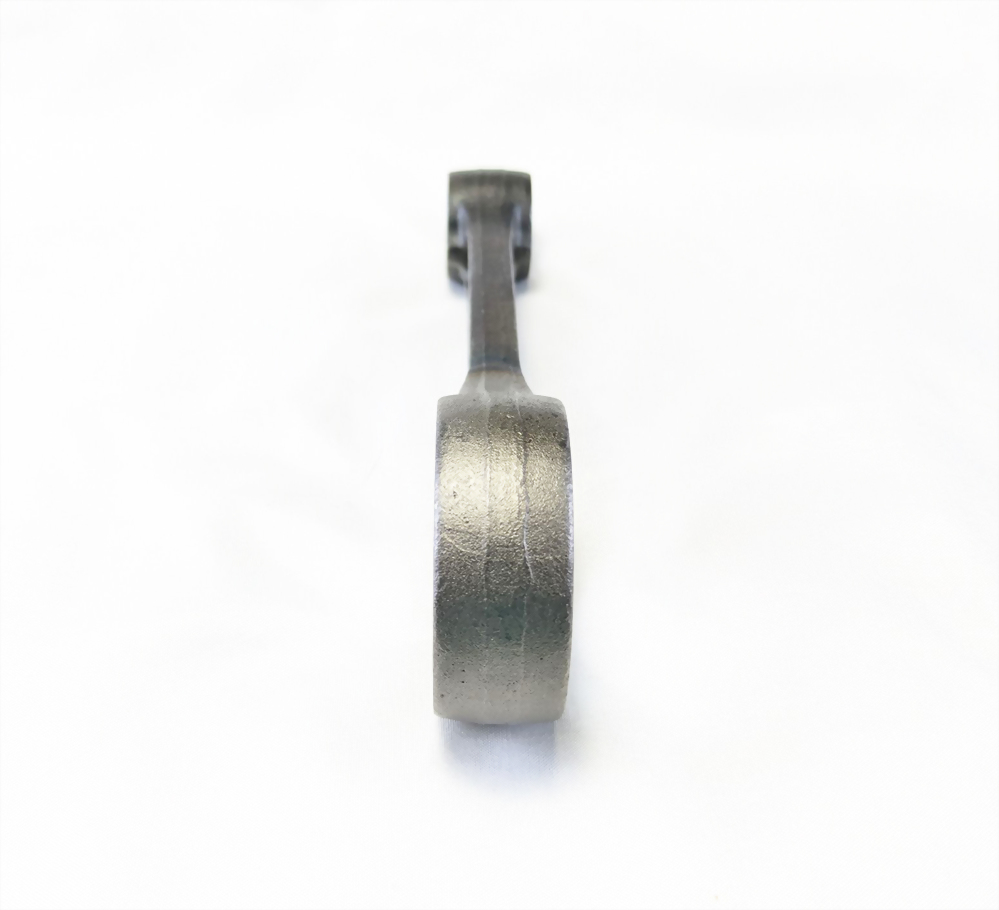

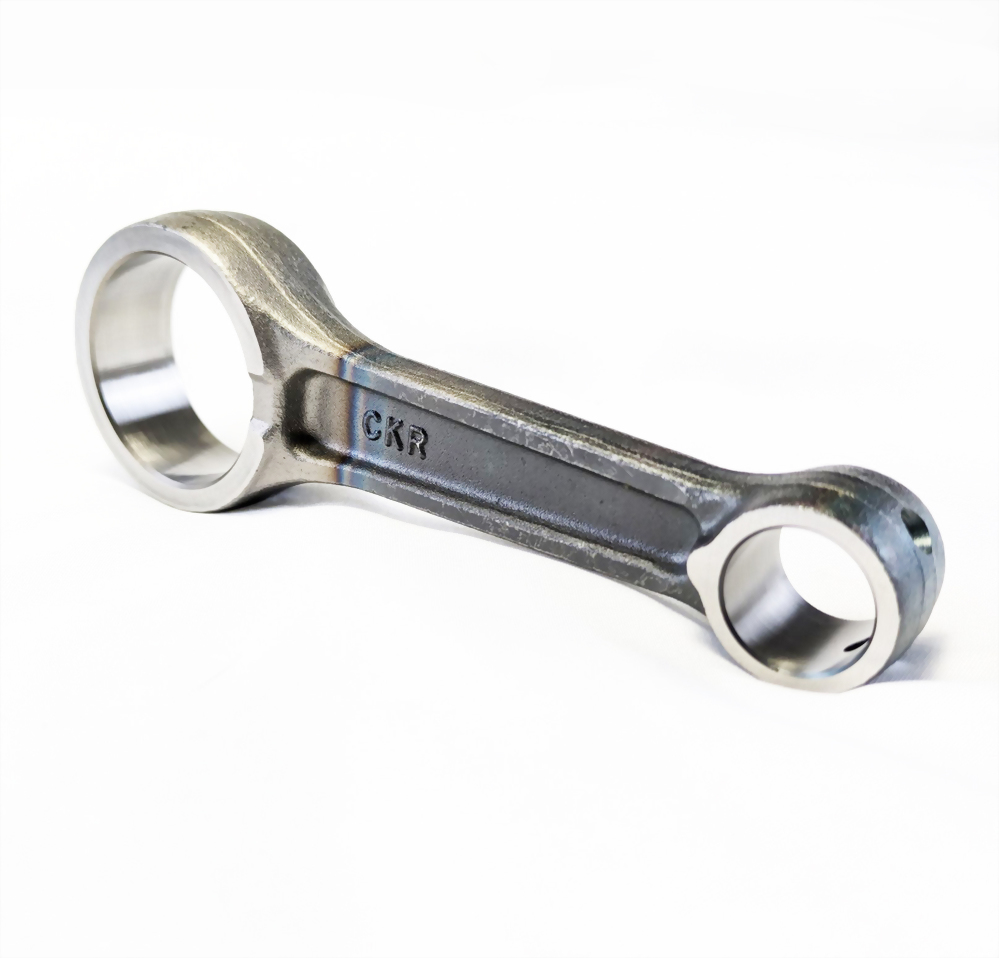

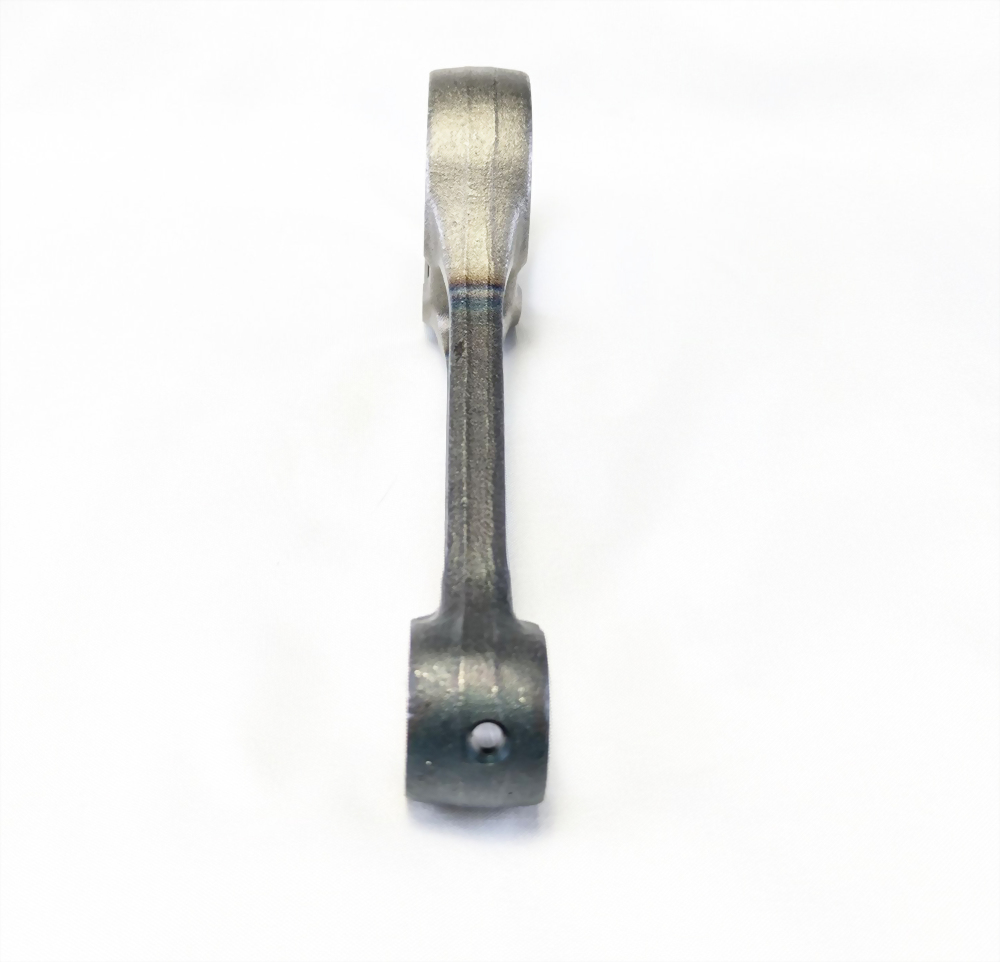

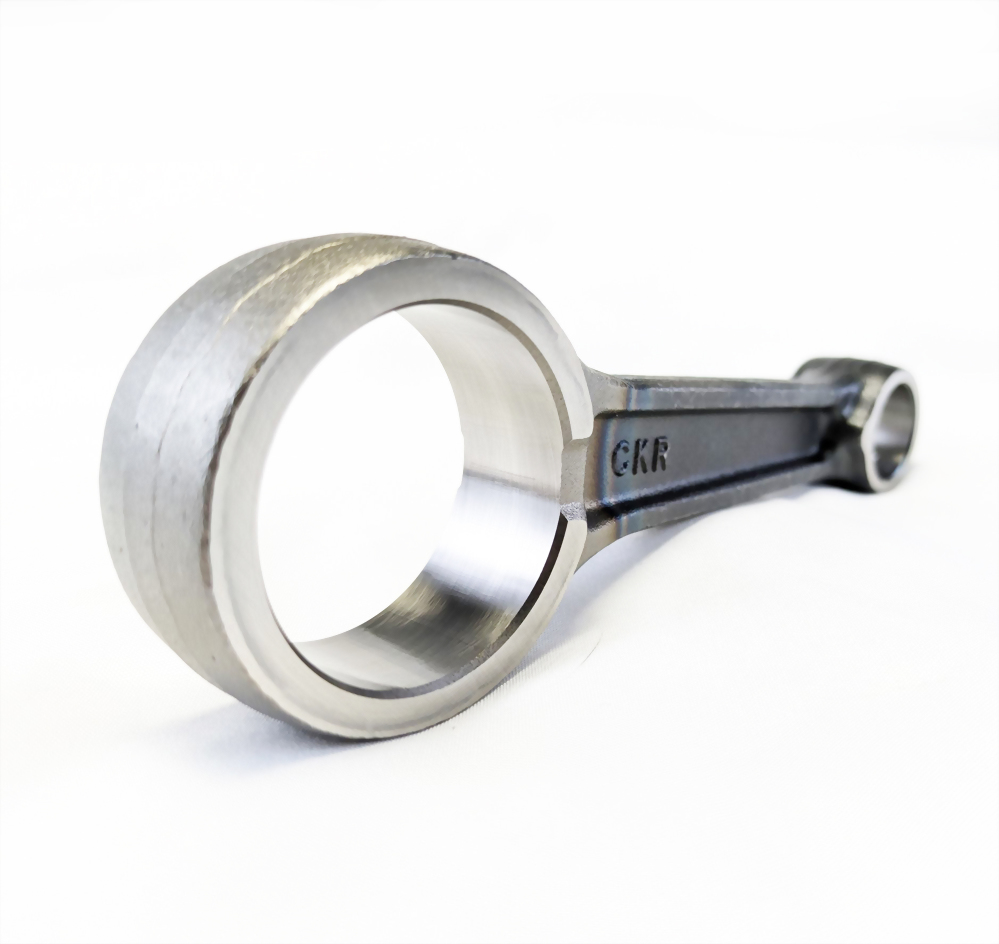

  • Connecting rod for Honda XLX250

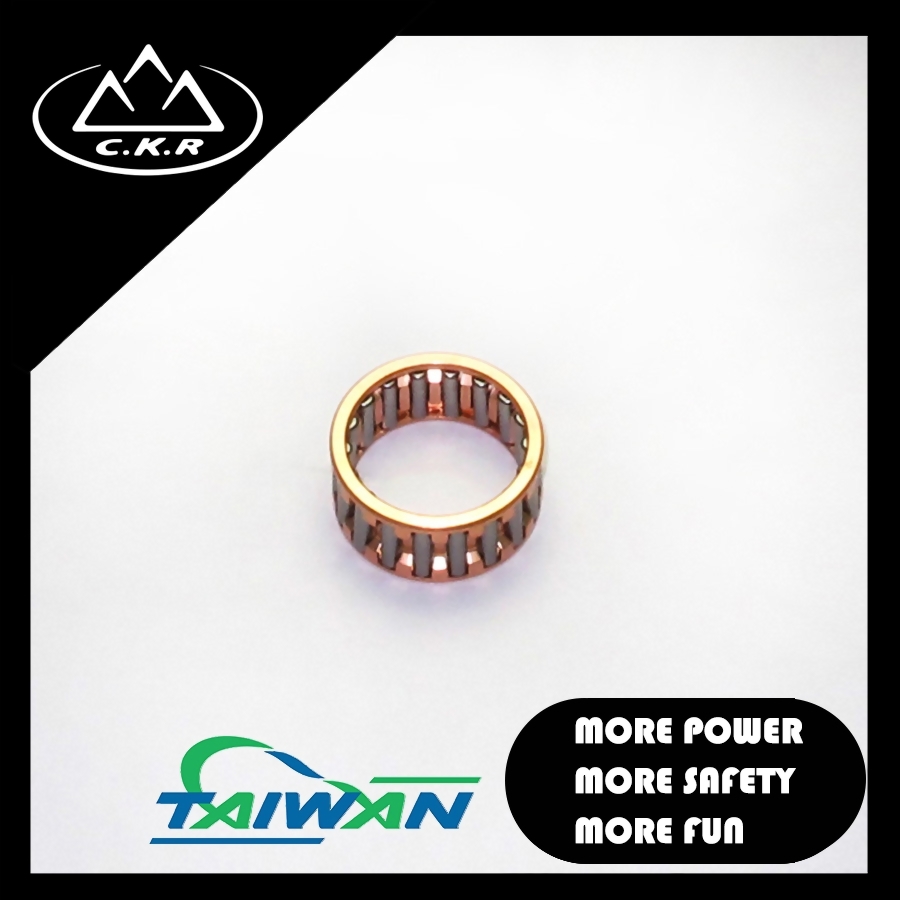

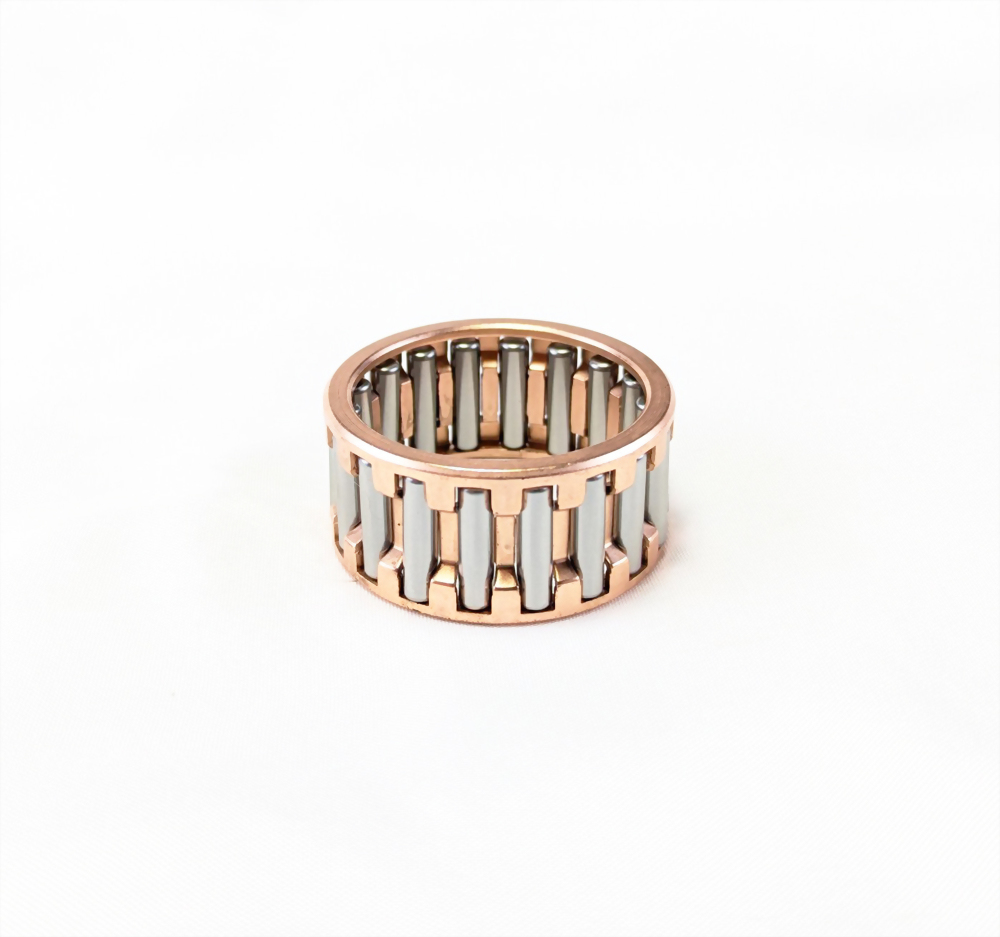

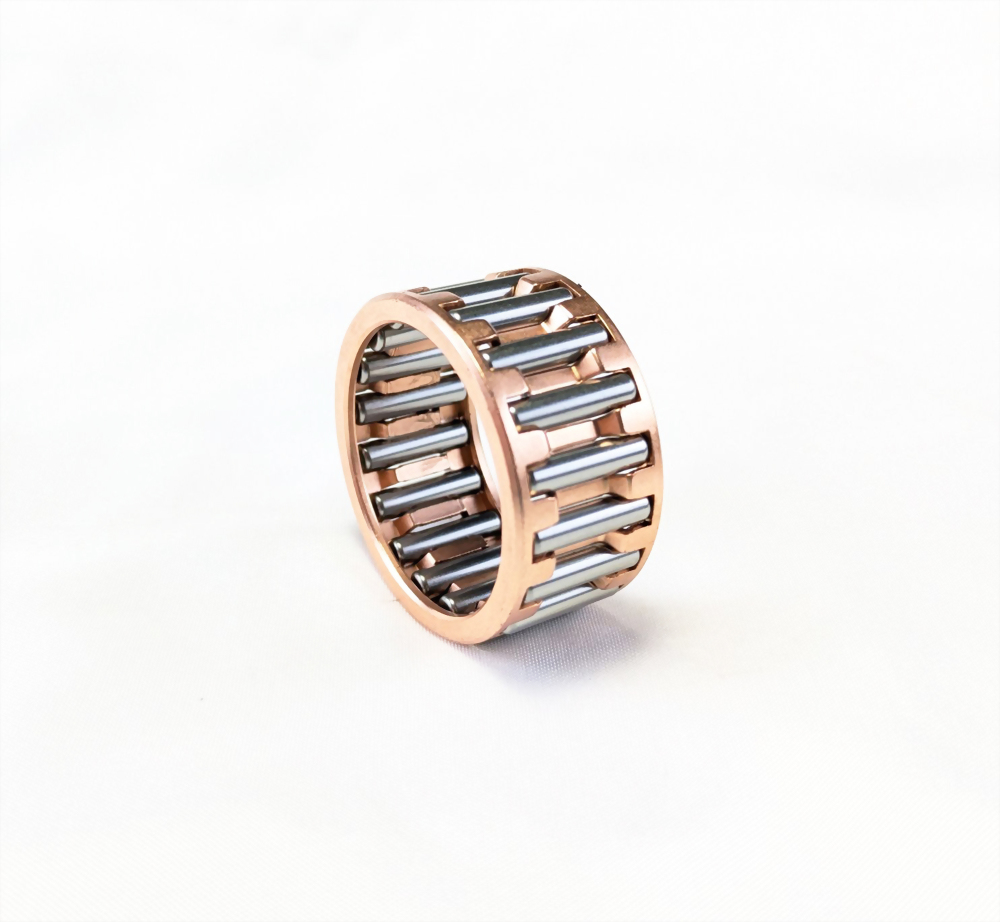

  • Bearing for Honda XLX250

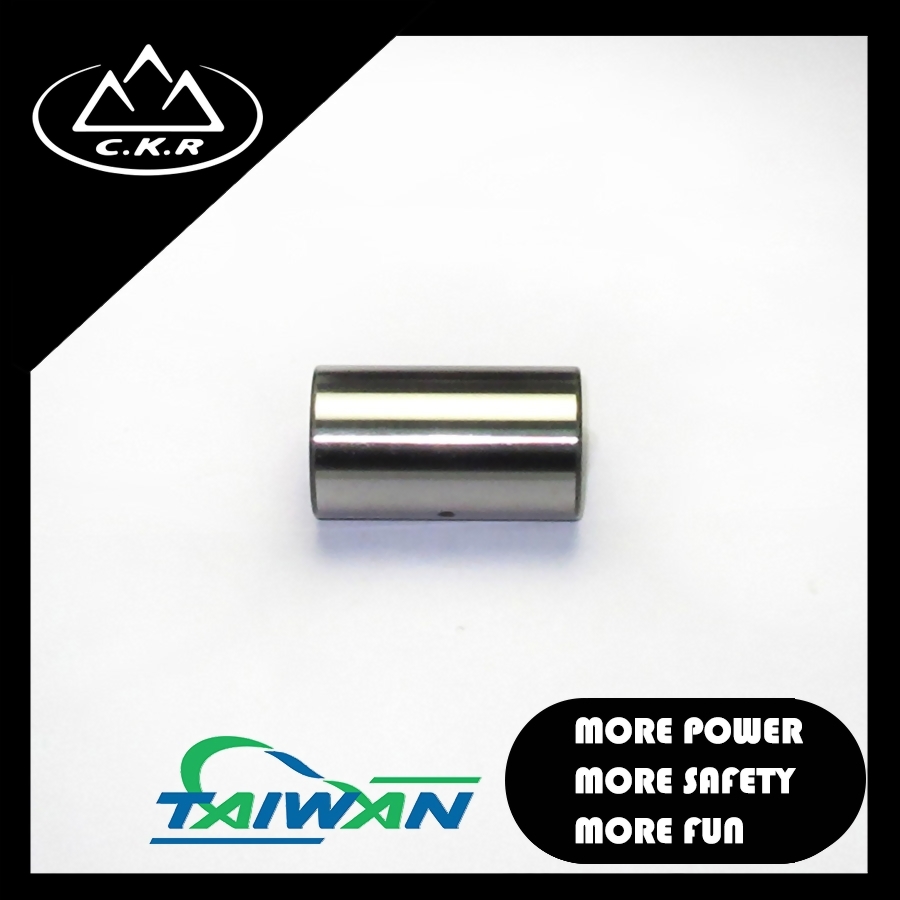

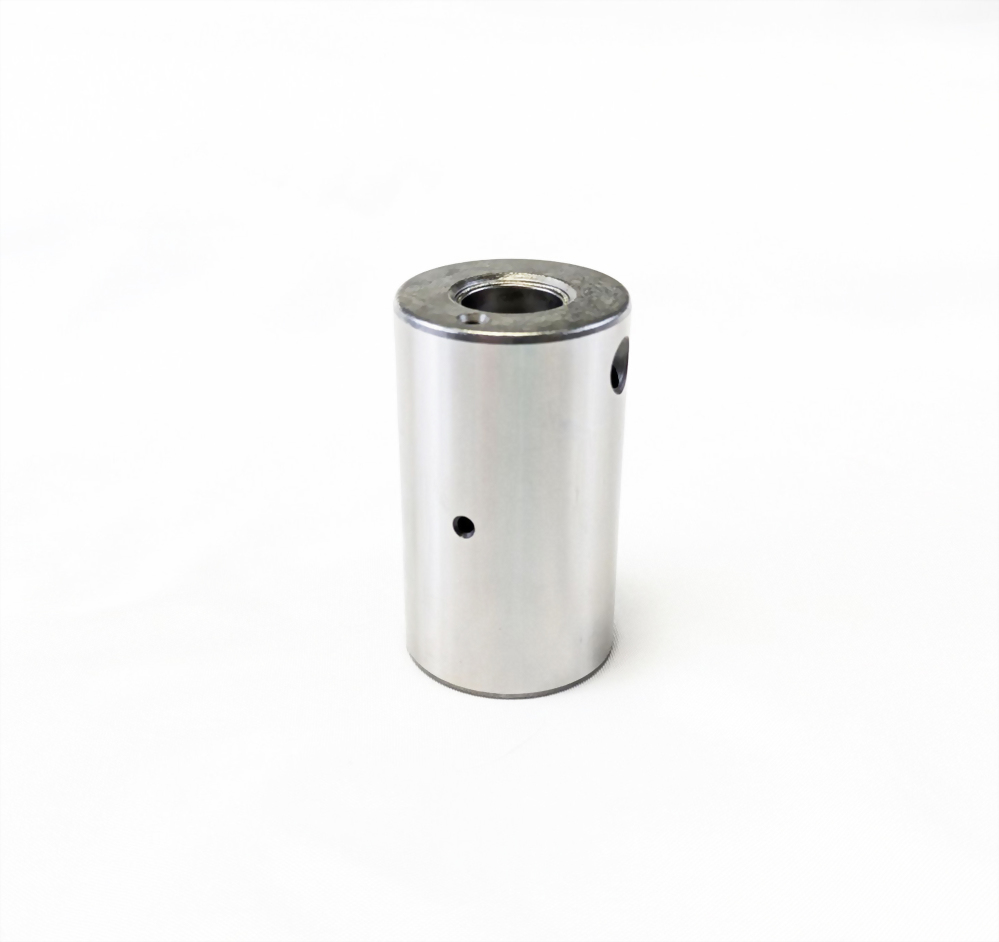

  • Crank pin for Honda XLX250

For Honda XLX250

Application:

Honda XLX250

OE NO. 13201-KGO-300
Model : KGO

Application:

Honda XLX250

OE NO. 13201-KGO-300


Big-end Width (mm): 20

Small-end Width (mm): 20

Big-end Bore (mm): 41

Small-end Bore (mm): 19

Center-to-center (mm): 116

Pin Diameter (mm): 33

Pin Length (mm): 57.5

Big-end Bearing (mm): 33*41*20

Small-end Bearing (mm): N/A

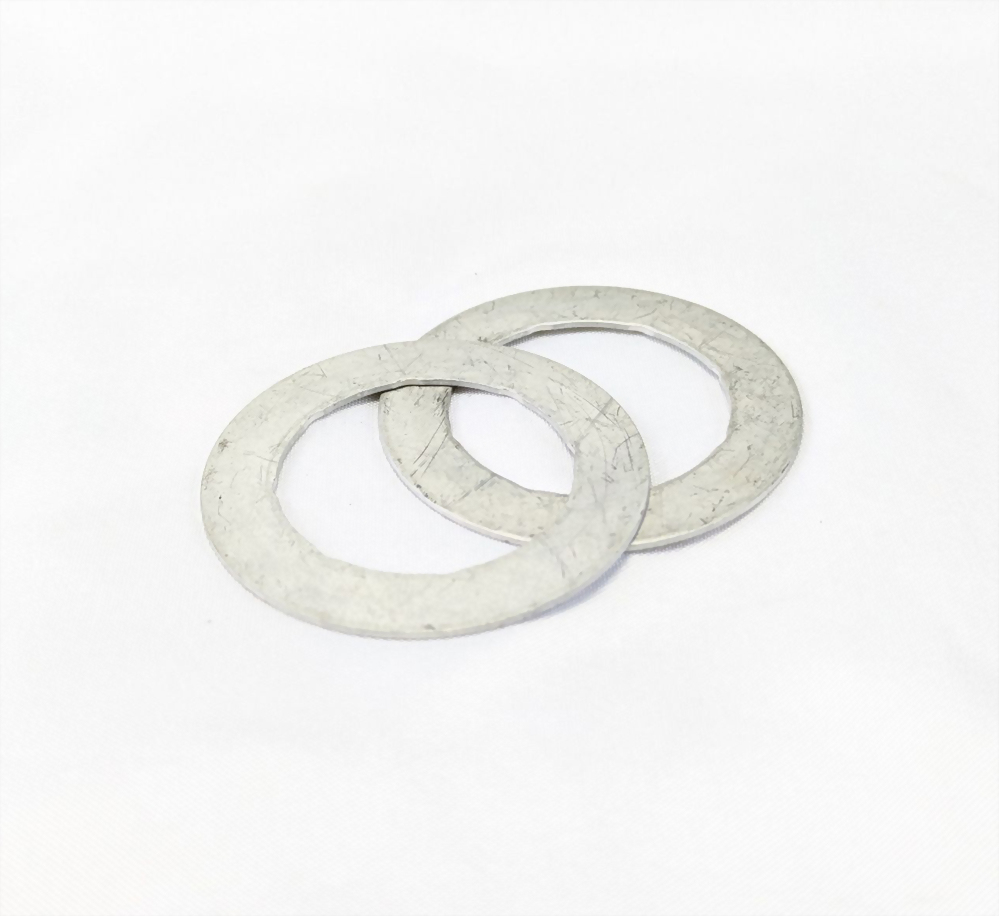

Washer Thickness (mm): 1.0
