For KTM 200 EXC, MXC, SX, XC, XC-W

Application:
1998 - 2005 KTM 200 EXC,
1998 - 2003 KTM 200 MXC,
2003 - 2004 KTM 200 SX,
2006 - 2009 KTM 200 XC,
2006 - 2016 KTM 200 XC-W
Model : CN522

This CN522 kit is fit for the following models:

1998 - 2005 KTM 200 EXC,
1998 - 2003 KTM 200 MXC,
2003 - 2004 KTM 200 SX,
2006 - 2009 KTM 200 XC,
2006 - 2016 KTM 200 XC-W

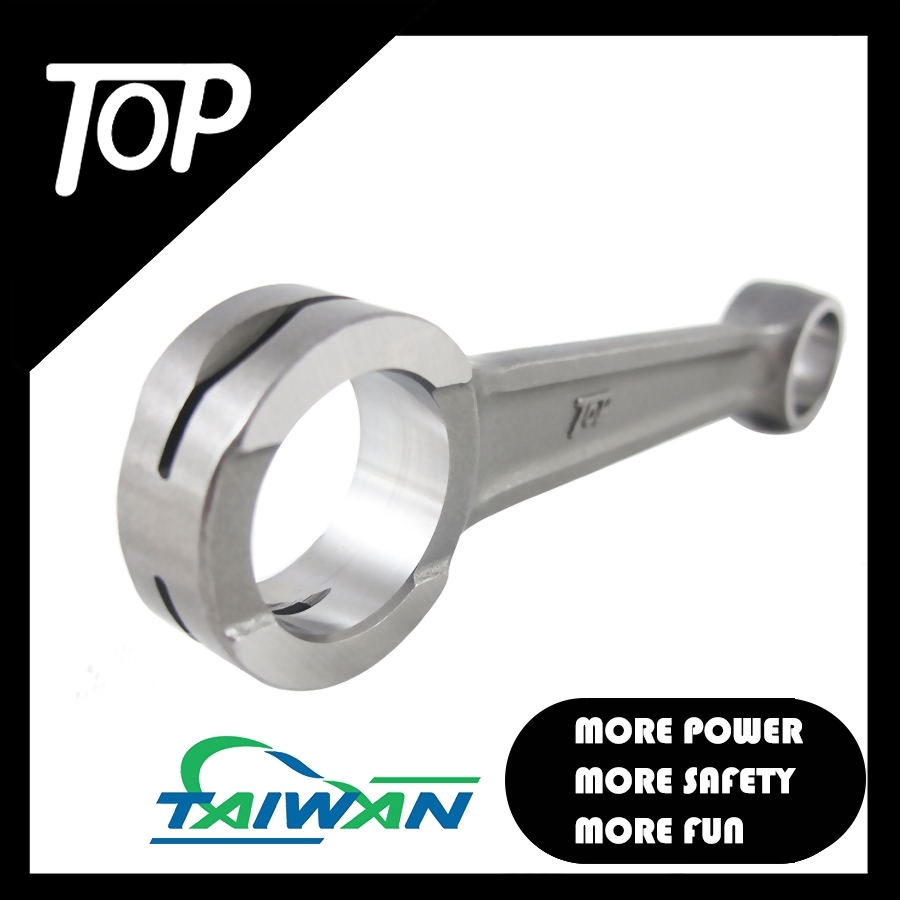

We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.
Big-end Width (mm) : 15.9
Small-end Width (mm) : 15.9
Big-end Bore (mm) : 28
Small-end Bore (mm) : 20
Center-to-center (mm) : 118

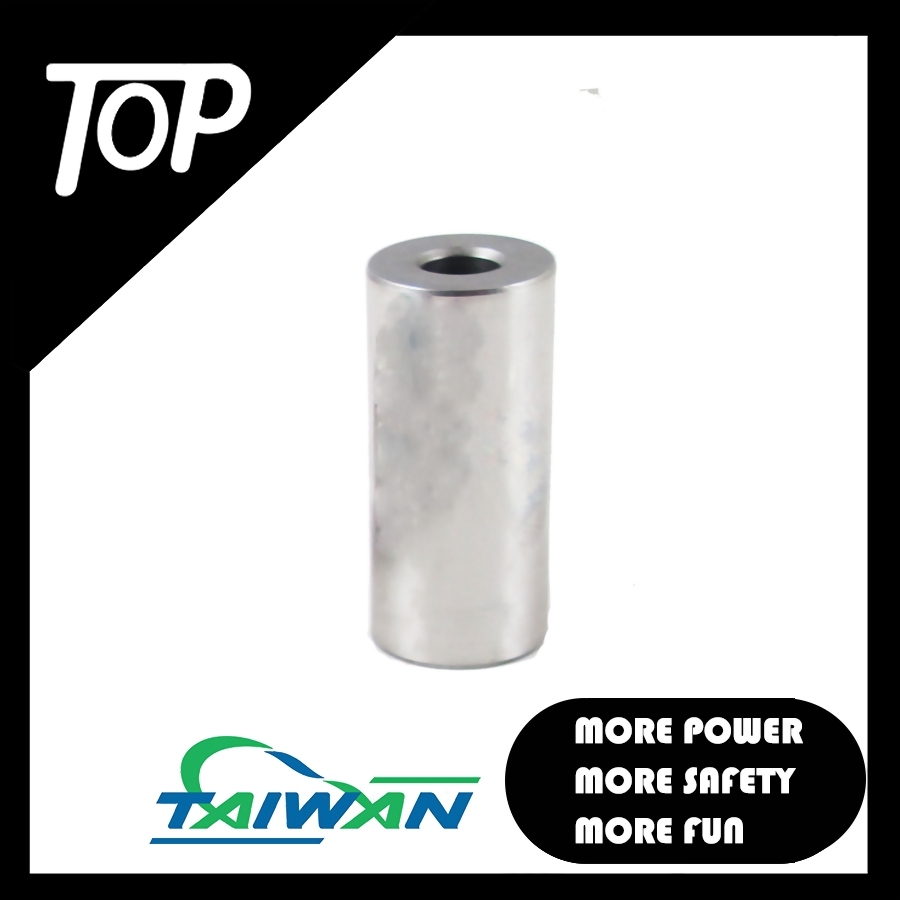

Pin Diameter (mm) : 22
Pin Length (mm) : 55
Big-end Bearing (mm) : 22*28*16

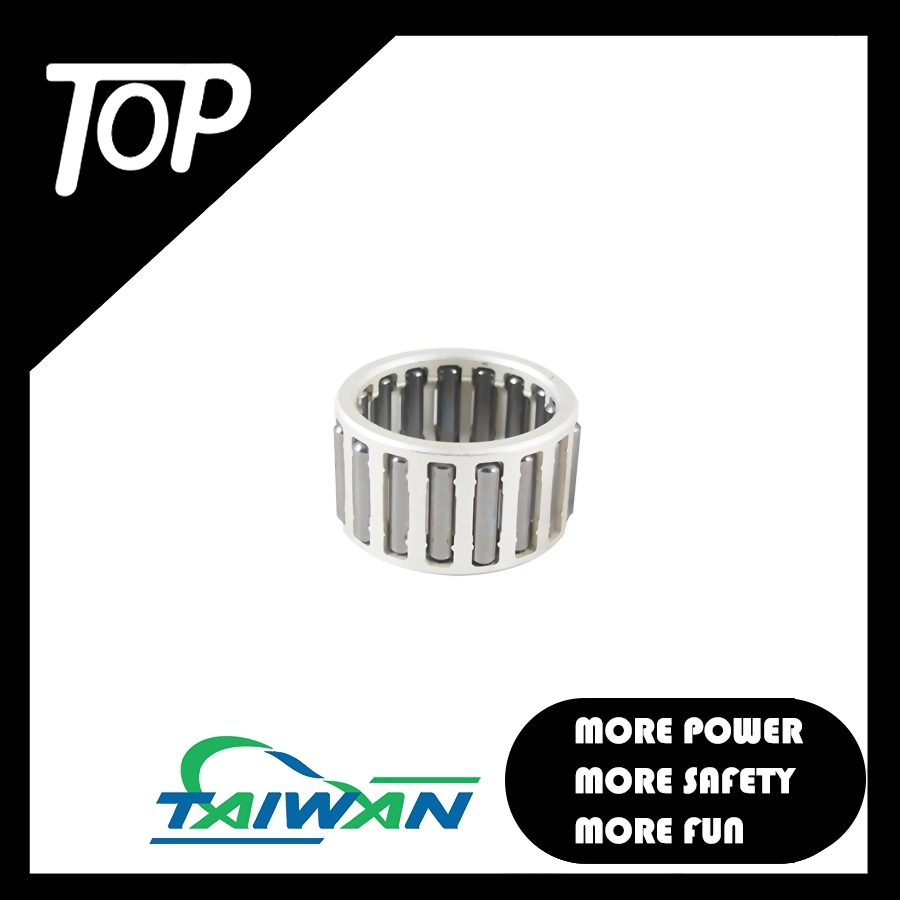

Small-end Bearing (mm) : 16*20*20
Washer Thickness (mm) : 1.0
