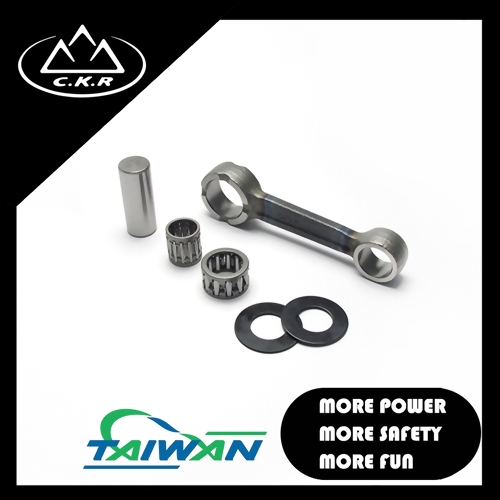

For Vespa 50

Application:
Vespa 50
Model : BR50

Application:

Vespa 50



Big-end Width (mm): 9.8

Small-end Width (mm): 9.8

Big-end Bore (mm): 21

Small-end Bore (mm): 13

Center-to-center (mm): 87

Pin Diameter (mm): 16

Pin Length (mm): 33

Big-end Bearing (mm): 16*21*10

Small-end Bearing (mm): 10*13*13

Washer Thickness (mm): 0.5
