For Yamaha DT175 / DT180

Application:

Yamaha DT175 / DT180

OE NO. 2N4-11651-00
Model : 2N4

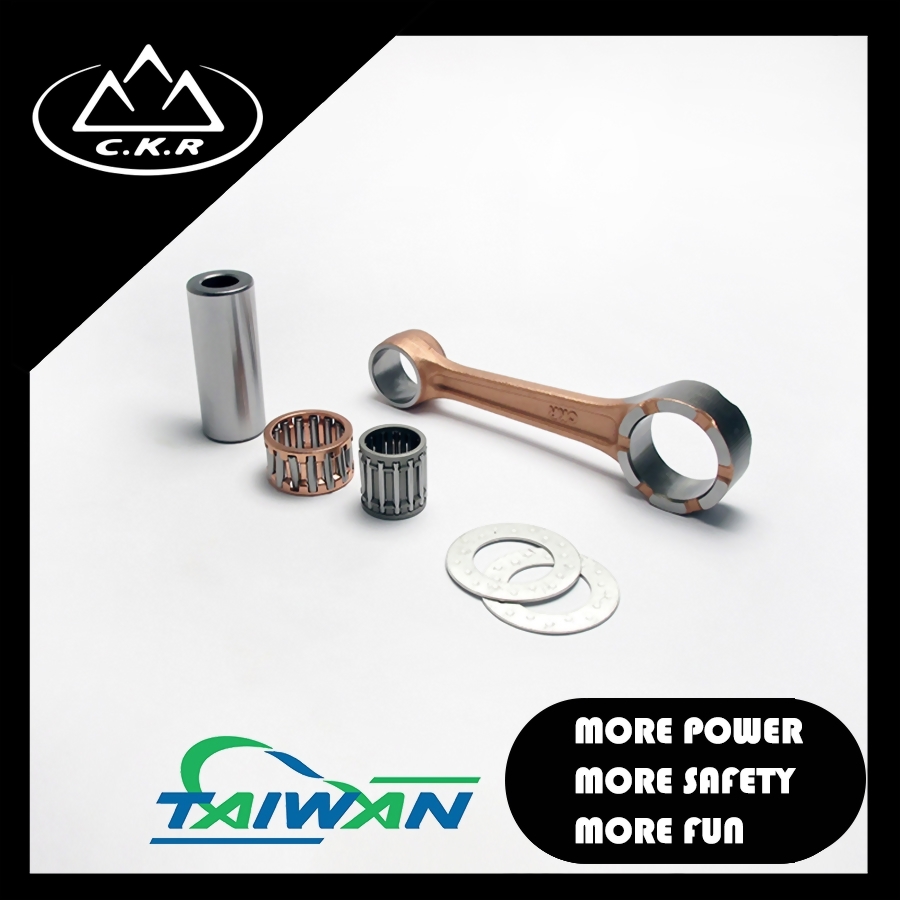

The Yamaha DT175 / DT180 fitted connecting rod kits are produced in Taiwan. High strength alloy steel is applied for the connecting rod, crank pin and bearing.


Application:

Yamaha DT175 / DT180

OE NO. 2N4-11651-00



Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 28

Small-end Bore (mm): 20

Center-to-center (mm): 105

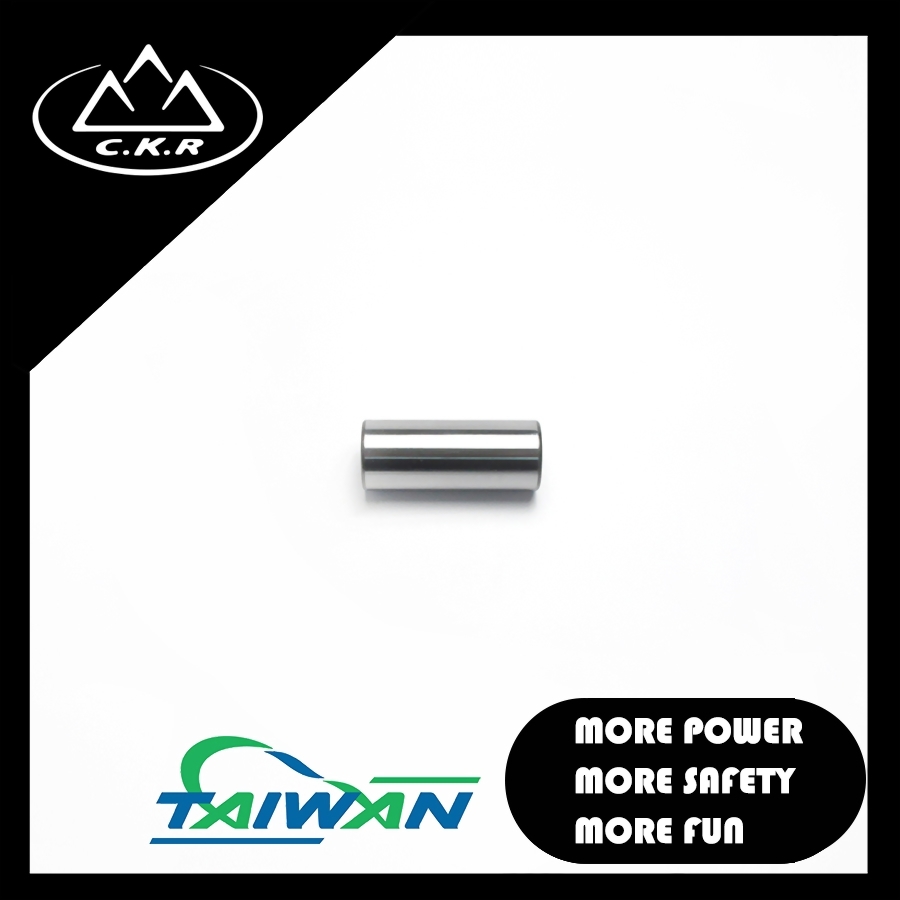

Pin Diameter (mm): 22

Pin Length (mm): 54.5

Big-end Bearing (mm): 22*28*16

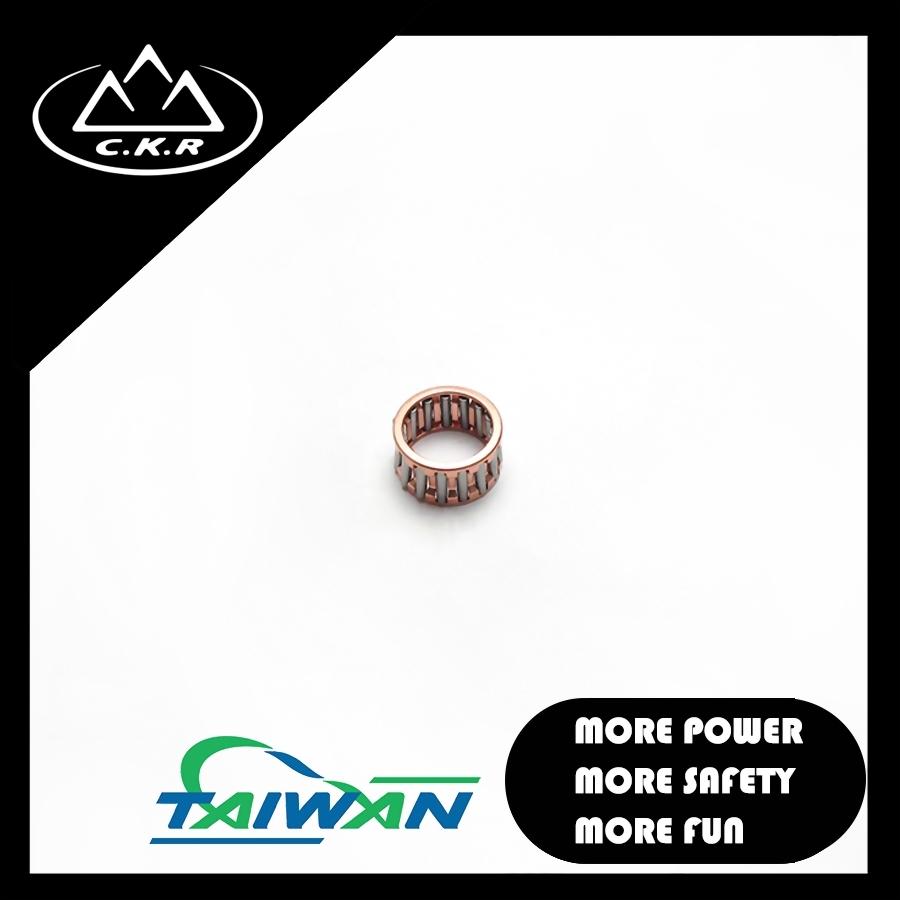

Small-end Bearing (mm): 16*20*22

Washer Thickness (mm): 1.0
