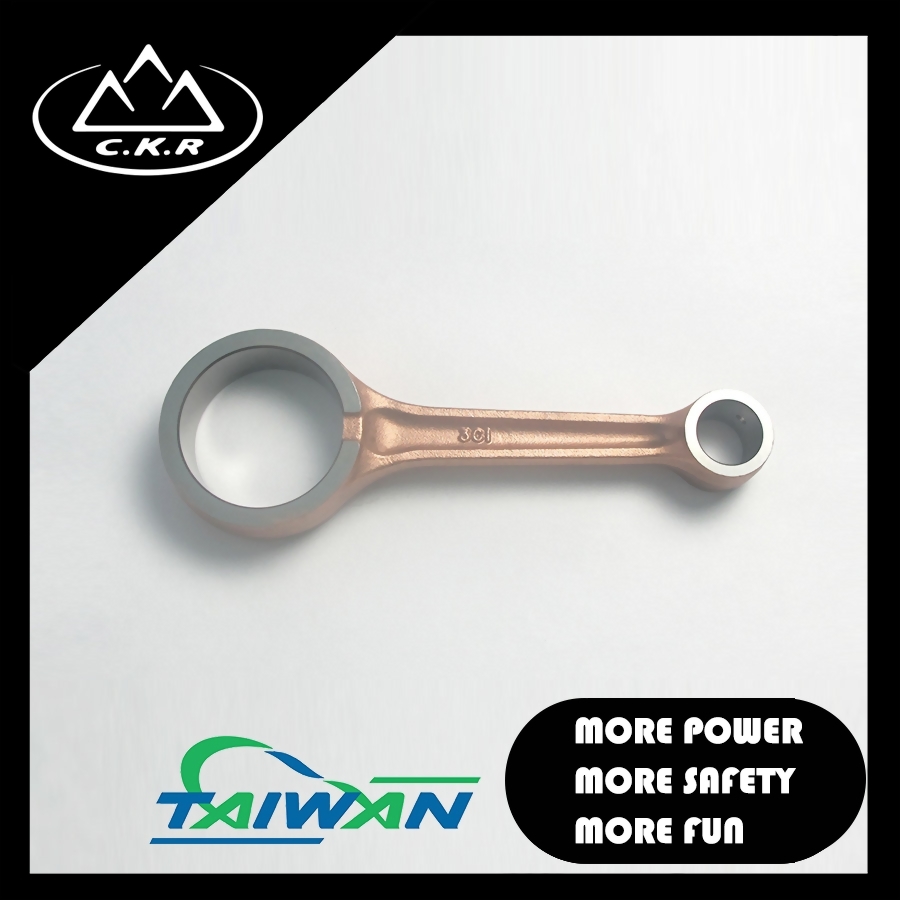

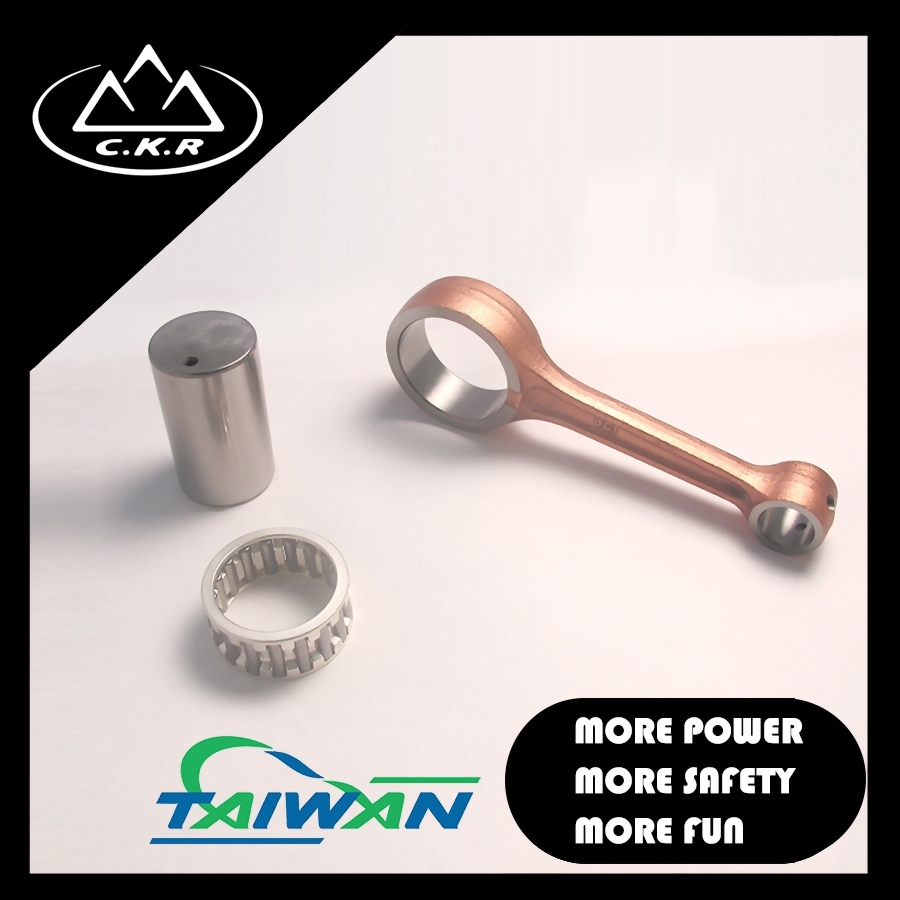

For Yamaha FZ150

Application:

Yamaha FZ150

OE NO. 3C1-11651-10
Model : 3C1

Application:

Yamaha FZ150

OE NO. 3C1-11651-10


Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 35

Small-end Bore (mm): 14

Center-to-center (mm): 100

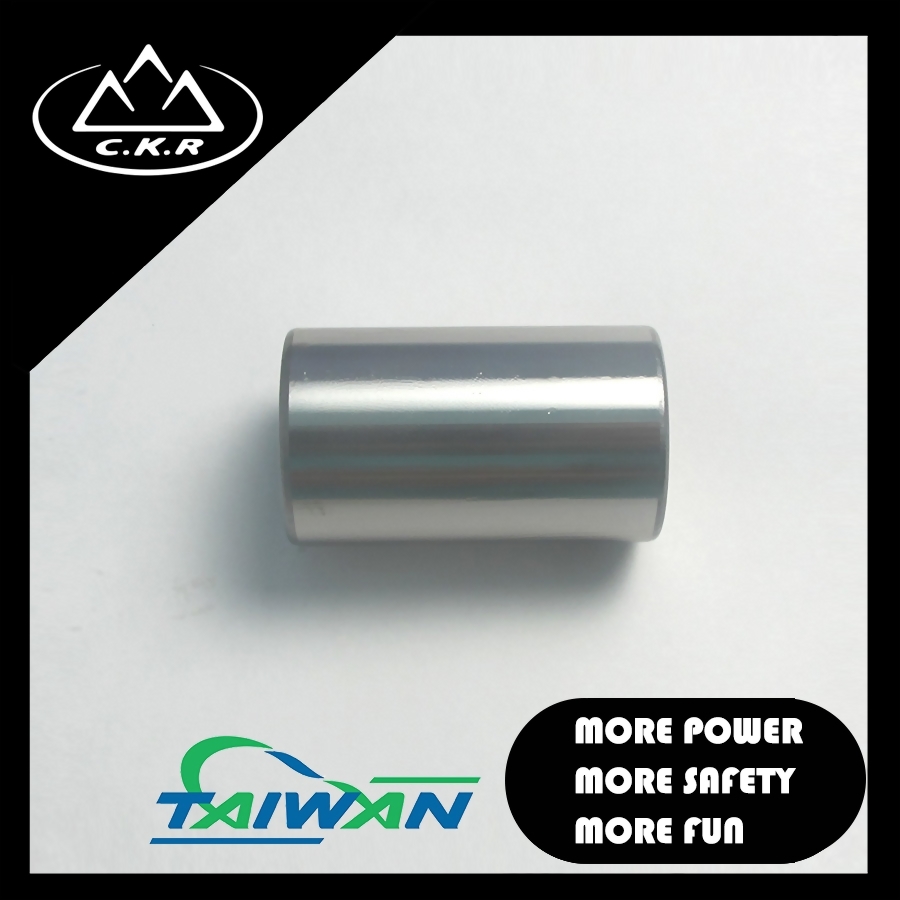

Pin Diameter (mm): 28

Pin Length (mm): 47.2

Big-end Bearing (mm): 28*35*16

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
