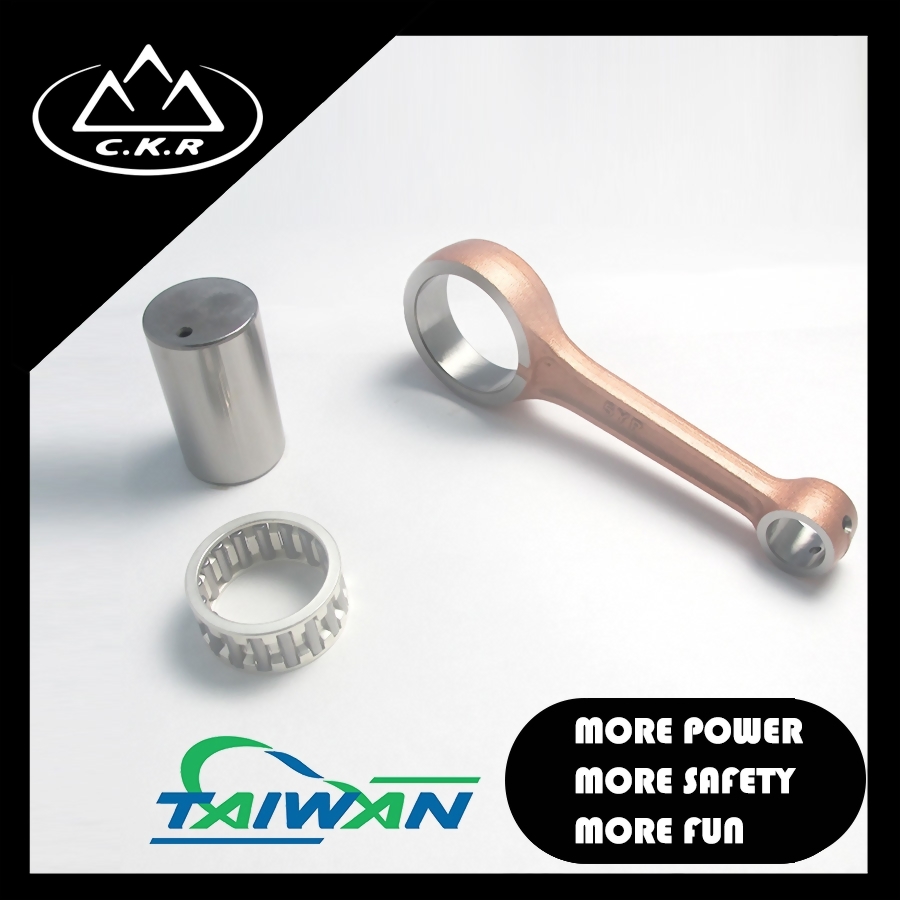

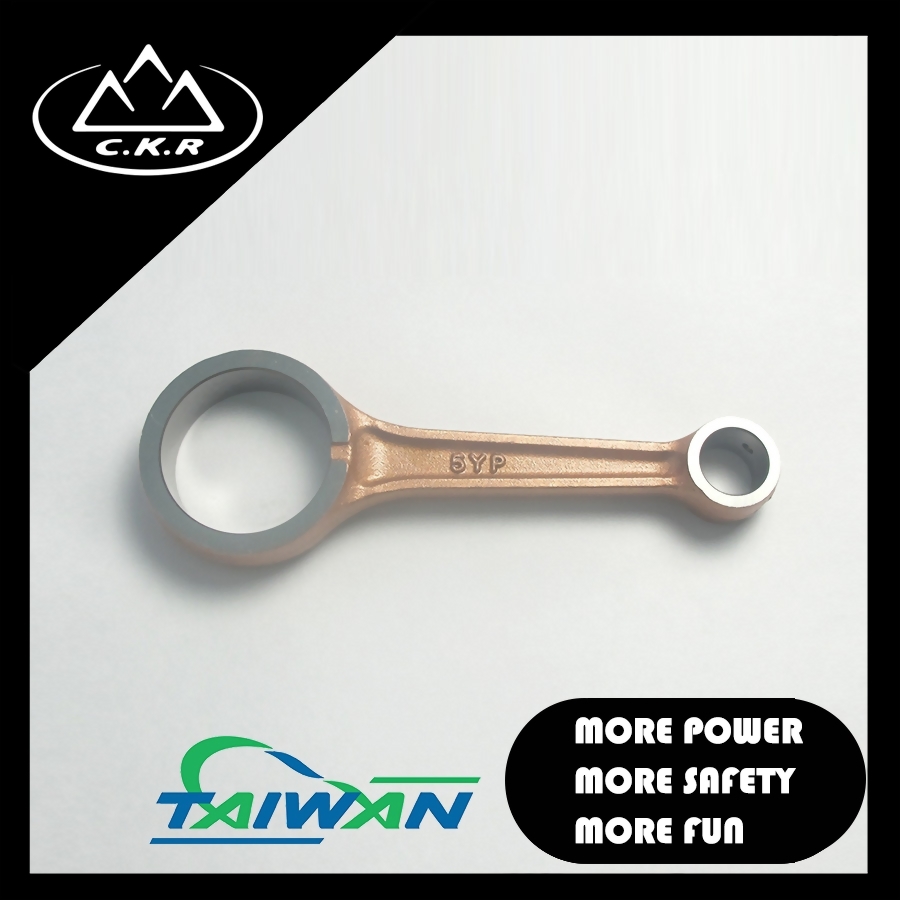

For Yamaha LC135

Application:
Yamaha LC135
Model : 5YP

Application:

Yamaha LC135



Big-end Width (mm): 14

Small-end Width (mm): 14

Big-end Bore (mm): 35

Small-end Bore (mm): 14

Center-to-center (mm): 100

Pin Diameter (mm): 28

Pin Length (mm): 45

Big-end Bearing (mm): 28*35*14

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
