TOP® Outboard Power Head Gasket Kit For Yamaha 60/70 HP

Product Overview

The TOP® outboard power head gasket kit is designed for Yamaha 60 and 70 HP engines. This comprehensive kit includes all essential gaskets and seals needed for effective maintenance and reliable performance of your Yamaha outboard motor. Precision-engineered, these components ensure long-lasting durability and fit.

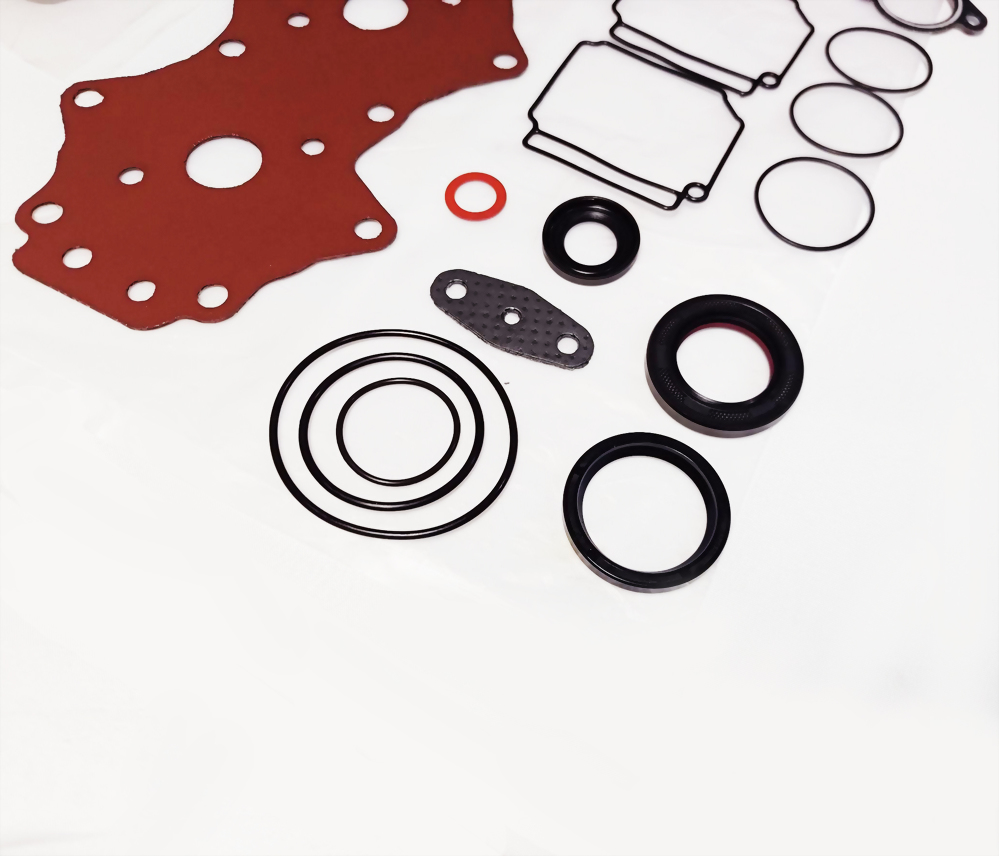

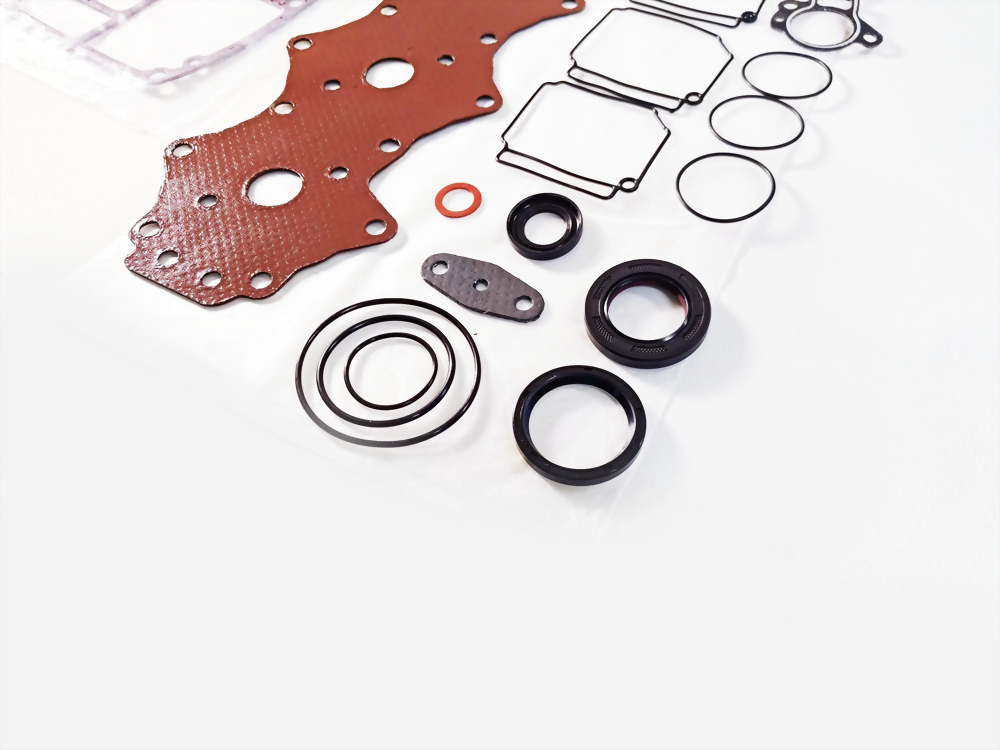

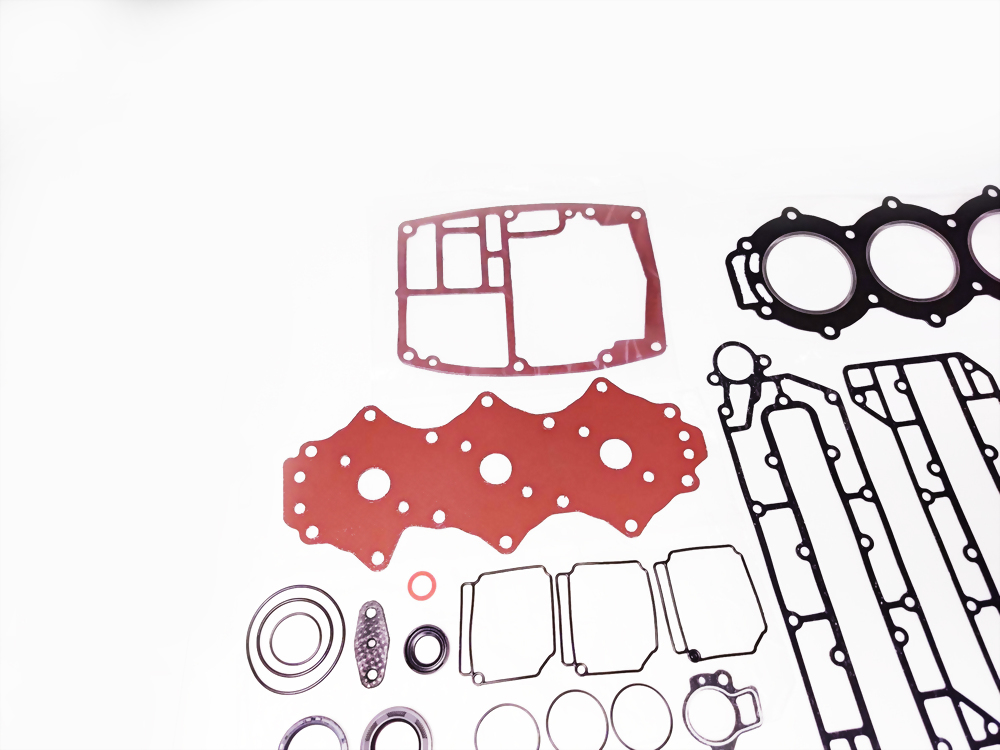

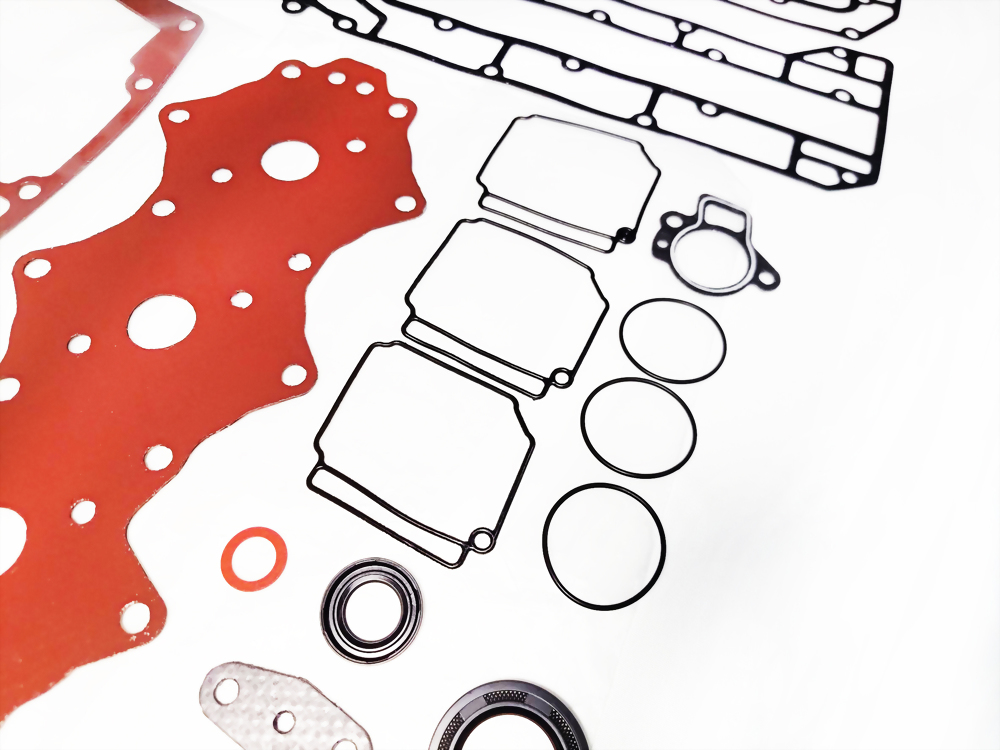

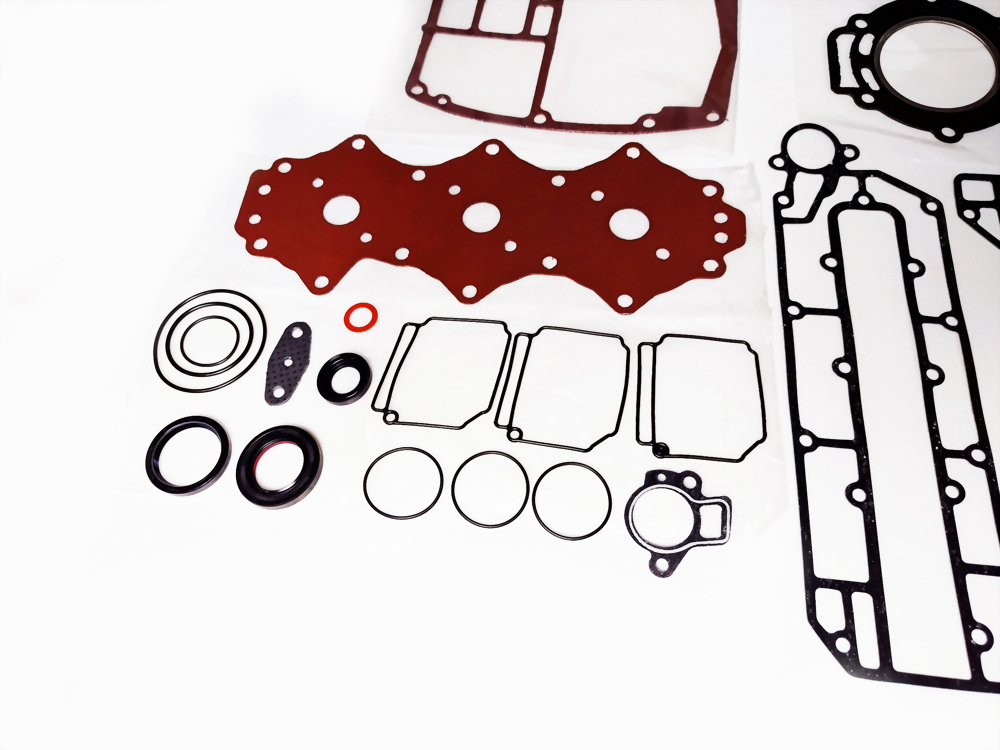

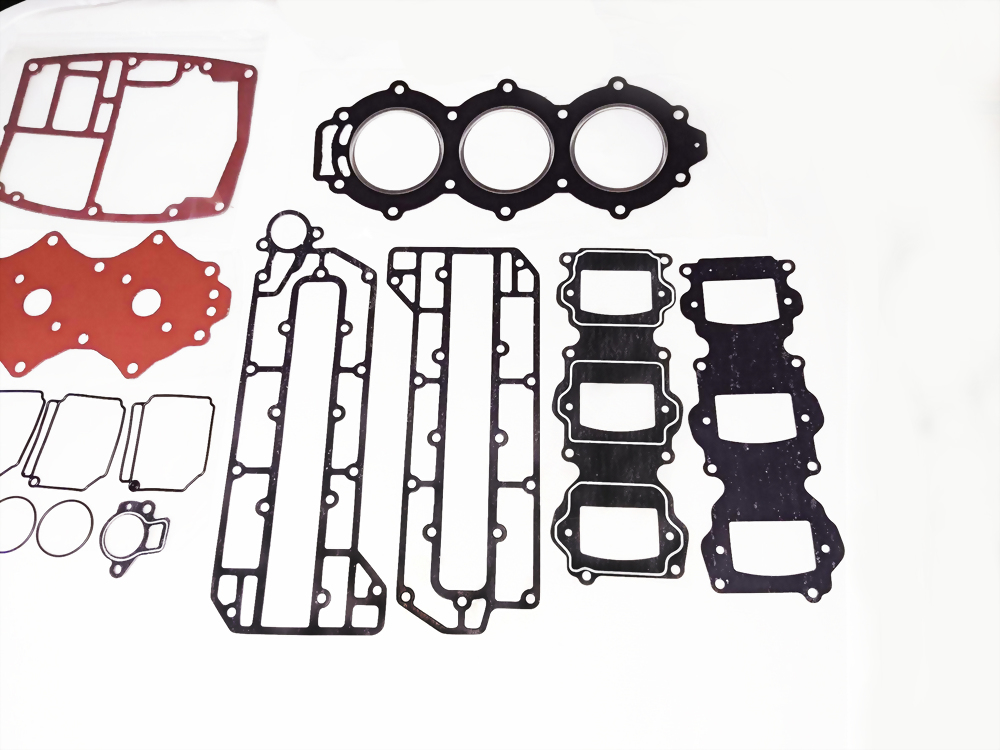

Kit Contents

• 6H3-11181-A0 - Gasket, Cylinder Head
• 90430-14115 - Gasket
• 6H3-11193-A1 - Gasket, Head Cover
• 6H3-12414-A1 - Gasket, Cover
• 6H3-41112-A0 - Gasket, Exhaust Inner Cover
• 6H3-41114-A0 - Gasket, Exhaust Outer Cover
• 93102-36M24 - Oil Seal
• 93210-46M16 - O-Ring
• 93106-18M01 - Oil Seal
• 93210-65M50 - O-Ring
• 6H3-13621-A1 - Gasket, Valve Seat
• 6H4-14984-00 - Gasket, Float Chamber
• 93210-32738 - O-Ring
• 650-24431-A0 - Gasket, Fuel Pump
• 6H3-45113-00 - Gasket, Upper Casing
• 6H3-13622-A1 - Gasket, Valve Seat
• 93102-30M05 - Oil Seal
• 93210-39M89 - O-Ring

Compatible Models

This gasket kit is compatible with the following Yamaha 60 HP and 70 HP models:

Yamaha 60 HP Models

• P60TLHS (1994)
• P60TLHT (1995)
• P60TLHU (1996)
• P60TLHV (1997)
• P60TLHW (1998)
• P60TLHX (1999)
• 60TLRZ (2001)
• 60TLRA (2002)
• 60TLRB (2003)
• 60TLRC, 60TLRNC (2004)
• 60TLRD (2005)
• 60TLR 0405 (2006 and later)

Yamaha 70 HP Models

• 70TLRS (1994)
• 70TLRT (1995)
• 70TLRU (1996)
• 70TLRV (1997)
• 70TLRW (1998)
• 70TLRX (1999)
• 70TLRY, C70TLRY (2000)
• 70TLRZ, C70TLRZ (2001)
• 70TLRA (2002)
• 70TLRB (2003)
• 70TLRC, 70TLRNC (2004)
• 70TLRD (2005)
• 70TLR 0405 to 70TLR 0409 (2006 and later)

Product Code

Part Number: 6H3-W0001-02
