For Honda BROS160 - Chorng Ko

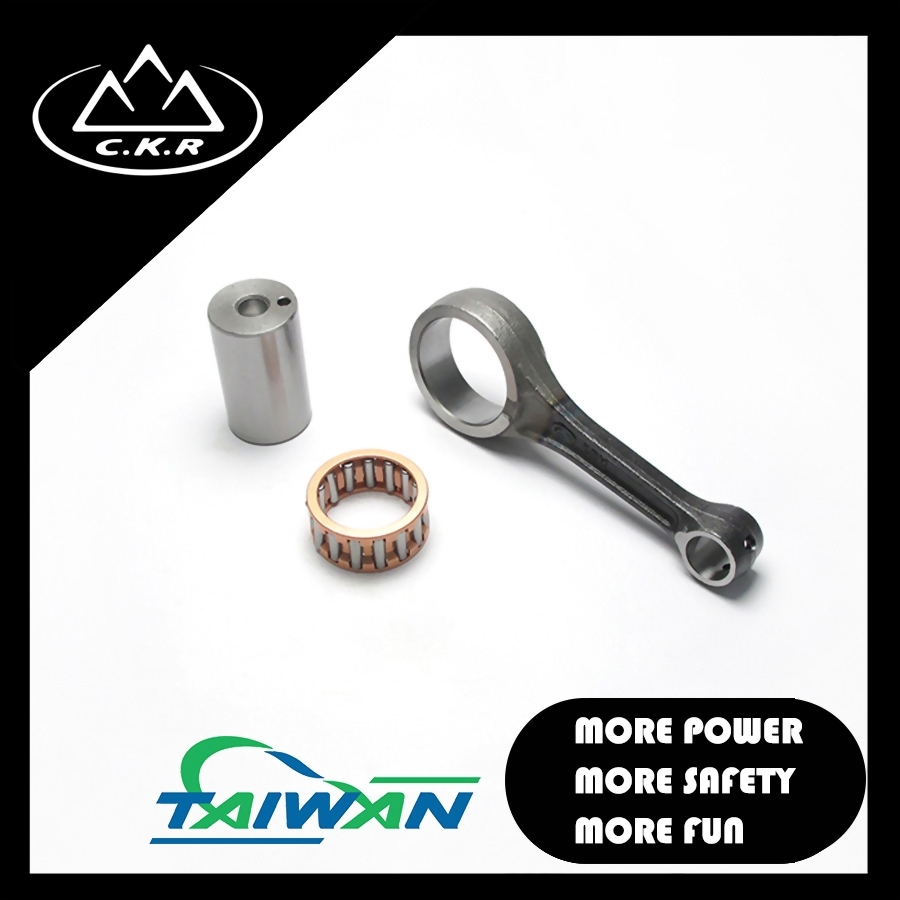

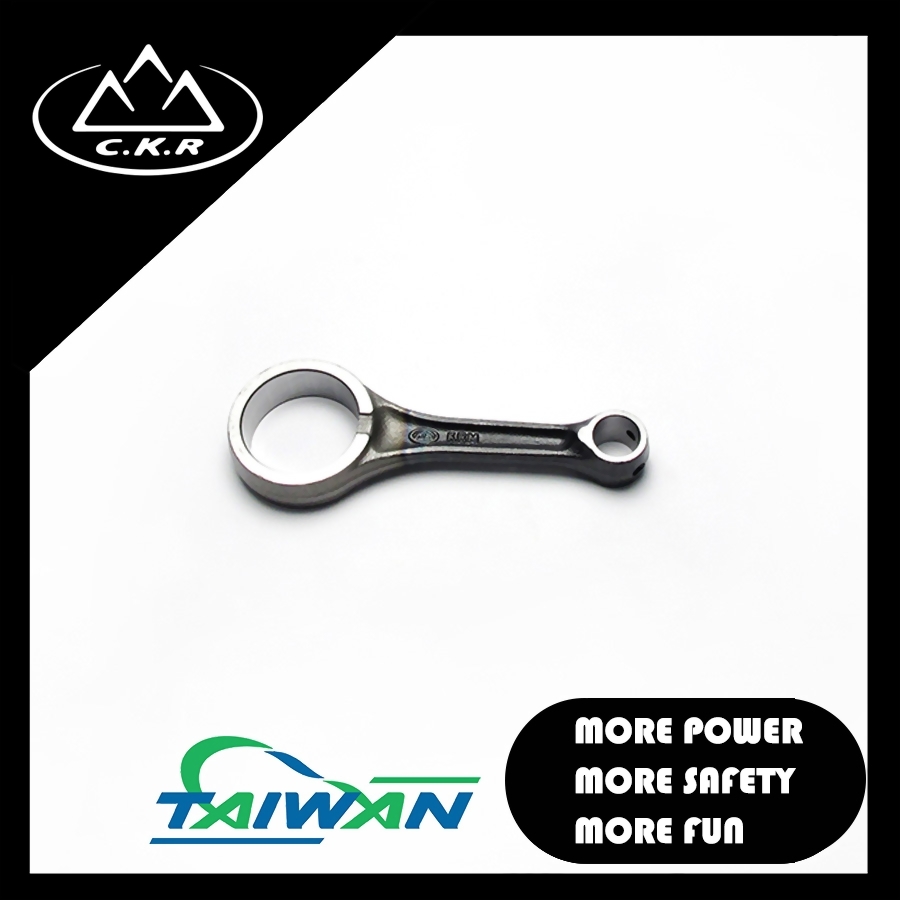

For Honda BROS160

Application:

Honda BROS160

OE NO. 13201-KRE-G01

Model : KRE

Q'ty :

Specifications

Application:

Honda BROS160

OE NO. 13201-KRE-G01

Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 36

Small-end Bore (mm): 14

Center-to-center (mm): 96

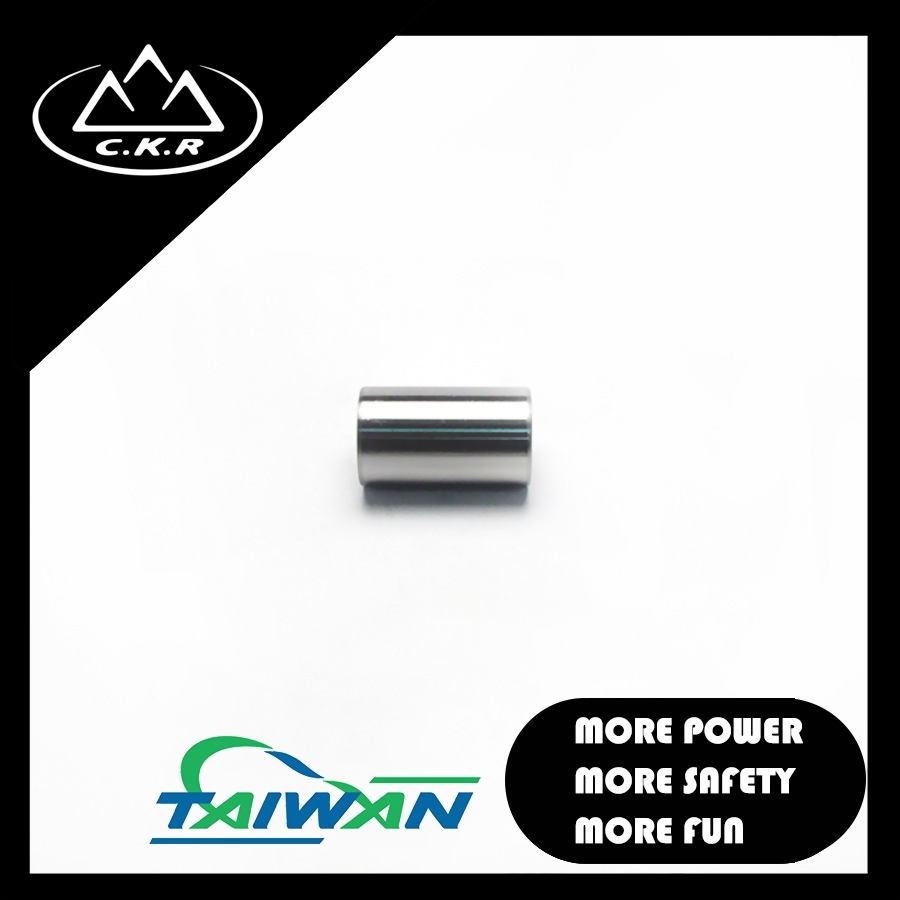

Pin Diameter (mm): 28

Pin Length (mm): 48

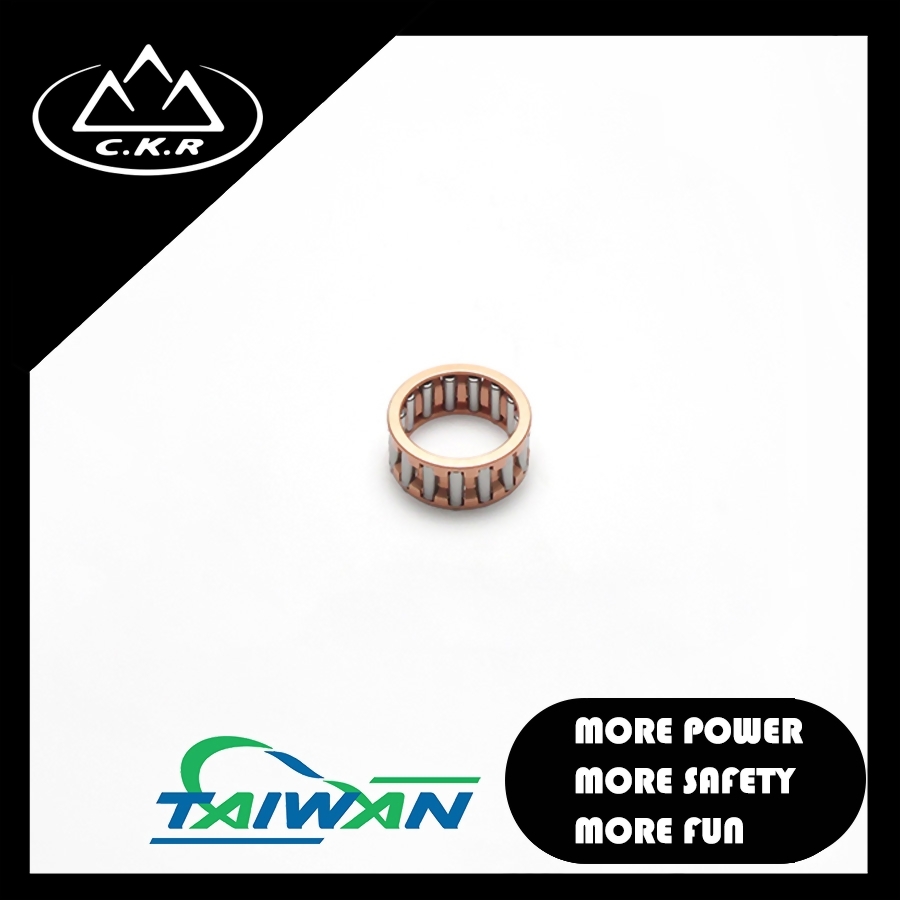

Big-end Bearing (mm): 28*36*16

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
