For Honda C90

Application:
Honda C90
Model : GB5

Application:

Honda C90



Big-end Width (mm): 14

Small-end Width (mm): 14

Big-end Bore (mm): 28.1

Small-end Bore (mm): 13

Center-to-center (mm): 91

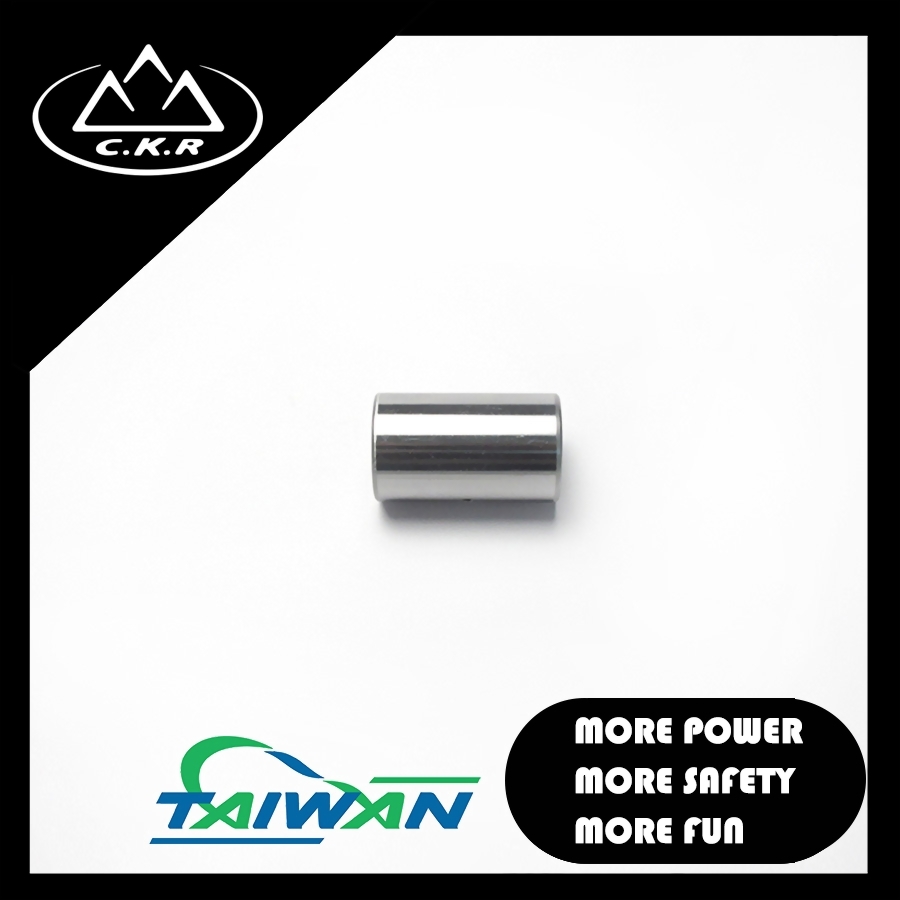

Pin Diameter (mm): 23.1

Pin Length (mm): 39

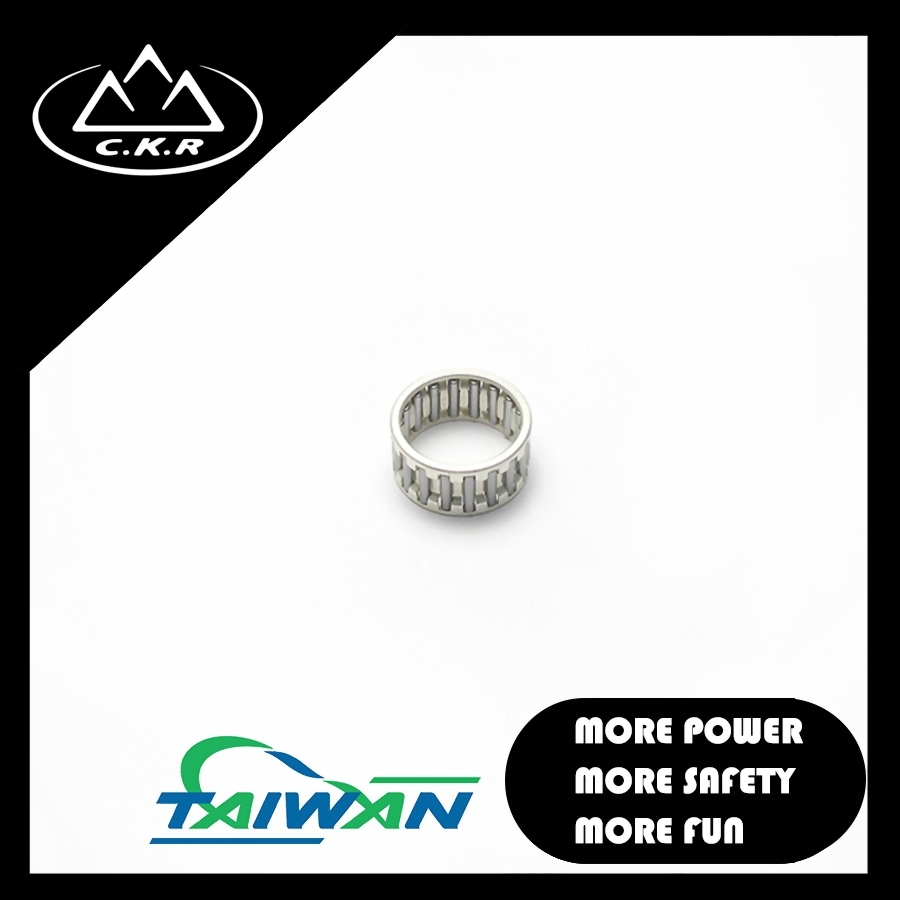

Big-end Bearing (mm): 23.1*28.1*14

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
