For Honda GY6

Application:

Honda GY6

OE NO. 13201-GY6-9000-1
Model : GY6

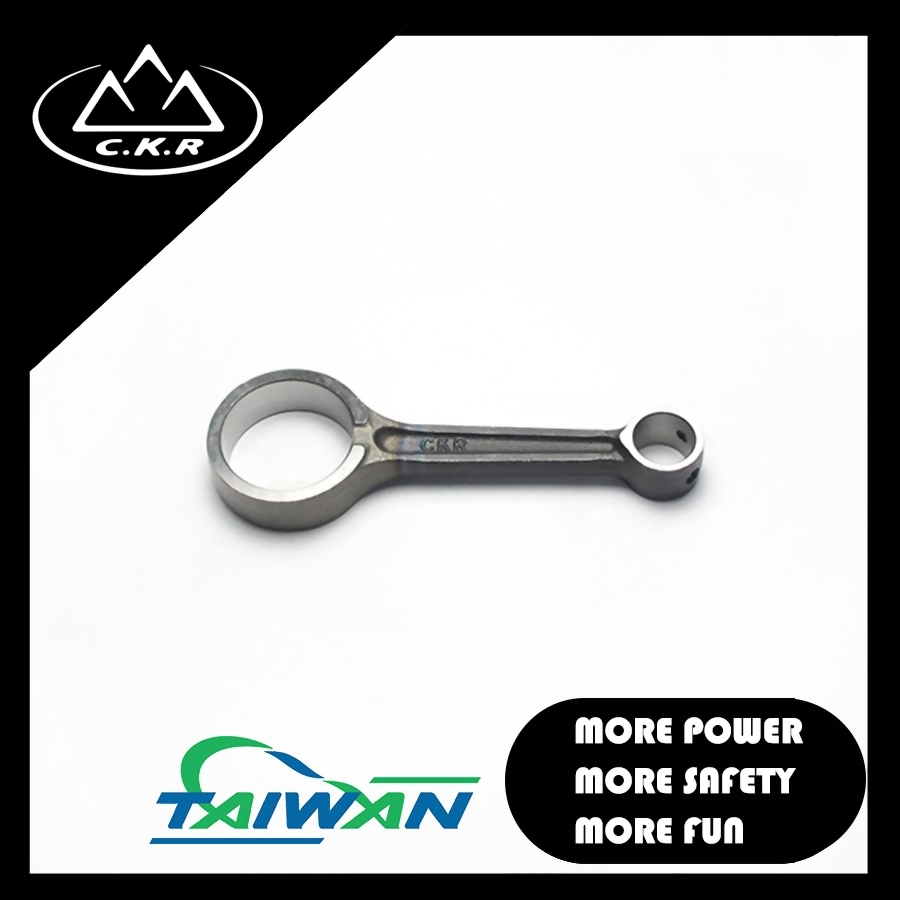

The GY6 connecting rod kit is for the famous Honda GY6  Engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Honda GY6

OE NO. 13201-GY6-9000-1


Big-end Width (mm): 14

Small-end Width (mm): 14

Big-end Bore (mm): 33

Small-end Bore (mm): 15

Center-to-center (mm): 93.5

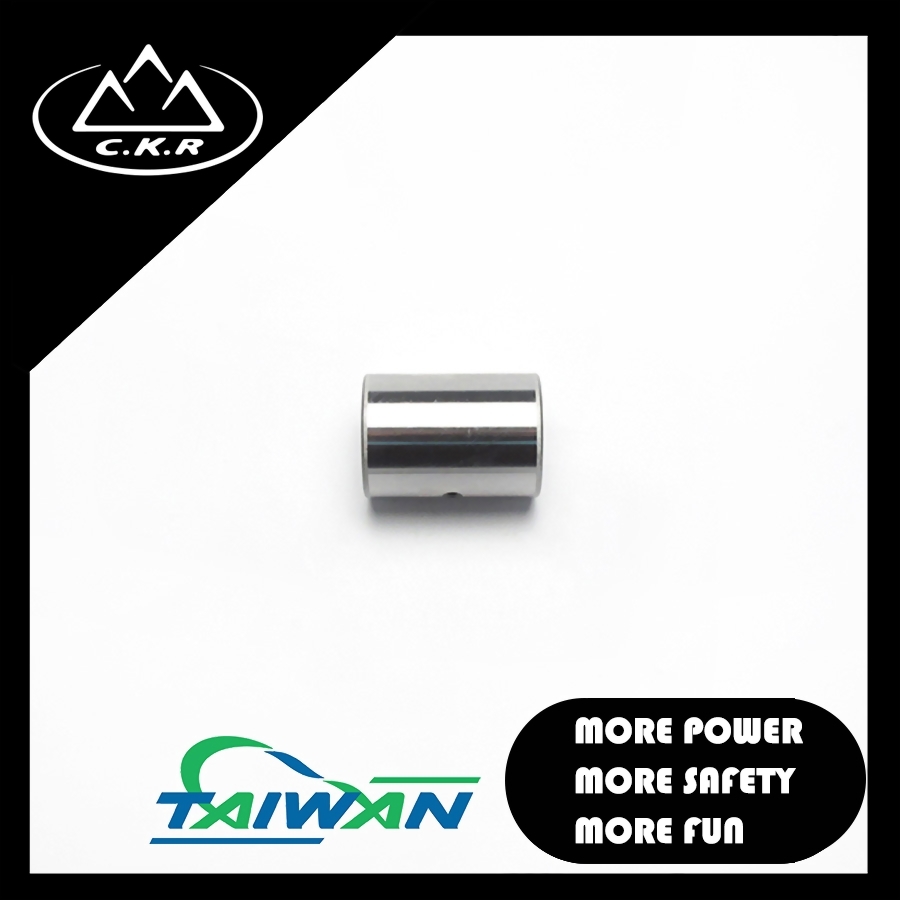

Pin Diameter (mm): 28

Pin Length (mm): 39

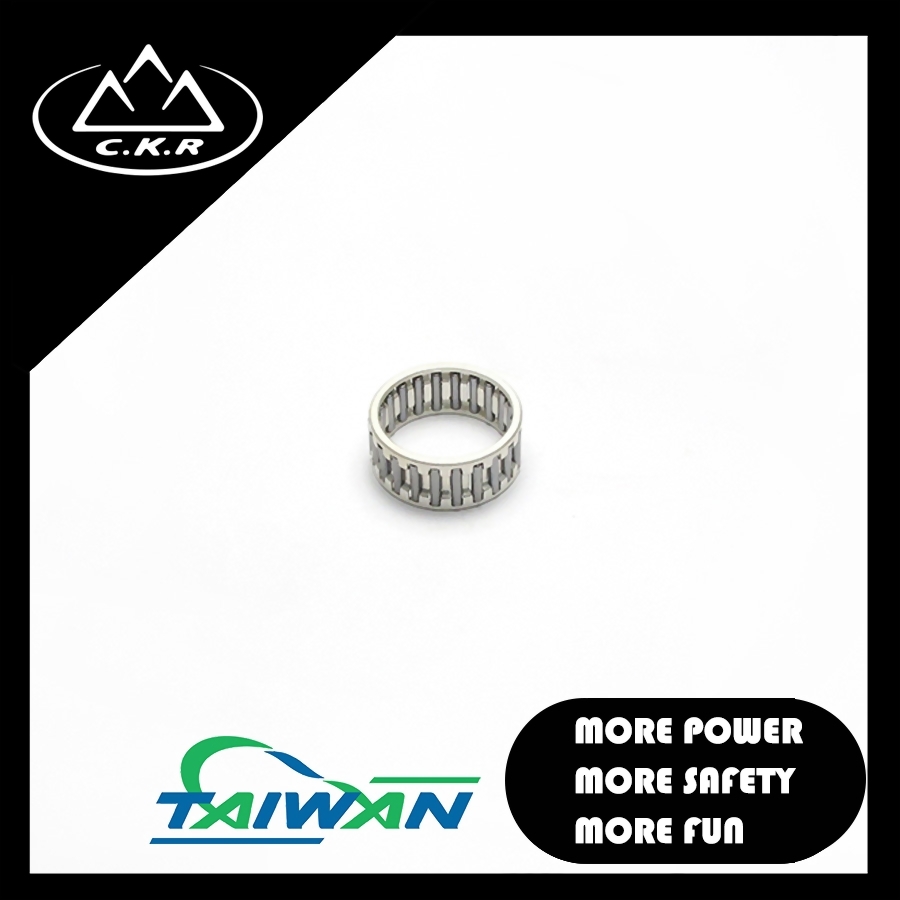

Big-end Bearing (mm): 28*33*14

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
