For Honda NX400 FALCON

Application:
Honda NX400 FALCON
Model : CR900M

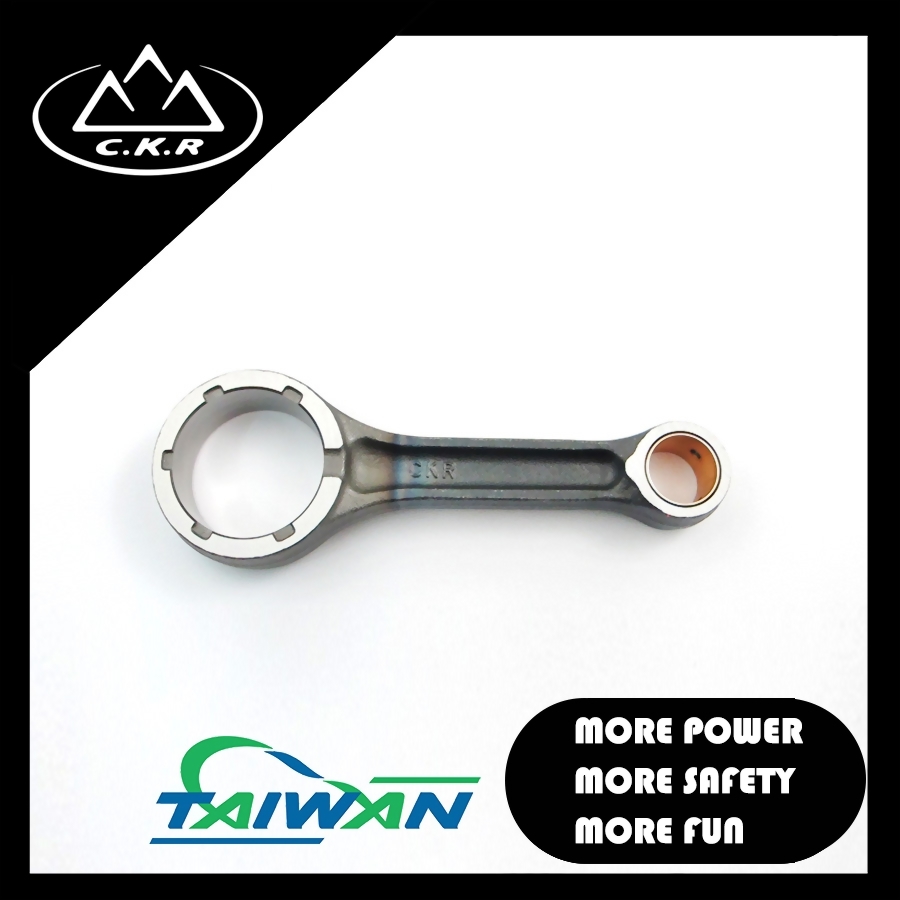

The CR900M connecting rod kit is for the famous Honda NX400 FALCON engine. High strength alloy steel is applied for the connecting rod, crank pin and bearing.


Application:

Honda NX400 FALCON



Big-end Width (mm): 21

Small-end Width (mm): 19

Big-end Bore (mm): 43

Small-end Bore (mm): 20

Center-to-center (mm): 122.7

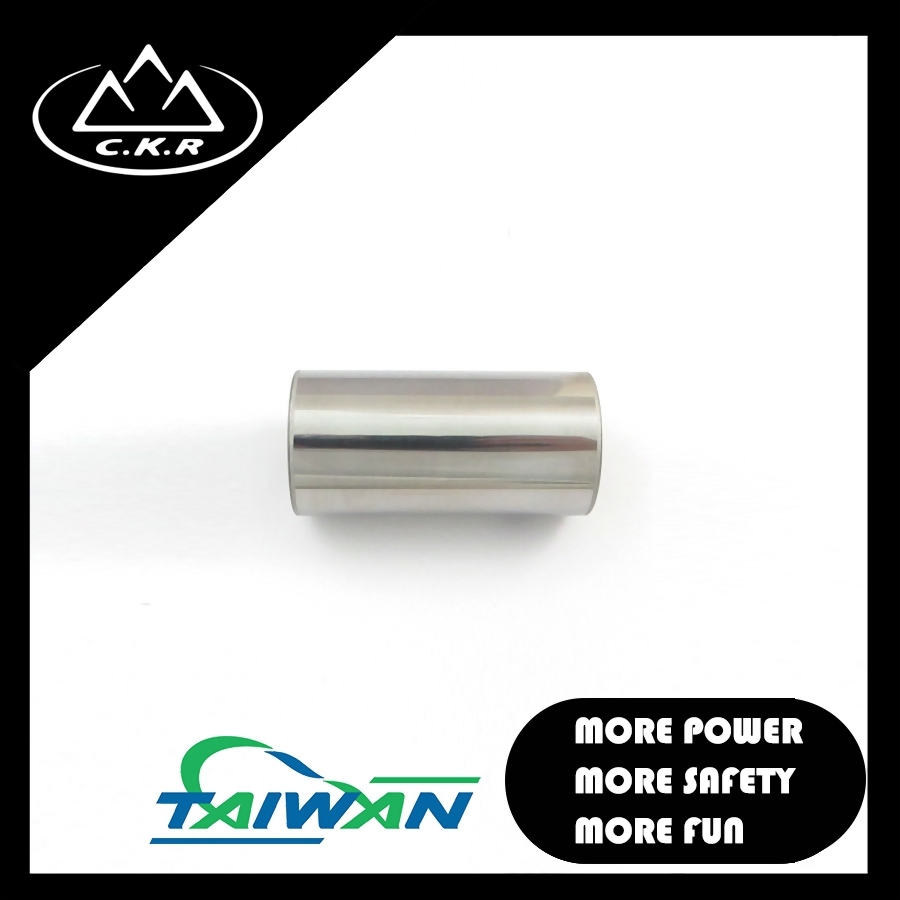

Pin Diameter (mm): 34

Pin Length (mm): 66

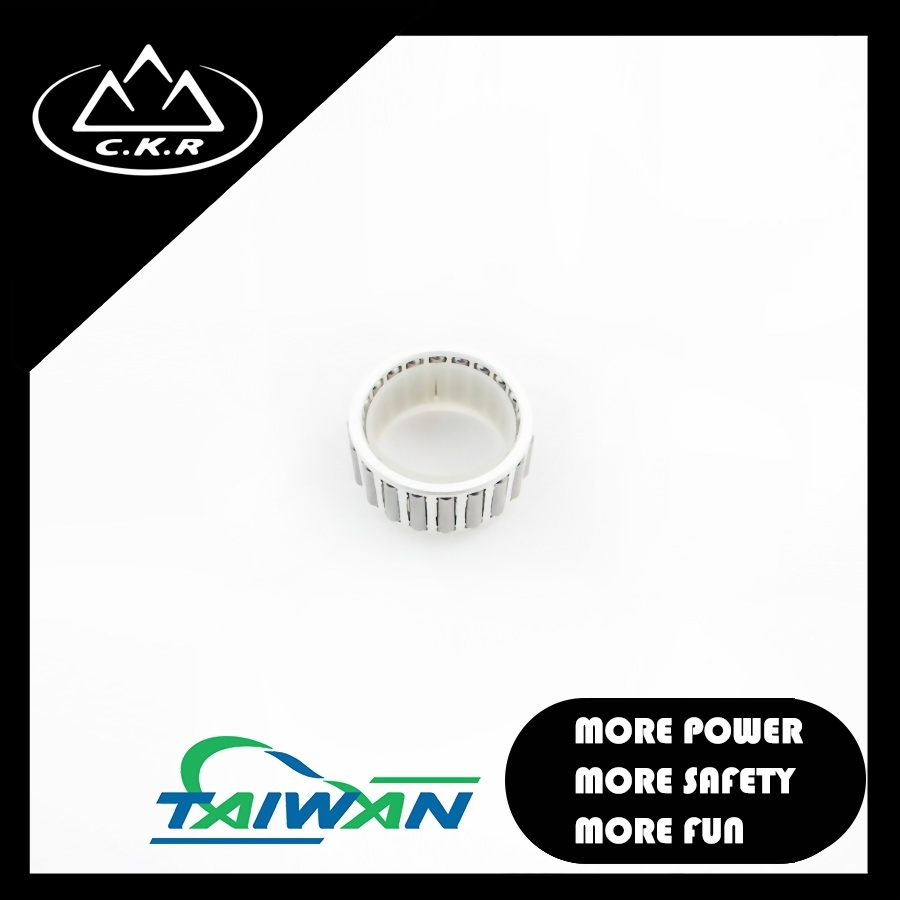

Big-end Bearing (mm): 34*43*20

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
