Application:

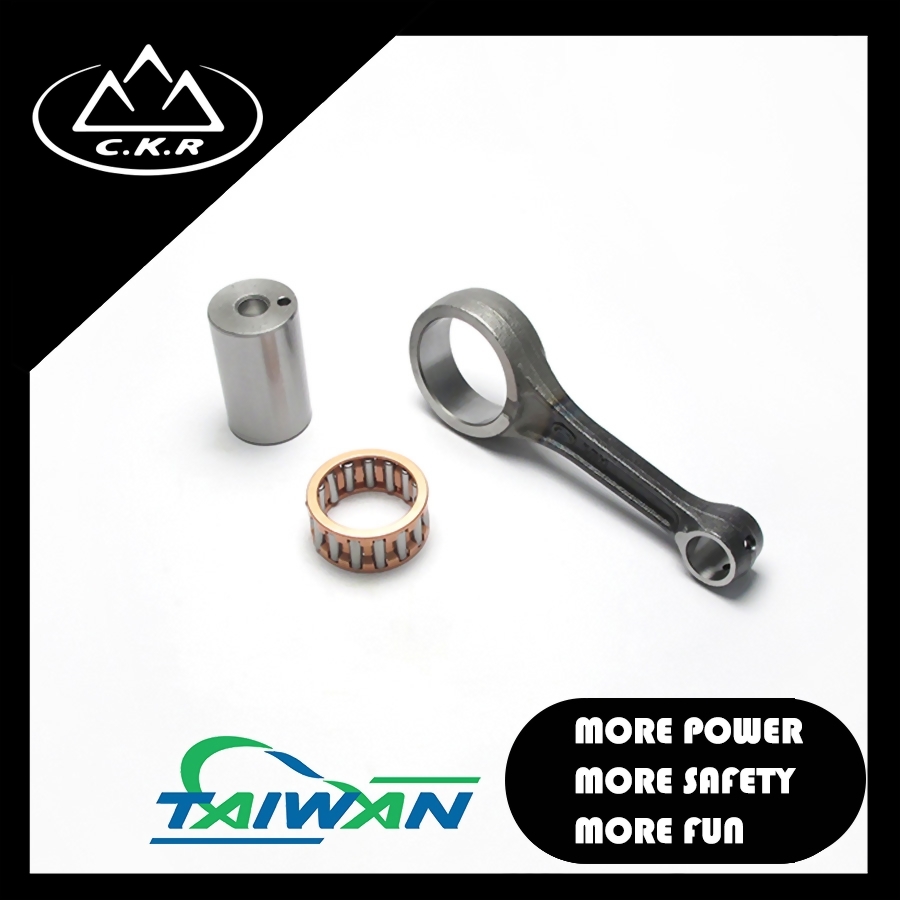

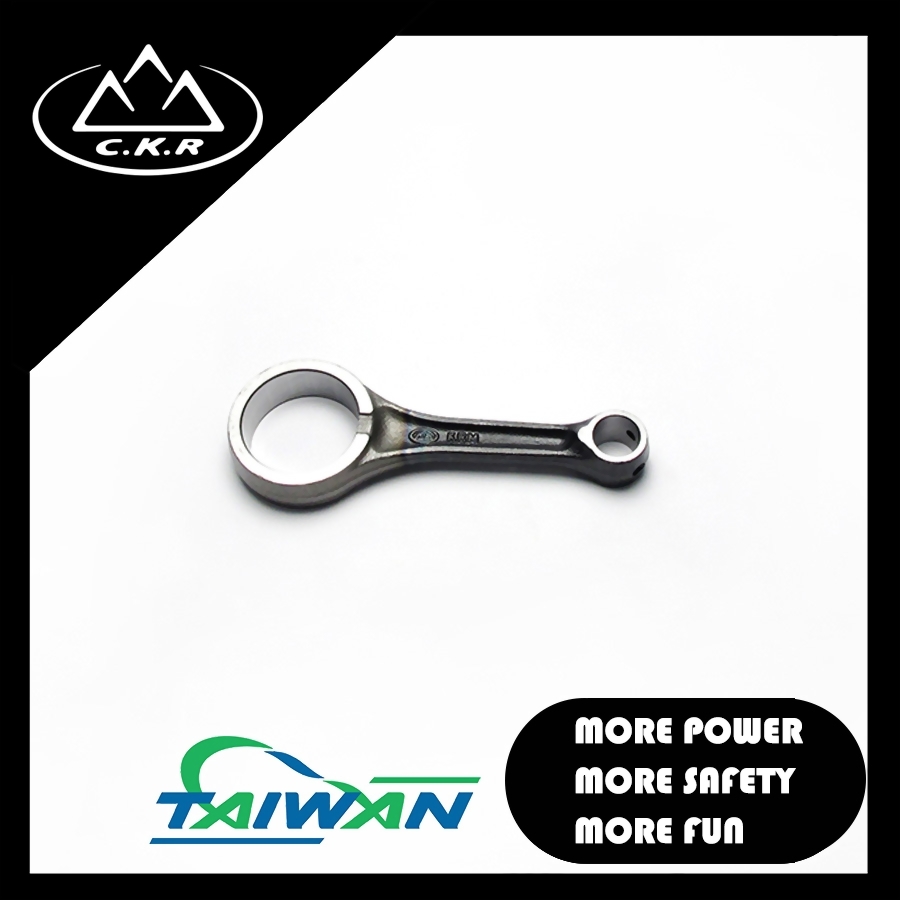

Honda CG150

OE NO. 06381-KRM-840

Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 36

Small-end Bore (mm): 14

Center-to-center (mm): 96

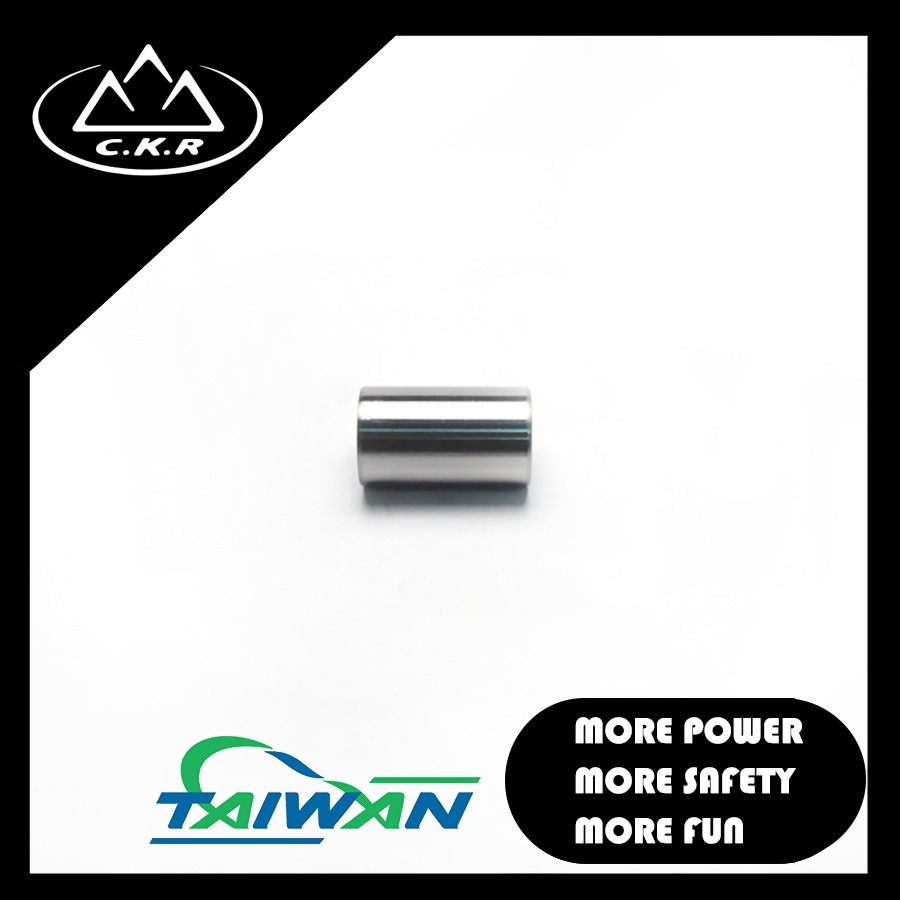

Pin Diameter (mm): 28

Pin Length (mm): 48

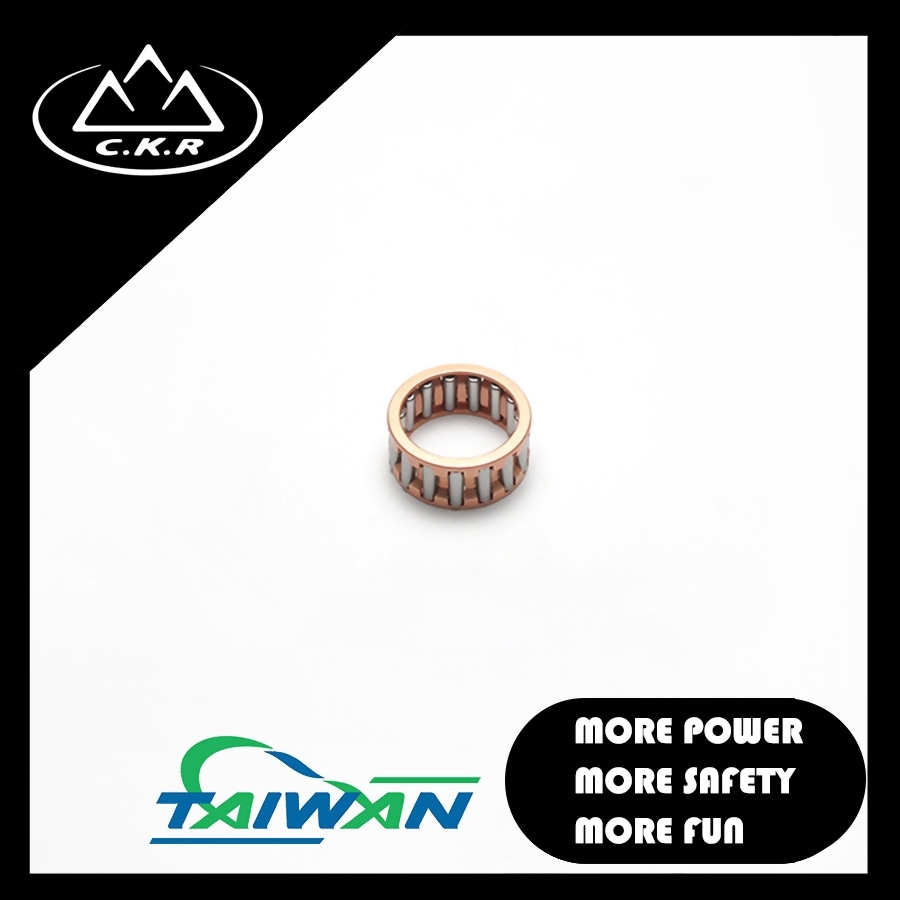

Big-end Bearing (mm): 28*36*16

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
