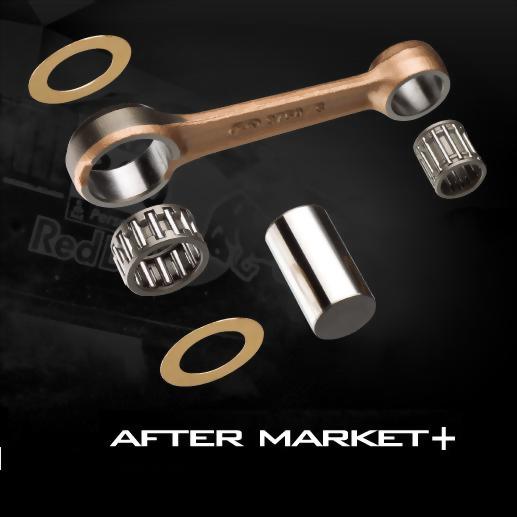

For Suzuki AG100 / RC100 / V100

For Suzuki AG100 / RC100 / V100

Application:
Suzuki AG100 / RC100 / V100
Model : 04C

Application:

Suzuki AG100 / RC100 / V100

Big-end Width (mm): 14

Small-end Width (mm): 14

Big-end Bore (mm): 26

Small-end Bore (mm): 16

Center-to-center (mm): 94

Pin Diameter (mm): 20

Pin Length (mm): 39

Big-end Bearing (mm): 20*26*14

Small-end Bearing (mm): 12*16*16

Washer Thickness (mm): N/A
