For Yamaha LB80

Application:
Yamaha LB80
Model : 126

Application:

Yamaha LB80



Big-end Width (mm): 11.6

Small-end Width (mm): 15.5

Big-end Bore (mm): 24

Small-end Bore (mm): 15

Center-to-center (mm): 84

Pin Diameter (mm): 18.035

Pin Length (mm): 37

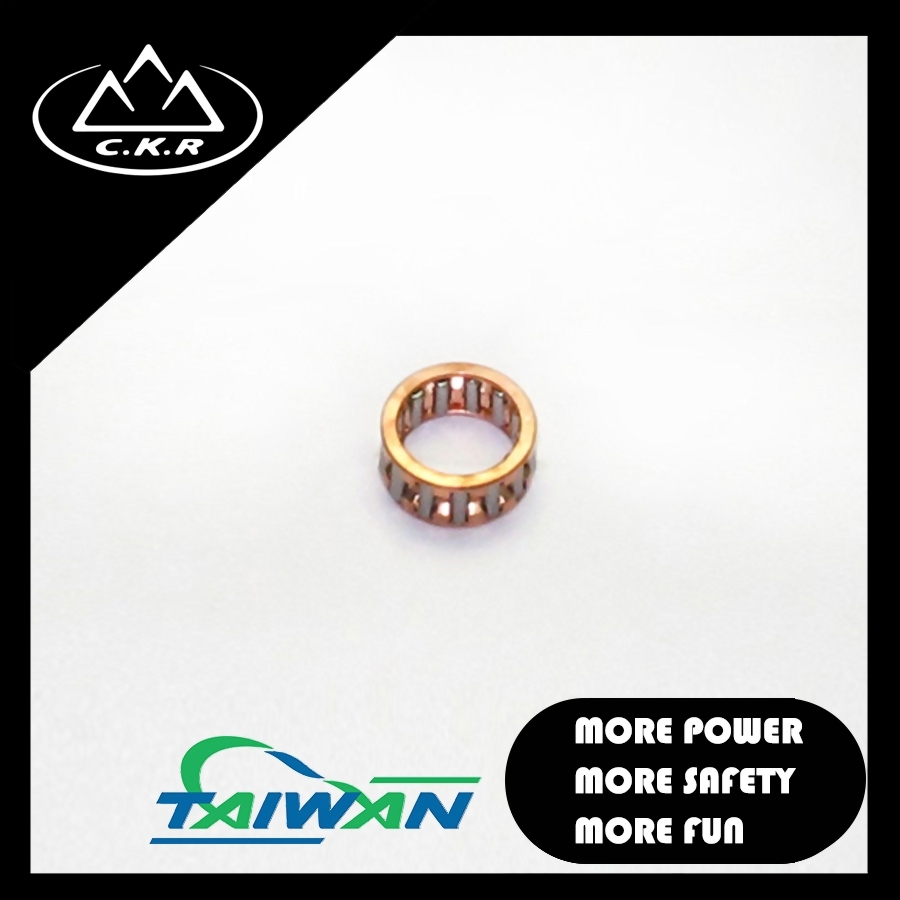

Big-end Bearing (mm): 18*24*11.5

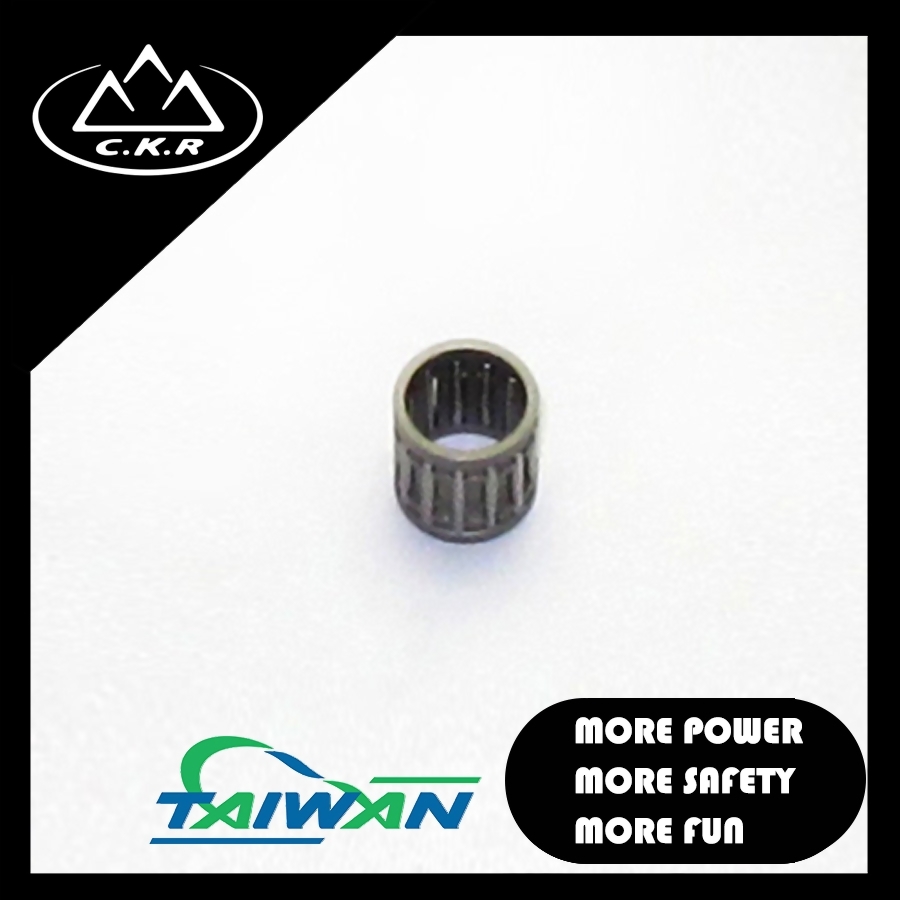

Small-end Bearing (mm): 12*15*16.5

Washer Thickness (mm): 1.0
