Application:

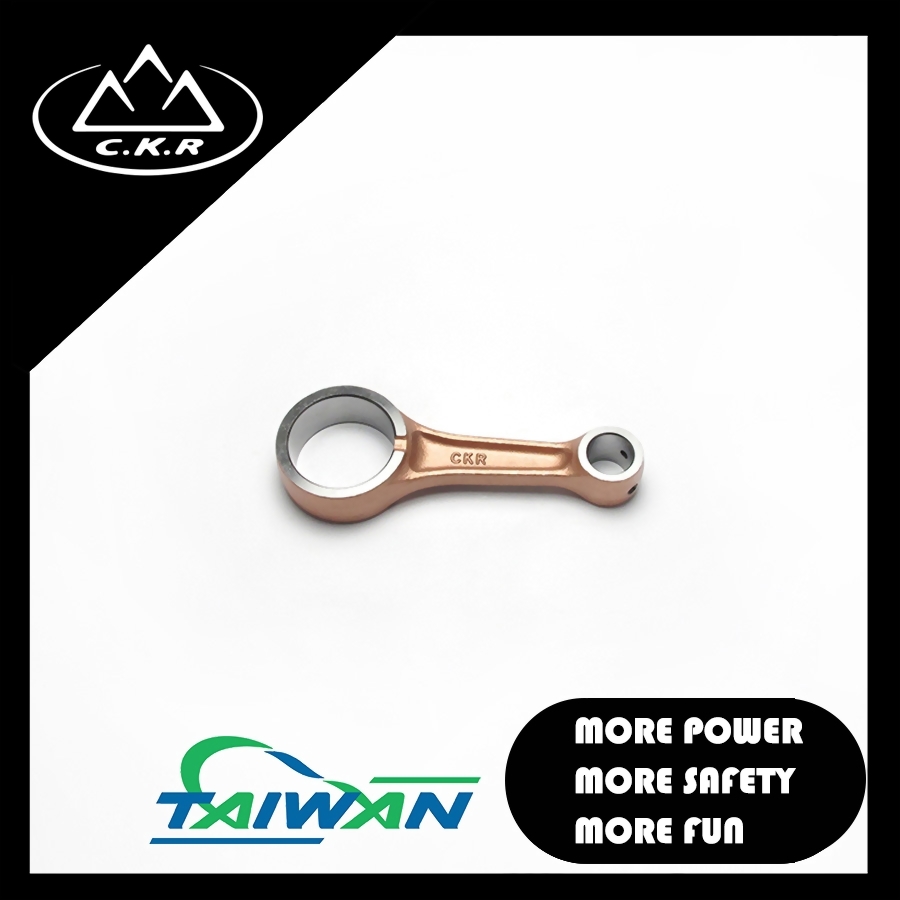

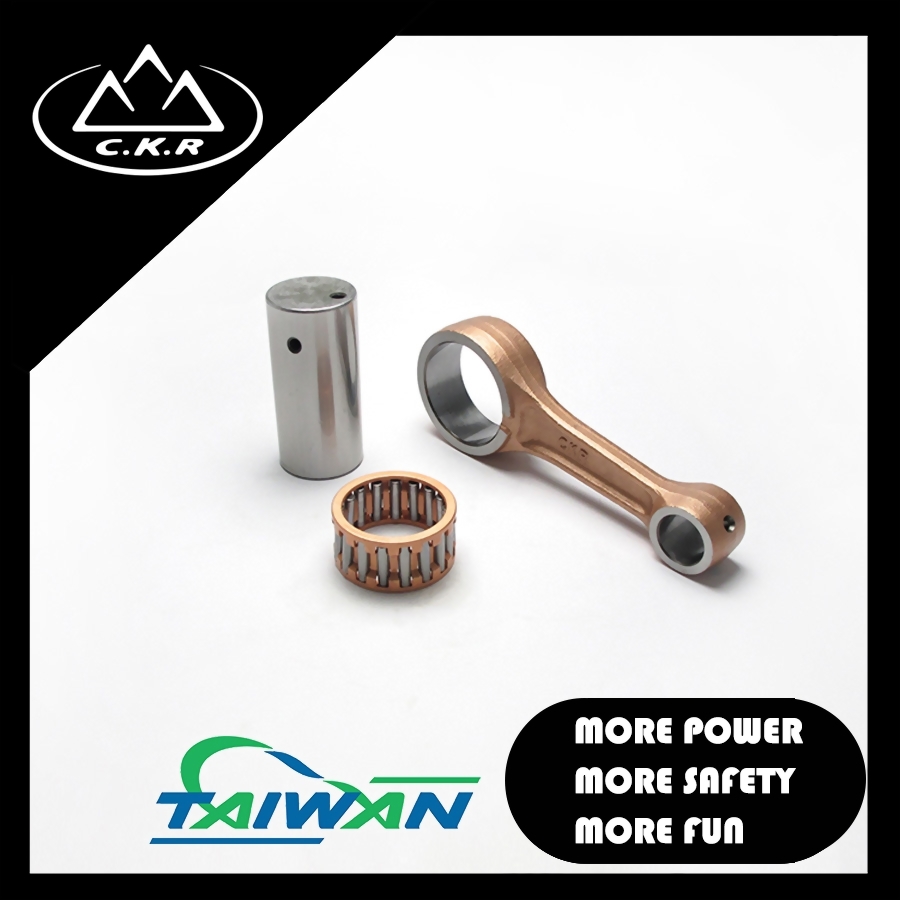

Yamaha FAZER250 / YBR250

OE NO. 1S4-11651-00

Big-end Width (mm): 20

Small-end Width (mm): 20

Big-end Bore (mm): 40

Small-end Bore (mm): 17

Center-to-center (mm): 100.5

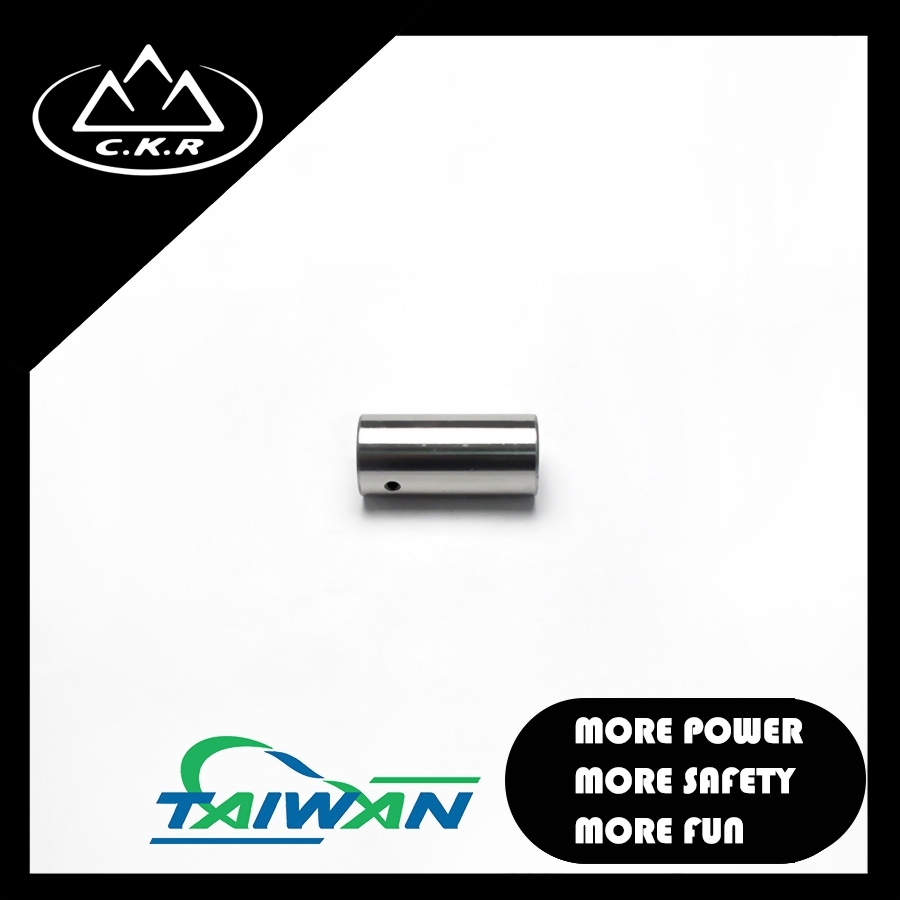

Pin Diameter (mm): 32

Pin Length (mm): 68

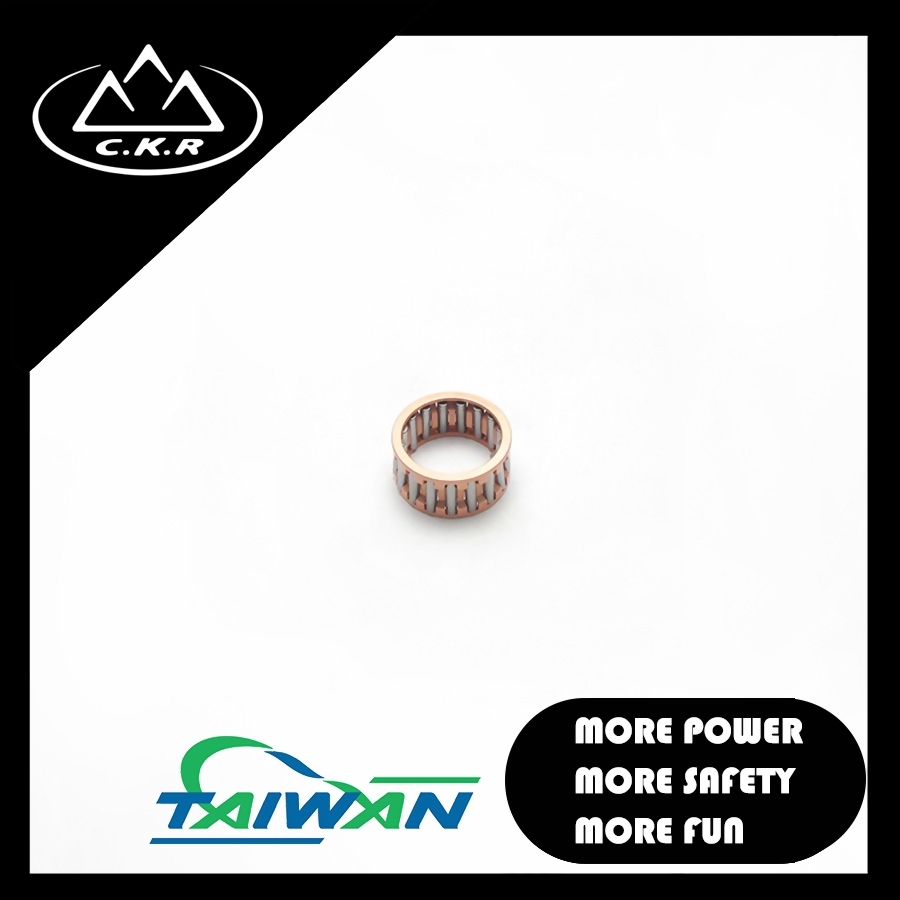

Big-end Bearing (mm): 32*40*20

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
