For Yamaha RXZ / RXZ135

Application:

Yamaha RXZ / RXZ135

OE NO. 55K-11651-00
Model : 55K

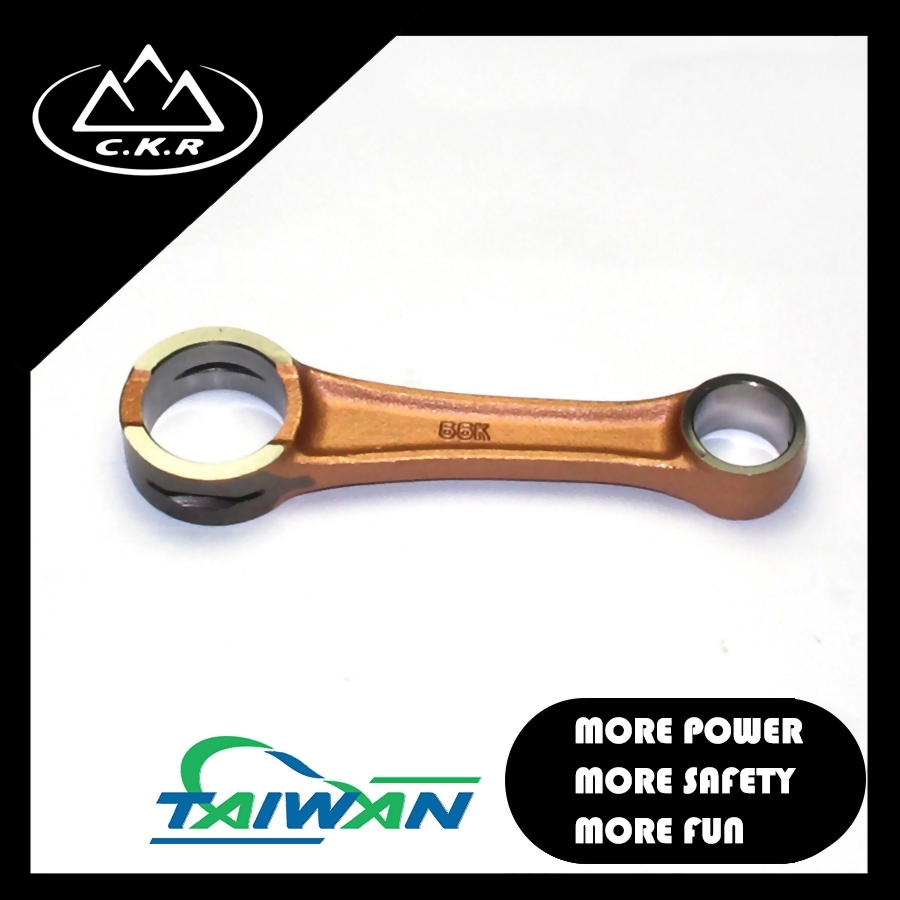

The Yamaha RXZ / RXZ135 suitable connecting rod kits are produced in Taiwan. High strength alloy steel is applied for the connecting rod, crank pin and bearing.


Application:

Yamaha RXZ / RXZ135

OE NO. 55K-11651-00


Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 29

Small-end Bore (mm): 20

Center-to-center (mm): 105

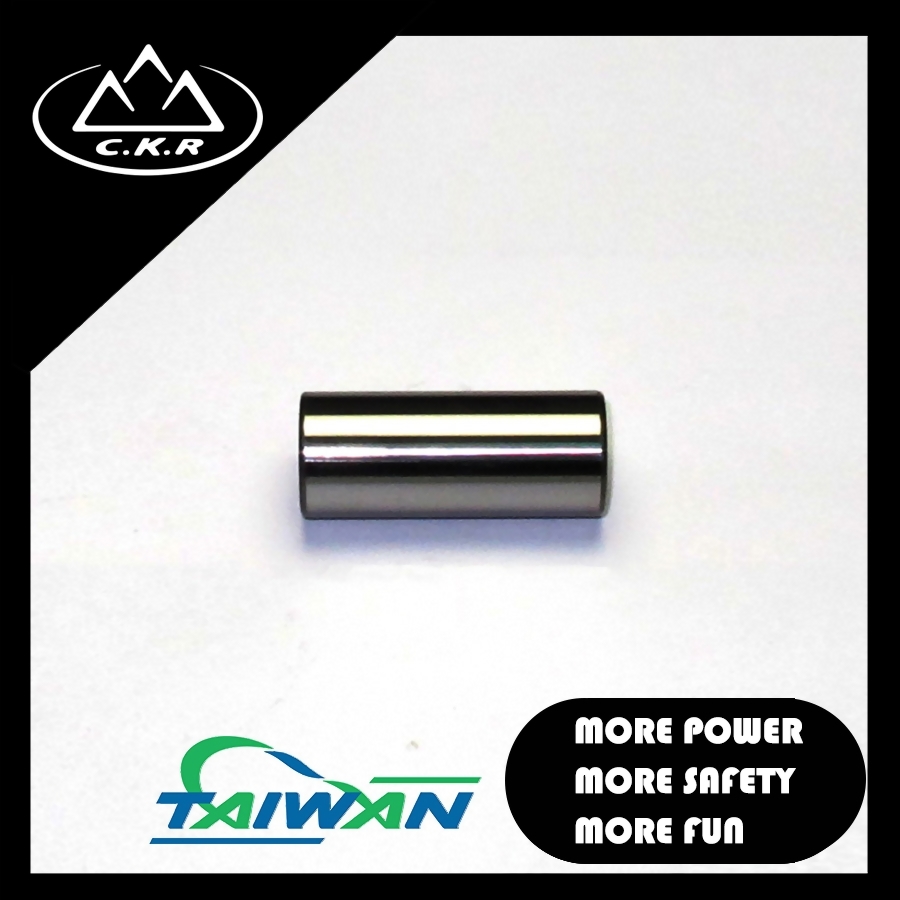

Pin Diameter (mm): 22

Pin Length (mm): 53

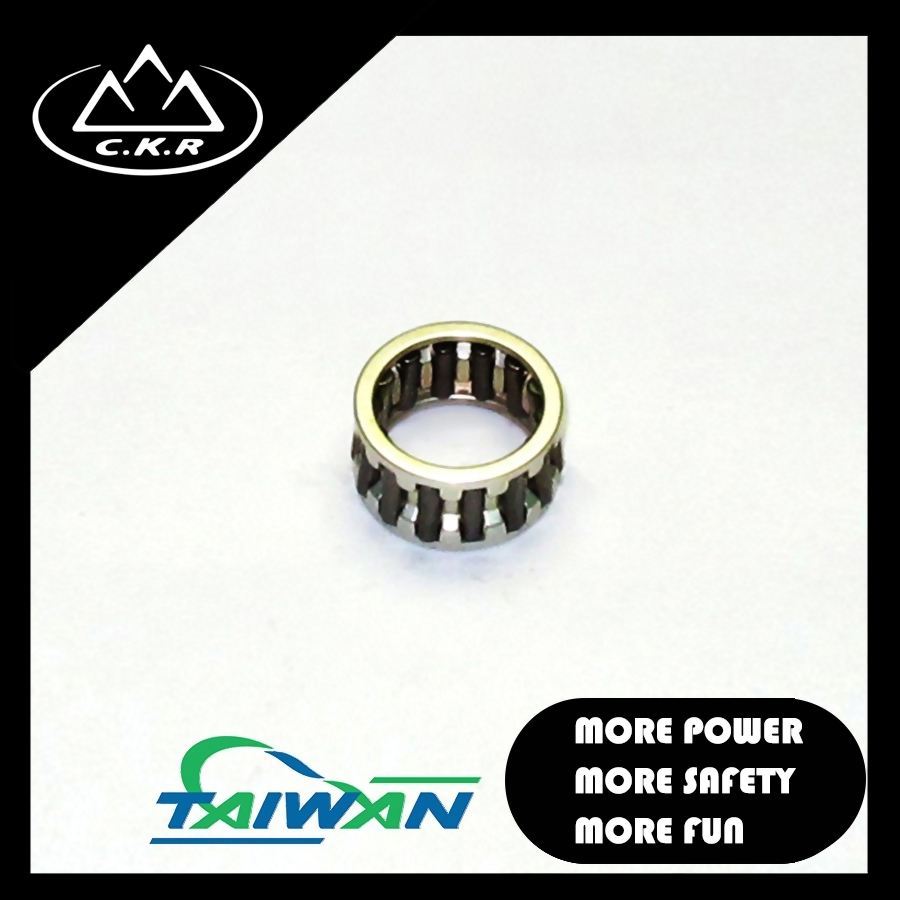

Big-end Bearing (mm): 22*29*16

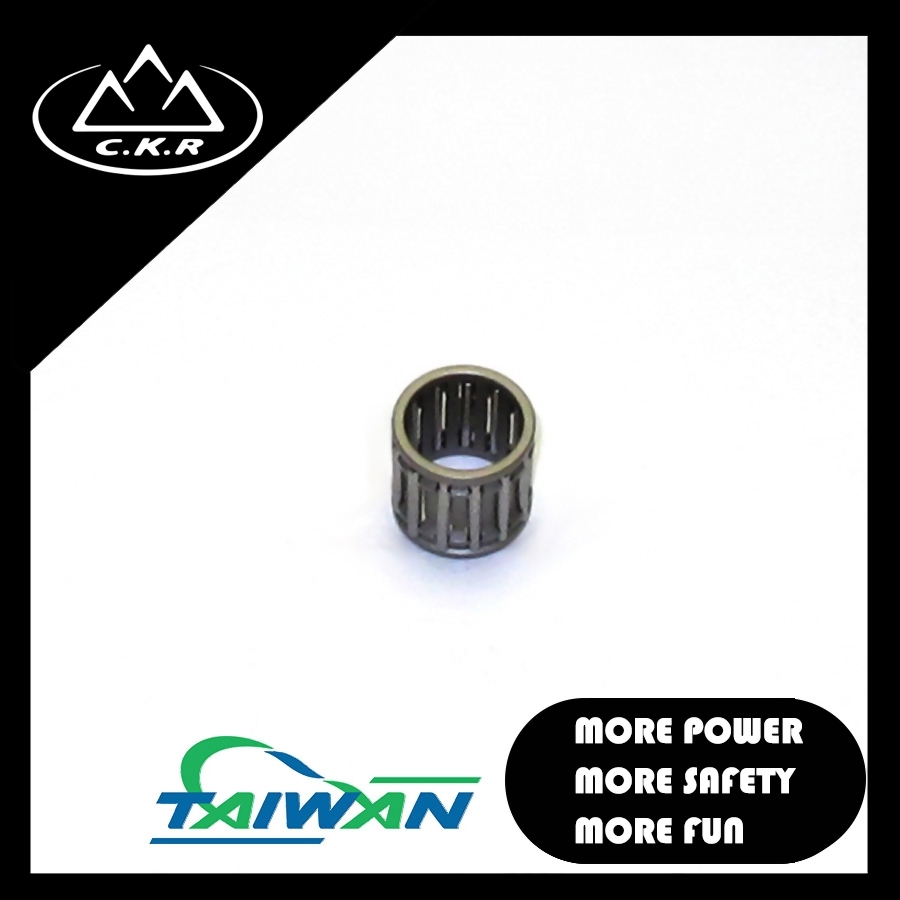

Small-end Bearing (mm): 16*20*20

Washer Thickness (mm): 1.0
