Application:

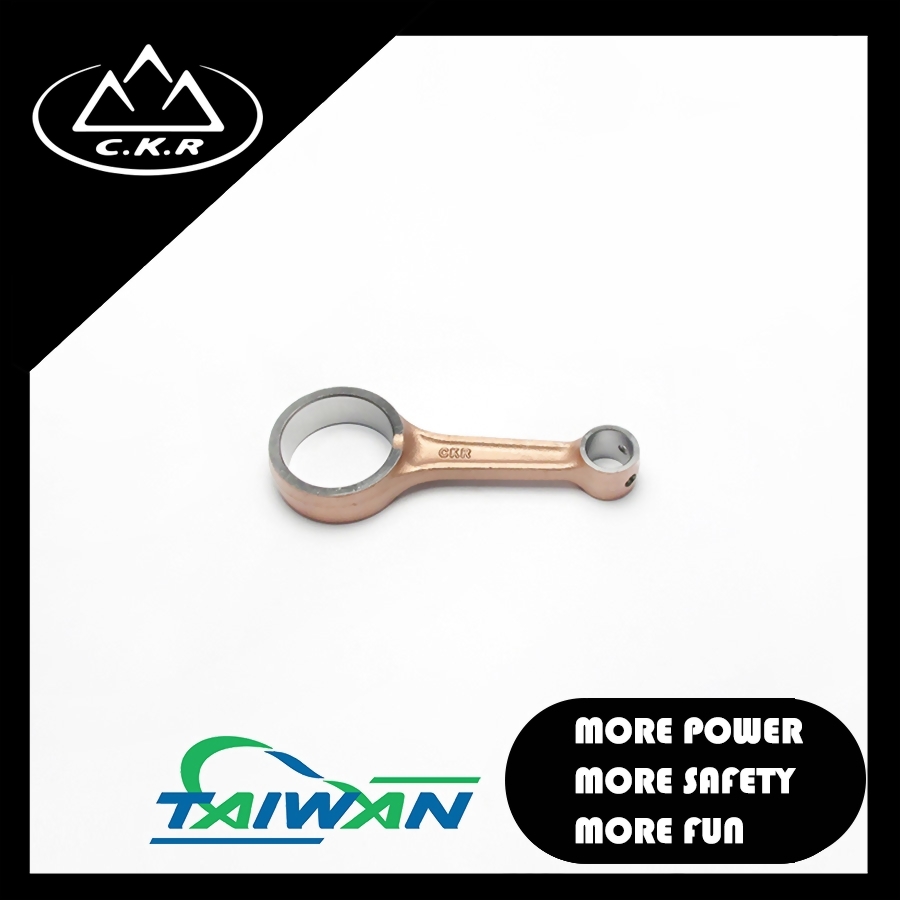

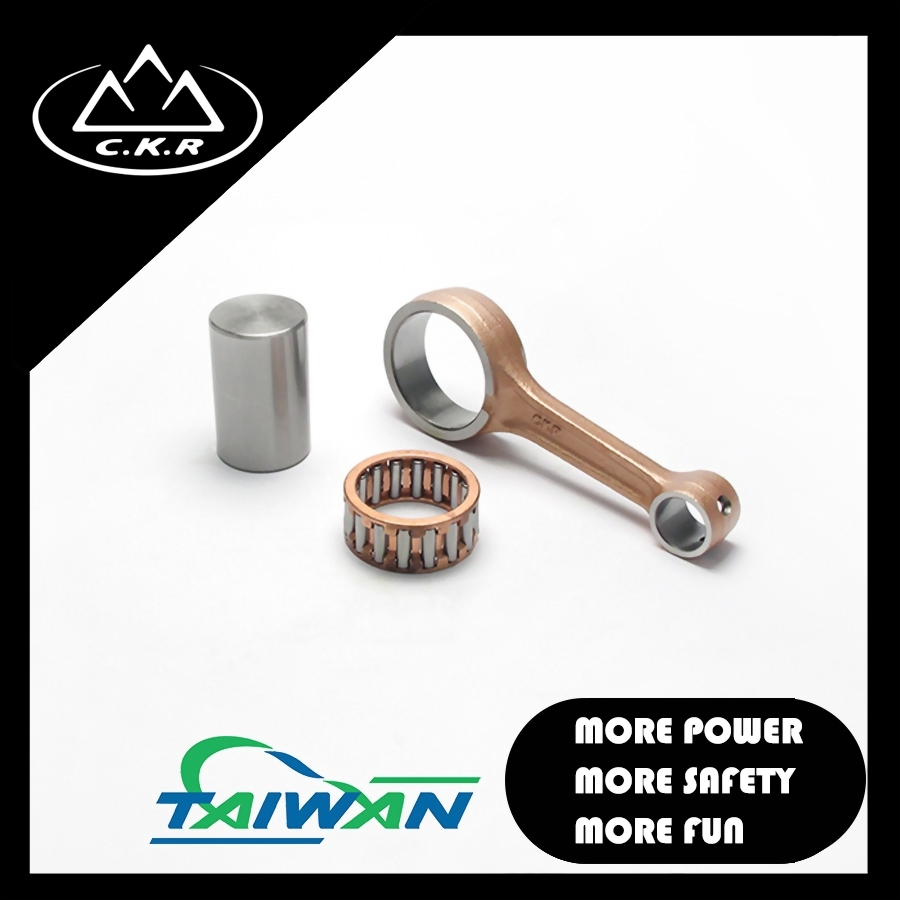

Yamaha YBR125

OE NO. 4LS-11651-00
Model : 4LS

Application:

Yamaha YBR125

OE NO. 4LS-11651-00


Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 37

Small-end Bore (mm): 15

Center-to-center (mm): 88.7

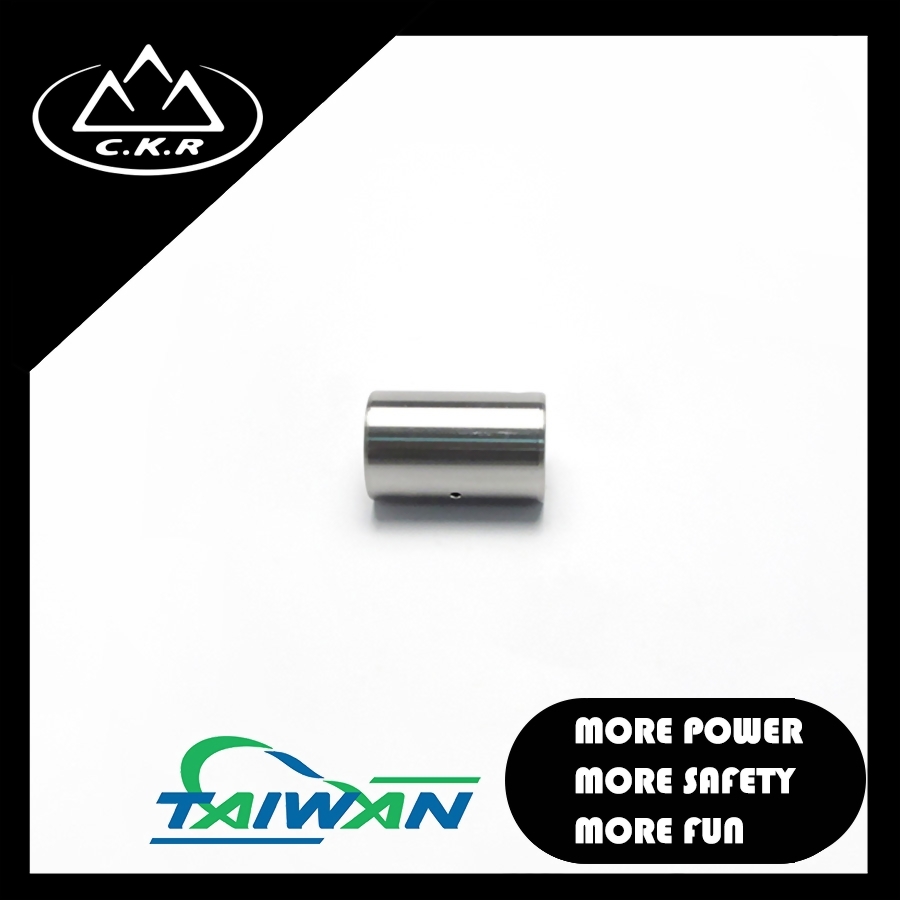

Pin Diameter (mm): 29

Pin Length (mm): 46

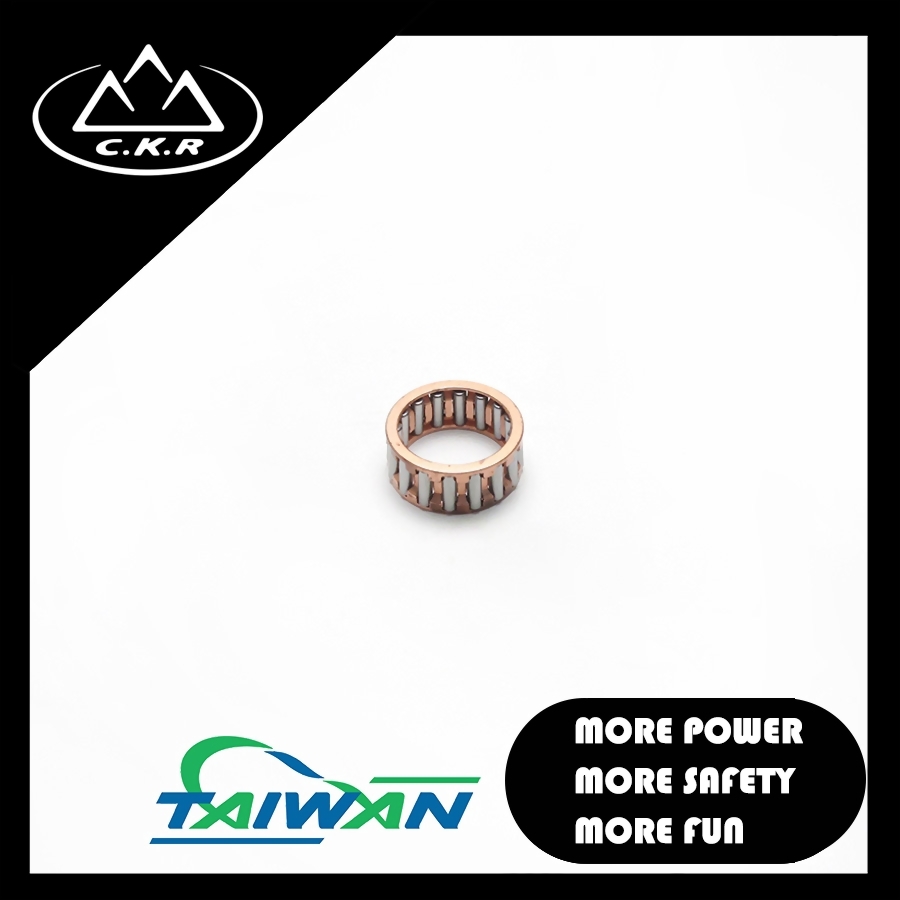

Big-end Bearing (mm): 29*37*16

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
