KU/KUZ Needle Bearings for High-Load Engines

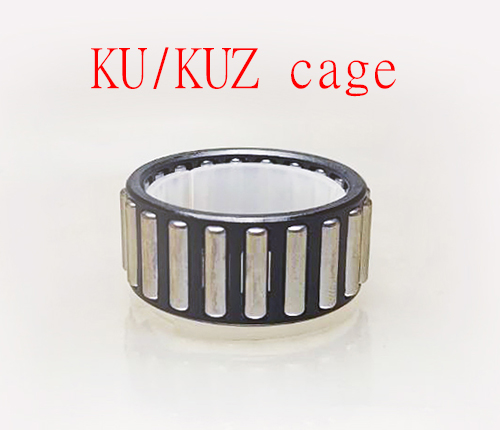

KU/KUZ Type Needle Roller Bearings
High-Performance Bearings for High-Speed, Heavy-Load Engines
Overview
KU/KUZ type needle roller bearings are designed for the big-end or lower-end bore of connecting rods in heavy-loading, high-speed engines. The cage of KU/KUZ type bearing offers higher rigidity, featuring a large and flat outer diameter surface to effectively reduce contact pressure between the cage and the inner race of the connecting rod's big end bore.
This design accommodates a greater number of needles compared to the KT type bearing, making it suitable for ultra-high-speed or heavy-load engine applications.
Key Features
- Heat Treatment: Carbonitriding treatment for superior hardness and wear resistance.
- Hardness (Roller): HRC 60-66, providing durability under heavy-load conditions.
- Dimensional Tolerance: Needle outer diameter tolerance precisely maintained at +0 / -0.002 mm.
Why Choose KU/KUZ Needle Roller Bearings?
KU/KUZ type needle roller bearings are engineered for extreme performance in high-speed and heavy-load engine applications. With a robust cage design, superior heat treatment, and precise tolerances, these bearings offer exceptional durability and reliability under demanding conditions.
Contact Us
For more information about our KU/KUZ type needle roller bearings or to discuss your specific requirements, please contact us.
