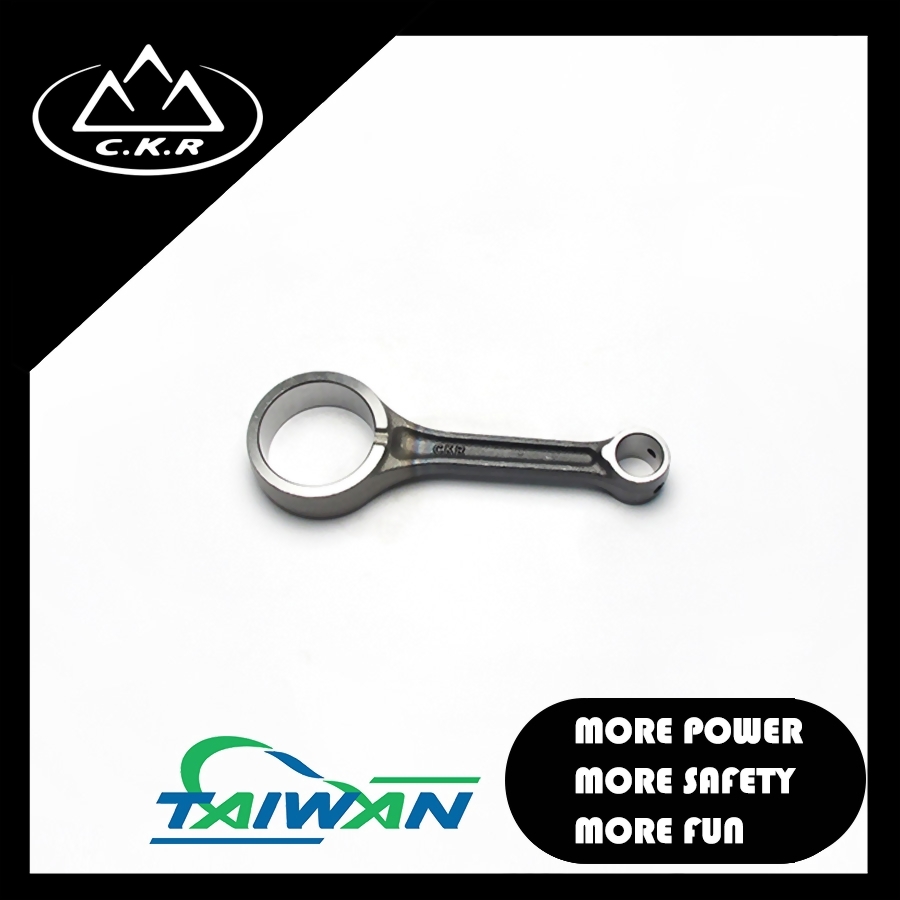

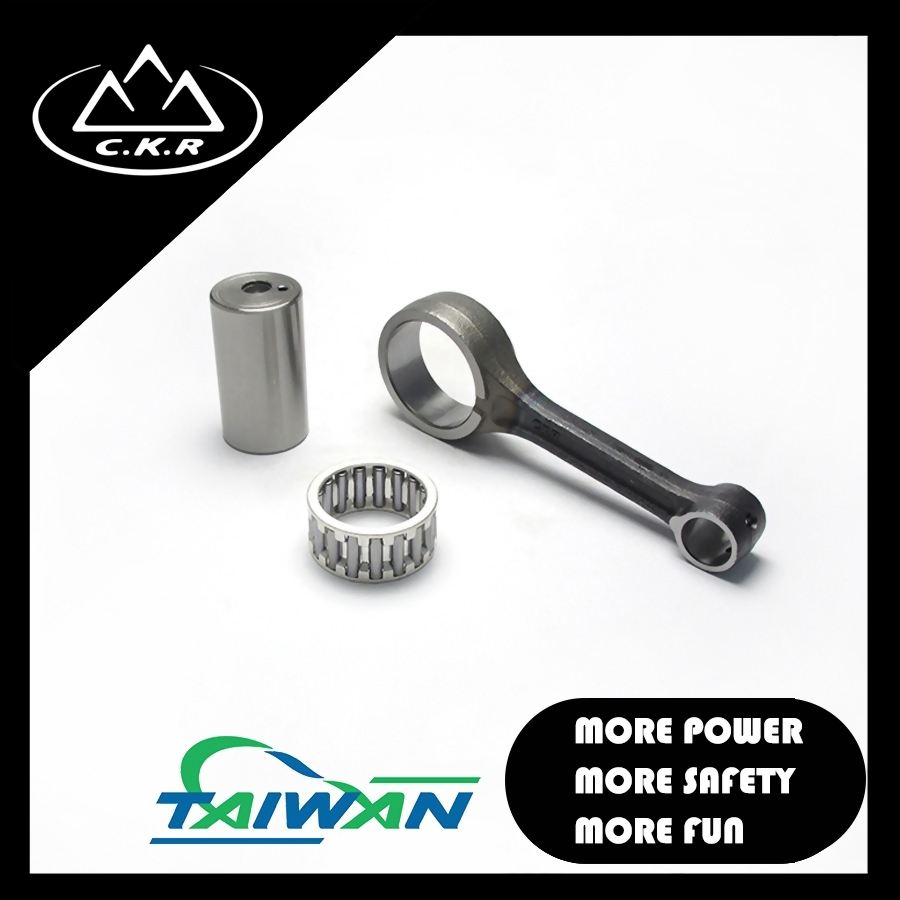

For Honda CG125 / CB100S

Application:

Honda CG125 / CB100S

OE NO. 13201-383-310
Model : 383

Application:

Honda CG125 / CB100S

OE NO. 13201-383-310


Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 37

Small-end Bore (mm): 15

Center-to-center (mm): 103.5

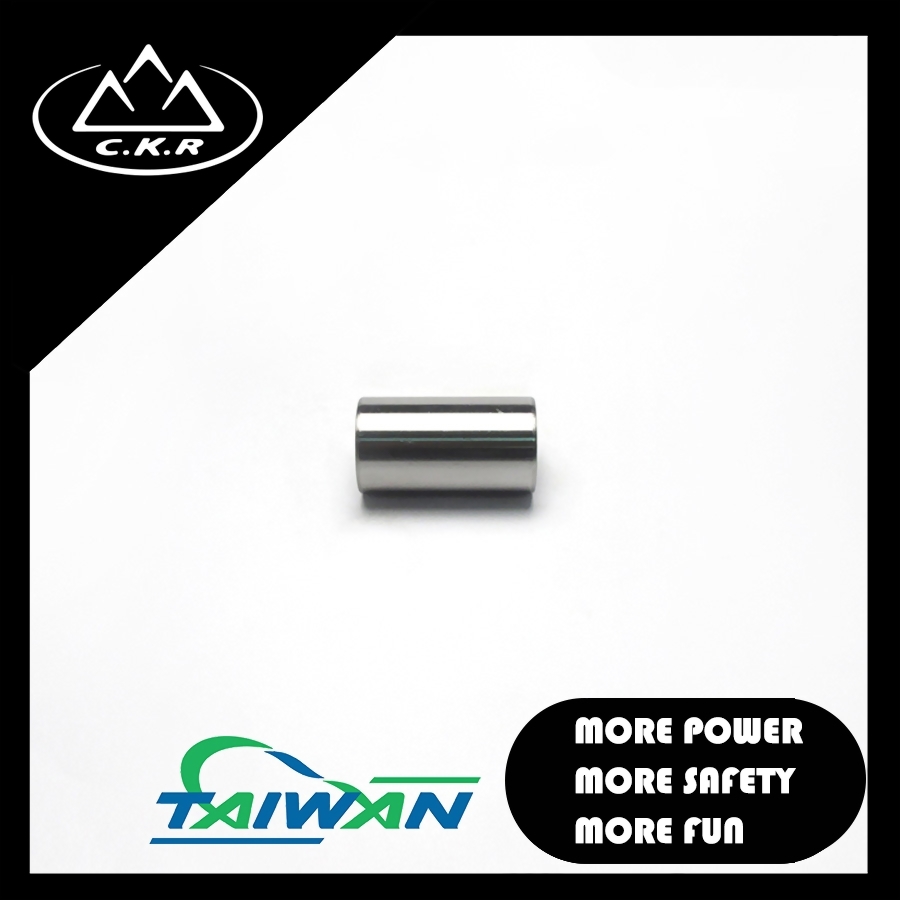

Pin Diameter (mm): 30

Pin Length (mm): 54

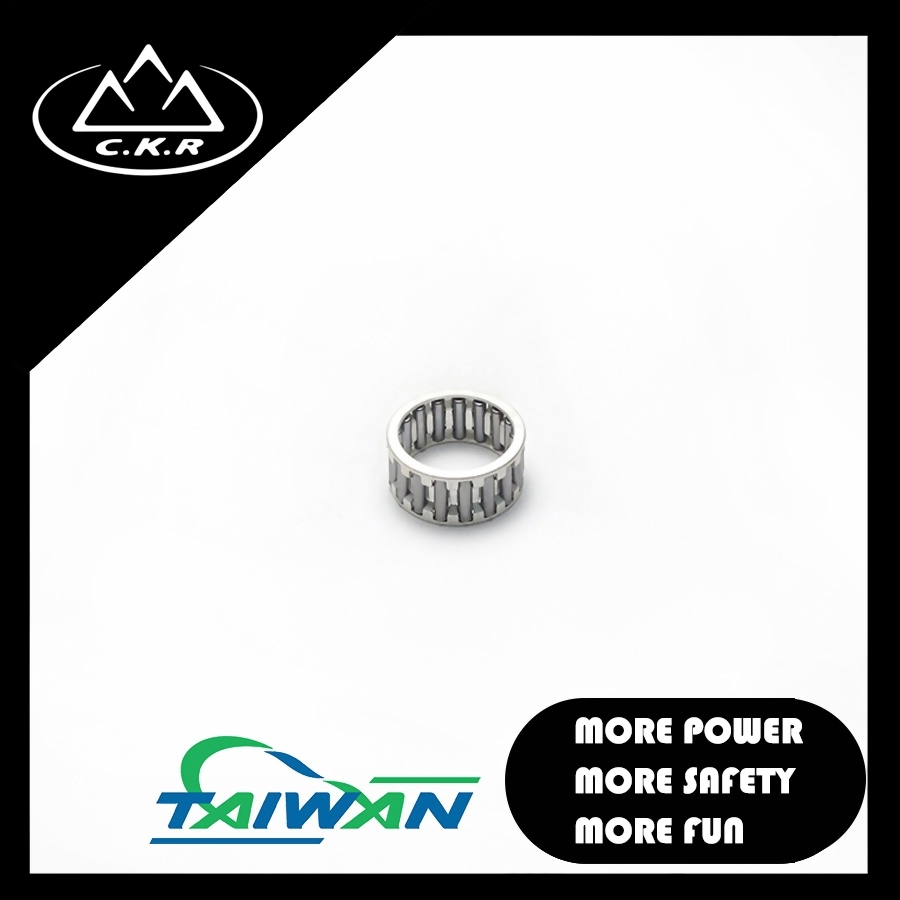

Big-end Bearing (mm): 30*37*16

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
