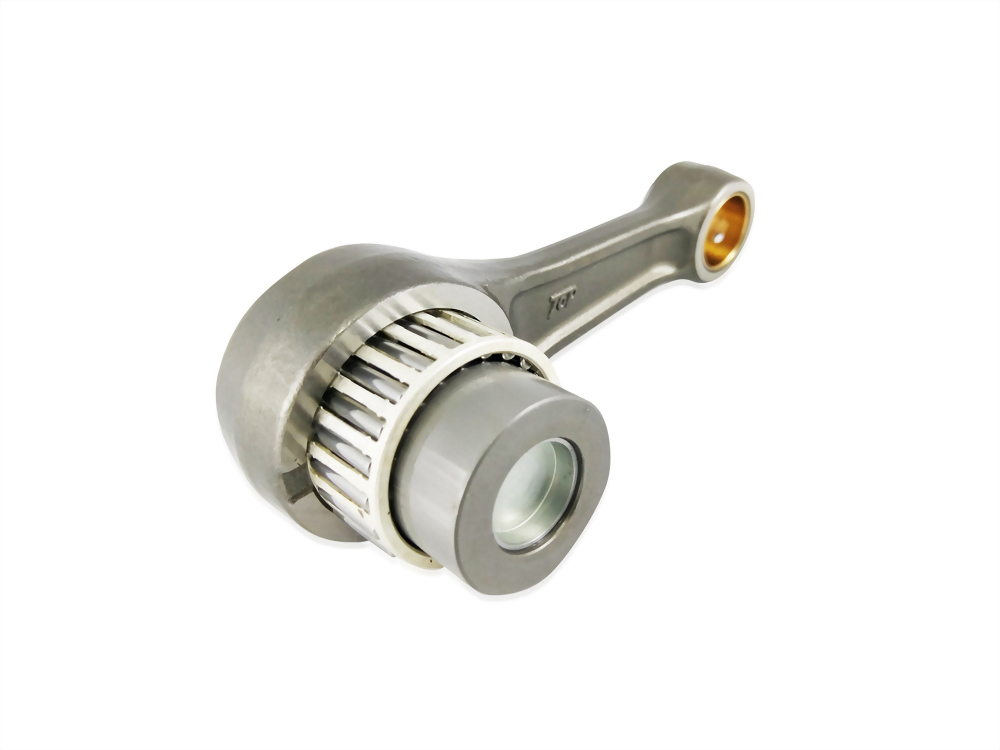

• Connecting rod kit for Suzuki DRZ 400

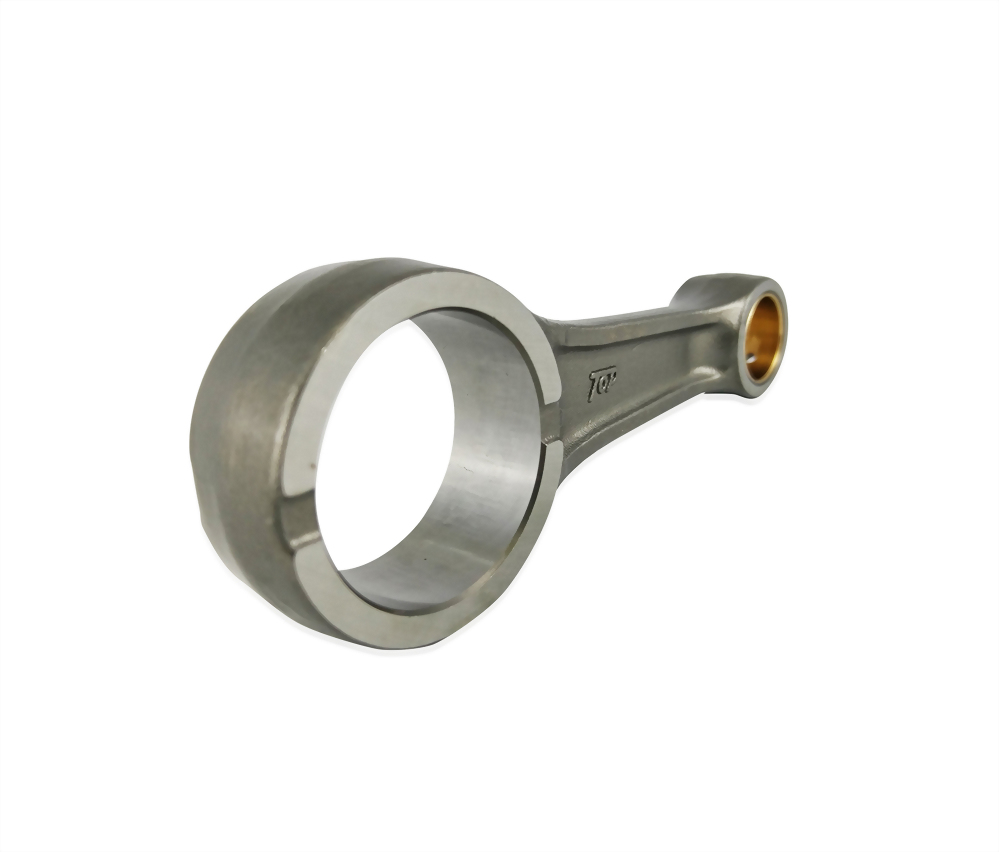

  • Connecting rod for Suzuki DRZ 400

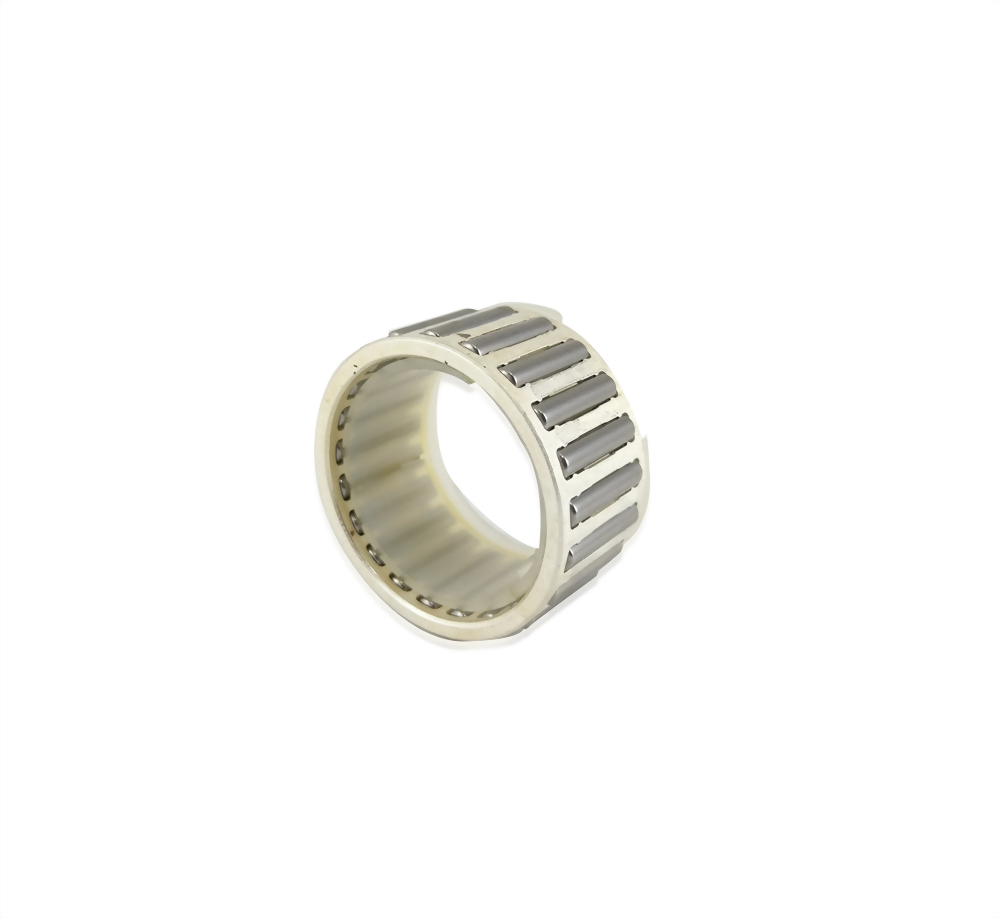

  • Bearing for Suzuki DRZ 400

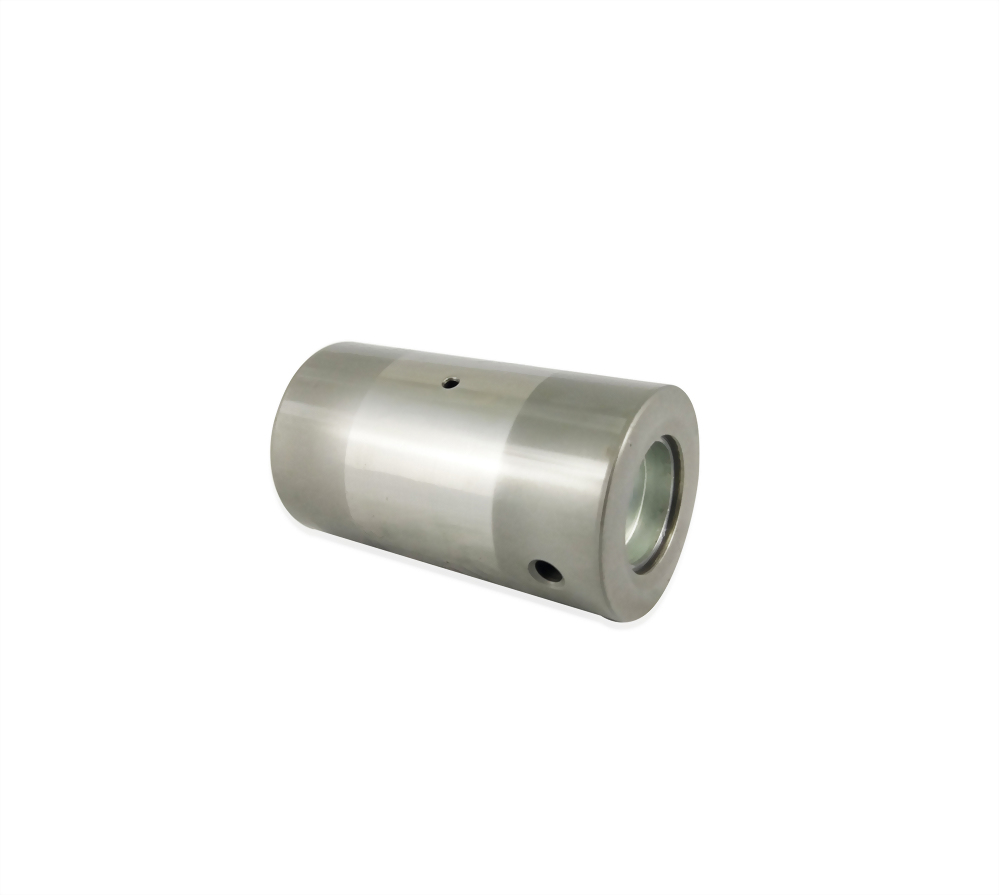

  • Crank pin for Suzuki DRZ 400

For Suzuki 2000-2014 DRZ 400

Application:
Suzuki 2000-2014 DRZ 400
Suzuki 2005-2014 DRZ 400SM

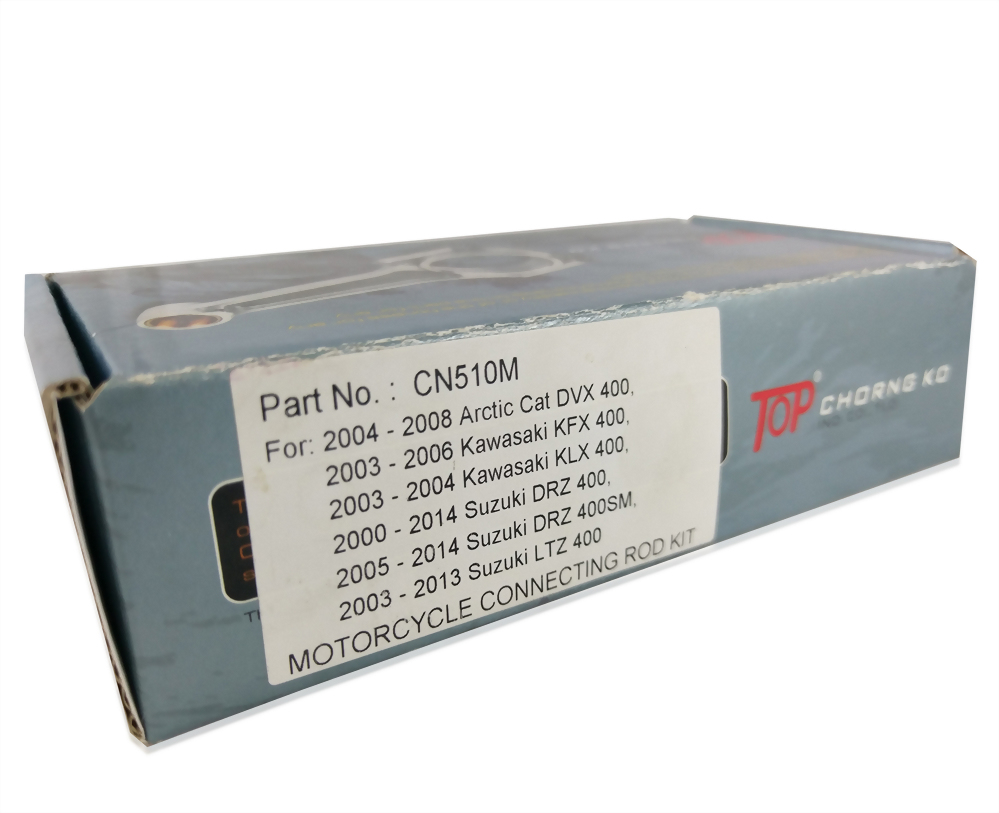

Model : CN510M

The CN510M connecting rod kit is for the famous Suzuki DRZ400 / DRZ400SM engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Suzuki 2000-2014 DRZ 400

Suzuki 2005-2014 DRZ 400SM



Big-end Width (mm): 21.8

Small-end Width (mm): 20

Big-end Bore (mm): 43

Small-end Bore (mm): 20

Center-to-center (mm): 107

Pin Diameter (mm): 35

Pin Length (mm): 61.8

Big-end Bearing (mm): 35*43*22

Small-end Bearing (mm): Bush

Washer Thickness (mm): N/A
