For Suzuki 2003-2013 LTZ 400

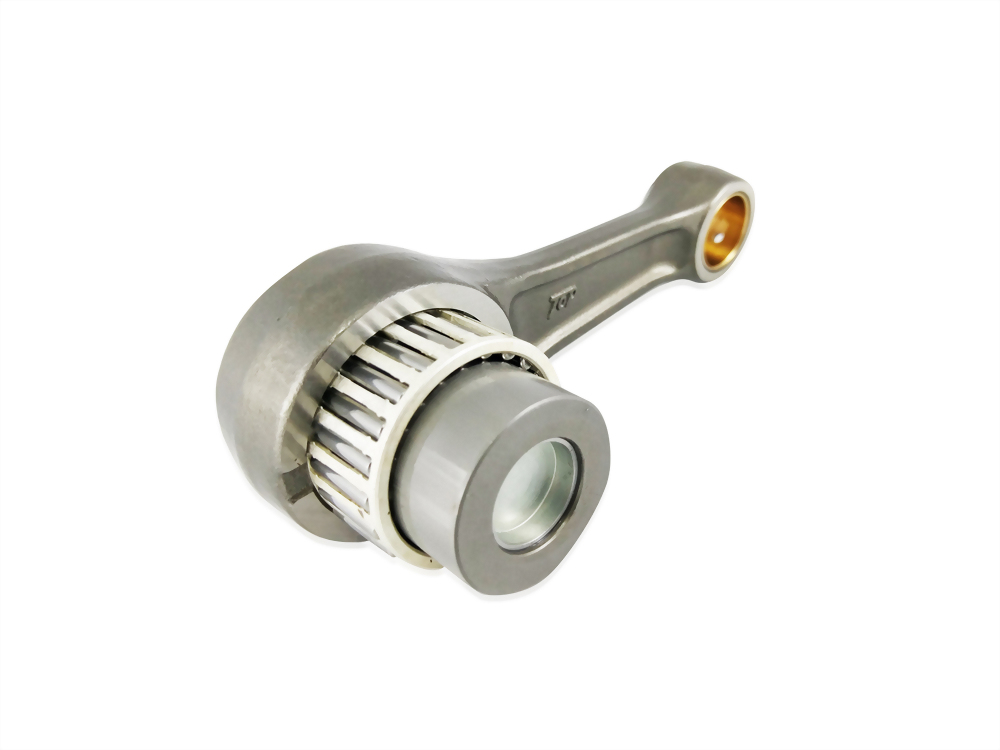

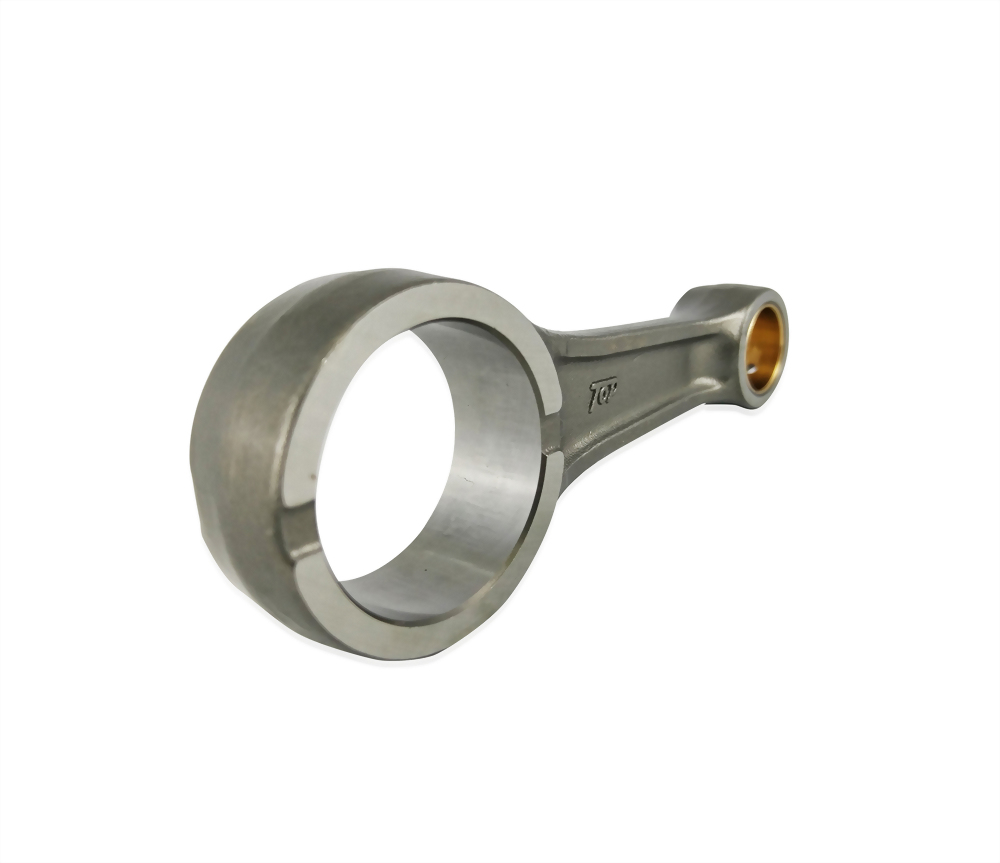

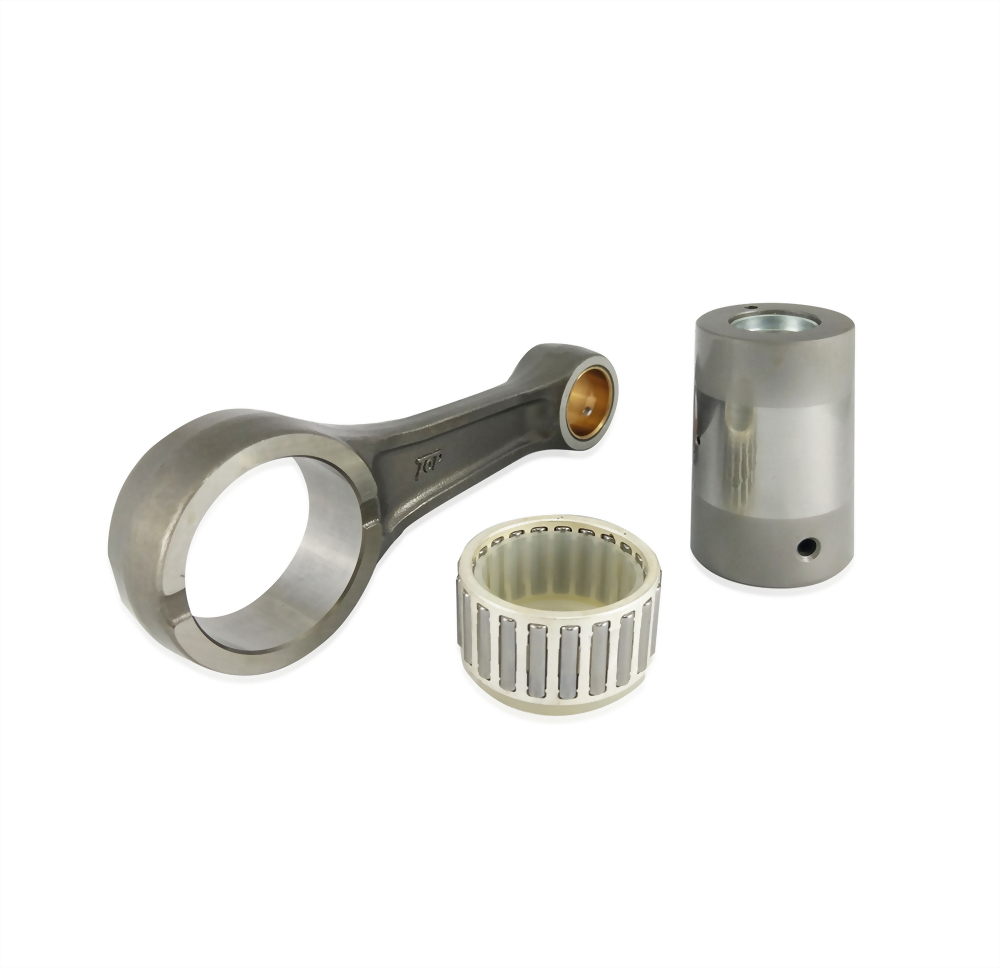

The CN510M connecting rod kit is for the famous Suzuki LTZ400 engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.

Application:

Suzuki 2003-2013 LTZ 400

Big-end Width (mm): 21.8

Small-end Width (mm): 20

Big-end Bore (mm): 43

Small-end Bore (mm): 20

Center-to-center (mm): 107

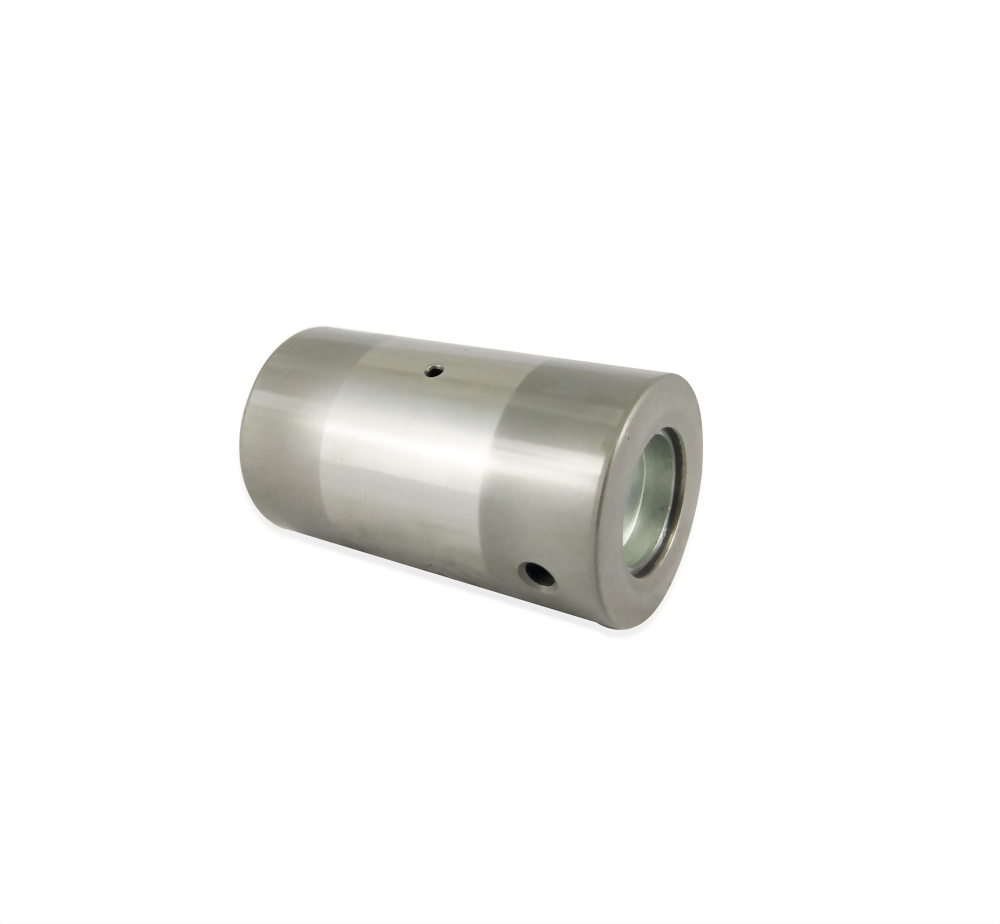

Pin Diameter (mm): 35

Pin Length (mm): 61.8

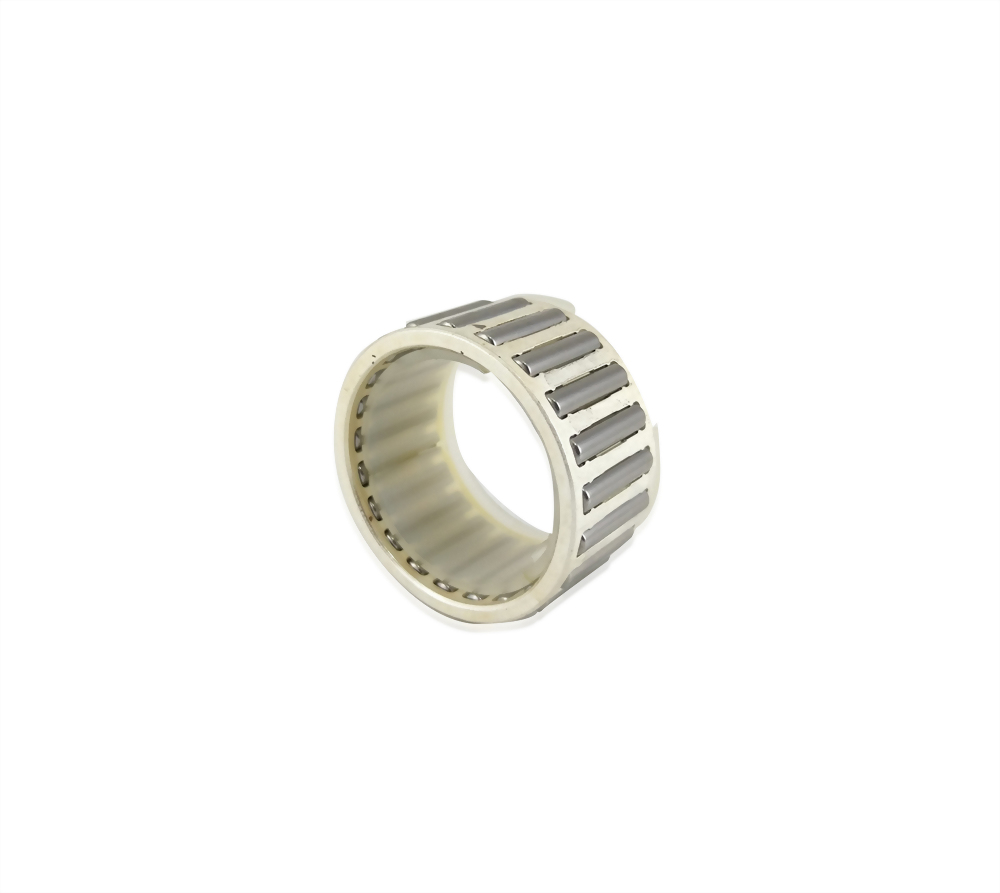

Big-end Bearing (mm): 35*43*22

Small-end Bearing (mm): Bush

Washer Thickness (mm): N/A
