For Suzuki 2007-2015 RMZ 250

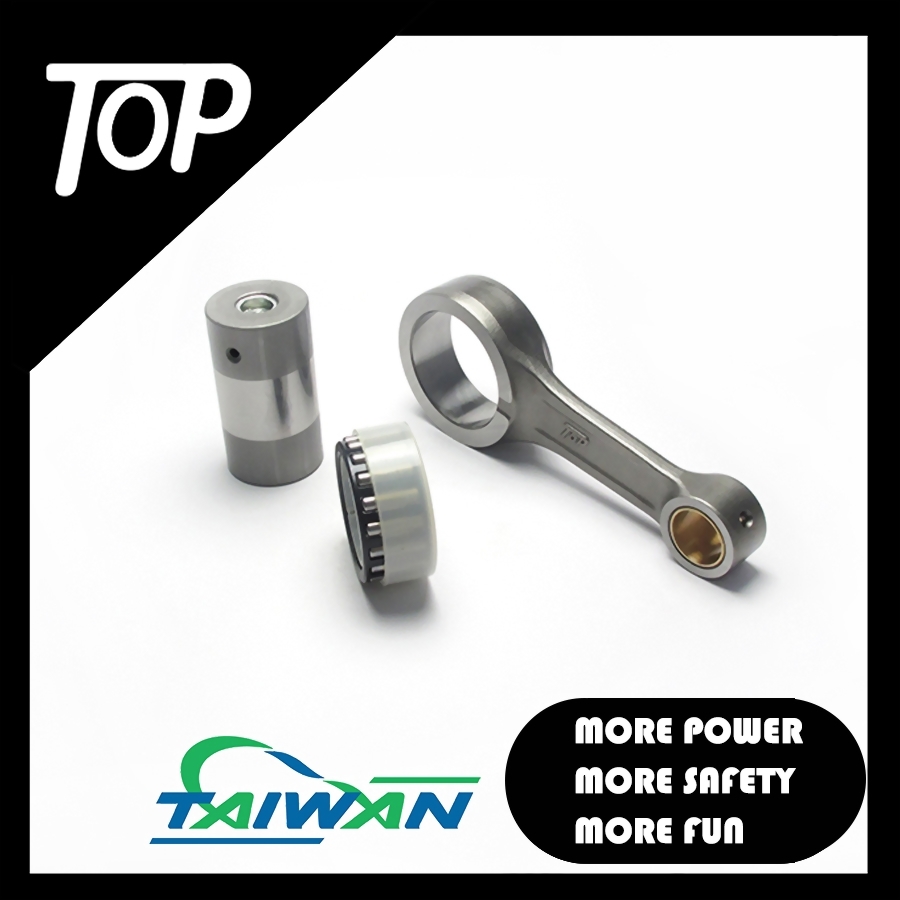

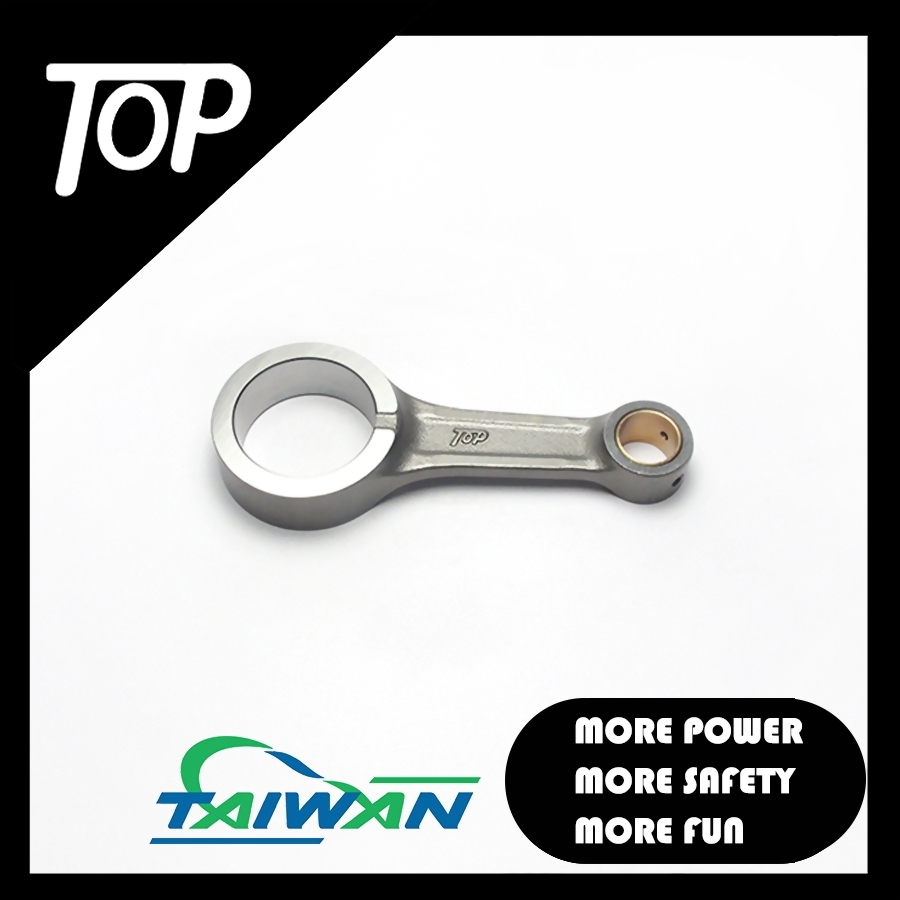

The CN515M connecting rod kit is for the famous Suzuki RMZ250 engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.

Application:

Suzuki 2007-2015 RMZ 250

Big-end Width (mm): 17.75

Small-end Width (mm): 15

Big-end Bore (mm): 38

Small-end Bore (mm): 16

Center-to-center (mm): 92.5

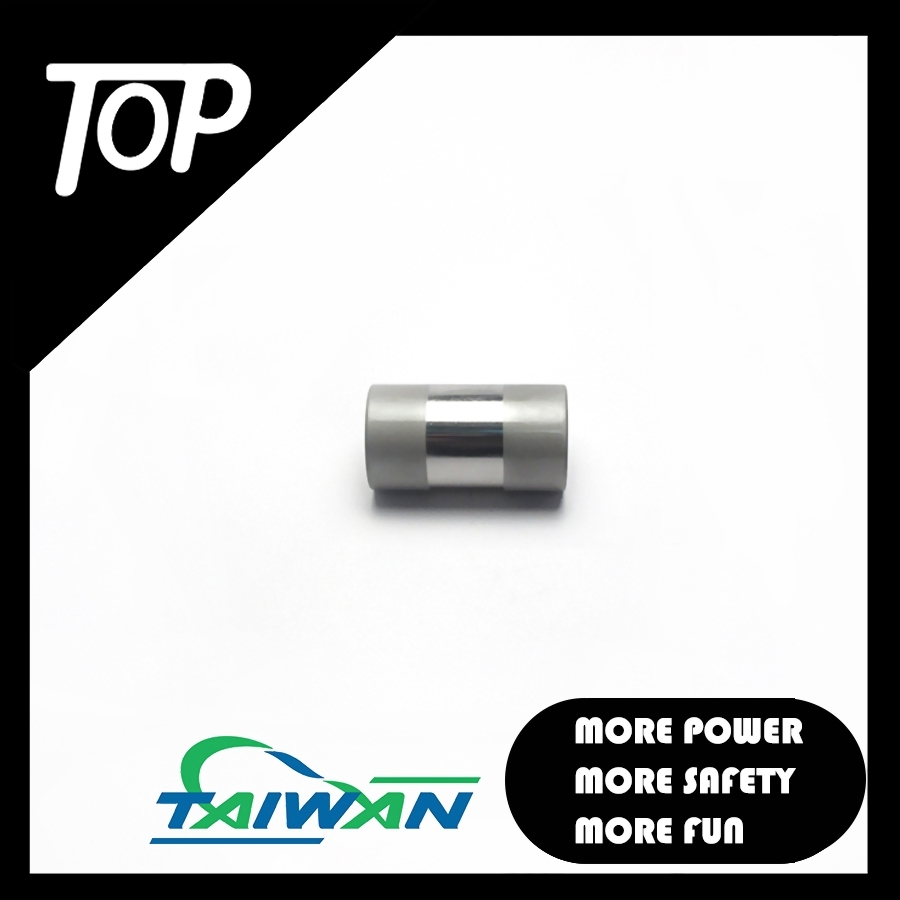

Pin Diameter (mm): 30

Pin Length (mm): 54.9

Big-end Bearing (mm): 30*38*18

Small-end Bearing (mm): BUSH

Washer Thickness (mm): N/A
