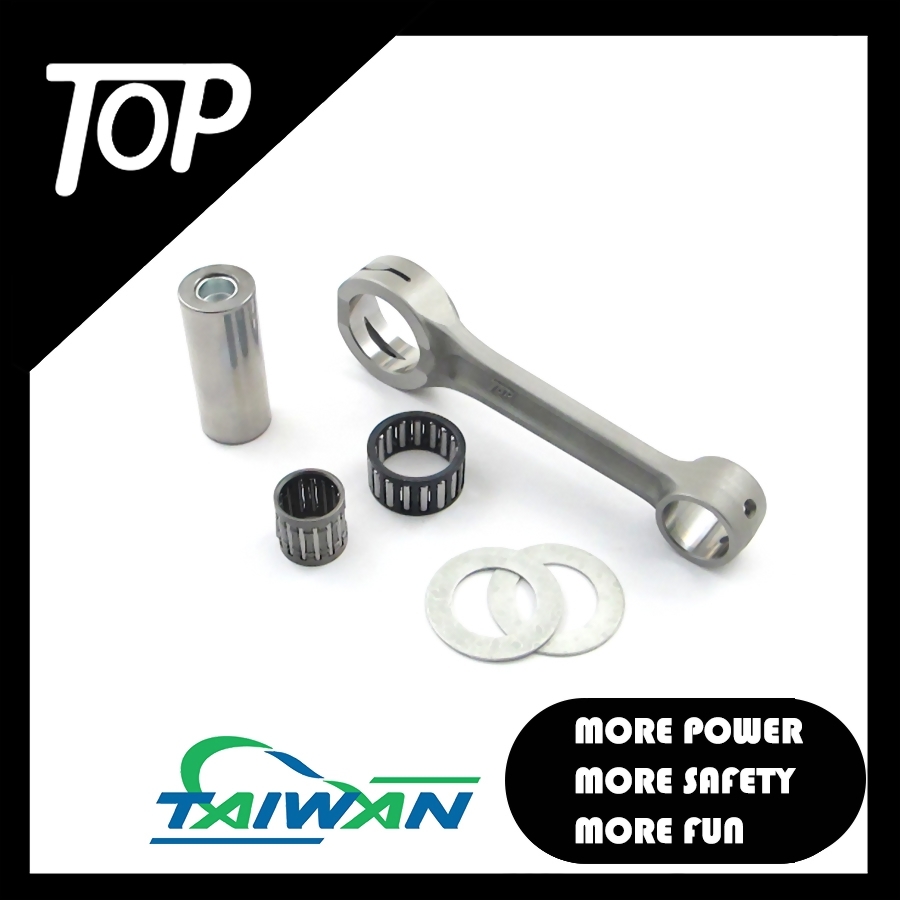

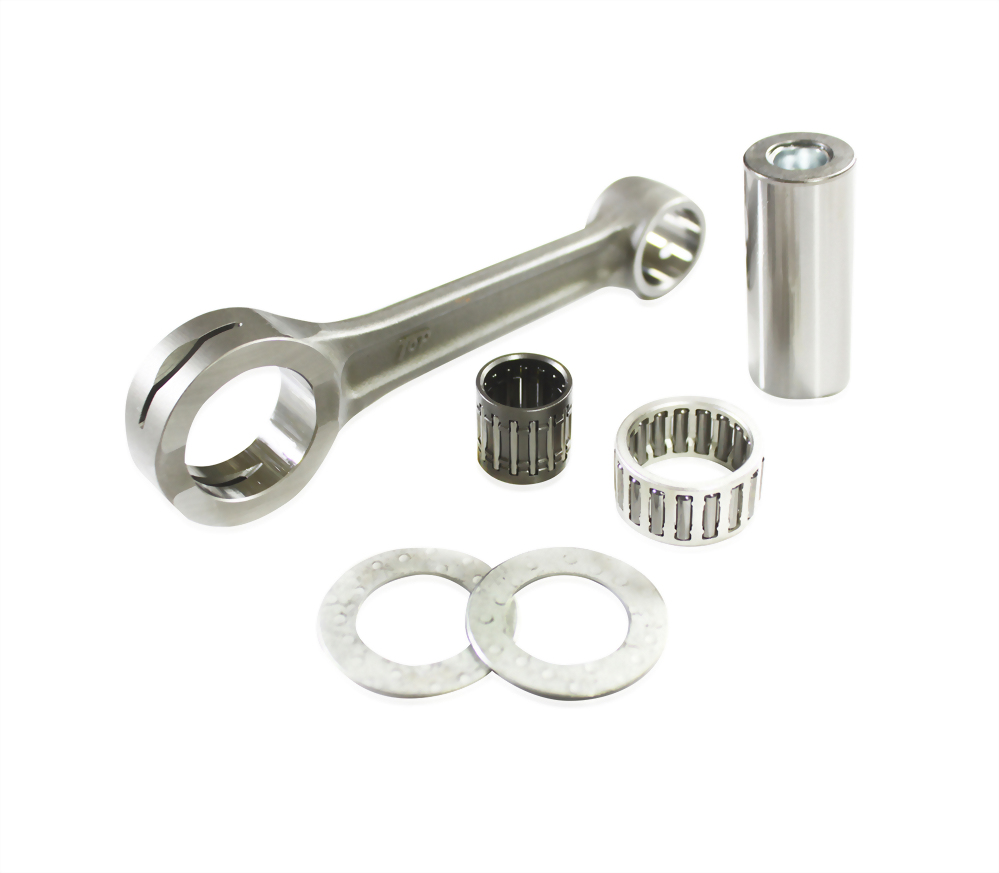

• Honda CR 250R 02-07 Con-rod kit

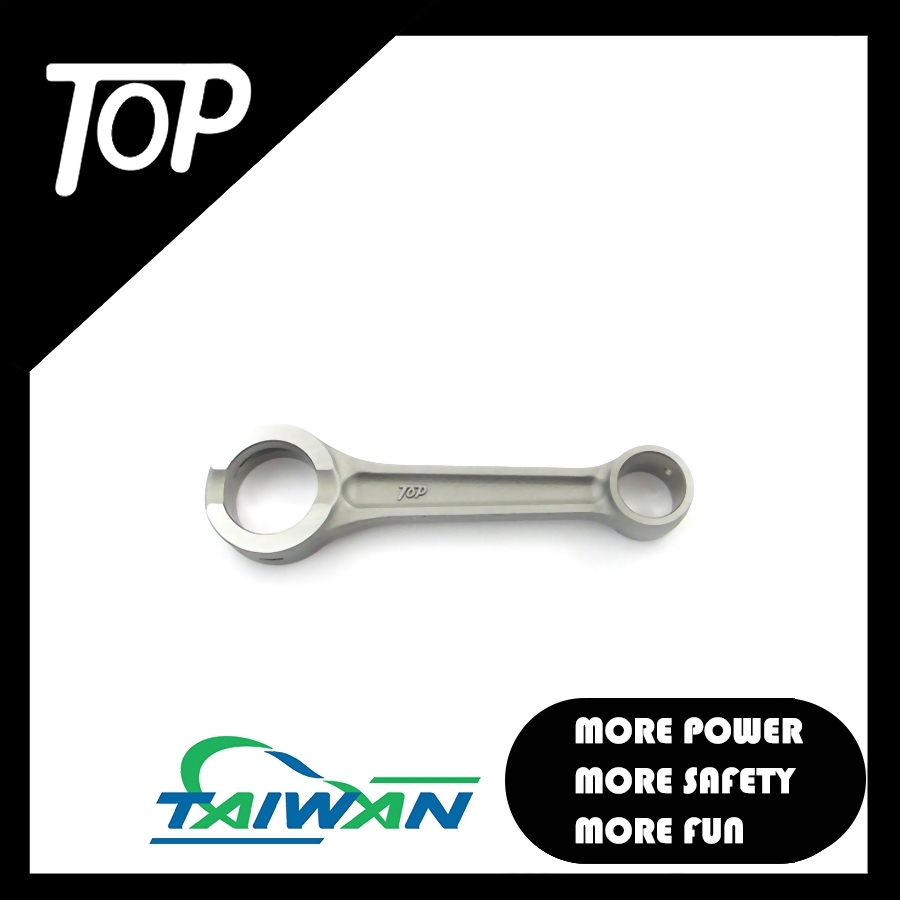

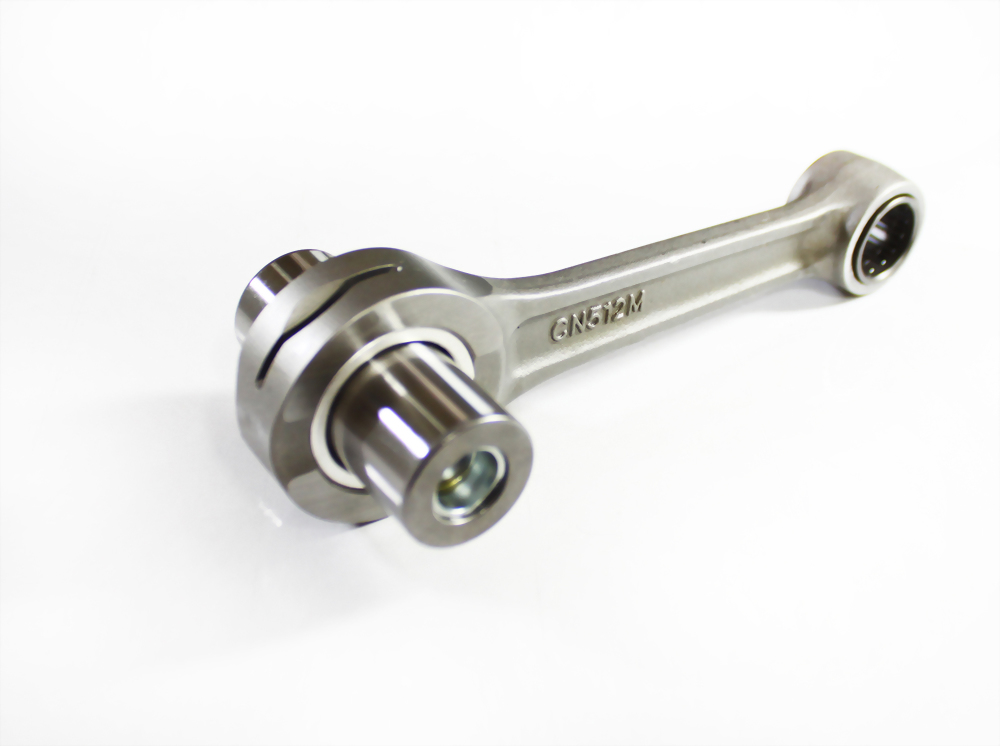

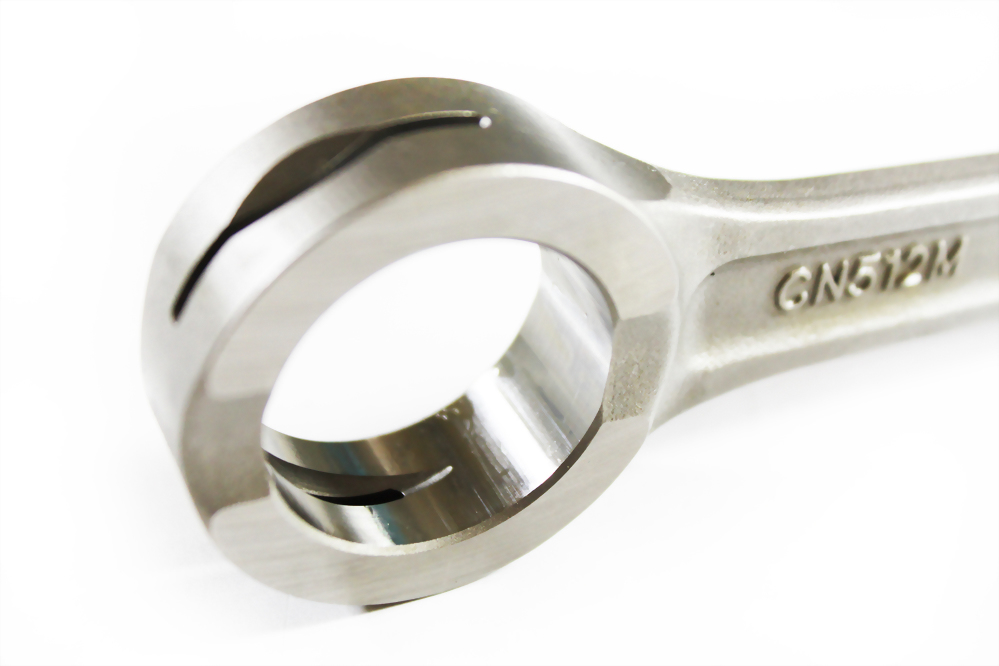

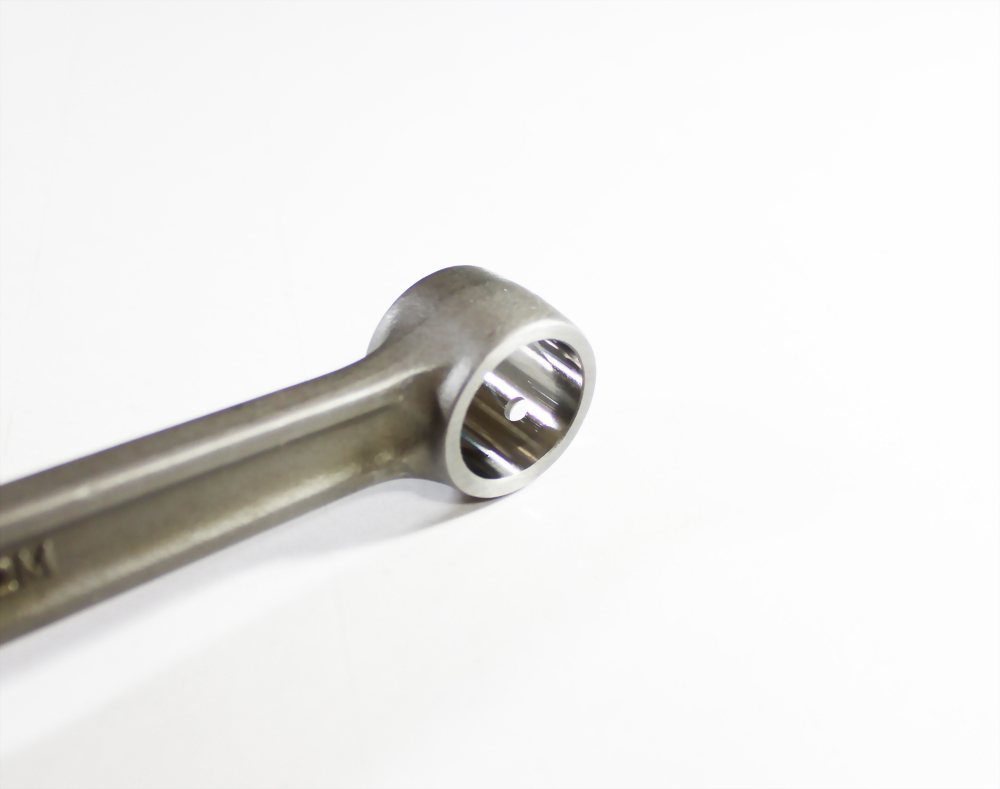

  • Honda CR 250R 02-07 connecting rod

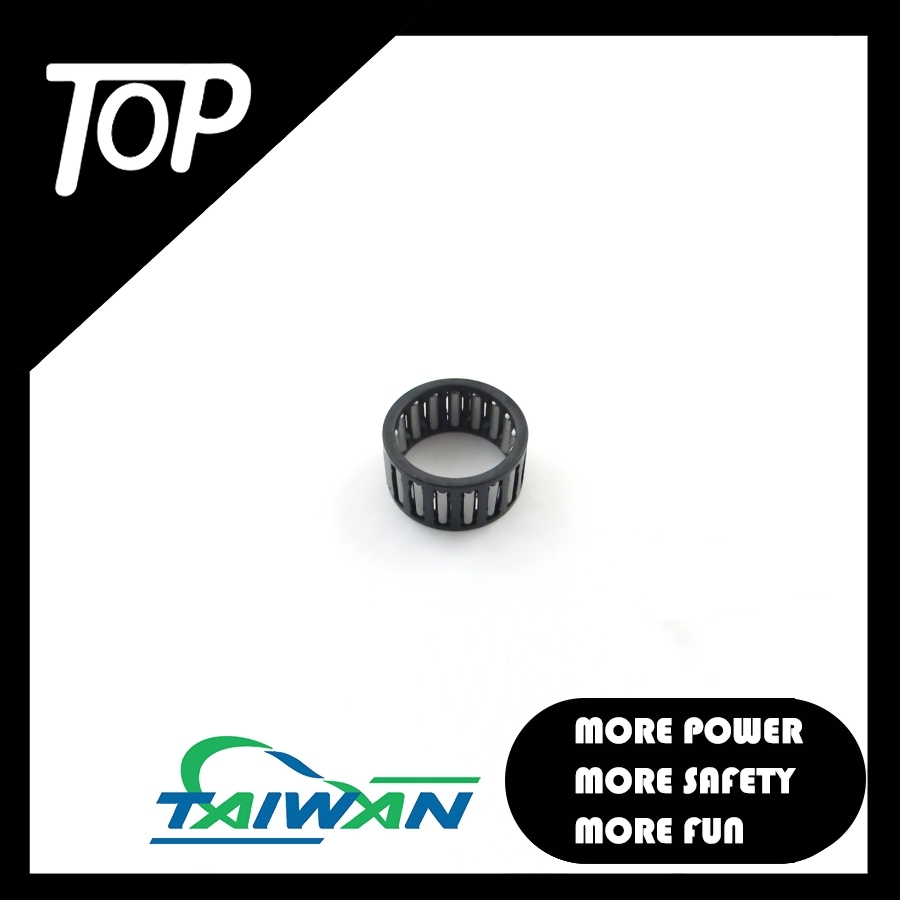

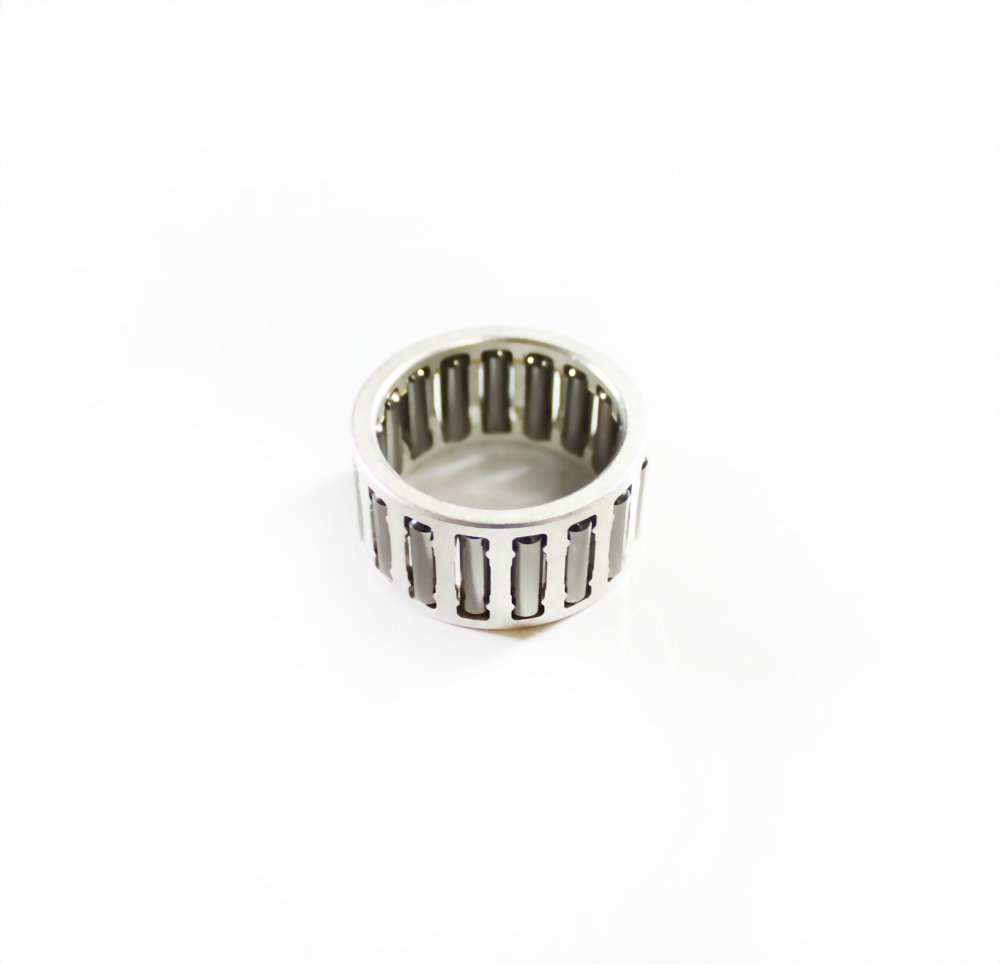

  • Honda CR 250R 02-07 bearing big end

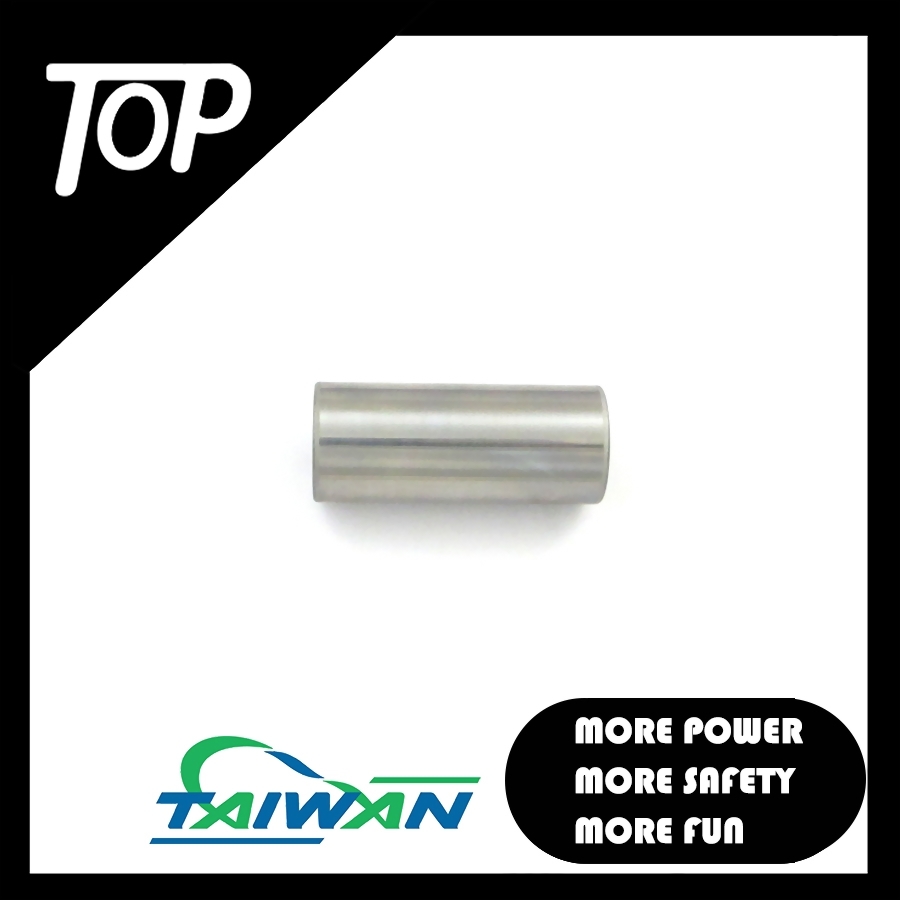

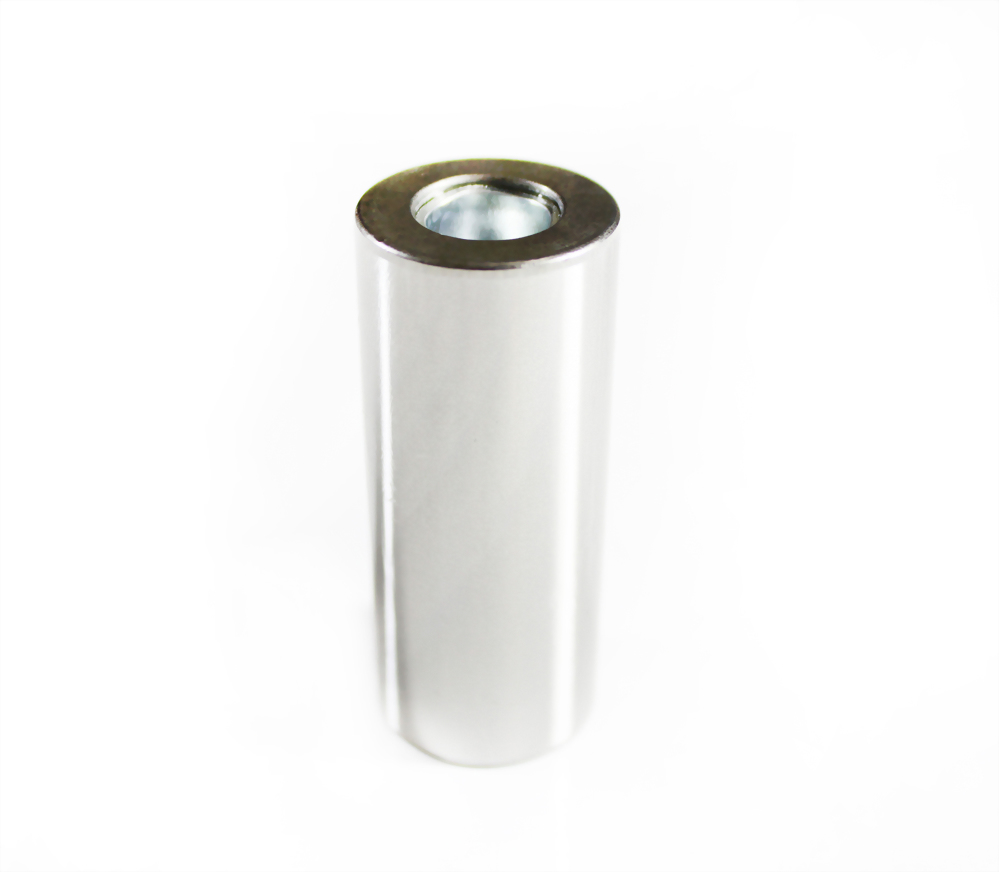

  • Honda CR 250R 02-07 crank pin

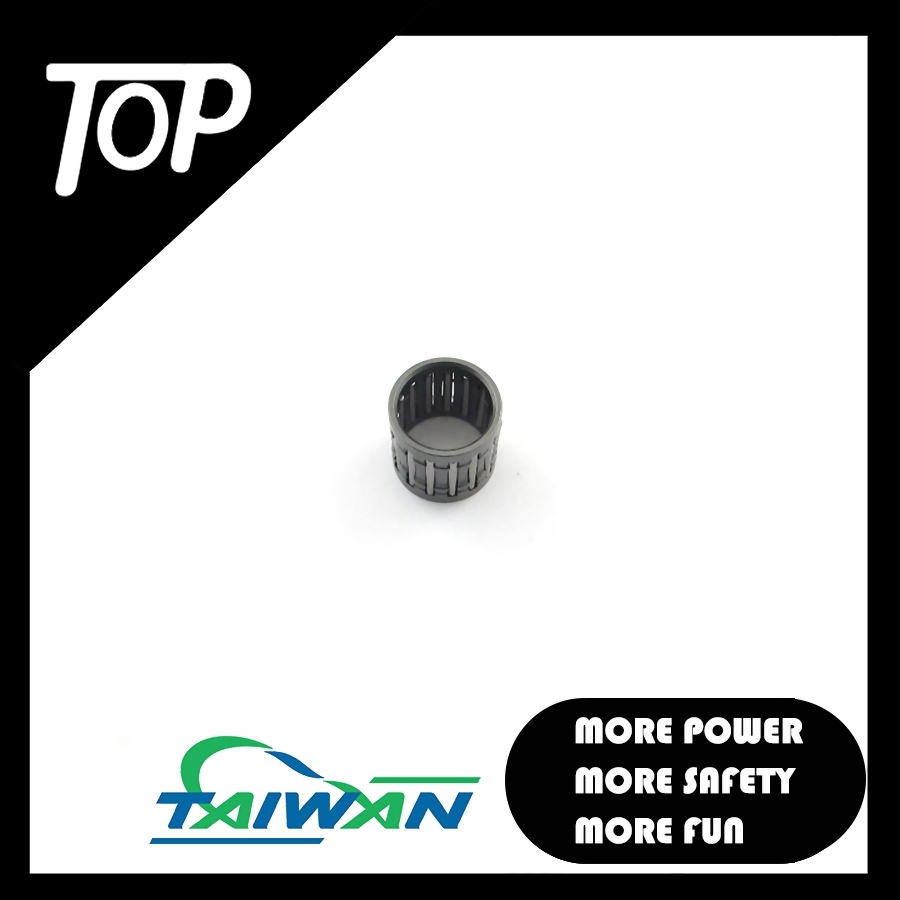

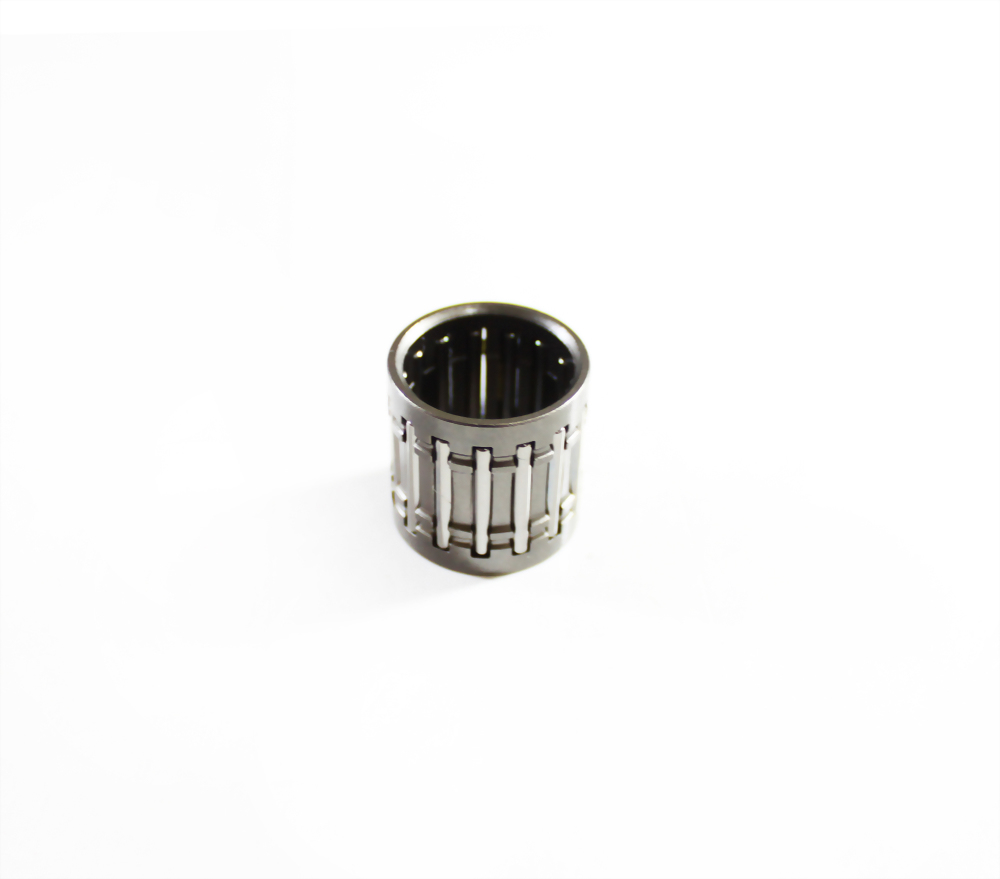

  • Honda CR 250R 02-07 bearing small end

For Honda 2002-2007 CR 250R

Application:
Honda 2002-2007 CR 250R
Model : CN512M

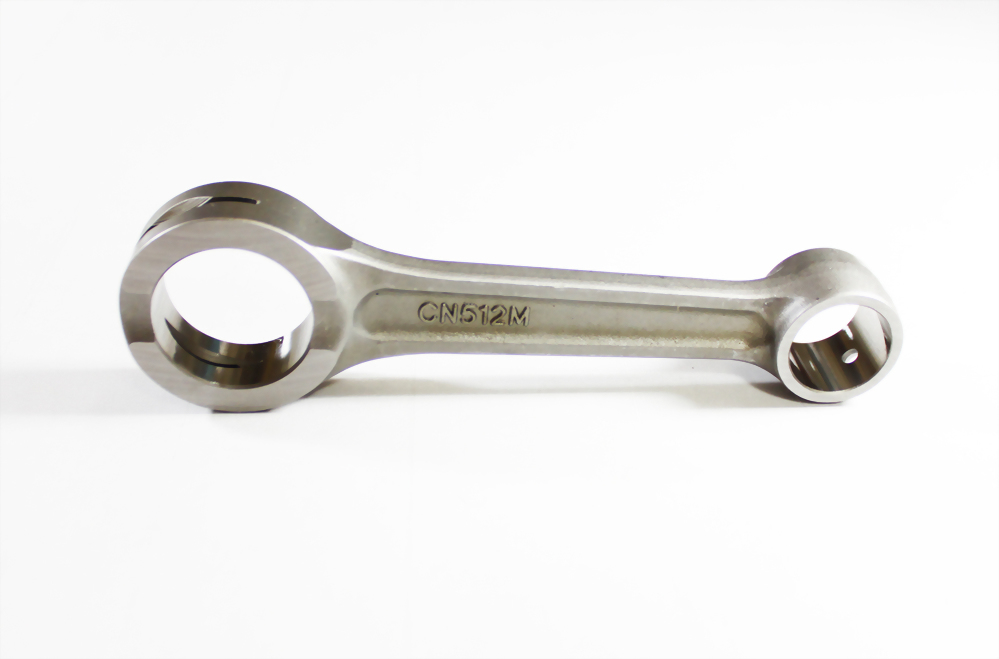

The CN512M connecting rod kit is for the famous Honda CR250R engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Honda 2002-2007 CR 250R



Big-end Width (mm): 16.5

Small-end Width (mm): 20

Big-end Bore (mm): 32

Small-end Bore (mm): 22

Center-to-center (mm): 125.3

Pin Diameter (mm): 25

Pin Length (mm): 59.7

Big-end Bearing (mm): 25*32*16.5

Small-end Bearing (mm): 18*22*22

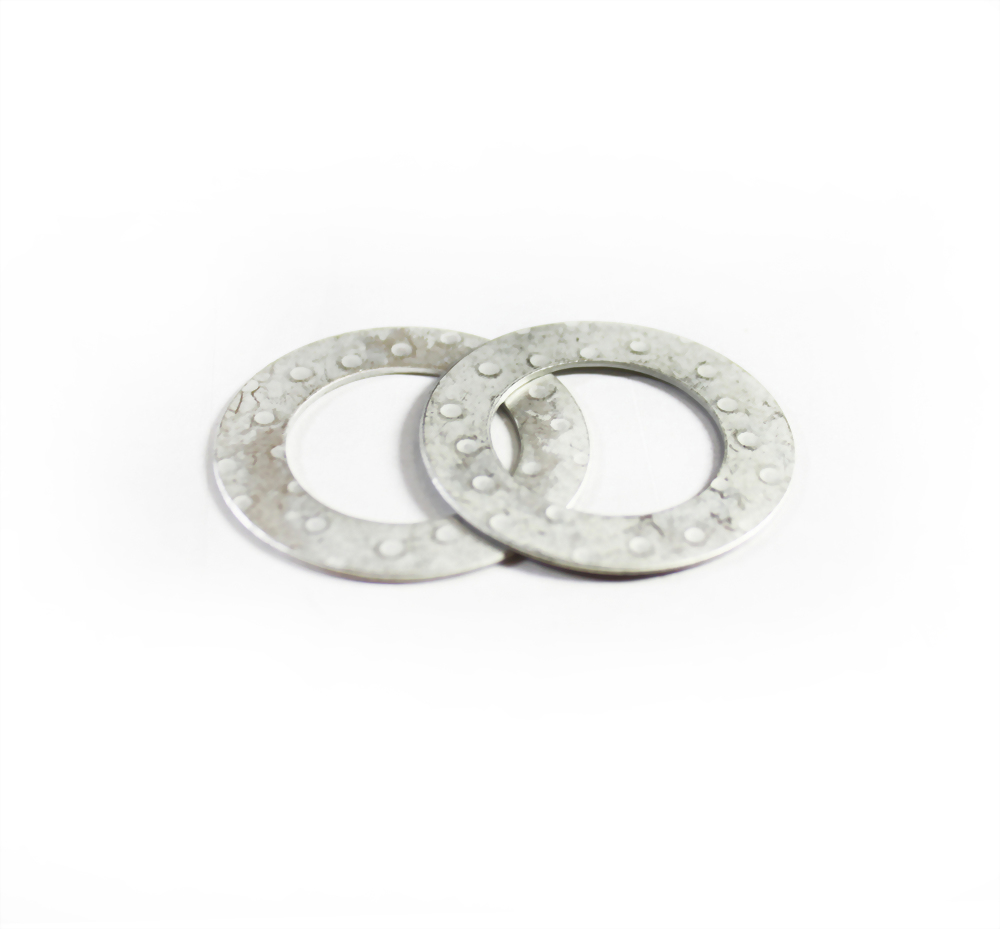

Washer Thickness (mm): 1.0
