For Honda 2002-2008 CRF 450R CRF450R

Application:
Honda 2002-2008 CRF 450R

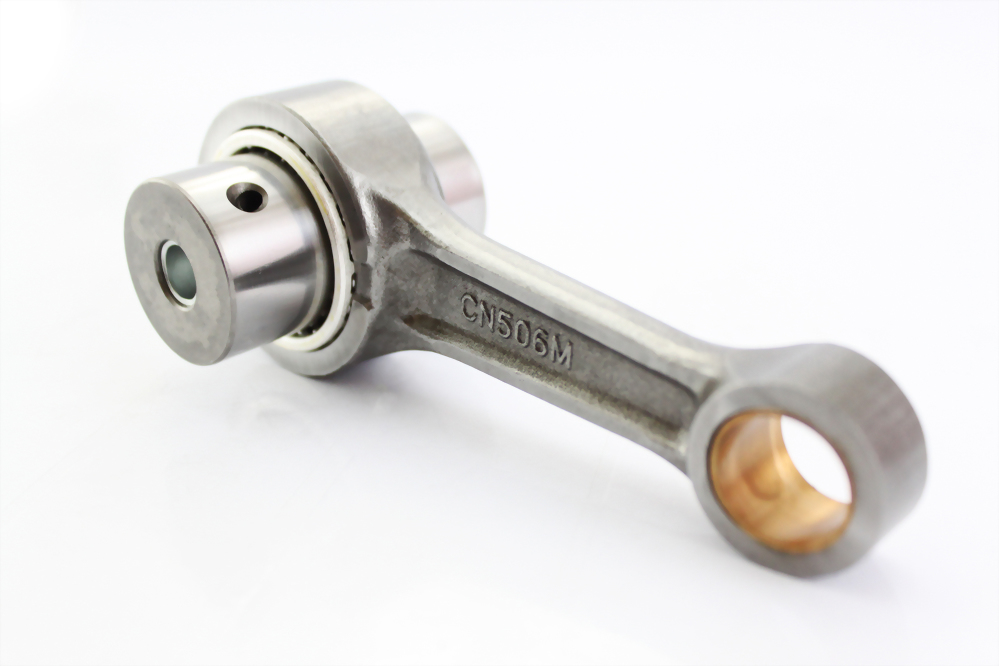

Model : CN506M

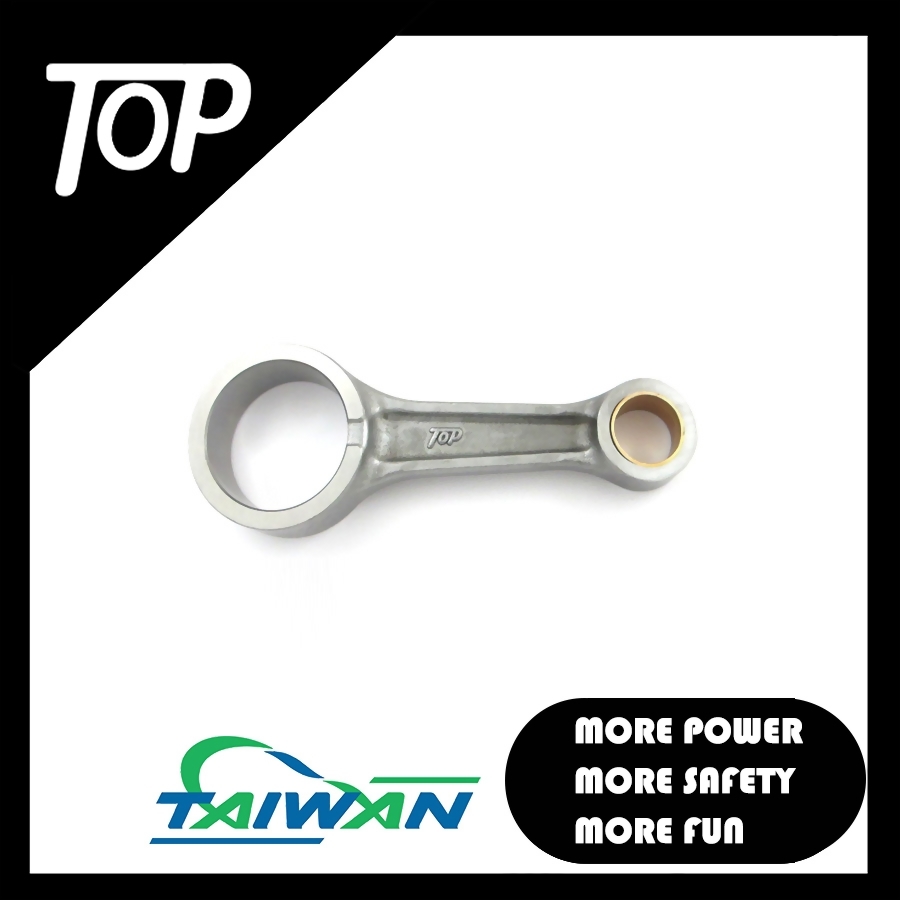

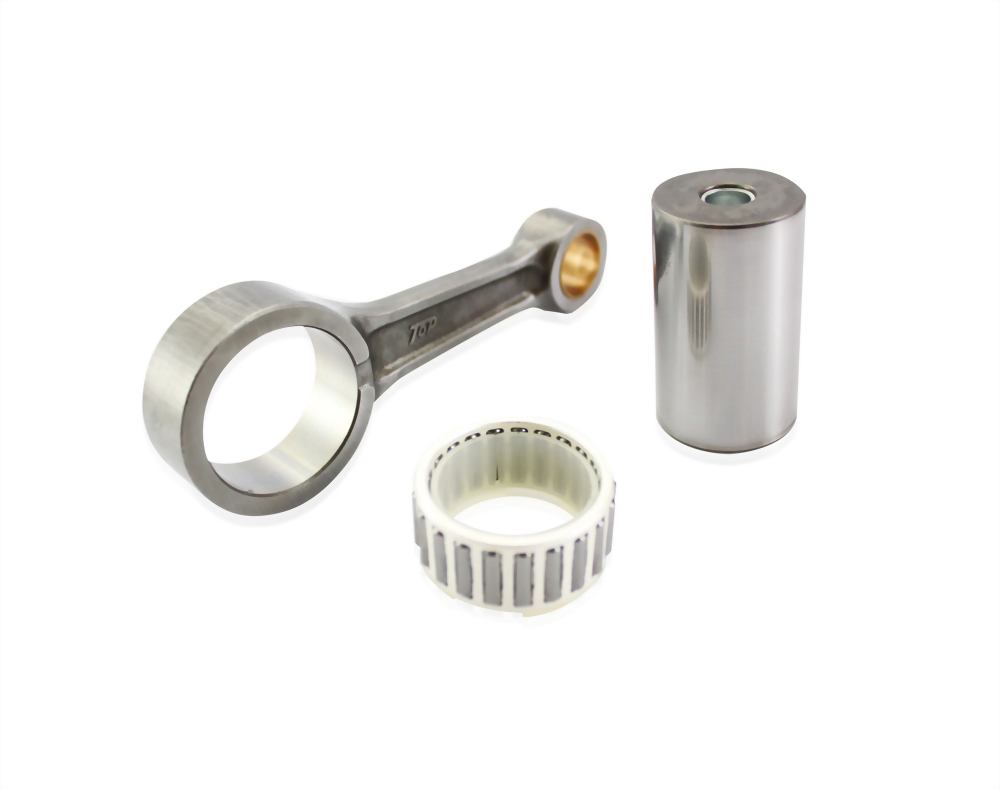

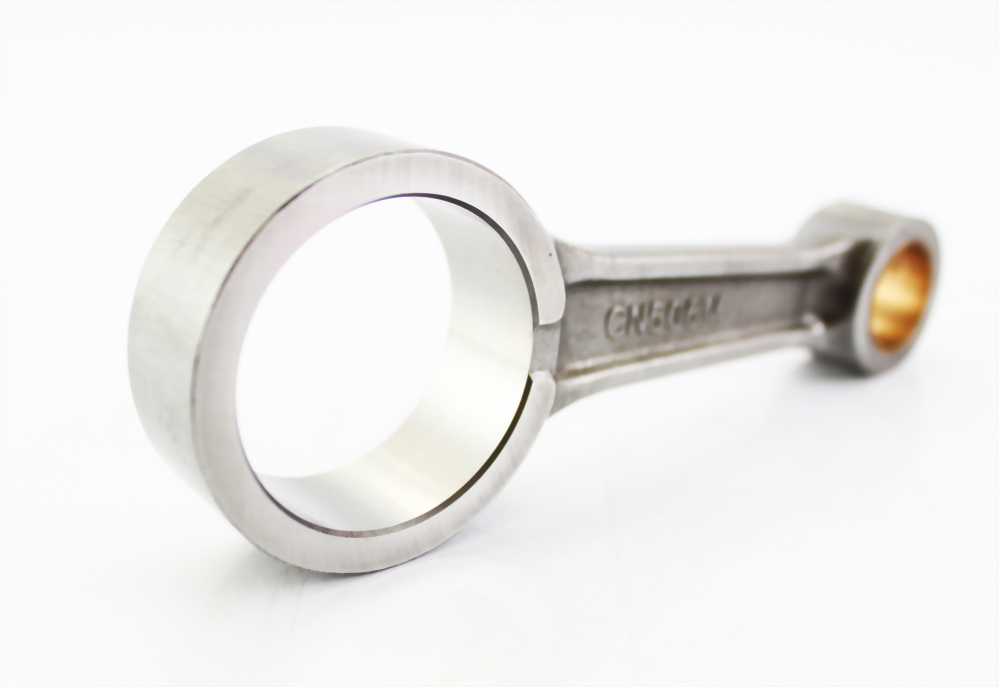

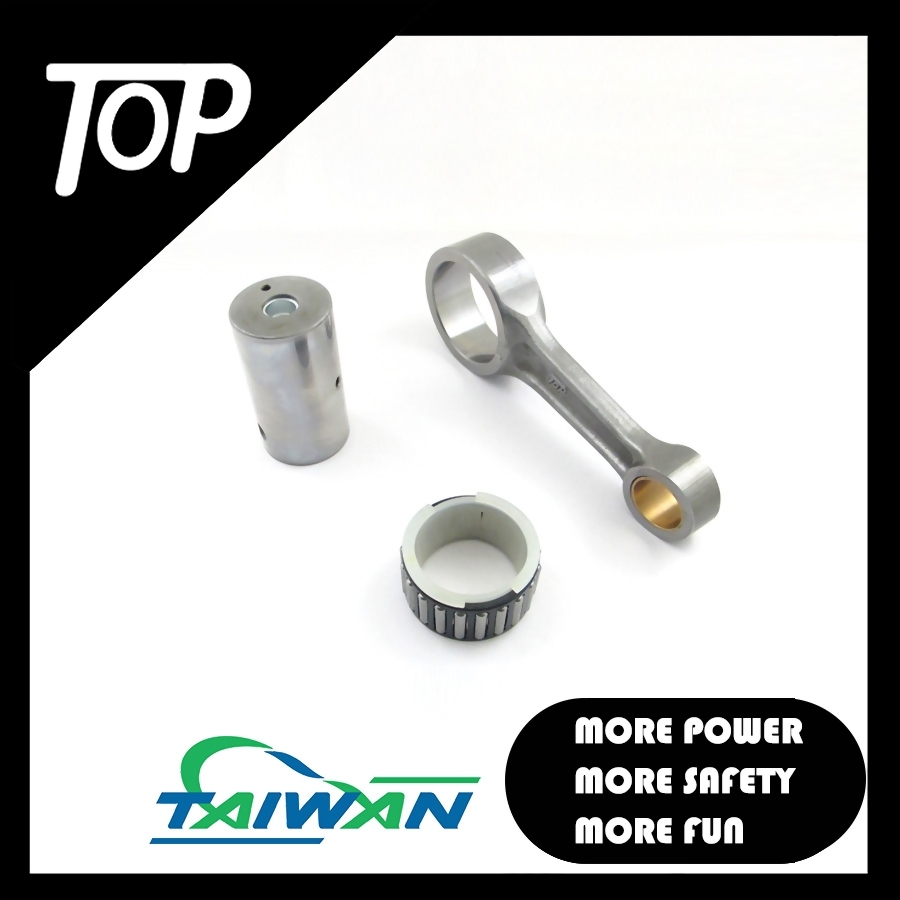

The CN506M connecting rod kit is for the famous Honda CRF450R engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Honda 2002-2008 CRF 450R


Big-end Width (mm): 19.75

Small-end Width (mm): 18

Big-end Bore (mm): 42

Small-end Bore (mm): 19

Center-to-center (mm): 105.5

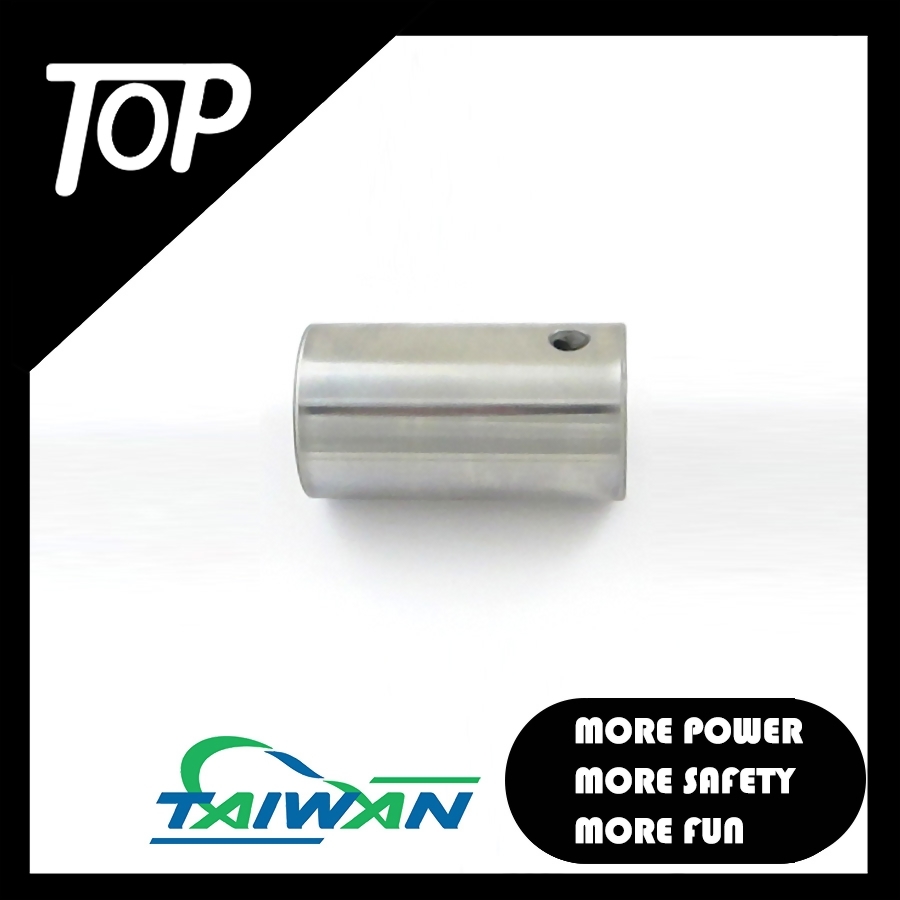

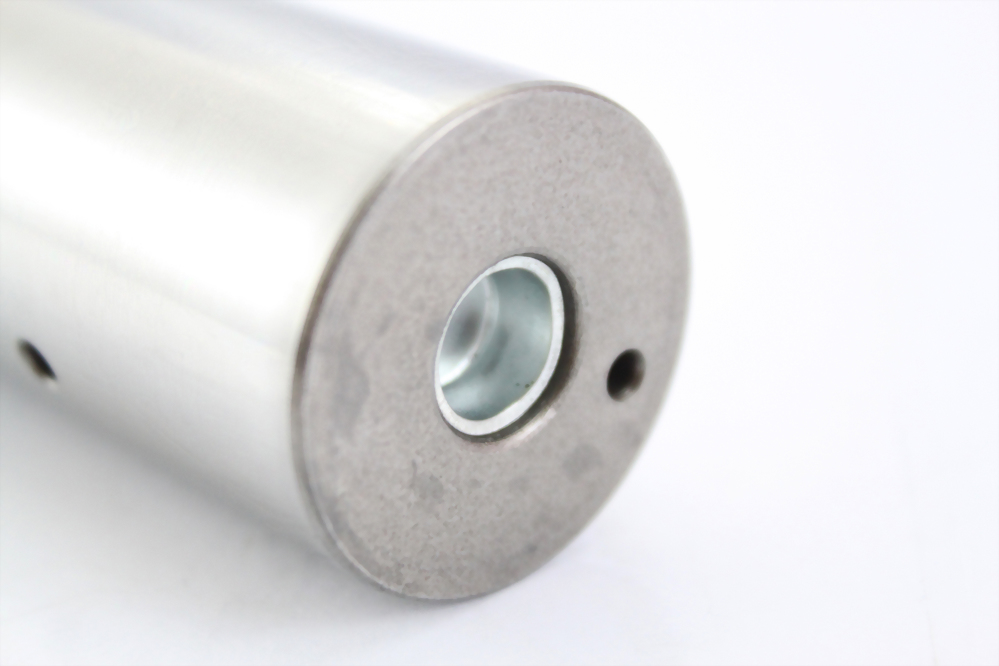

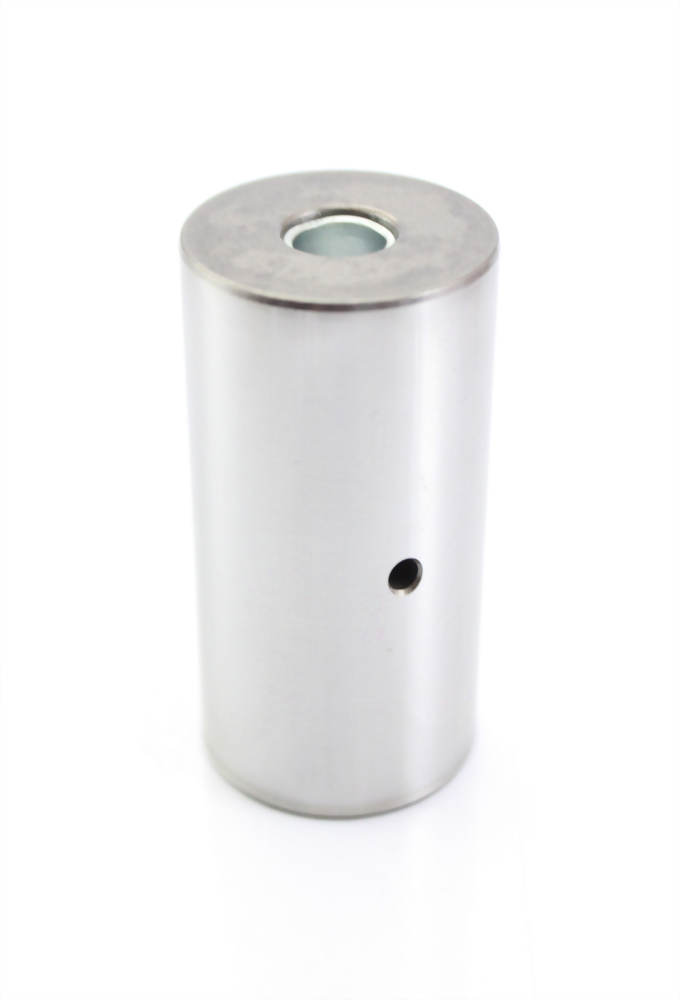

Pin Diameter (mm): 34

Pin Length (mm): 61

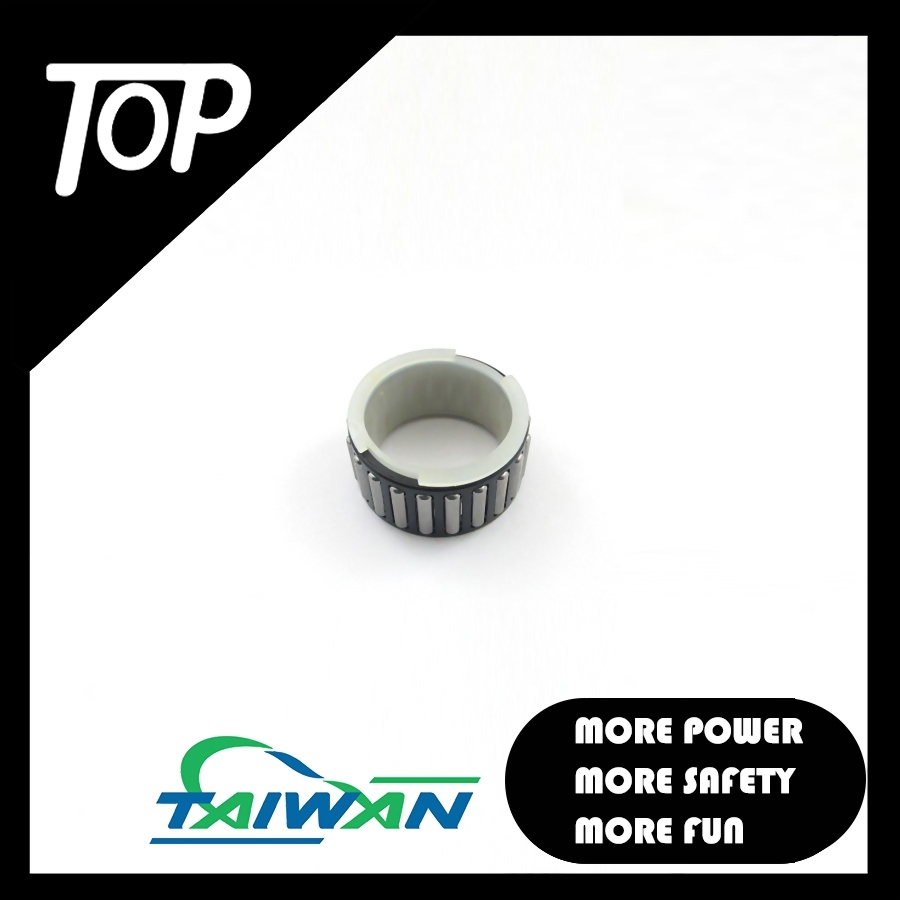

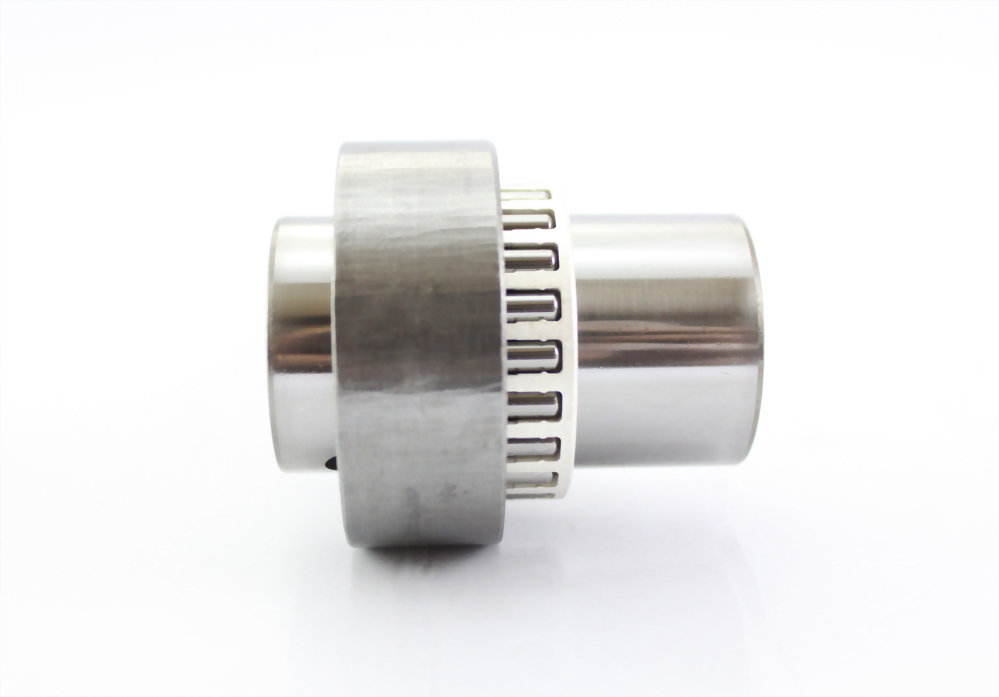

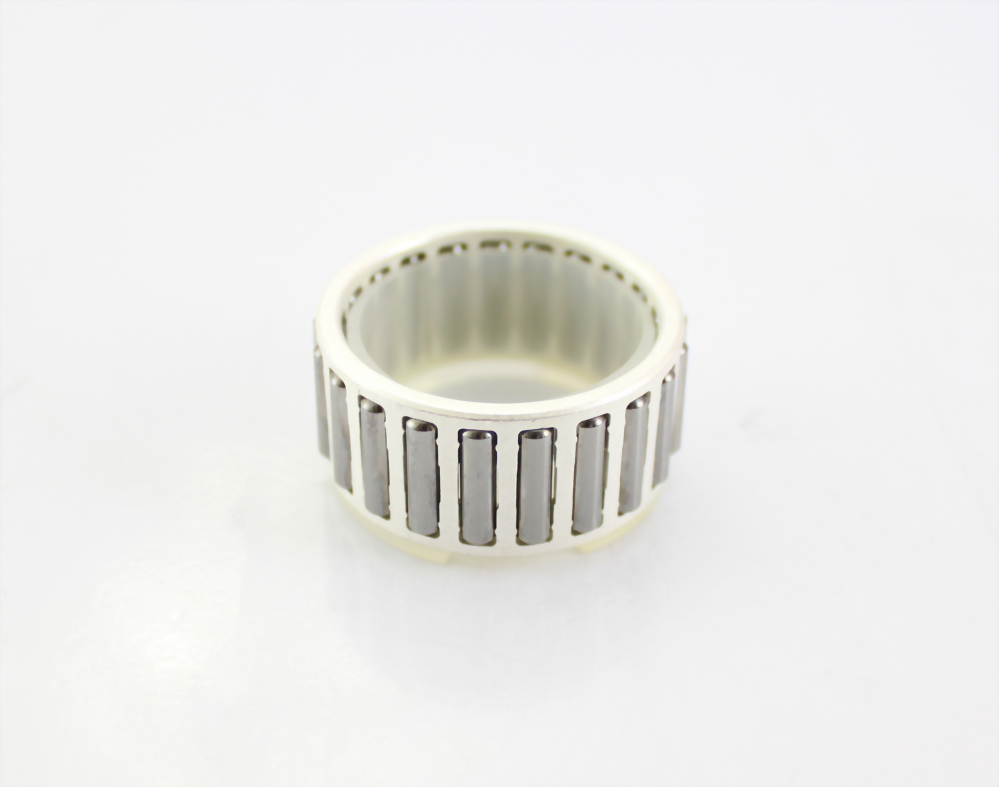

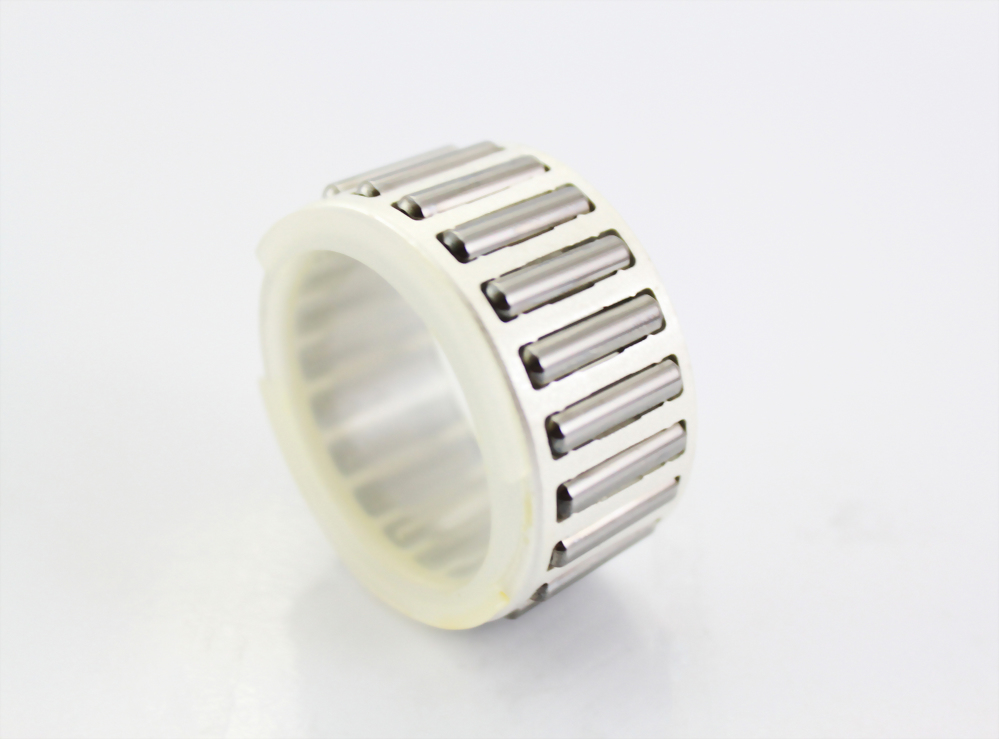

Big-end Bearing (mm): 34*42*20

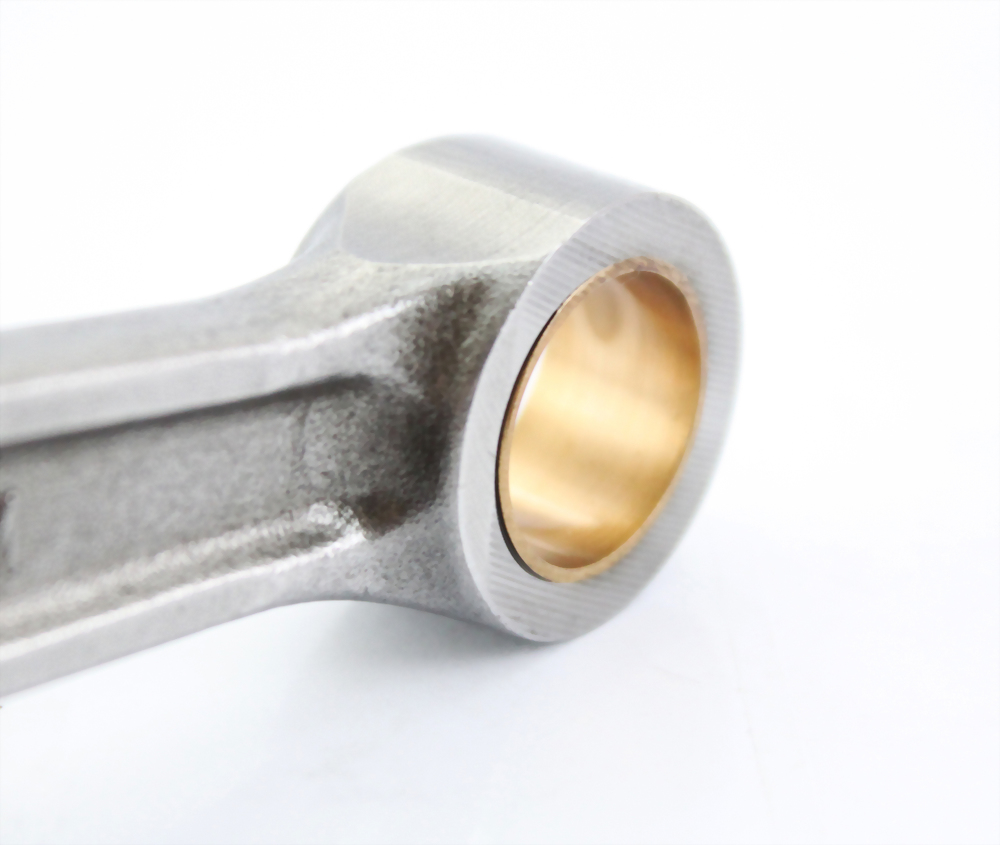

Small-end Bearing (mm): Bush

Washer Thickness (mm): N/A
