For Honda 1983 - 2001 CR 250R

Application:
Honda 1983 - 2001 CR 250R

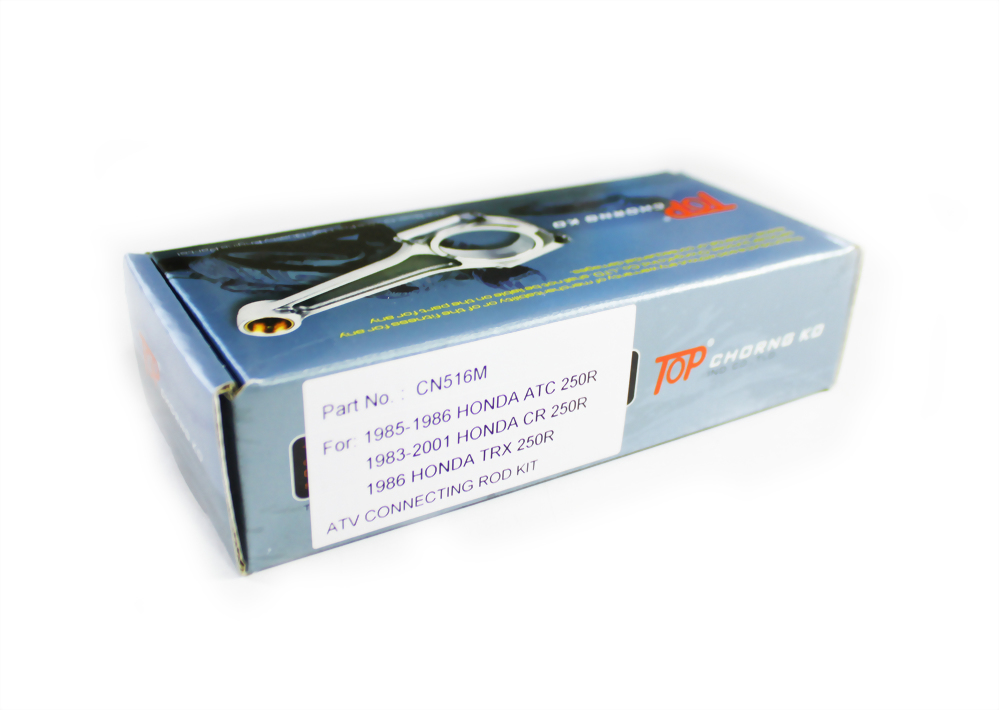

Model : CN516M

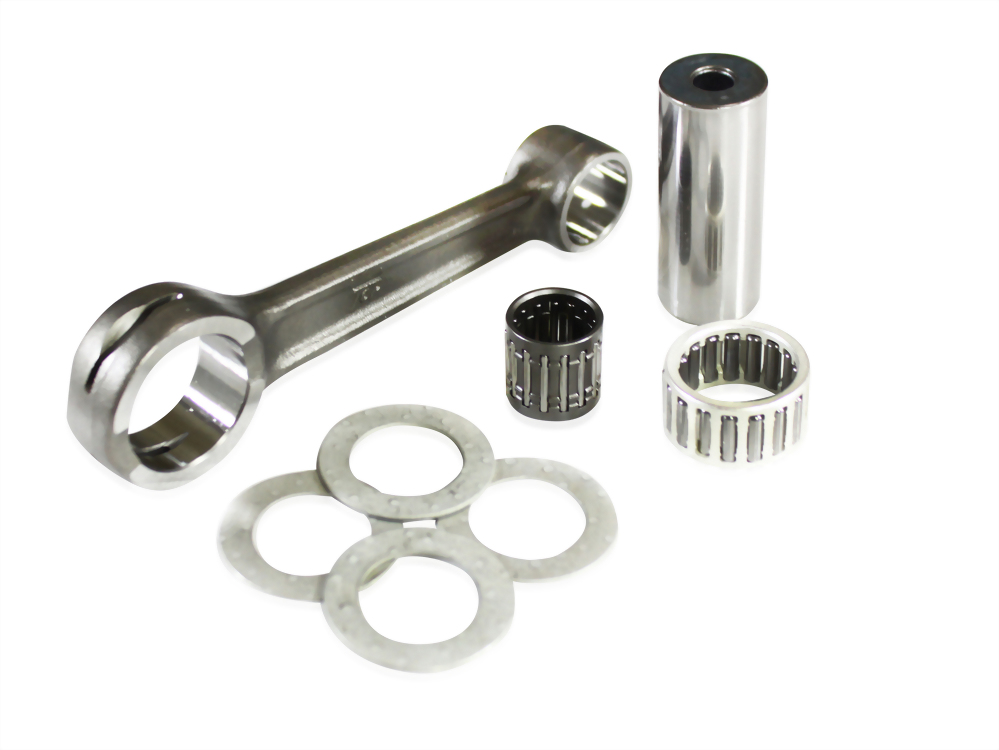

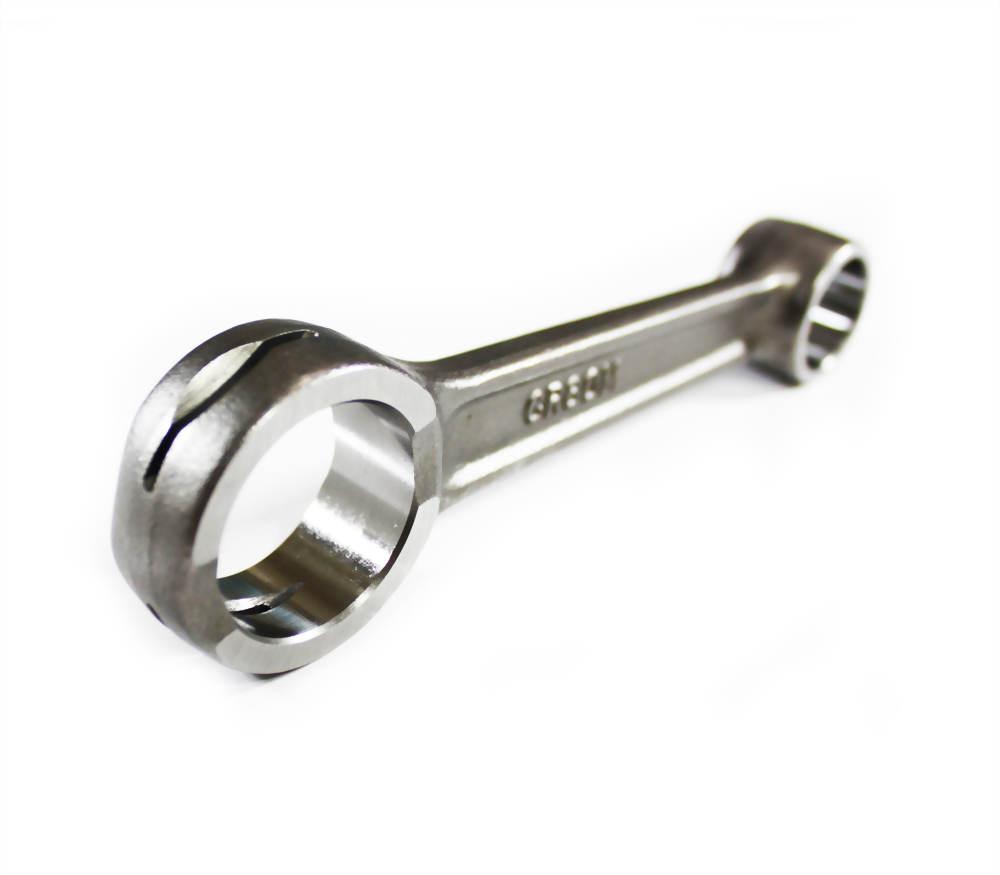

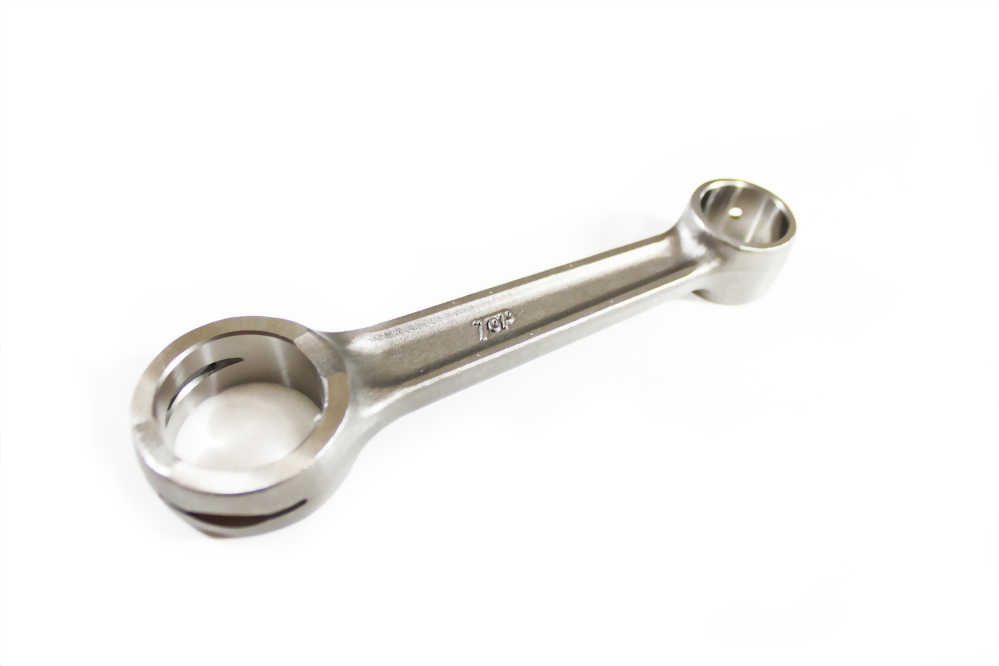

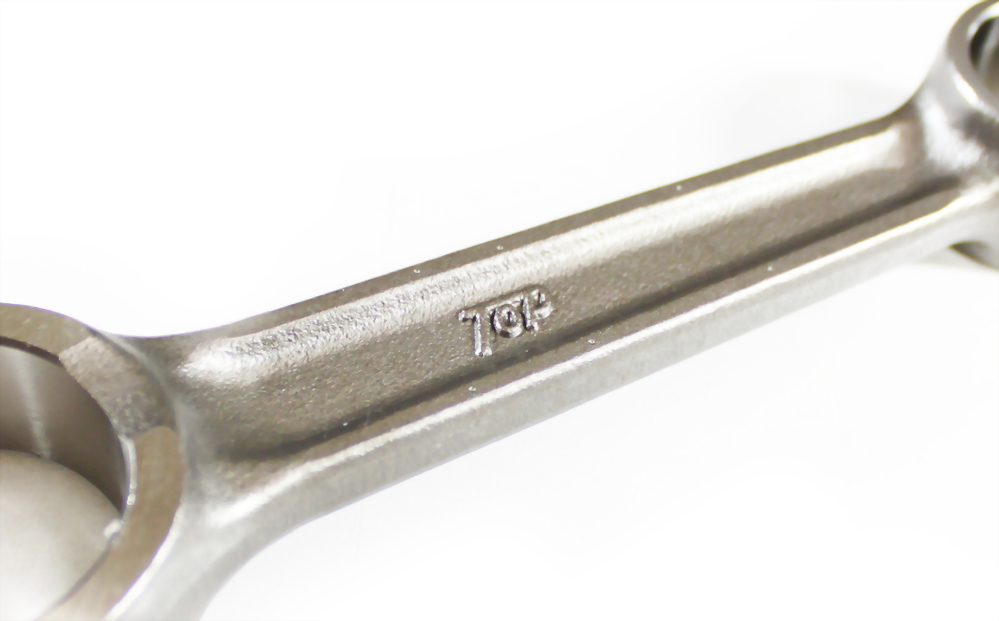

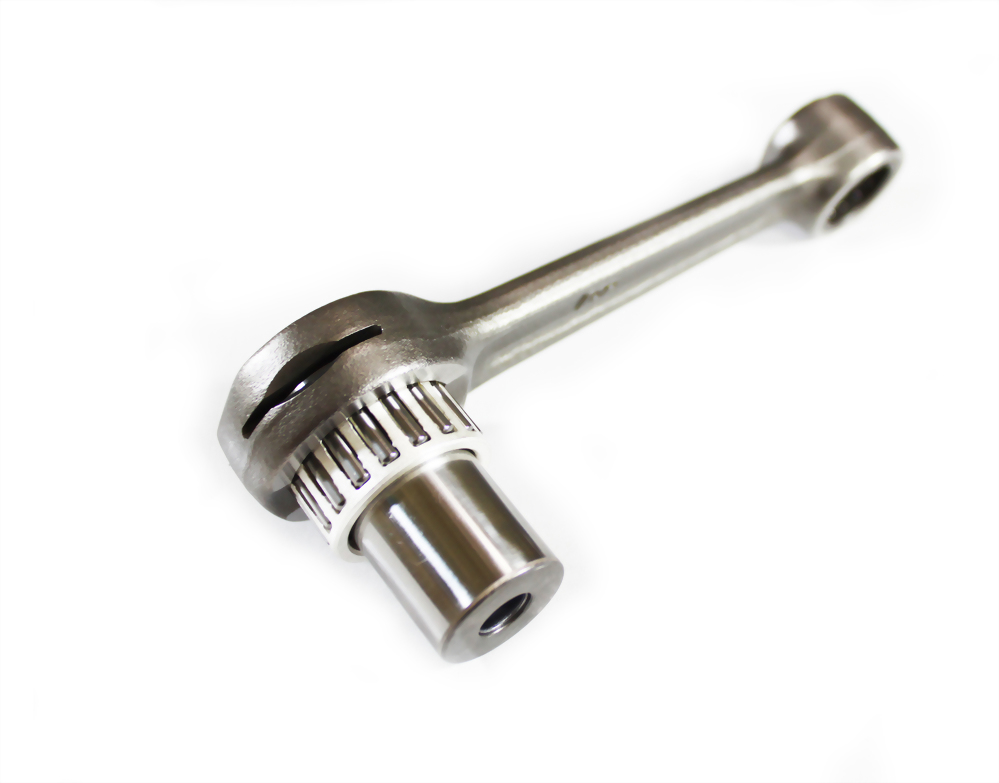

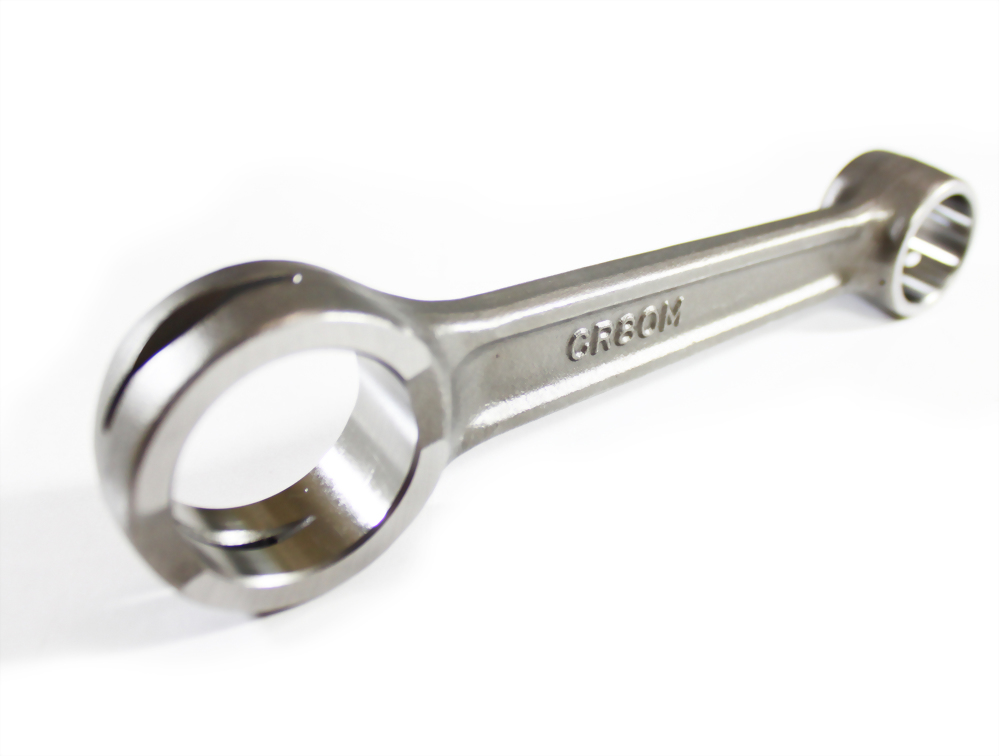

The CN516M connecting rod kit is for the famous Honda CR250R engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Honda 1983 - 2001 CR 250R


Big-end Width (mm): 17

Small-end Width (mm): 20

Big-end Bore (mm): 31

Small-end Bore (mm): 22

Center-to-center (mm): 125.4

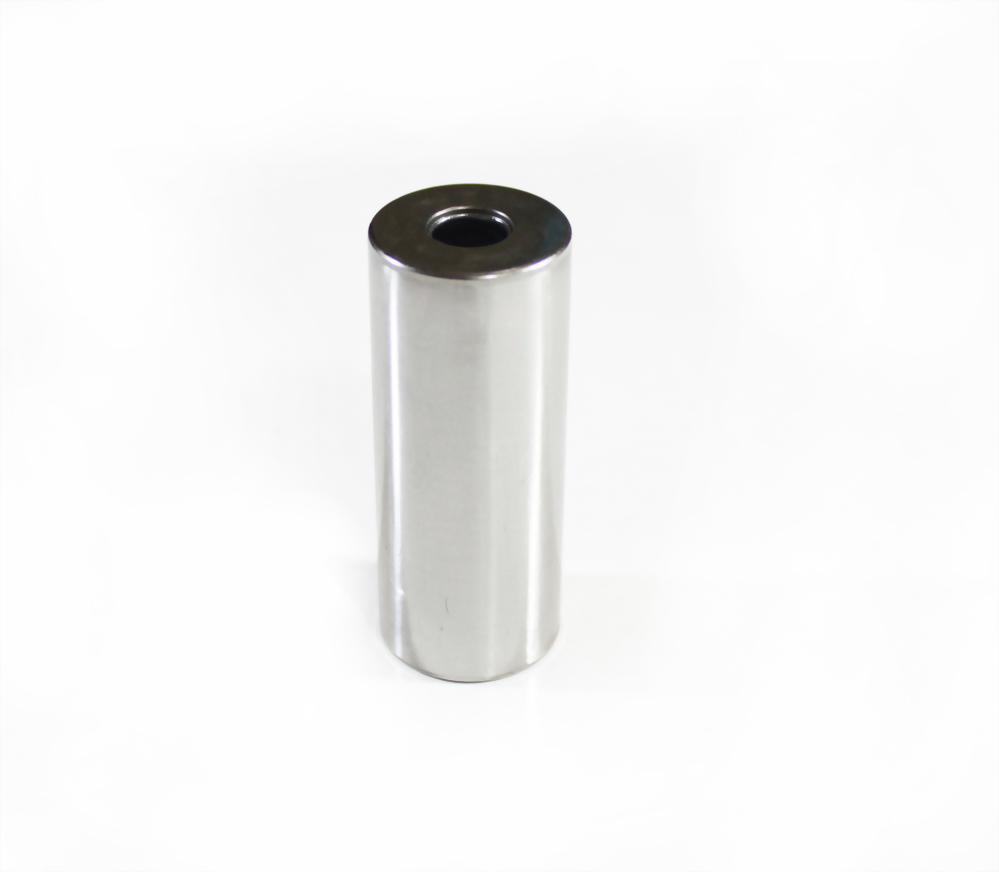

Pin Diameter (mm): 24

Pin Length (mm): 60

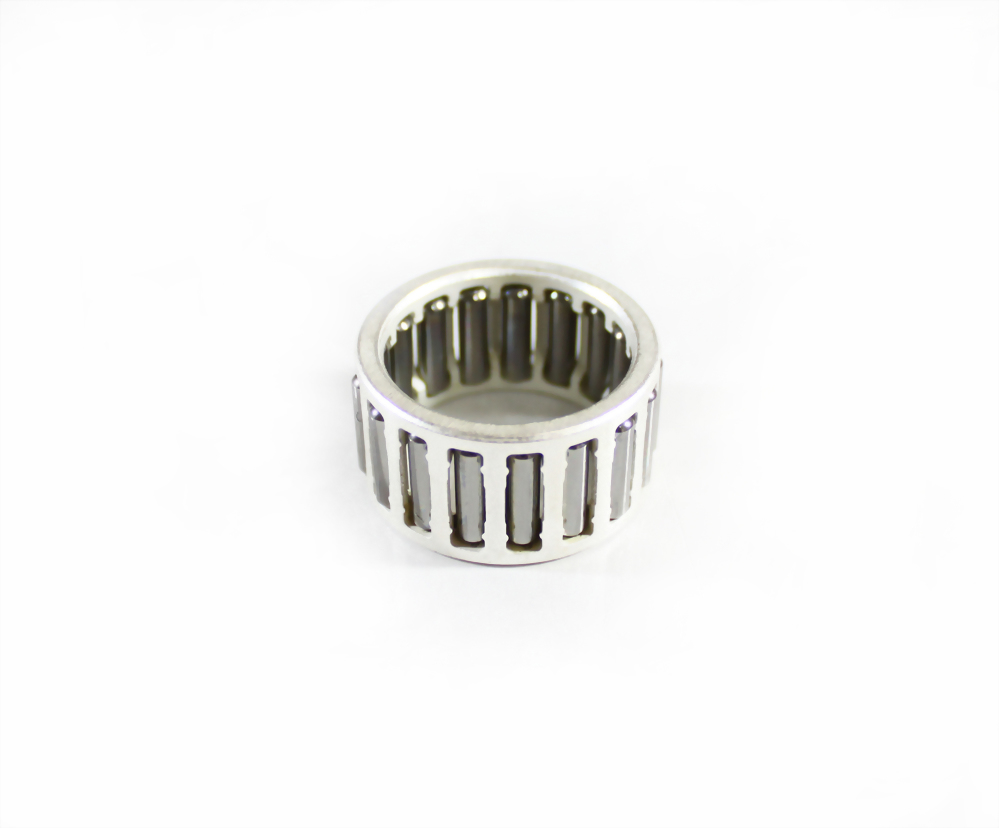

Big-end Bearing (mm): 24*31*17

Small-end Bearing (mm): 18*22*22

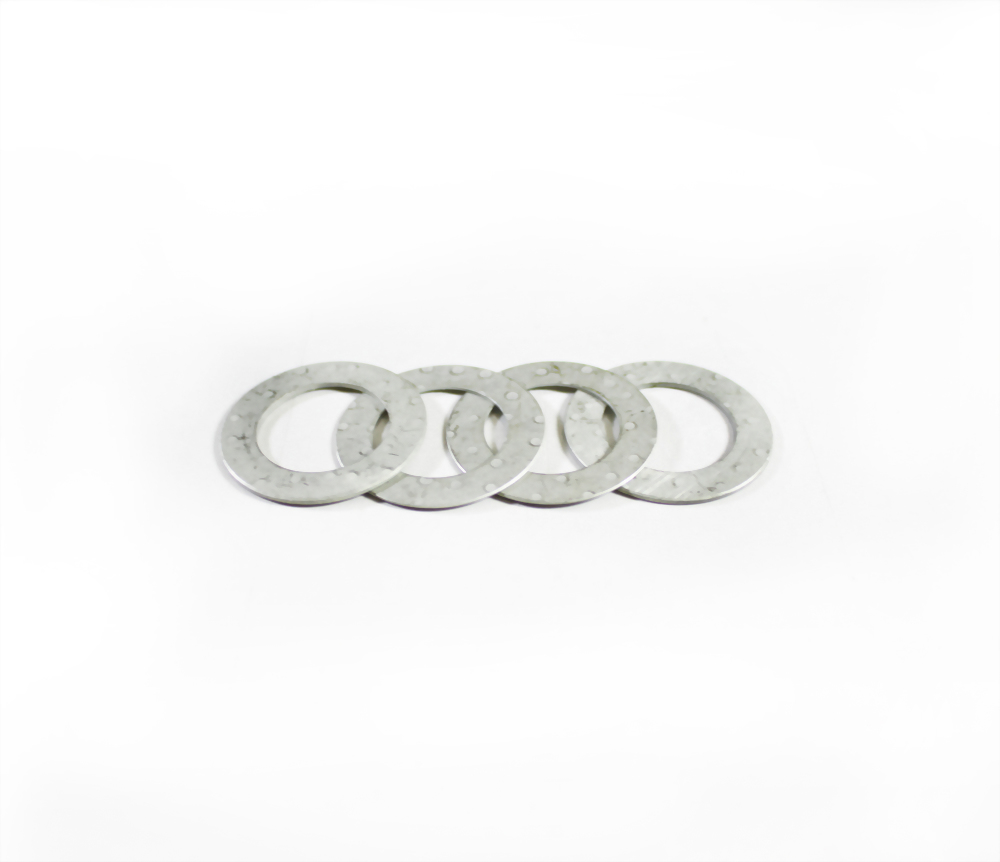

Washer Thickness (mm): 0.8/1.2
