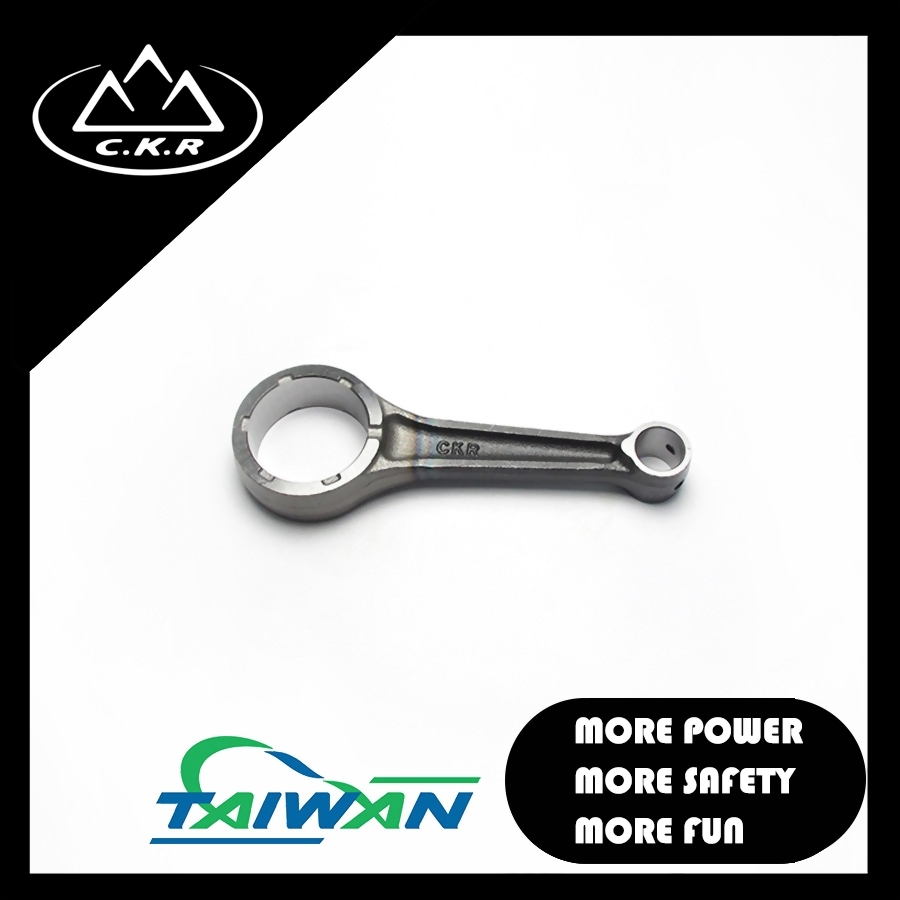

For Honda 2003-2009 CRF 230F

Application:
Honda 2003-2009 CRF 230F
Model : KFB

Application:

Honda 2003-2009 CRF 230F


Big-end Width (mm): 18

Small-end Width (mm): 18

Big-end Bore (mm): 38

Small-end Bore (mm): 15

Center-to-center (mm): 110

Pin Diameter (mm): 30

Pin Length (mm): 54

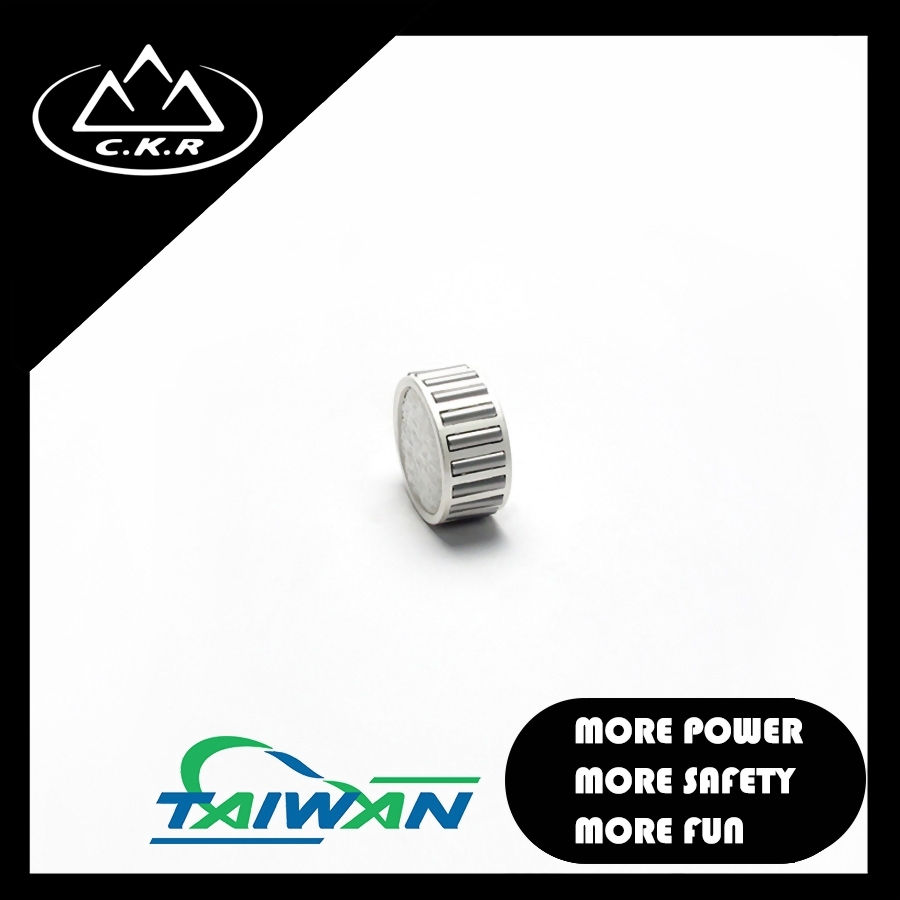

Big-end Bearing (mm): 30*38*18

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
