• Connecting rod kit for Honda CRF 250R

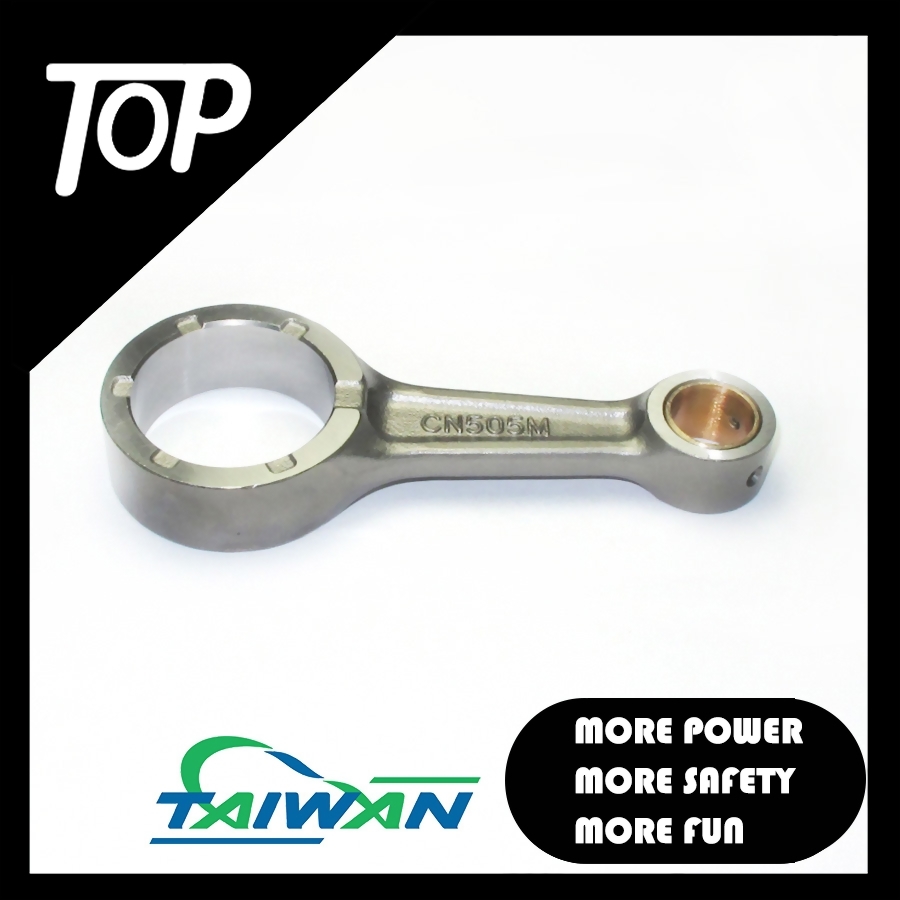

  • Connecting rod for Honda CRF 250R

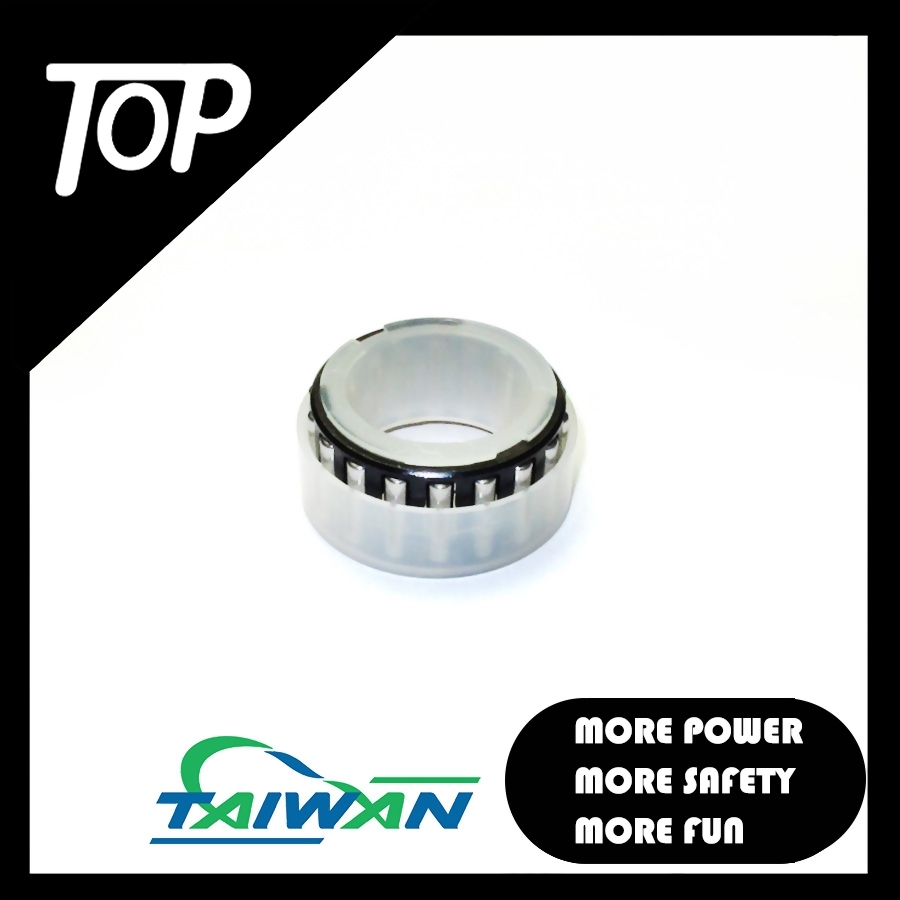

  • Bearing for Honda CRF 250R

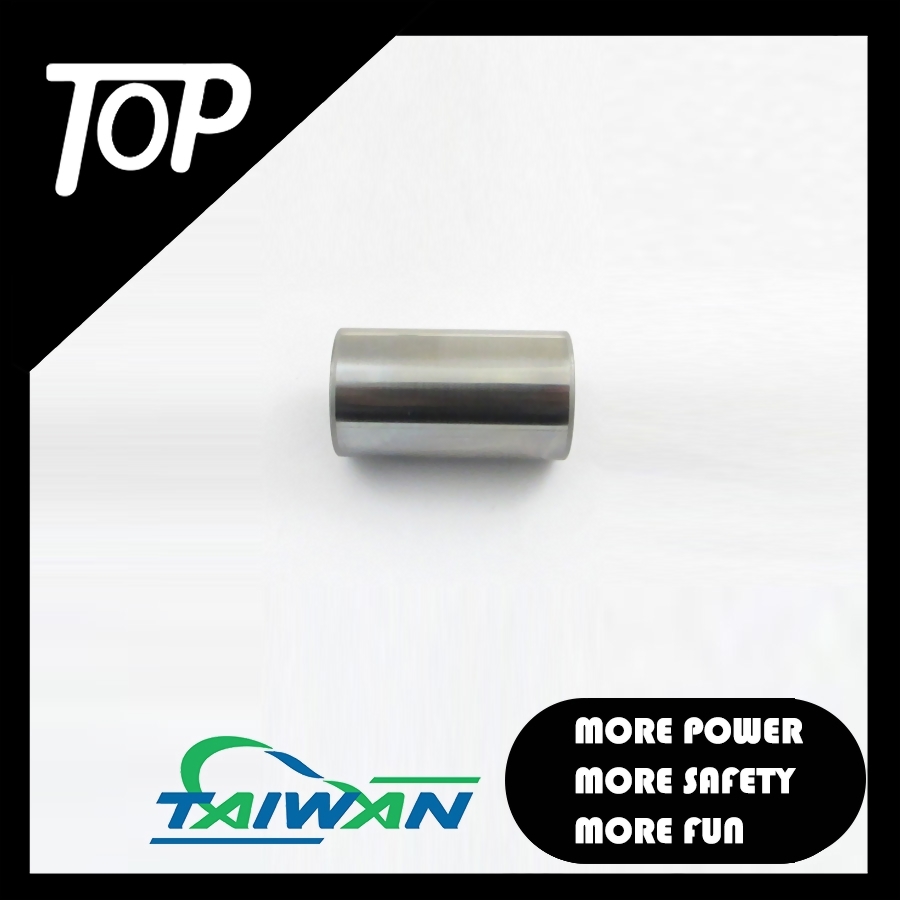

  • Crank pin for Honda CRF 250R

For Honda 2004-2015 CRF 250R

Application:
Honda 2004-2015 CRF 250R
Honda 2004-2013 CRF 250X
Model : CN505M

The CN505M connecting rod kit is for the famous Honda CRF250R / CRF250X engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Honda 2004-2015 CRF 250R

Honda 2004-2013 CRF 250X


Big-end Width (mm): 17.8

Small-end Width (mm): 15

Big-end Bore (mm): 38

Small-end Bore (mm): 16

Center-to-center (mm): 90

Pin Diameter (mm): 30

Pin Length (mm): 52.9

Big-end Bearing (mm): 30*38*18

Small-end Bearing (mm): Bush

Washer Thickness (mm): 1.0
