For Kawasaki 2001-2002 900 STS

Application:
Kawasaki 2001-2002 900 STS
Kawasaki 1997-2006 900 STX
Kawasaki 1995-1997 900 ZXI
Kawasaki 1992-1995 JS 750

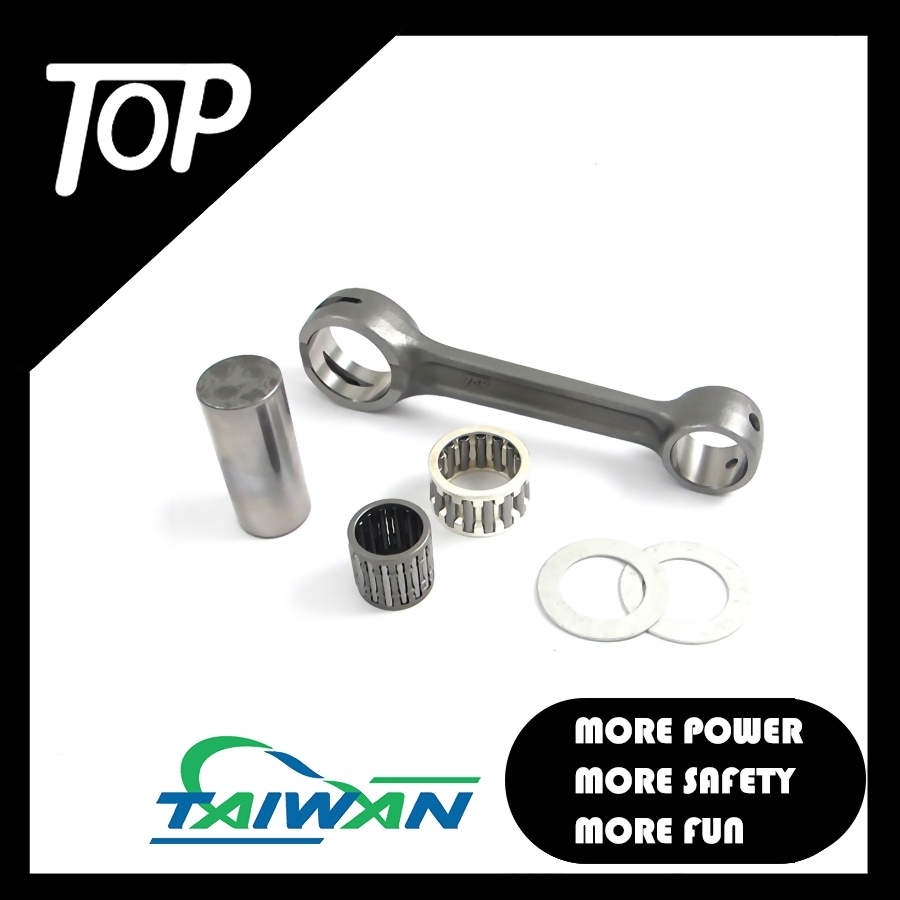

Model : CR86M

Application:

Kawasaki 2001-2002 900 STS

Kawasaki 1997-2006 900 STX

Kawasaki 1995-1997 900 ZXI

Kawasaki 1992-1995 JS 750

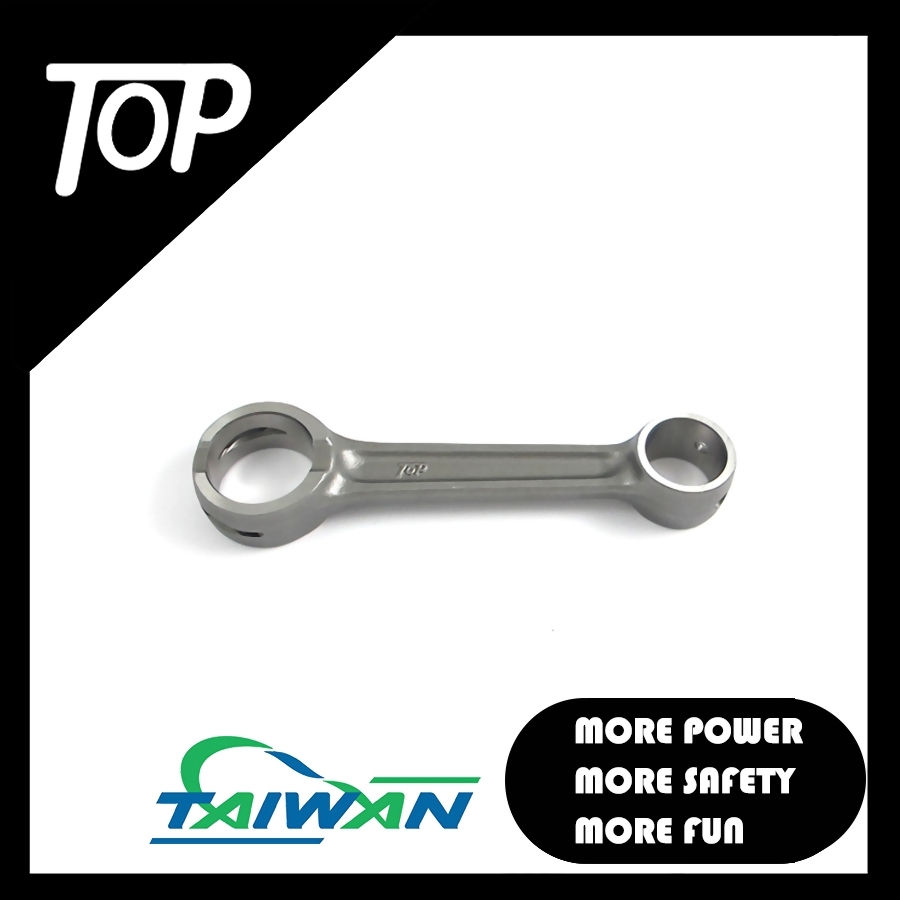

Big-end Width (mm): 20

Small-end Width (mm): 22

Big-end Bore (mm): 34

Small-end Bore (mm): 25

Center-to-center (mm): 133

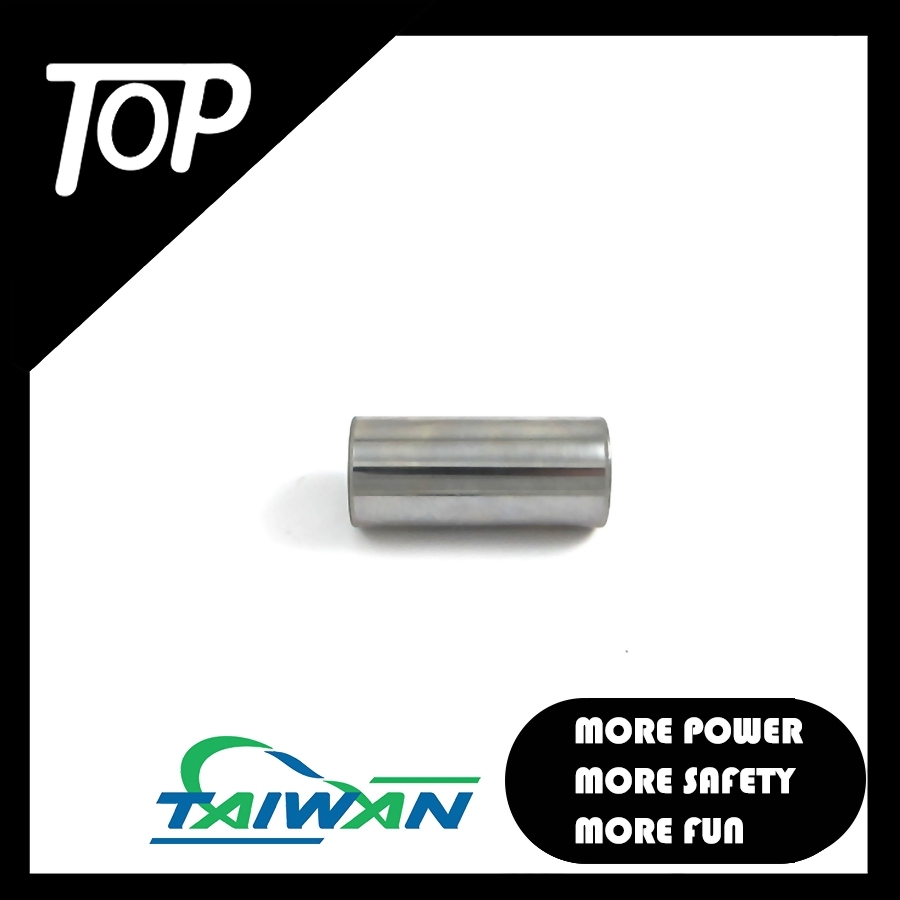

Pin Diameter (mm): 26

Pin Length (mm): 58.4

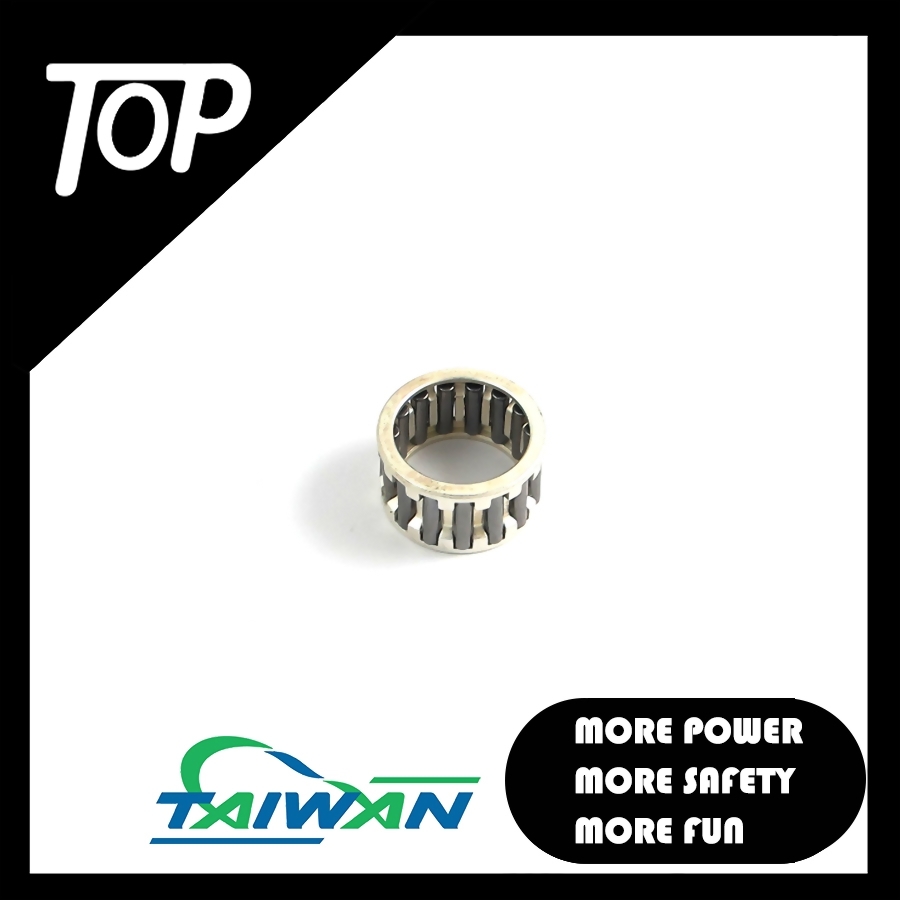

Big-end Bearing (mm): 26*34*20

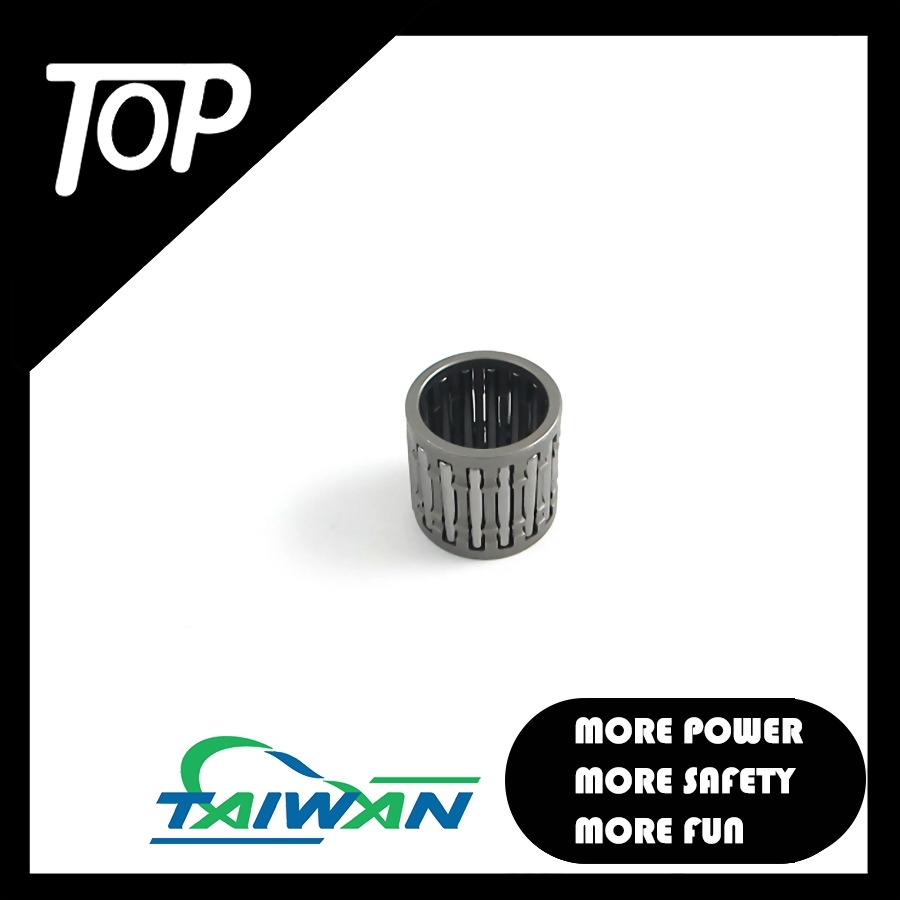

Small-end Bearing (mm): 20*25*25

Washer Thickness (mm): 1.0
