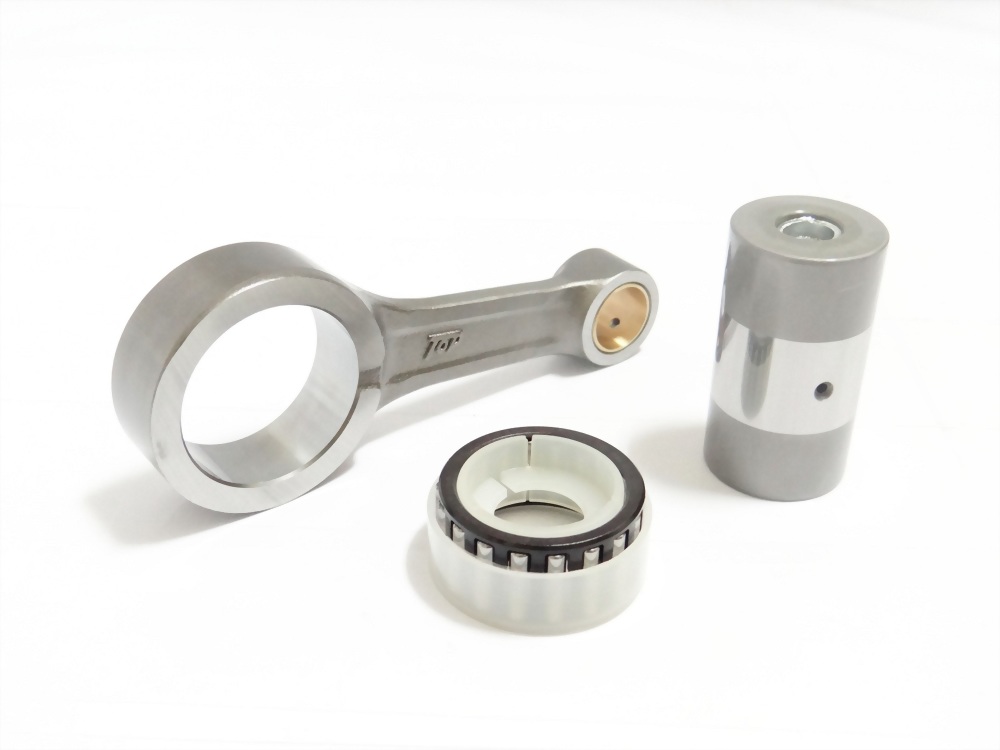

• Connecting rod kit for Kawasaki KX 250F

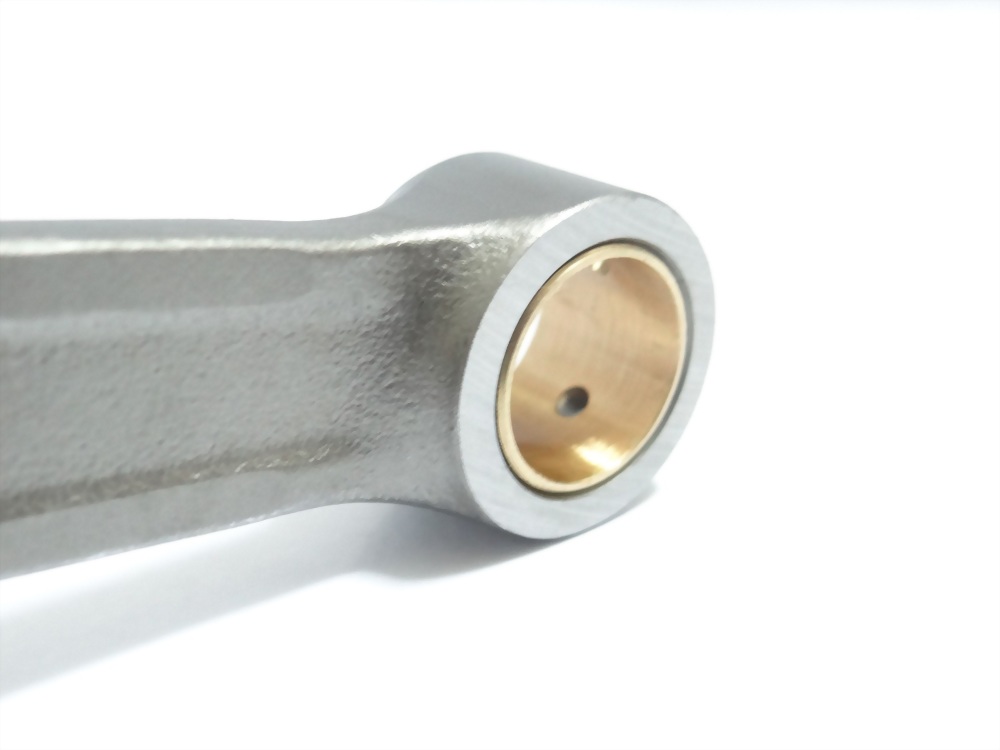

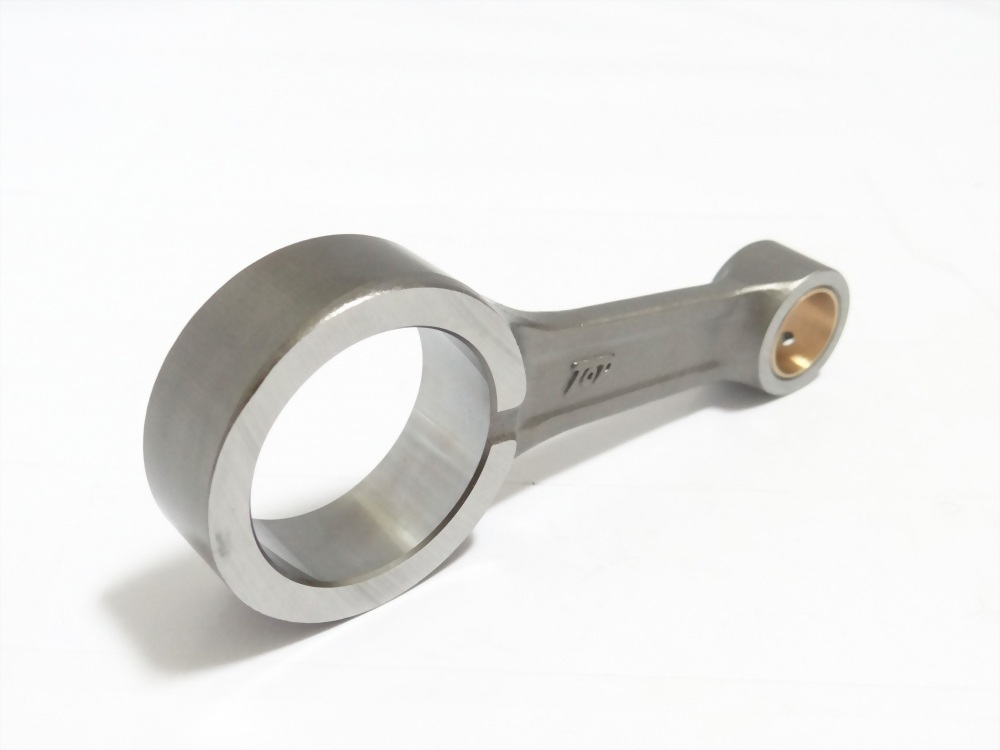

  • Connecting rod for Kawasaki KX 250F
  • Bearing for Kawasaki KX 250F

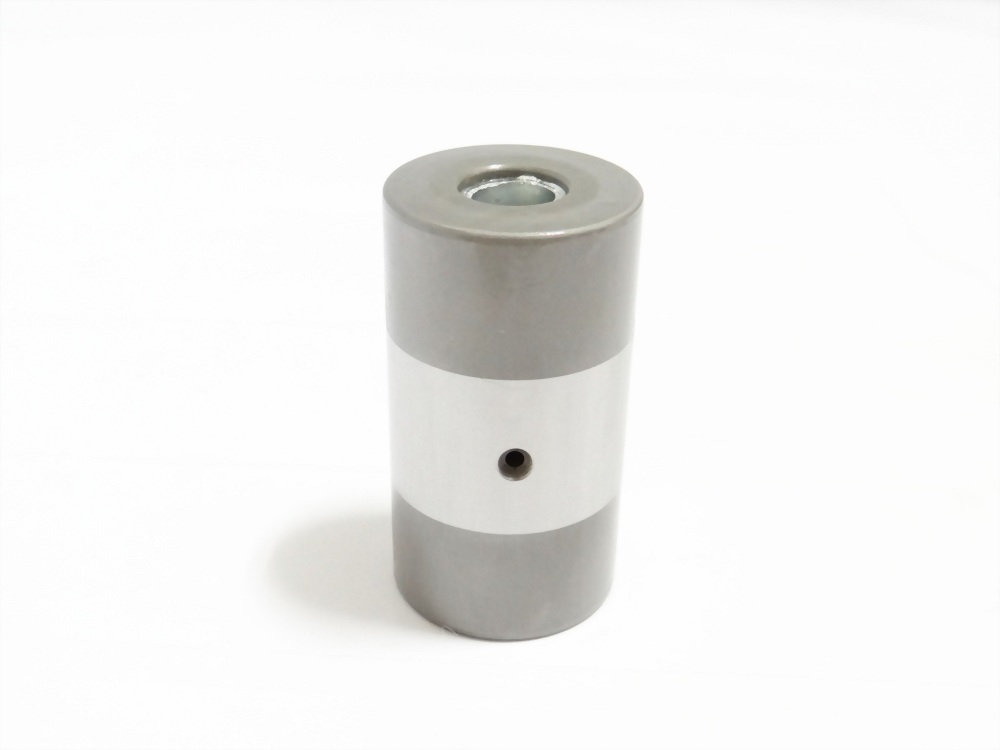

  • Crank pin for Kawasaki KX 250F

For Kawasaki 2004-2009 KX 250F

Application:
Kawasaki 2004-2009 KX 250F

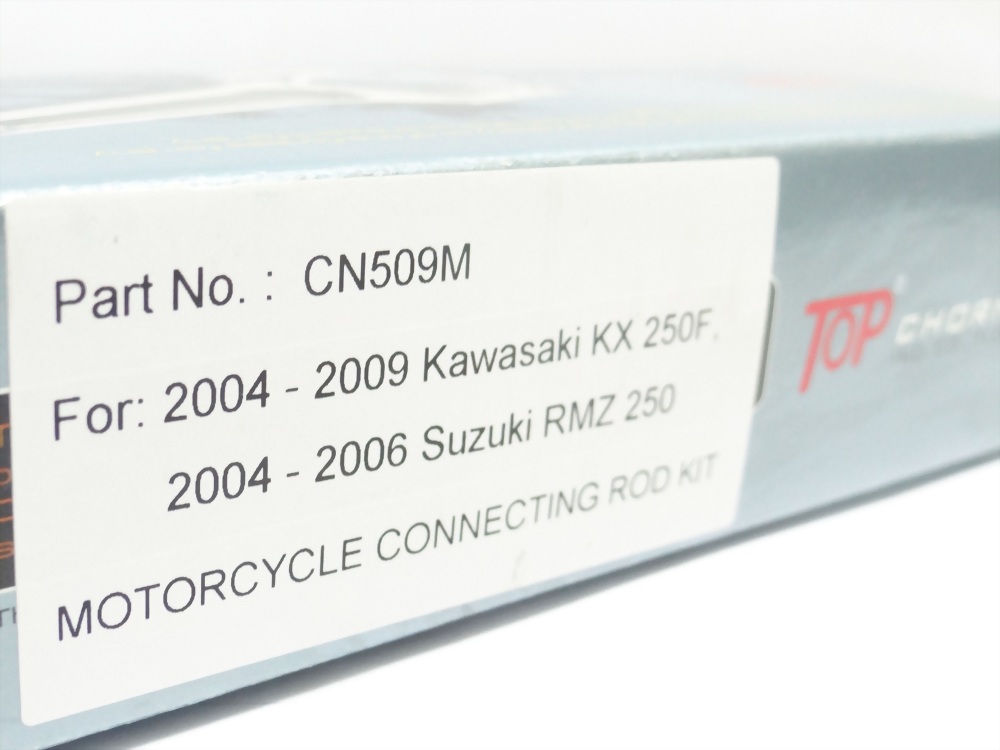

Model : CN509M

The CN509M connecting rod kit is for the famous Kawasaki KX250F engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Kawasaki 2004-2009 KX 250F


Big-end Width (mm): 18

Small-end Width (mm): 15.1

Big-end Bore (mm): 38

Small-end Bore (mm): 16

Center-to-center (mm): 92.5

Pin Diameter (mm): 30

Pin Length (mm): 54.9

Big-end Bearing (mm): 30*38*18

Small-end Bearing (mm): Bush

Washer Thickness (mm): N/A
