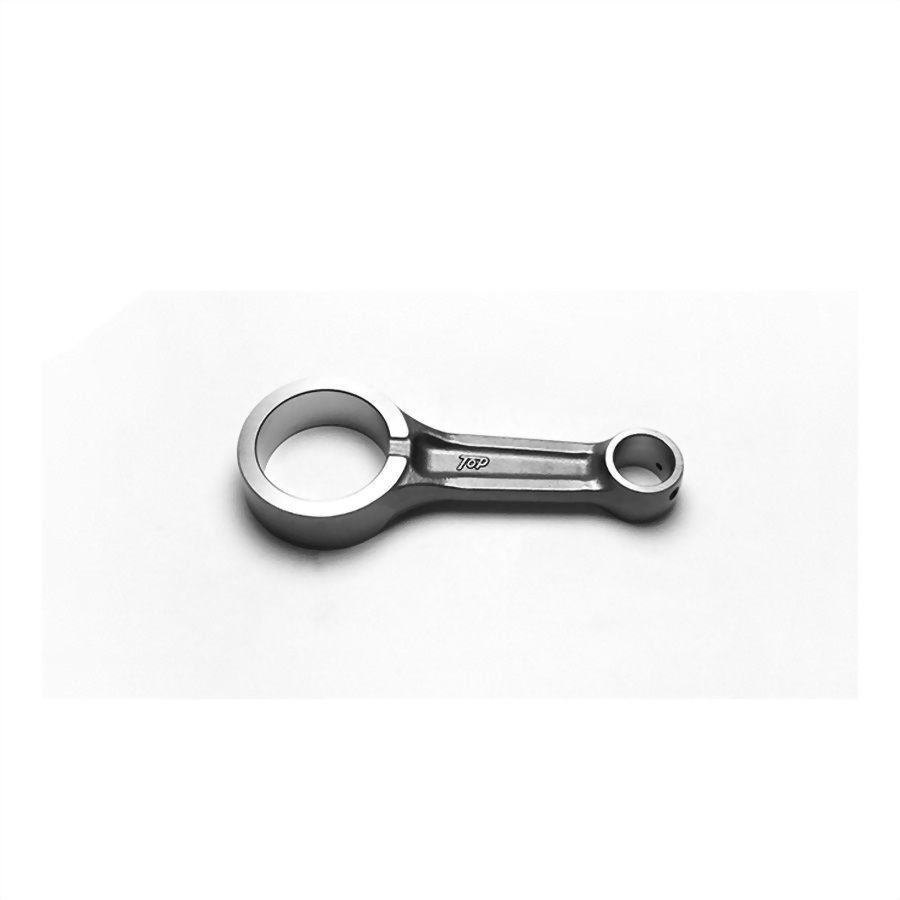

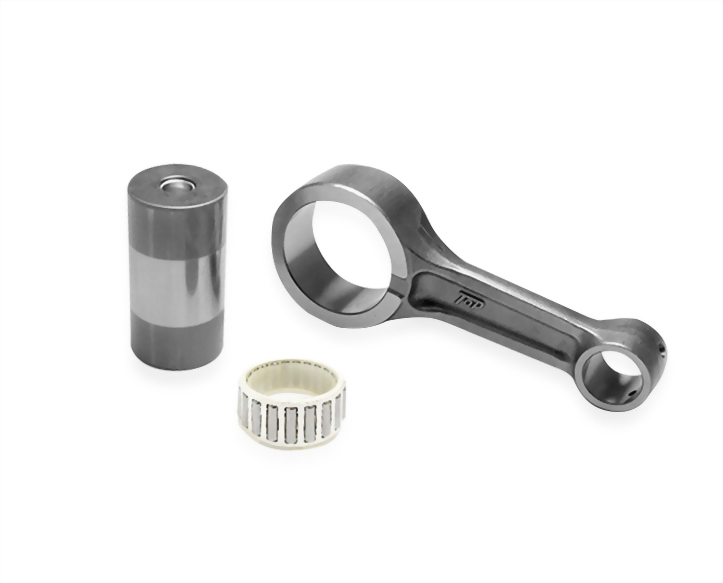

TOP® Connecting Rod Kit for Kawasaki KLX450R KX450F

Product Overview

The TOP® connecting rod kit is designed specifically for Kawasaki models KLX450R (2008-2013) and KX450F (2007-2008). This high-quality kit offers precision and durability for optimal performance in tough conditions.

Specifications

• Big-end Width: 20 mm
• Small-end Width: 18 mm
• Big-end Bore: 42 mm
• Small-end Bore: 19 mm
• Center-to-center Length: 101 mm

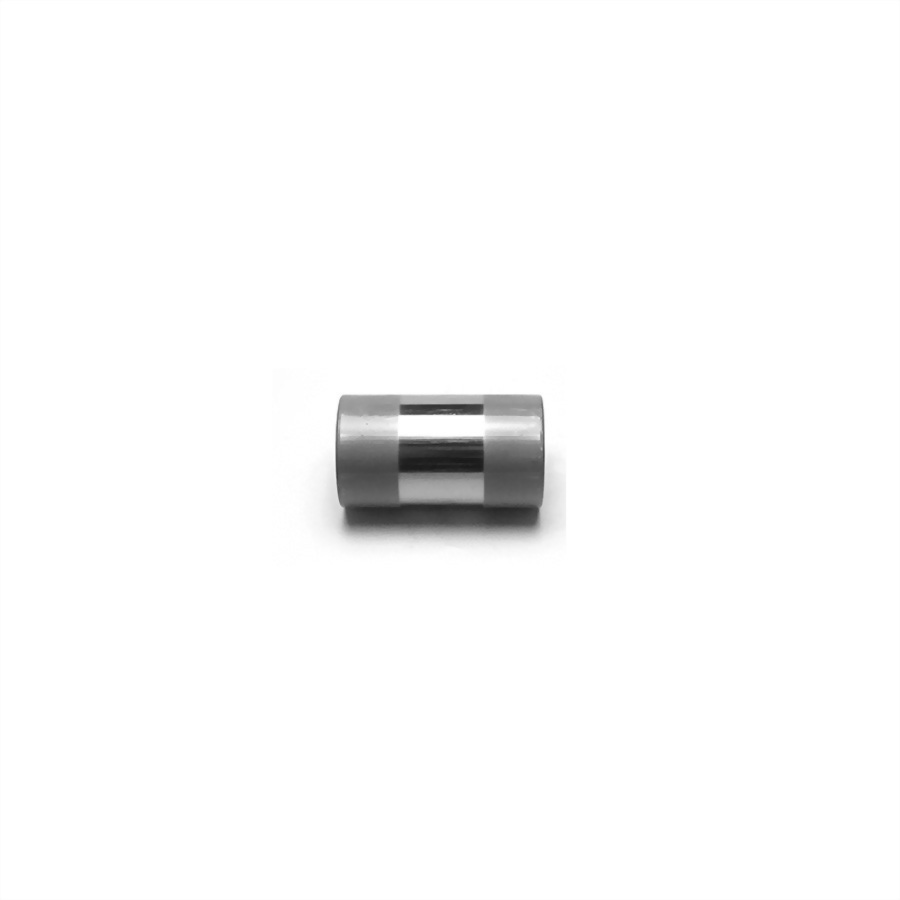

• Pin Diameter: 34 mm
• Pin Length: 60 mm

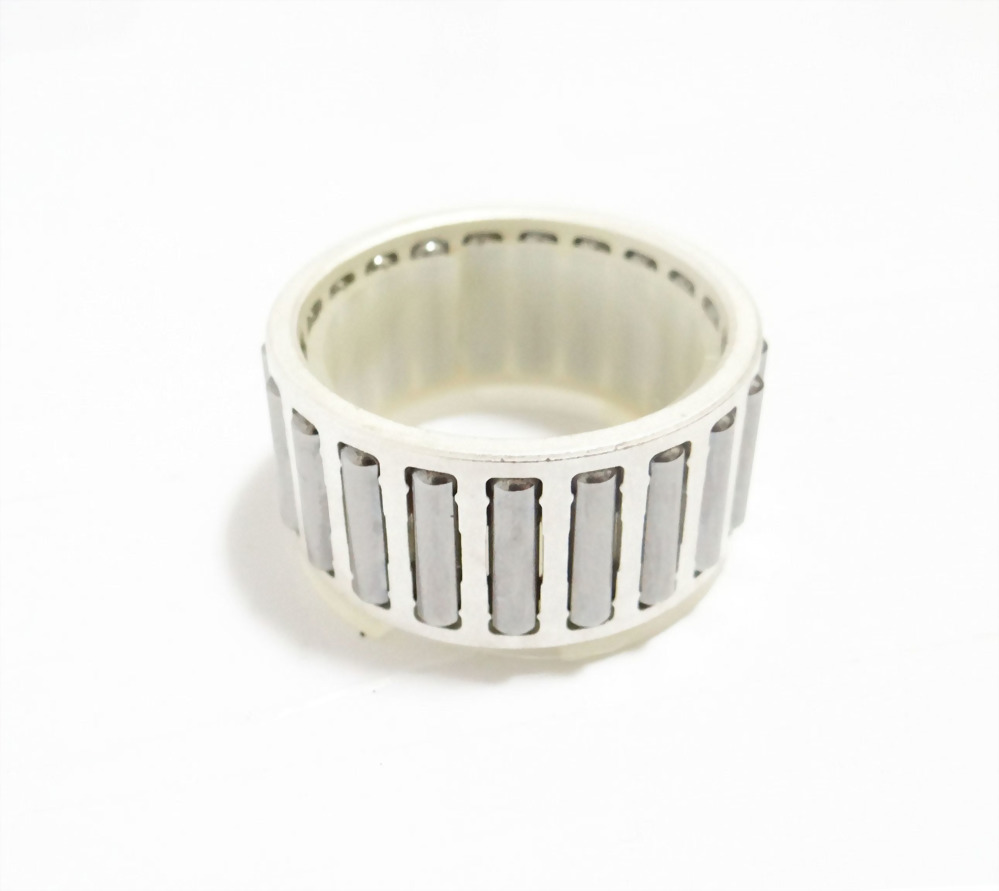

• Big-end Bearing: 34*42*20 mm
• Small-end Bearing: N/A
• Washer Thickness: N/A

Compatible Models

This connecting rod kit is compatible with the following Kawasaki models:

• 2008 - 2013 Kawasaki KLX 450R
• 2007 - 2008 Kawasaki KX 450F
