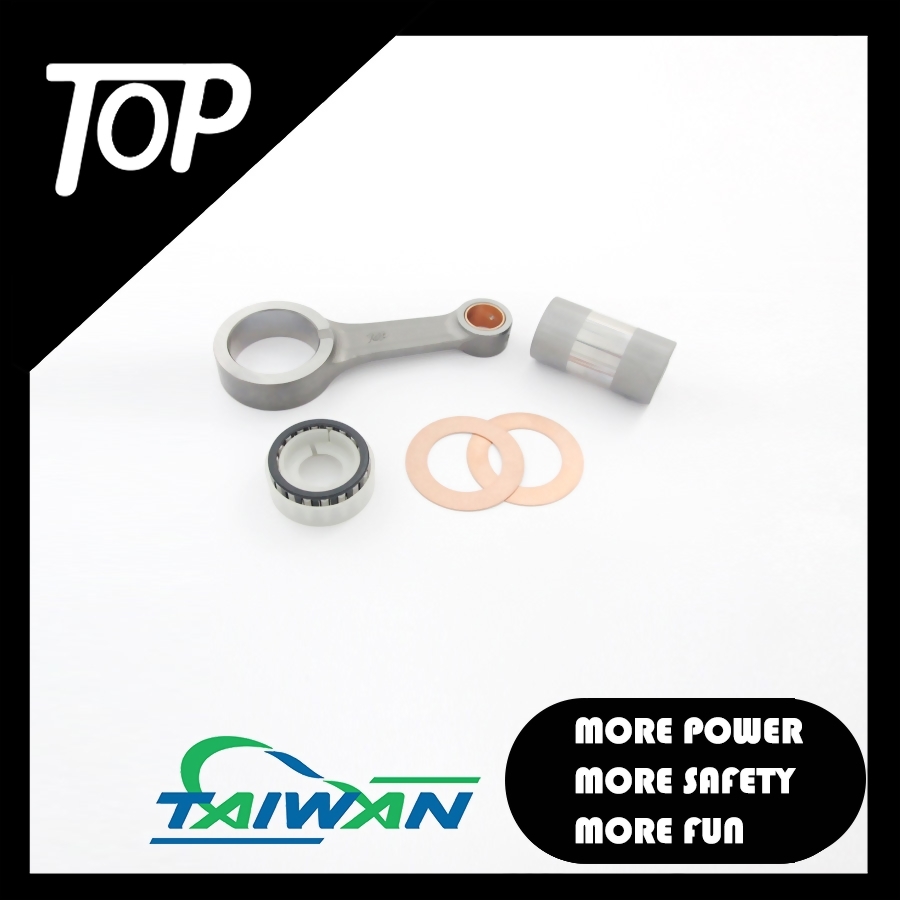

• Connecting rod kit for Kawasaki KX 250F

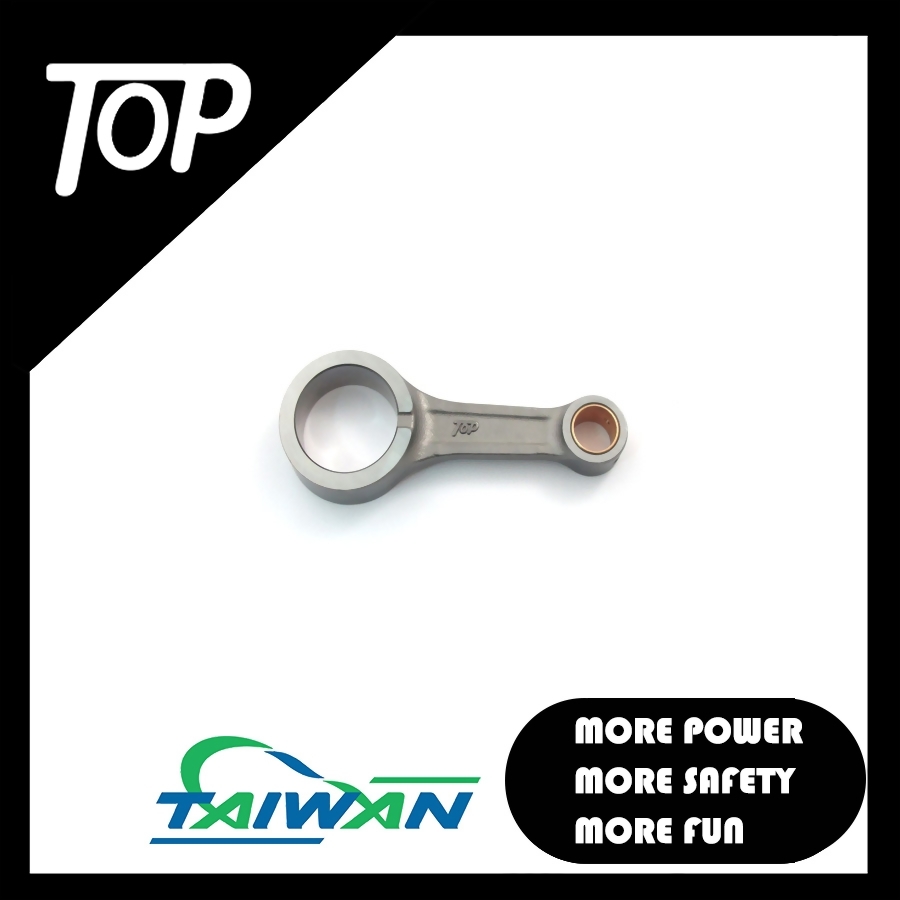

  • Connecting rod for Kawasaki KX 250F
  • Bearing for Kawasaki KX 250F

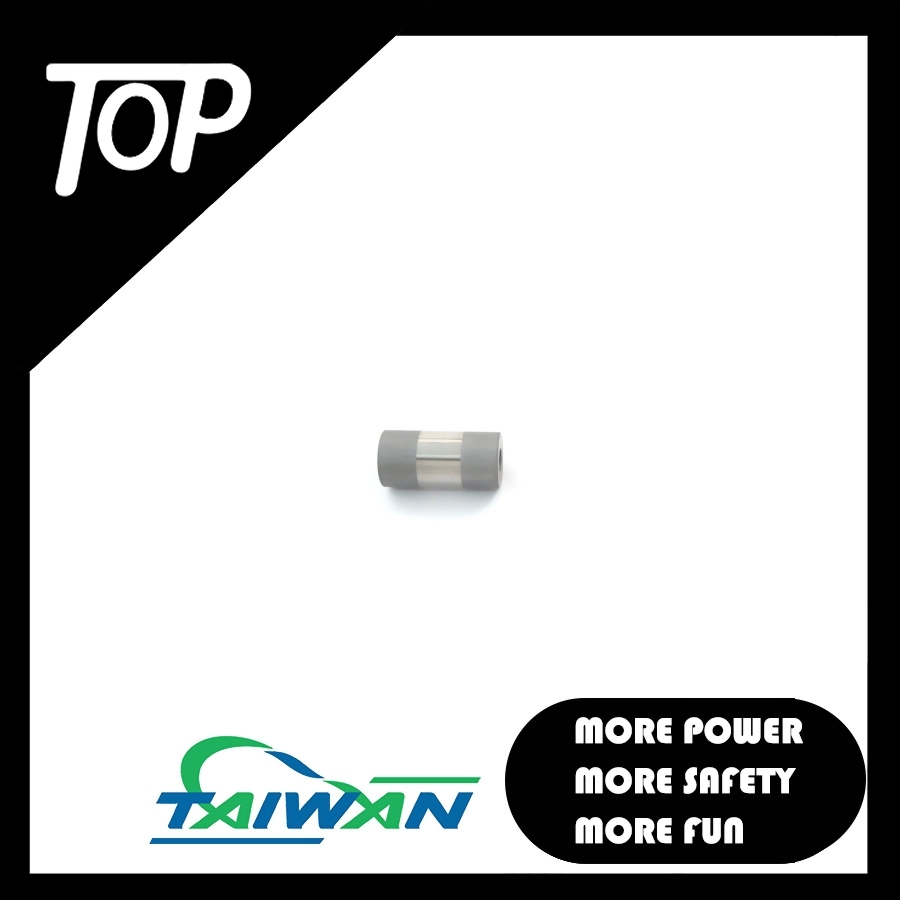

  • Crank pin for Kawasaki KX 250F

For Kawasaki 2010-2016 KX 250F

Application:
Kawasaki 2010-2016 KX 250F
Model : CN519M

Application:

Kawasaki 2010-2016 KX 250F


Big-end Width (mm): 18

Small-end Width (mm): 15

Big-end Bore (mm): 38

Small-end Bore (mm): 16

Center-to-center (mm): 92.5

Pin Diameter (mm): 30

Pin Length (mm): 56

Big-end Bearing (mm): 30*38*18

Small-end Bearing (mm): Bush

Washer Thickness (mm): 0.5
