For Yamaha CYGNUS125 / EGO / NOUVO115 / NEO115

Application:

Yamaha CYGNUS125 / EGO / NOUVO115 / NEO115

OE NO. 5MX-11651-00
Model : 5MX

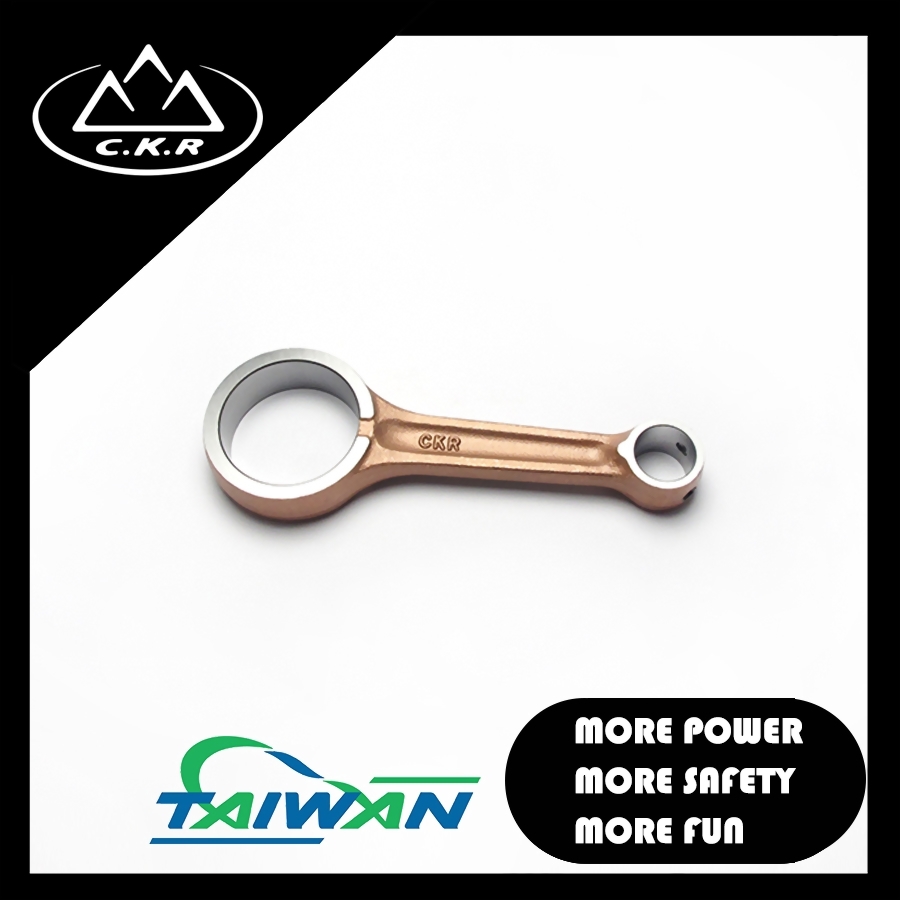

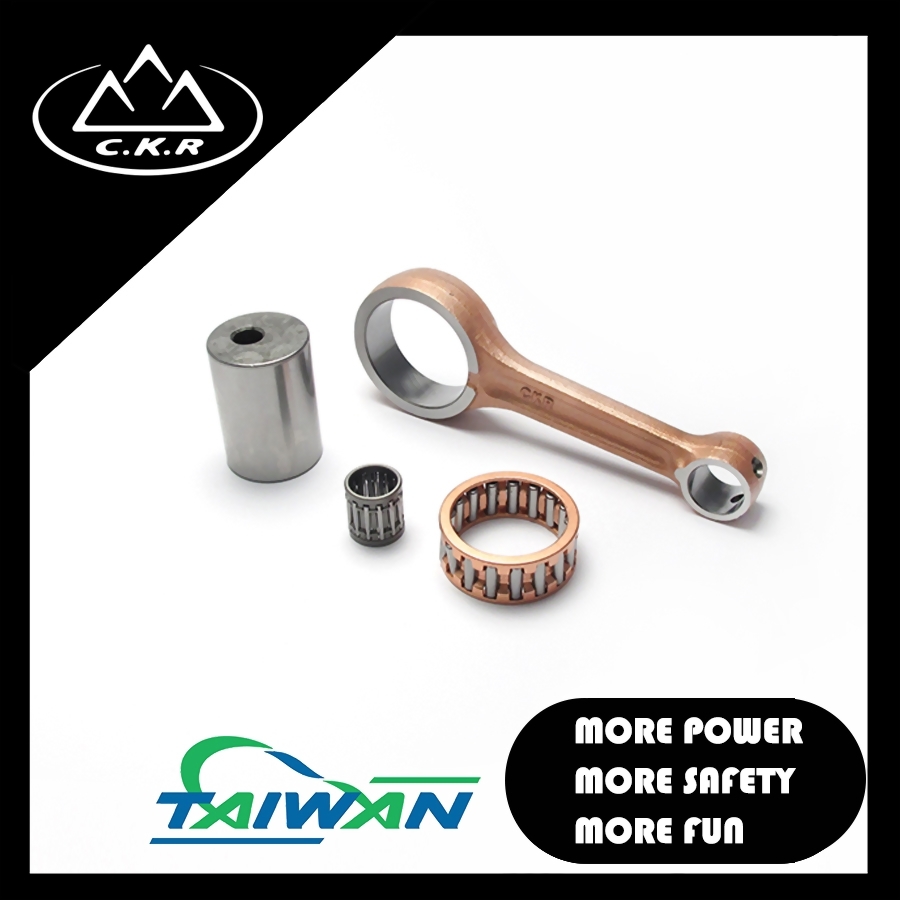

The 5MX connecting rod kit is for the famous Yamaha CYGNUS125 / EGO / NOUVO115 / NEO115. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Yamaha CYGNUS125 / EGO / NOUVO115 / NEO115

OE NO. 5MX-11651-00


Big-end Width (mm): 14

Small-end Width (mm): 14

Big-end Bore (mm): 35

Small-end Bore (mm): 15

Center-to-center (mm): 93.5

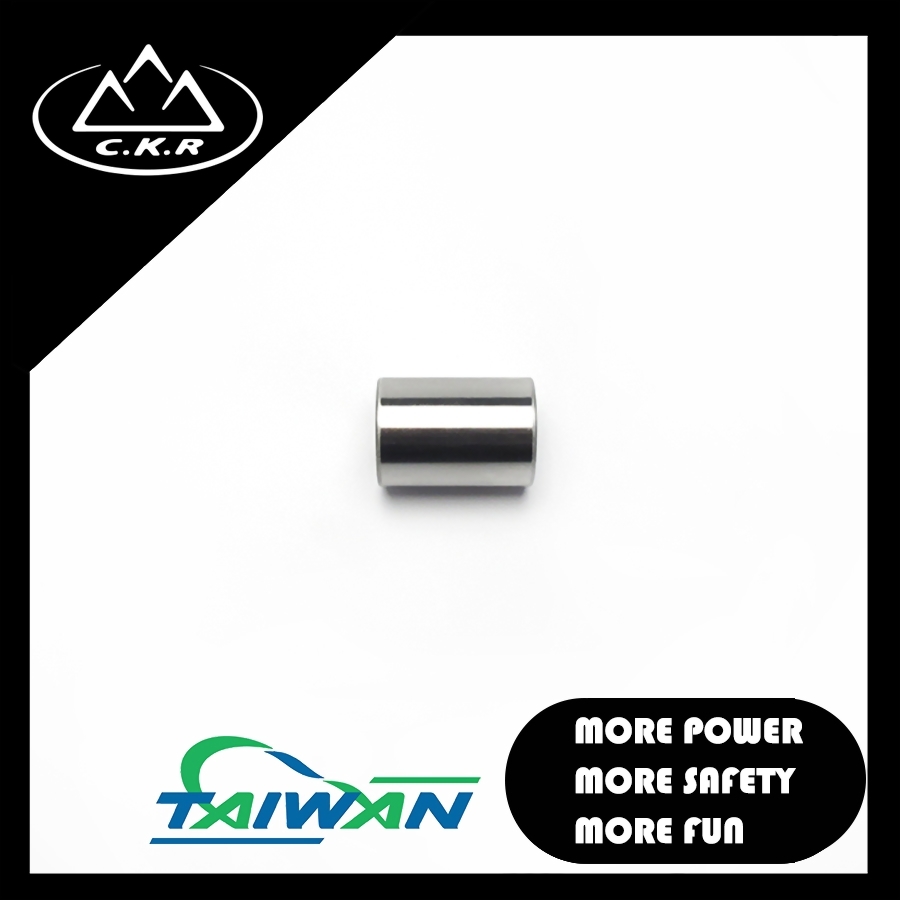

Pin Diameter (mm): 28

Pin Length (mm): 39.5

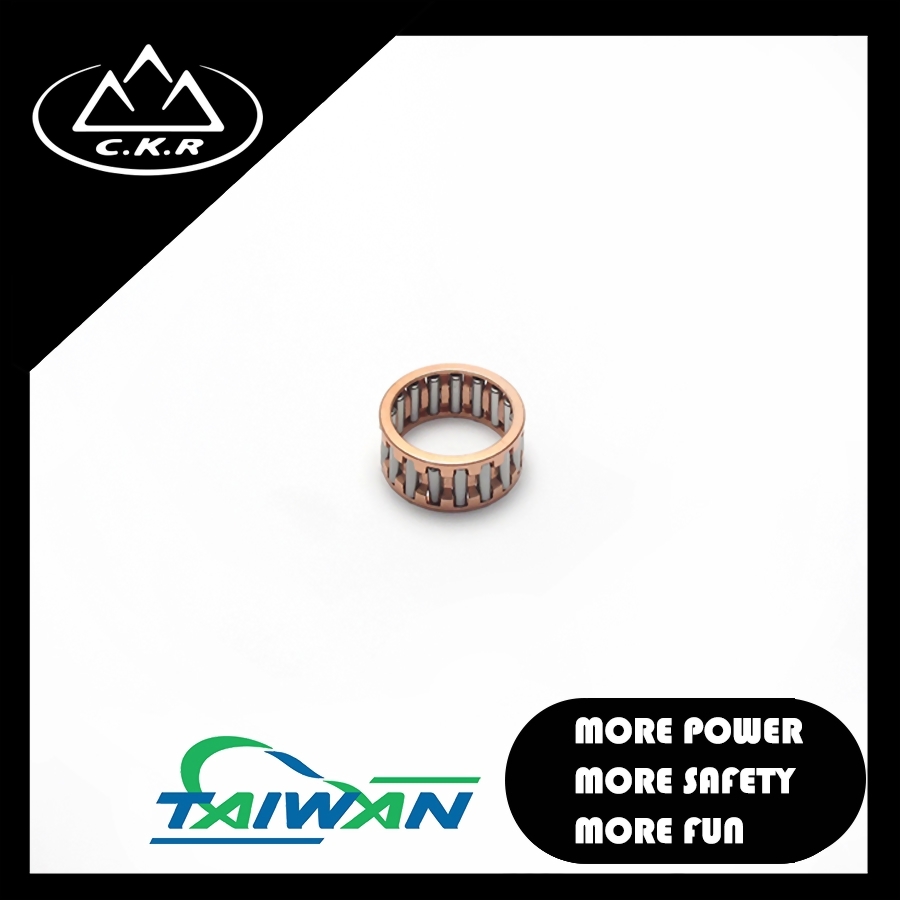

Big-end Bearing (mm): 28*35*14

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
