Application:

Yamaha NOVA-DASH

Big-end Width (mm): 16

Small-end Width (mm): 16

Big-end Bore (mm): 28

Small-end Bore (mm): 20

Center-to-center (mm): 100

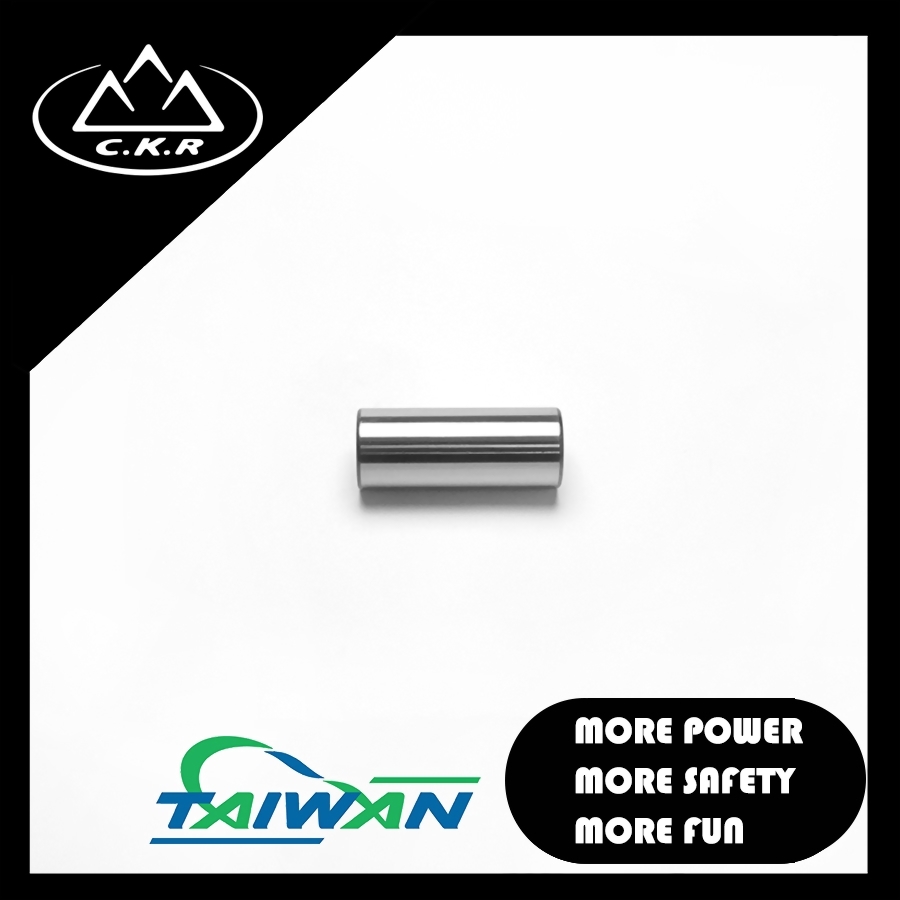

Pin Diameter (mm): 22

Pin Length (mm): 54.5

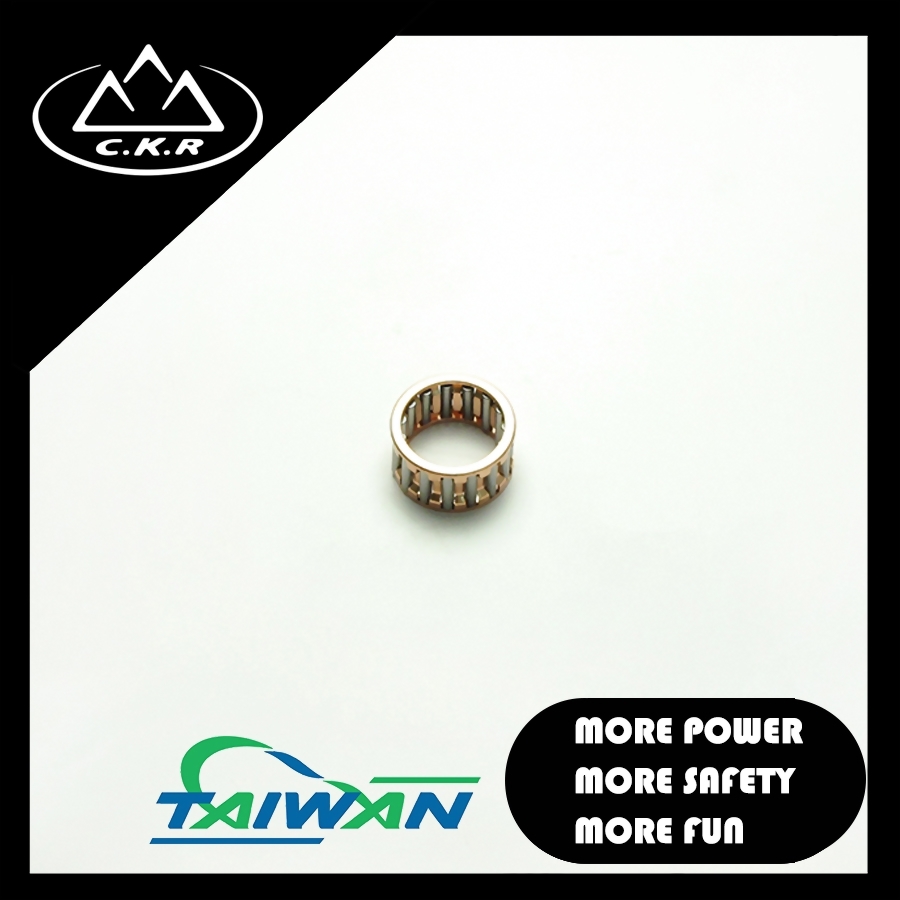

Big-end Bearing (mm): 22*28*16

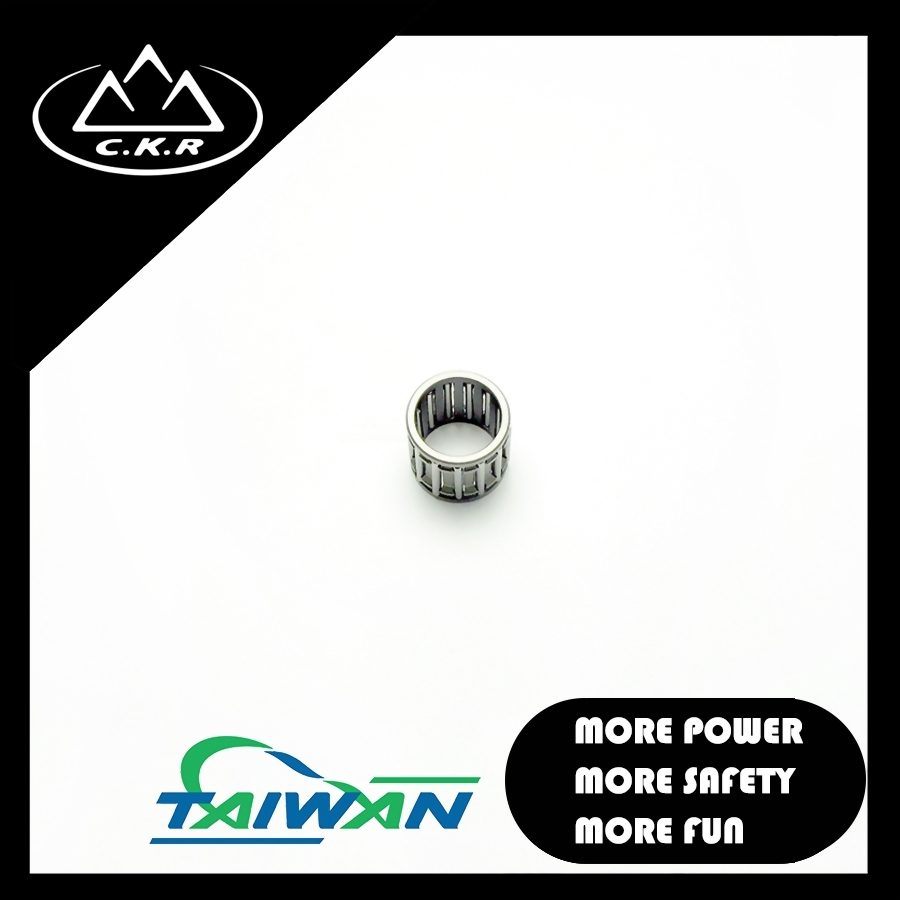

Small-end Bearing (mm): 16*20*20

Washer Thickness (mm): 1.0
