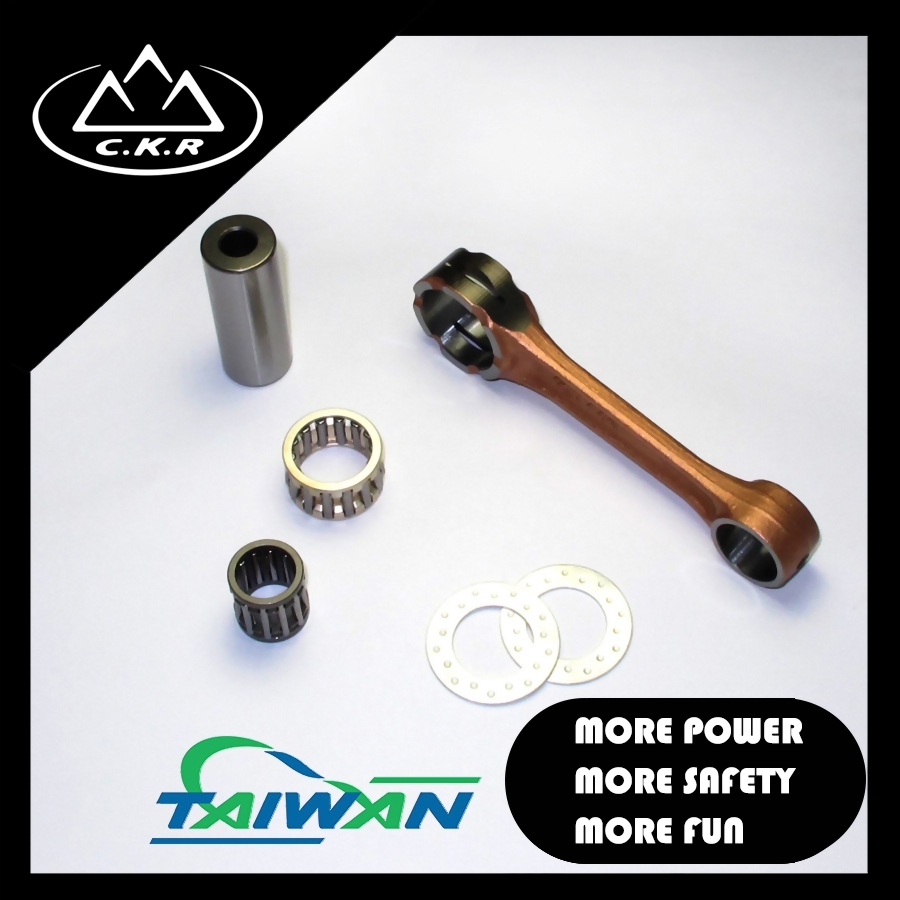

For Yamaha DT200 / 4AN

Application:

Yamaha DT200 / 4AN

OE NO. 4AN-11650-00

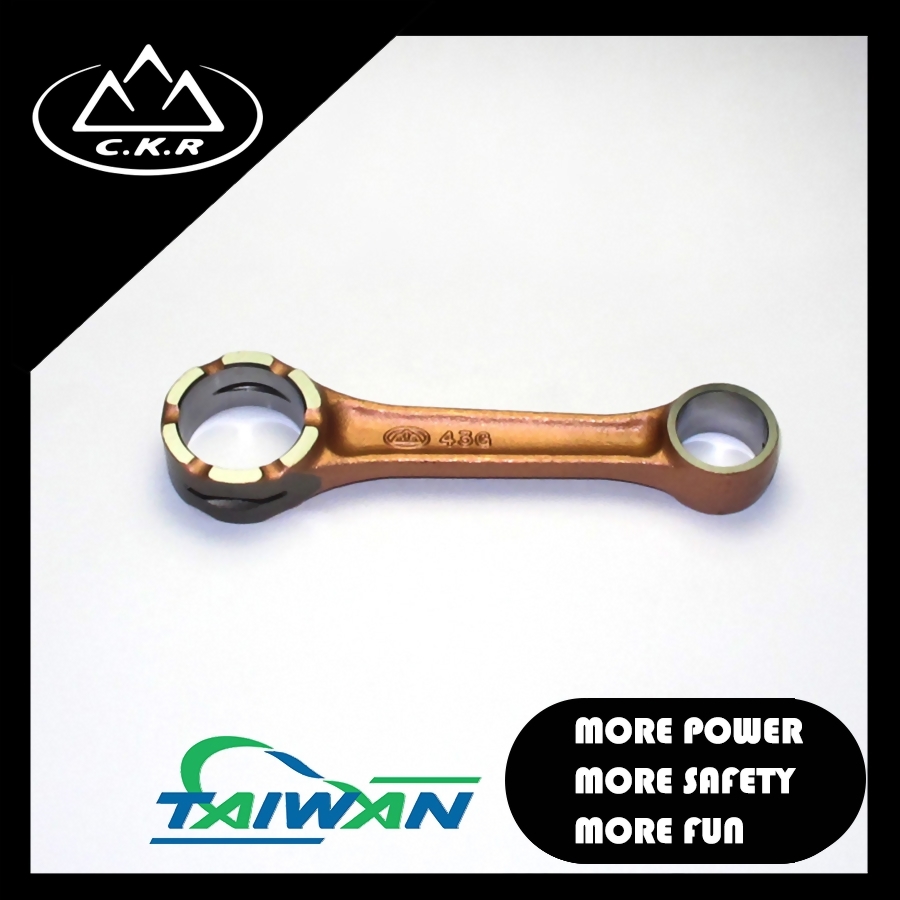

Model : 43G

Application:

Yamaha DT200 / 4AN

OE NO. 4AN-11650-00


Big-end Width (mm): 17

Small-end Width (mm): 17

Big-end Bore (mm): 29

Small-end Bore (mm): 21

Center-to-center (mm): 110

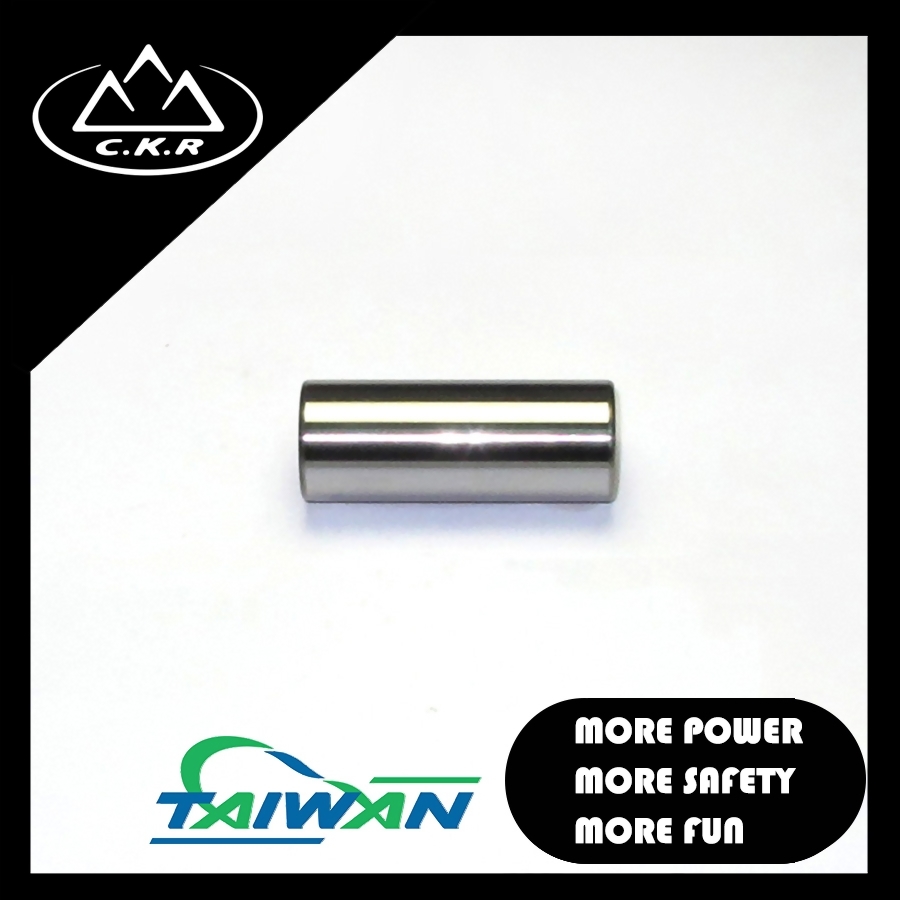

Pin Diameter (mm): 22

Pin Length (mm): 56.5

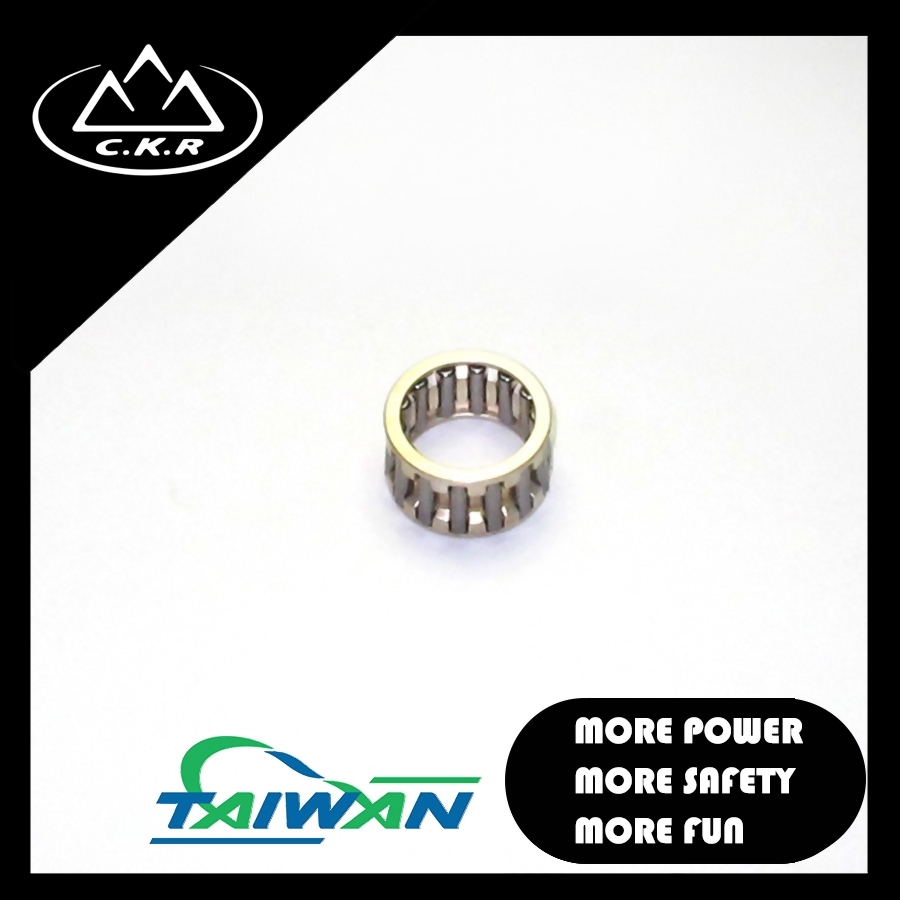

Big-end Bearing (mm): 22*29*17

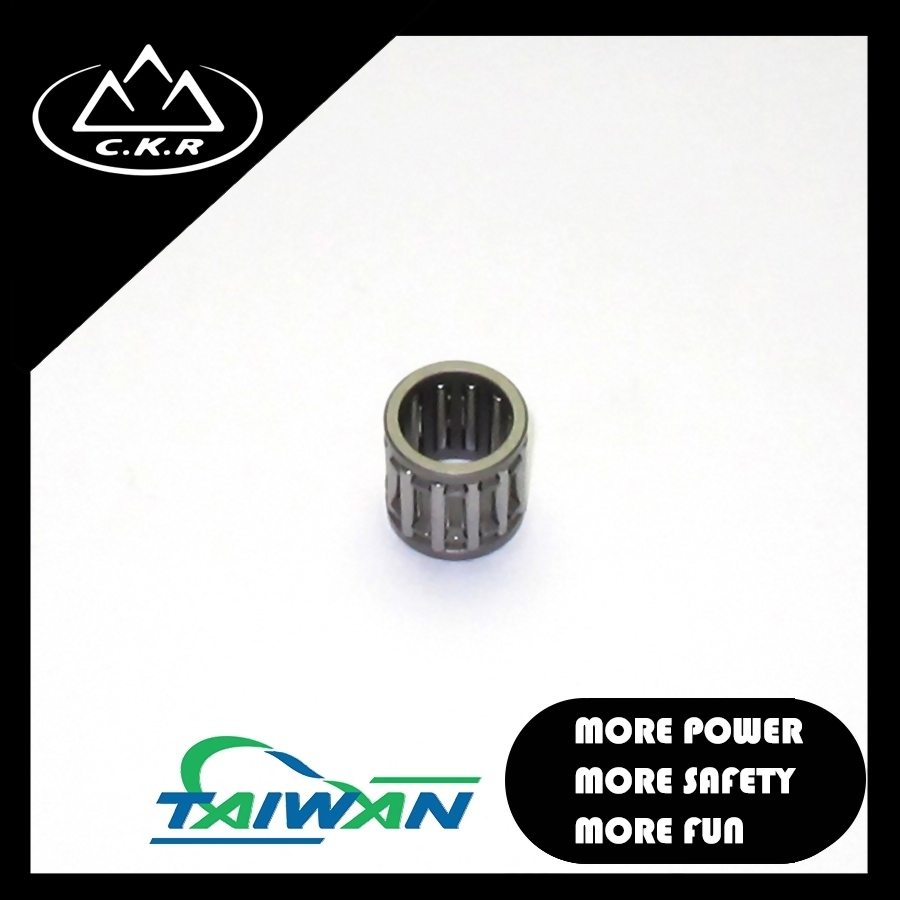

Small-end Bearing (mm): 16*21*22.5

Washer Thickness (mm): 1.0
