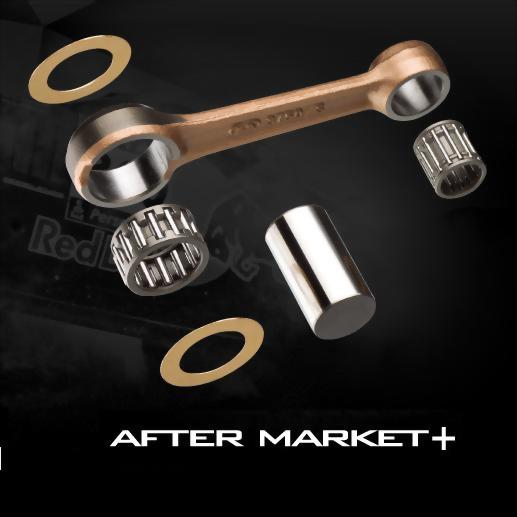

For Yamaha FZR150

Application:
Yamaha FZR150
Model : 3KW

Application:

Yamaha FZR150



Big-end Width (mm): 14

Small-end Width (mm): 14

Big-end Bore (mm): 38

Small-end Bore (mm): 13

Center-to-center (mm): 147.5

Pin Diameter (mm): 31.01

Pin Length (mm): 66.8

Big-end Bearing (mm): 31*38*14

Small-end Bearing (mm): N/A

Washer Thickness (mm): 1.0
