For Sea-Doo 1995-2002 720 HX

Application:
Sea-Doo 1995-2002 720 HX
Sea-Doo 1995-2002 720 XP

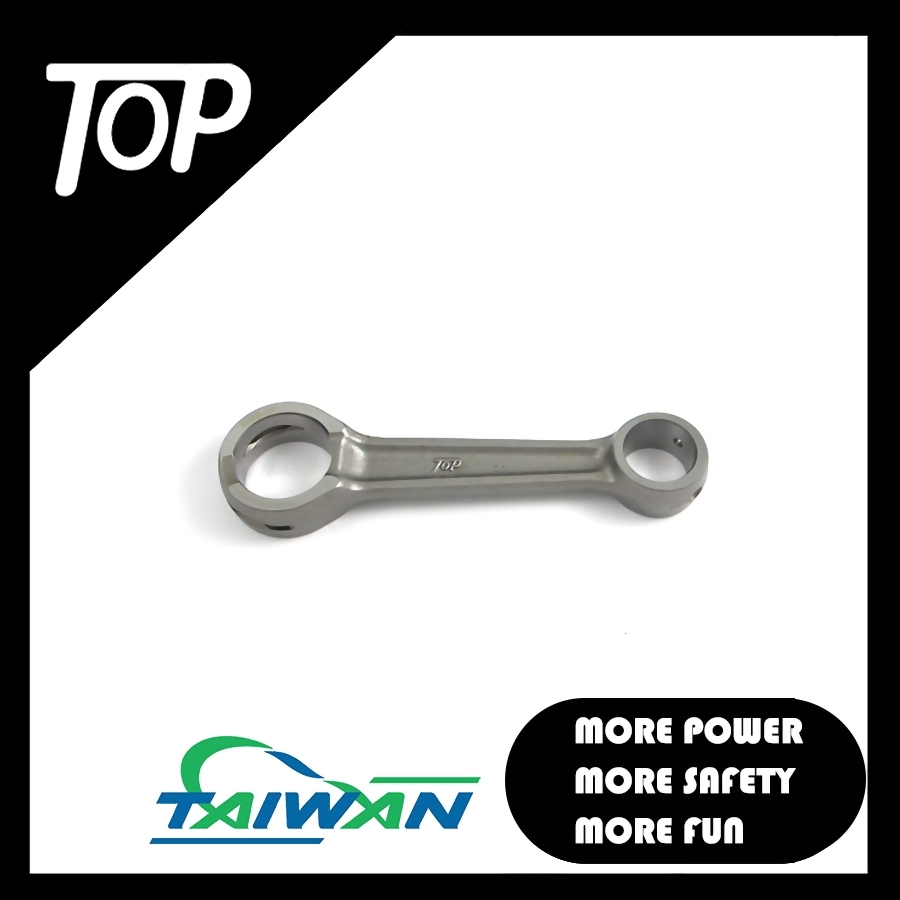

Model : CR81M

Application:

Sea-Doo 1995-2002 720 HX

Sea-Doo 1995-2002 720 XP


 Big-end Width (mm): 18

 Small-end Width (mm): 18

 Big-end Bore (mm): 33

 Small-end Bore (mm): 24

 Center-to-center (mm): 125

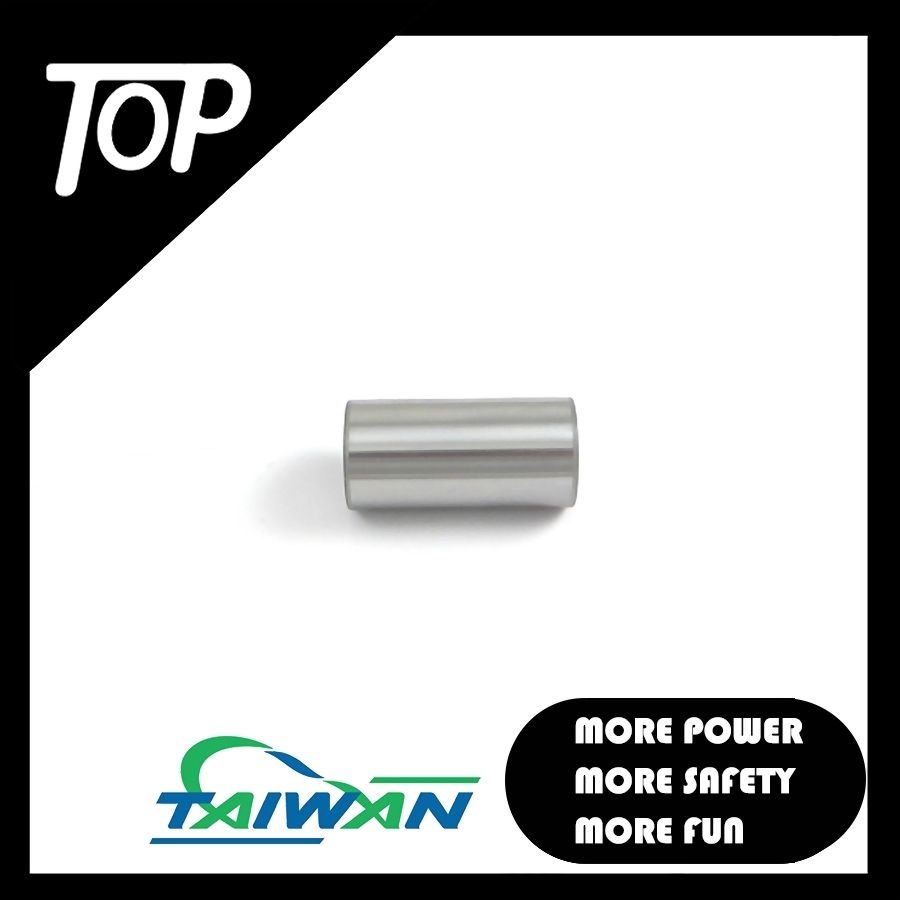

 Pin Diameter (mm): 26

 Pin Length (mm): 53

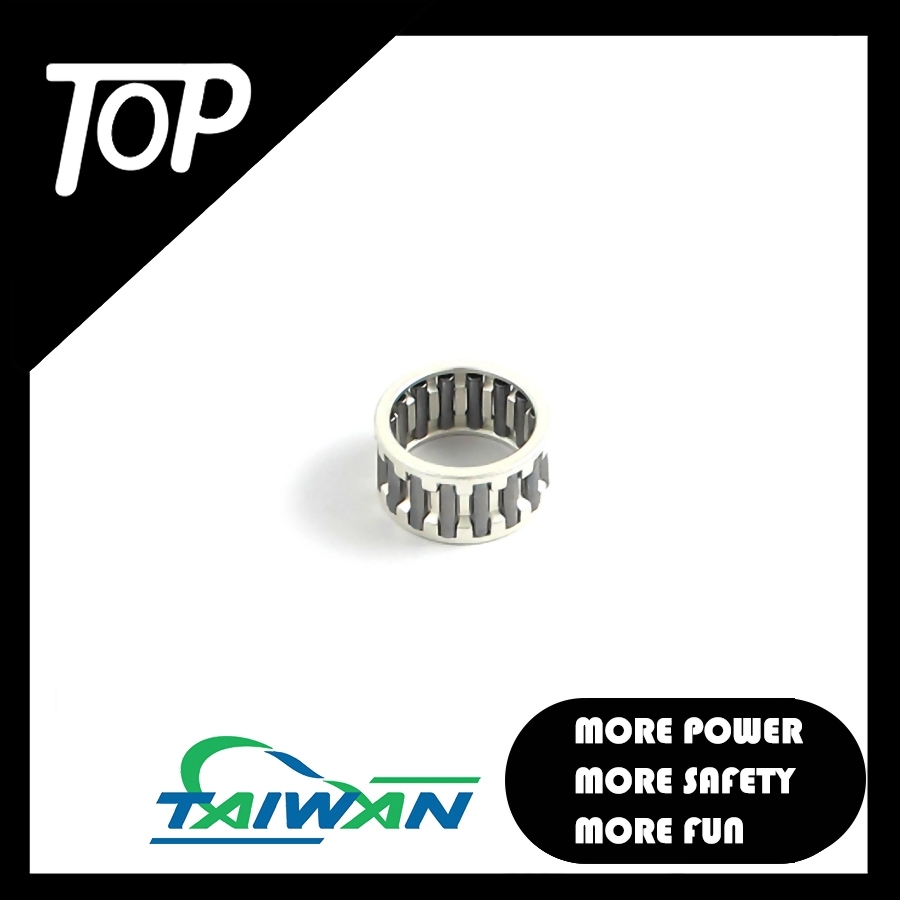

 Big-end Bearing (mm): 26*33*18

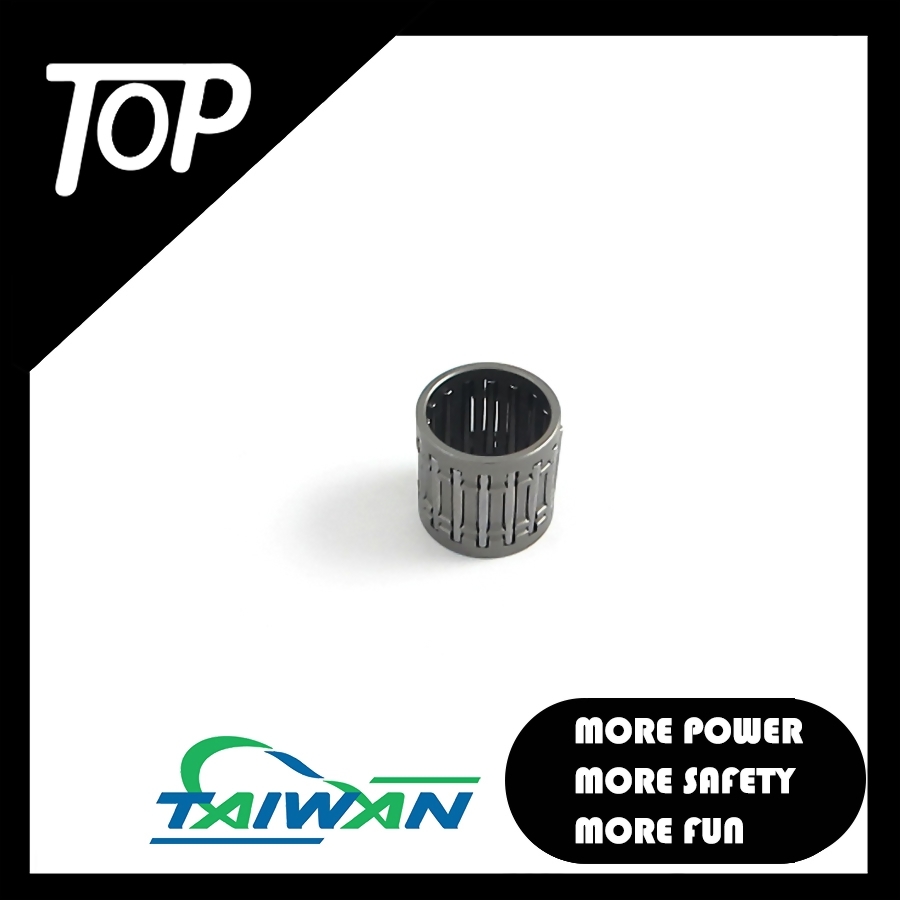

 Small-end Bearing (mm): 20*24*24

 Washer Thickness (mm): 1.0
