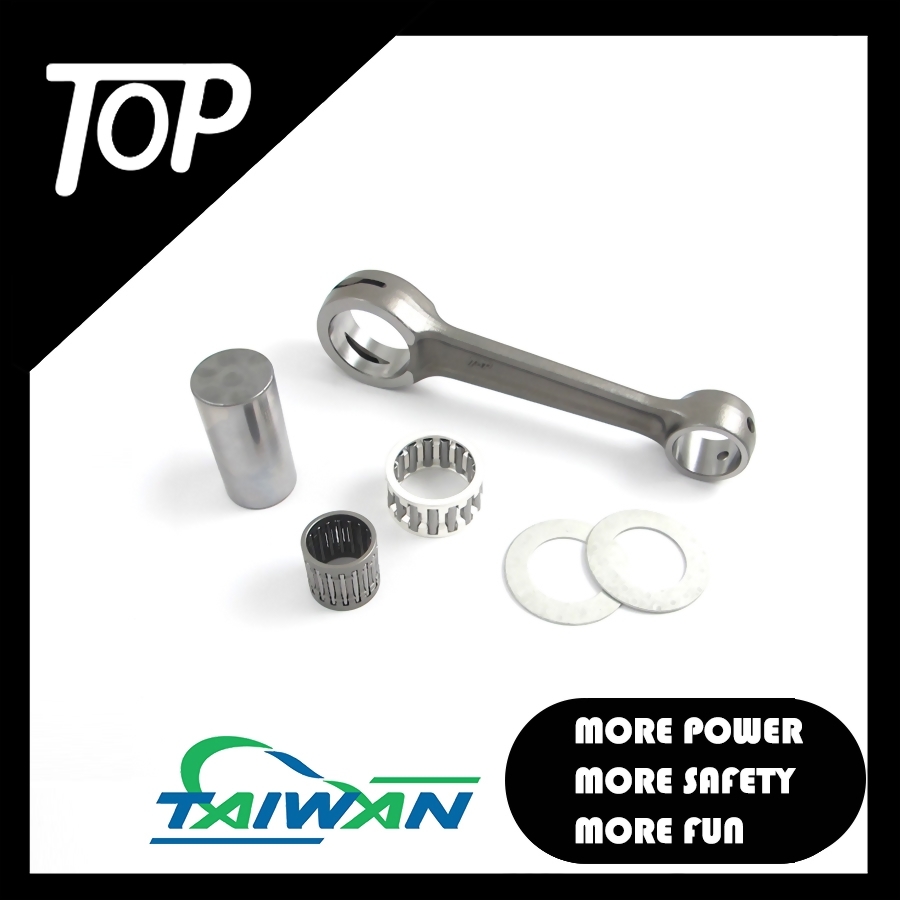

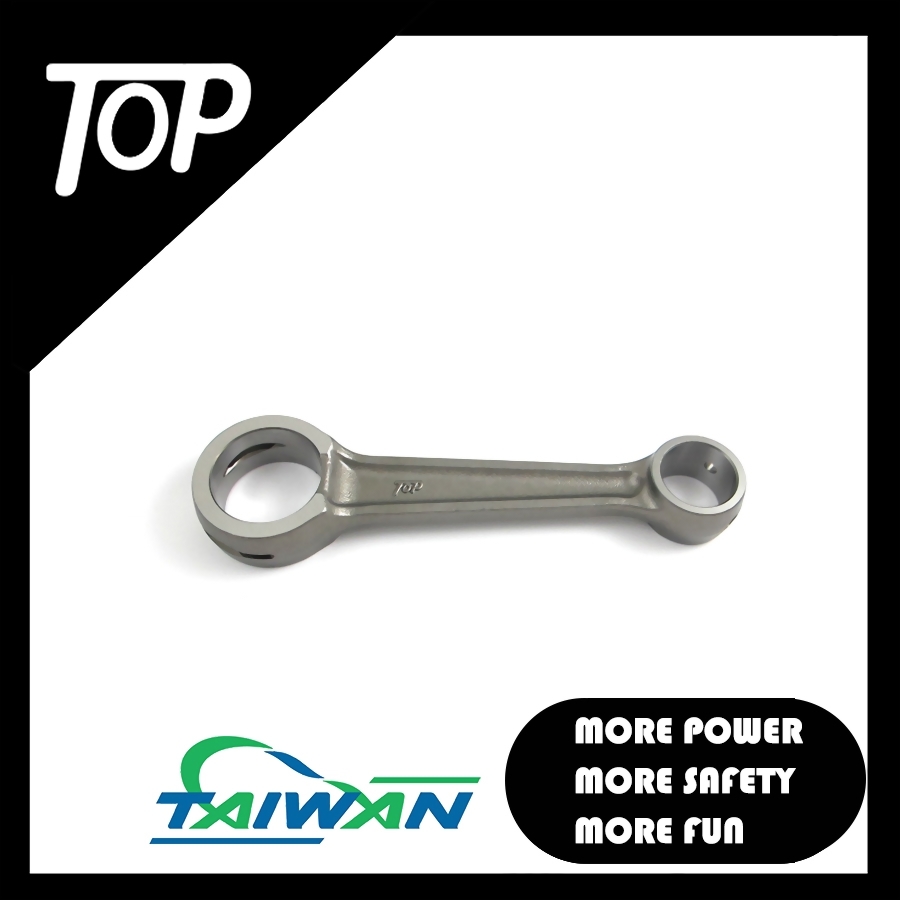

The CR85M connecting rod kit is for the famous SeaDoo 951 Carbureted engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.
Application:
Sea-Doo 1998-2002 951 CARBURETED
Big-end Width (mm): 19.9
Small-end Width (mm): 19.9
Big-end Bore (mm): 36
Small-end Bore (mm): 25
Center-to-center (mm): 140

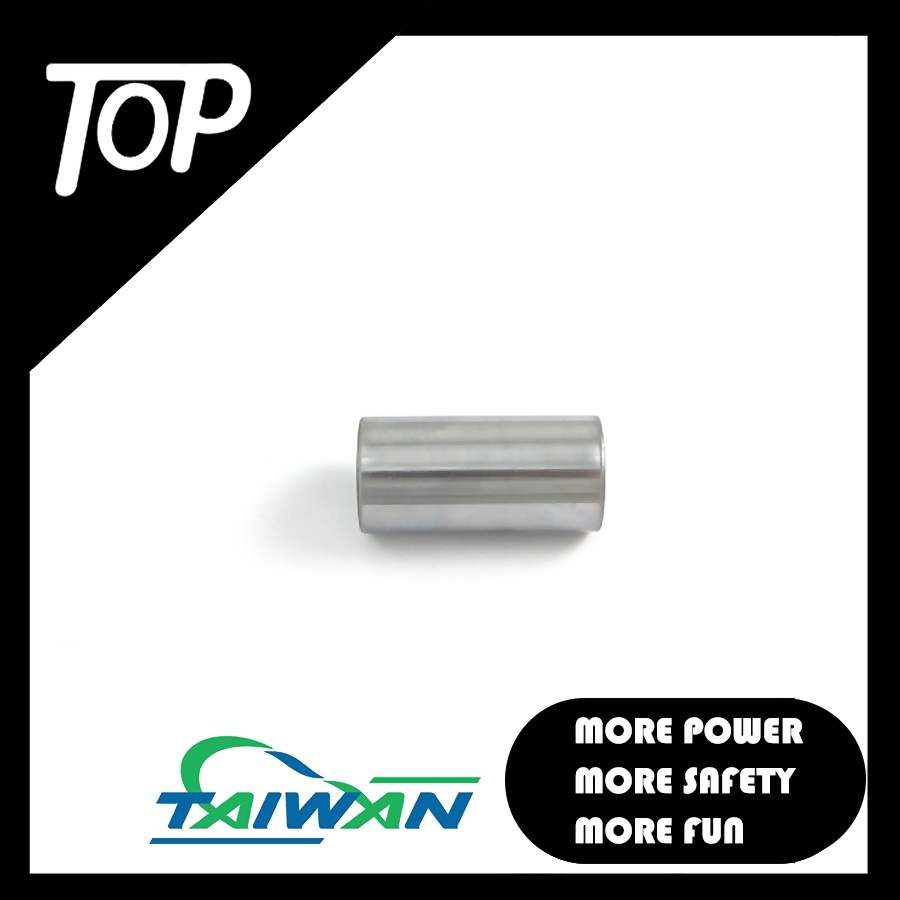

Pin Diameter (mm): 28
Pin Length (mm): 57

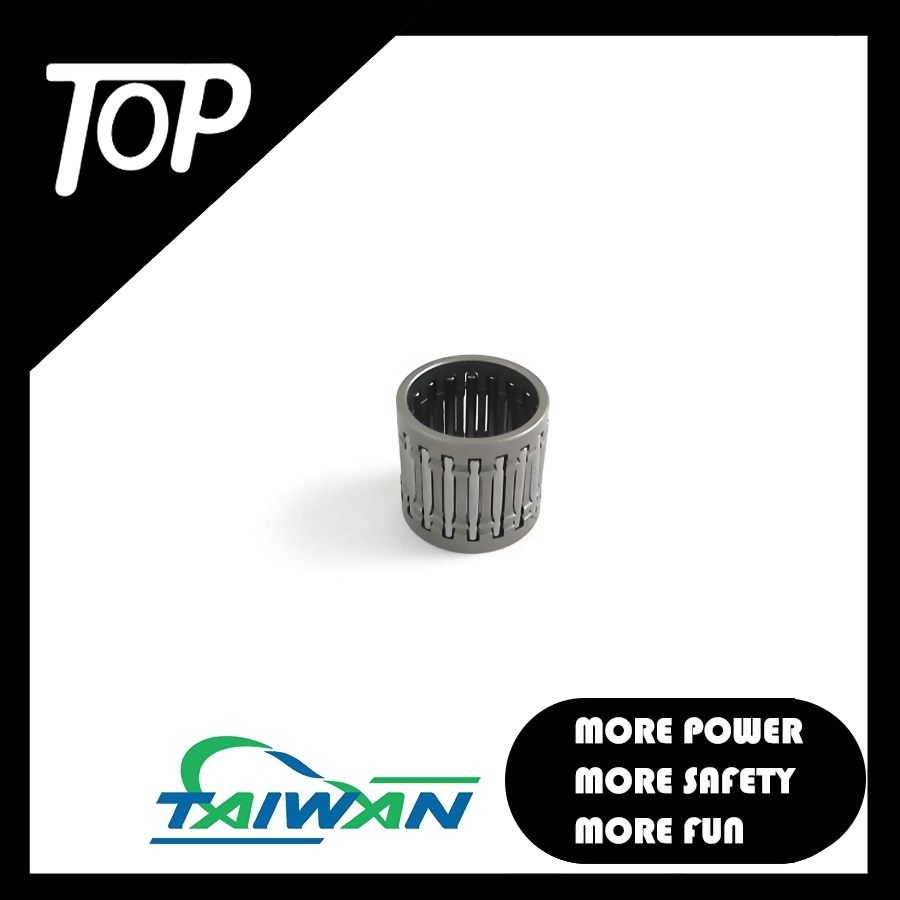

Big-end Bearing (mm): 28*36*20
Small-end Bearing (mm): 21*25*24
Washer Thickness (mm): 1.0
