For Yamaha 2000-2002 GP 1200 Waverunner

Application:
Yamaha 2000-2002 GP 1200 Waverunner
Yamaha 2003-2006 GP 1300 Waverunner
Yamaha 1998-2005 GP 800
Yamaha 1998-2005 GP 800R
Yamaha 1999-2005 XA 1200 Waverunner
Yamaha 2000-2001 XR 1800 Jetboat
Model : CR84M

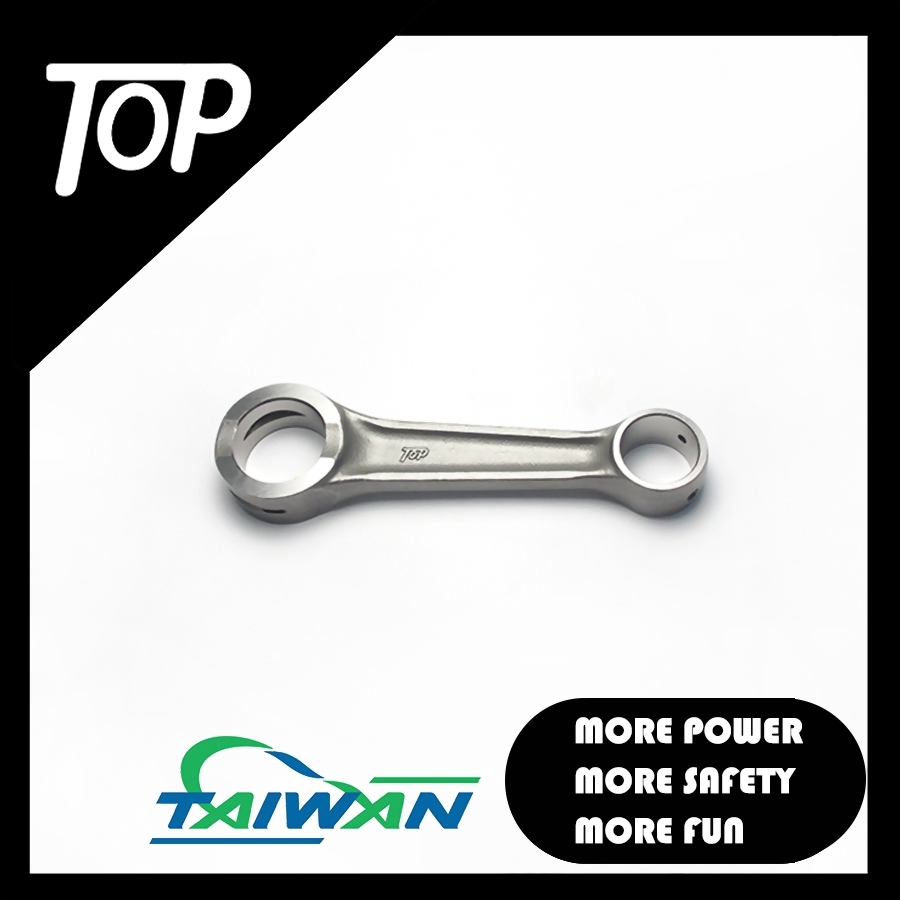

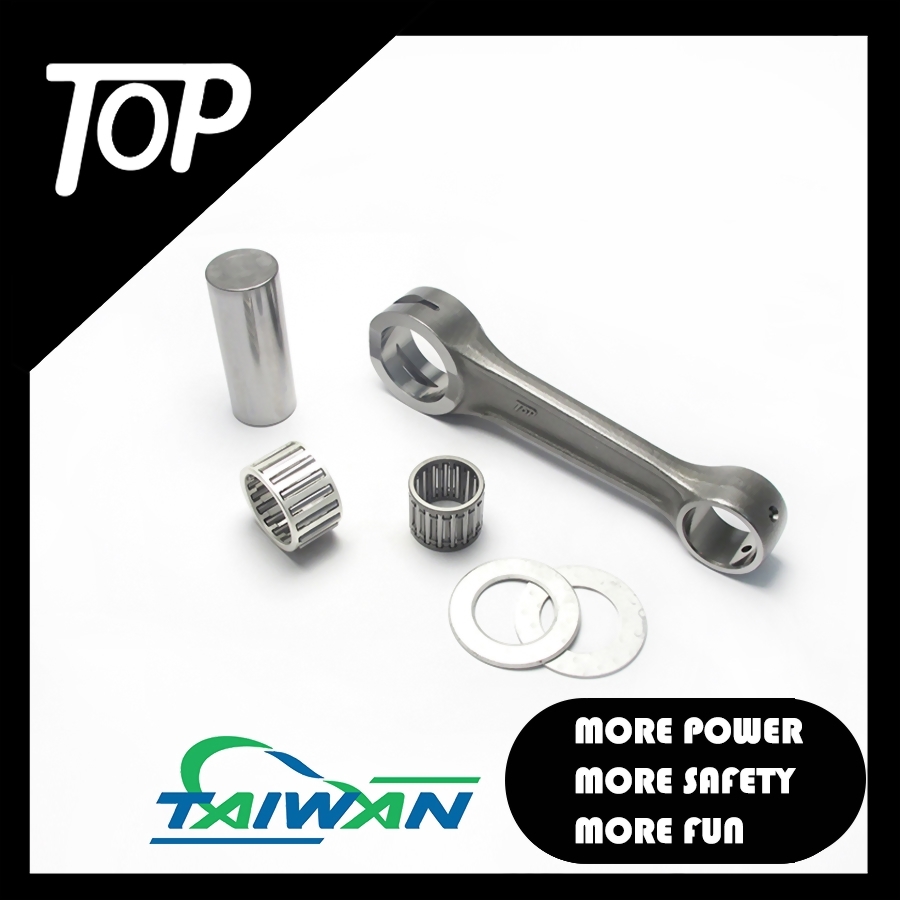

The CR84M connecting rod kit is for the famous Yamaha 2000-2002 GP 1200. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Yamaha 2000-2002 GP 1200 Waverunner

Yamaha 2003-2006 GP 1300 Waverunner

Yamaha 1998-2005 GP 800

Yamaha 1998-2005 GP 800R

Yamaha 1999-2005 XA 1200 Waverunner

Yamaha 2000-2001 XR 1800 Jetboat



Big-end Width (mm): 21

Small-end Width (mm): 21

Big-end Bore (mm): 34

Small-end Bore (mm): 27

Center-to-center (mm): 135

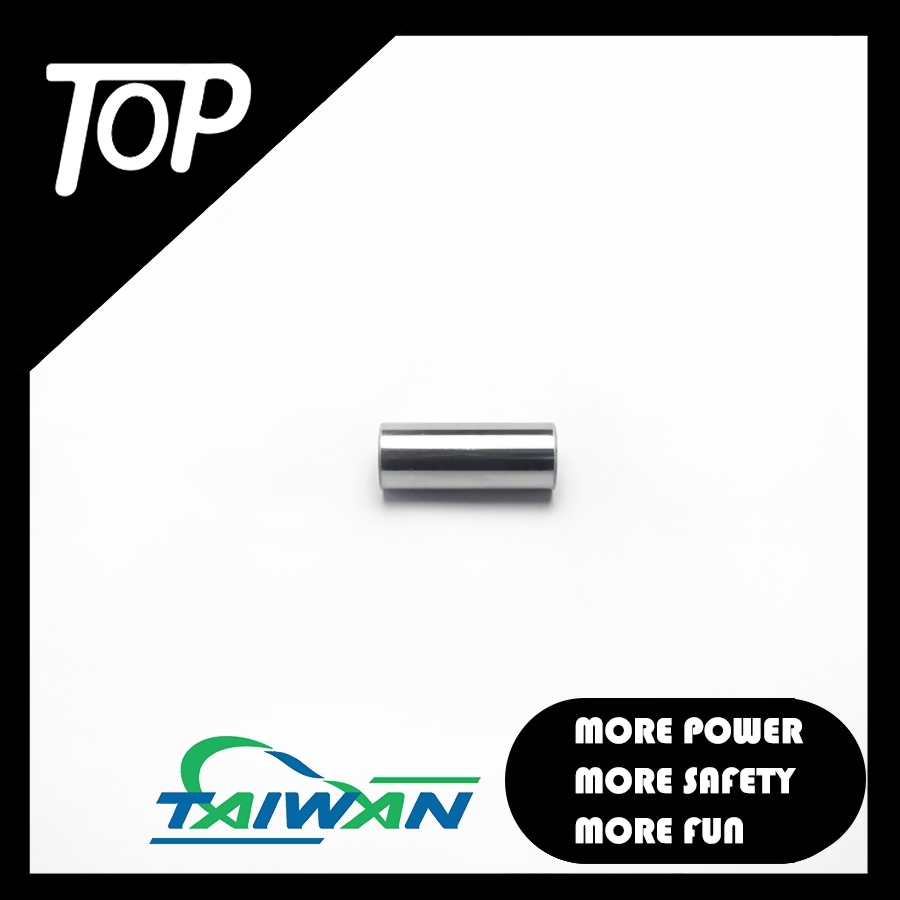

Pin Diameter (mm): 27

Pin Length (mm): 68

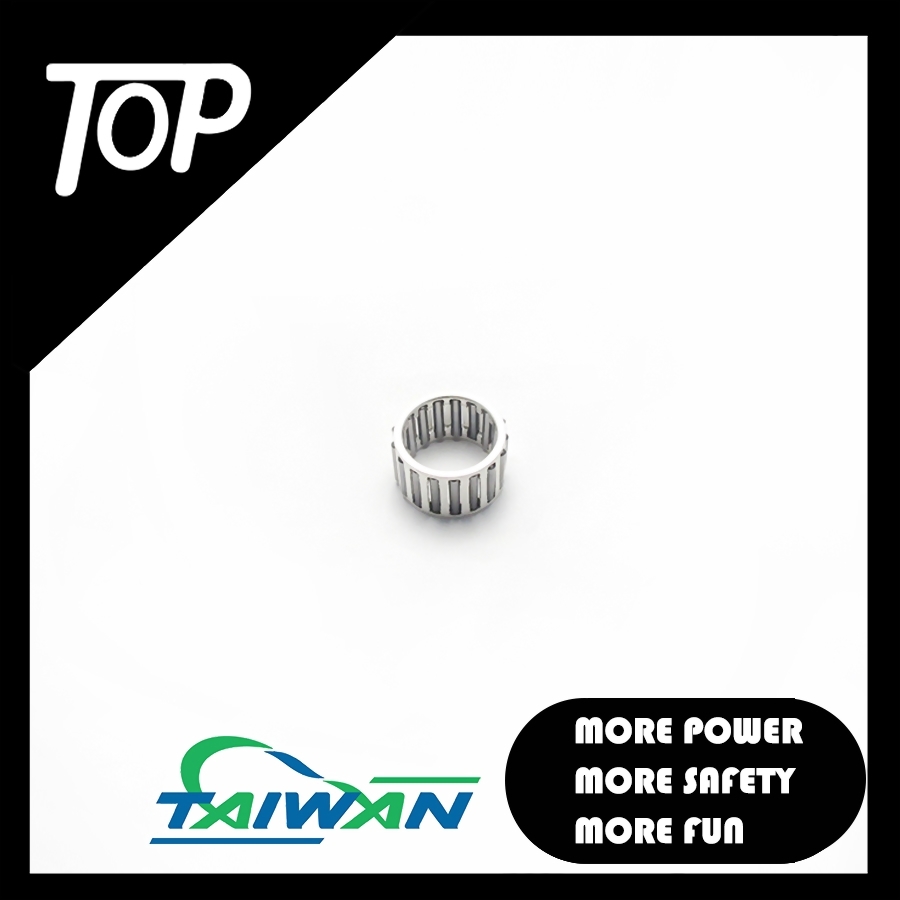

Big-end Bearing (mm): 27*34*21

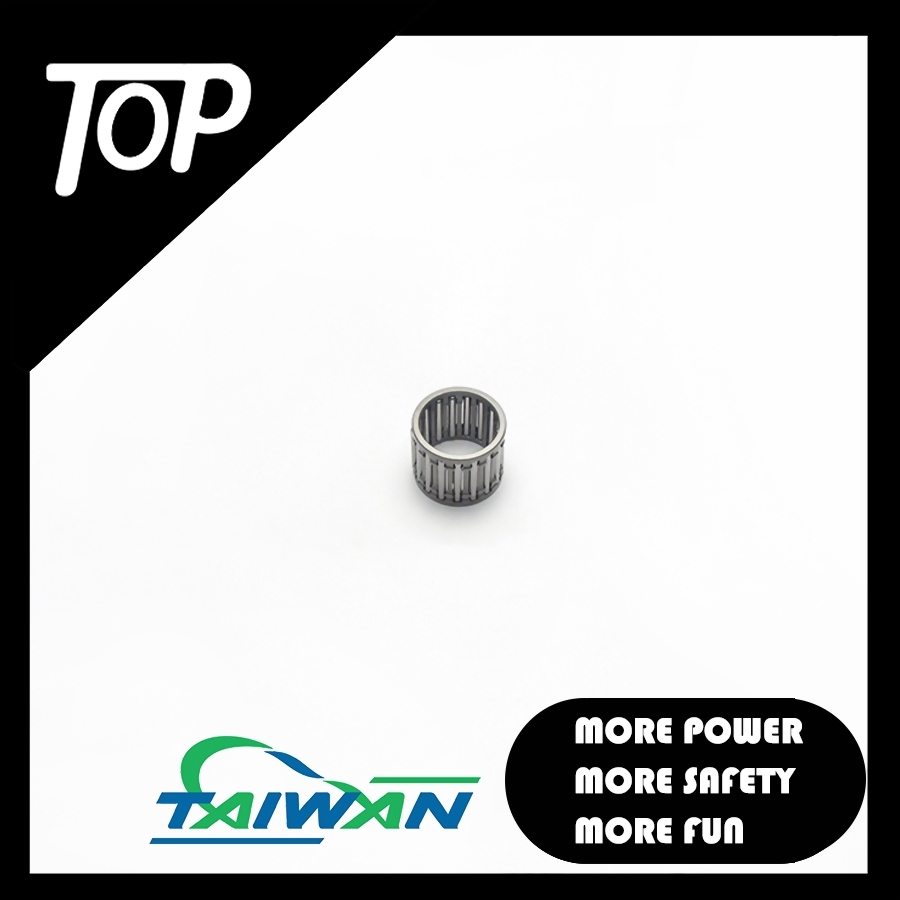

Small-end Bearing (mm): 22*27*23

Washer Thickness (mm): 1.5
