For Yamaha 1996-1998 Exciter 1100 Jetboat

Application:
Yamaha 1996-1998 Exciter 1100 Jetboat
Yamaha 1998-1999 Exciter Jetboat
Yamaha 1997-1999 GP 1200 Waverunner
Yamaha 1999-2005 LST 1200 Jetboat
Yamaha 1995-1996 RA 1100 Waveraider
Yamaha 1998-2012 SJ 700
Yamaha 1990-1993 SUPER JET 650
Yamaha 1999-2004 SV 1200 Waverunner
Yamaha 1999-2004 WAVE RUNNER XL 700
Yamaha 1998 WAVE VENTURE 700
Yamaha 1998 XL 1200 Waverunner

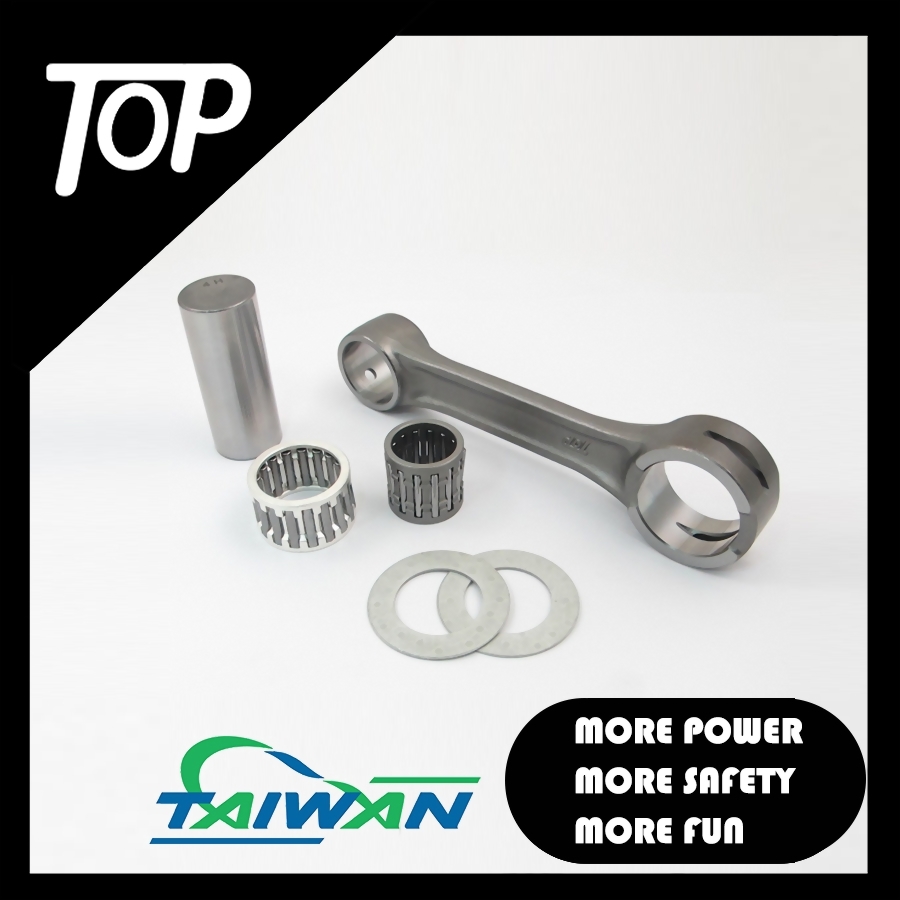

Model : CR82M

Application:

Yamaha 1996-1998 Exciter 1100 Jetboat

Yamaha 1998-1999 Exciter Jetboat

Yamaha 1997-1999 GP 1200 Waverunner

Yamaha 1999-2005 LST 1200 Jetboat

Yamaha 1995-1996 RA 1100 Waveraider

Yamaha 1998-2012 SJ 700

Yamaha 1990-1993 SUPER JET 650

Yamaha 1999-2004 SV 1200 Waverunner

Yamaha 1999-2004 WAVE RUNNER XL 700

Yamaha 1998 WAVE VENTURE 700

Yamaha 1998 XL 1200 Waverunner



Big-end Width (mm): 20

Small-end Width (mm): 20

Big-end Bore (mm): 32

Small-end Bore (mm): 25

Center-to-center (mm): 125

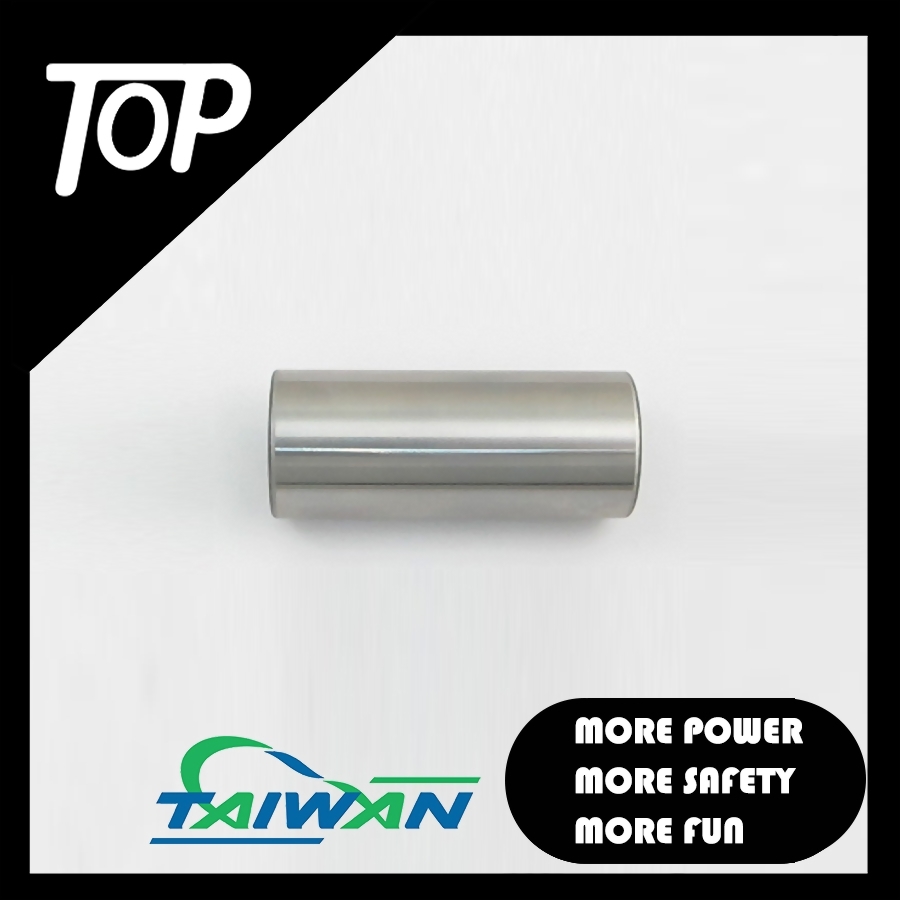

Pin Diameter (mm): 25

Pin Length (mm): 60

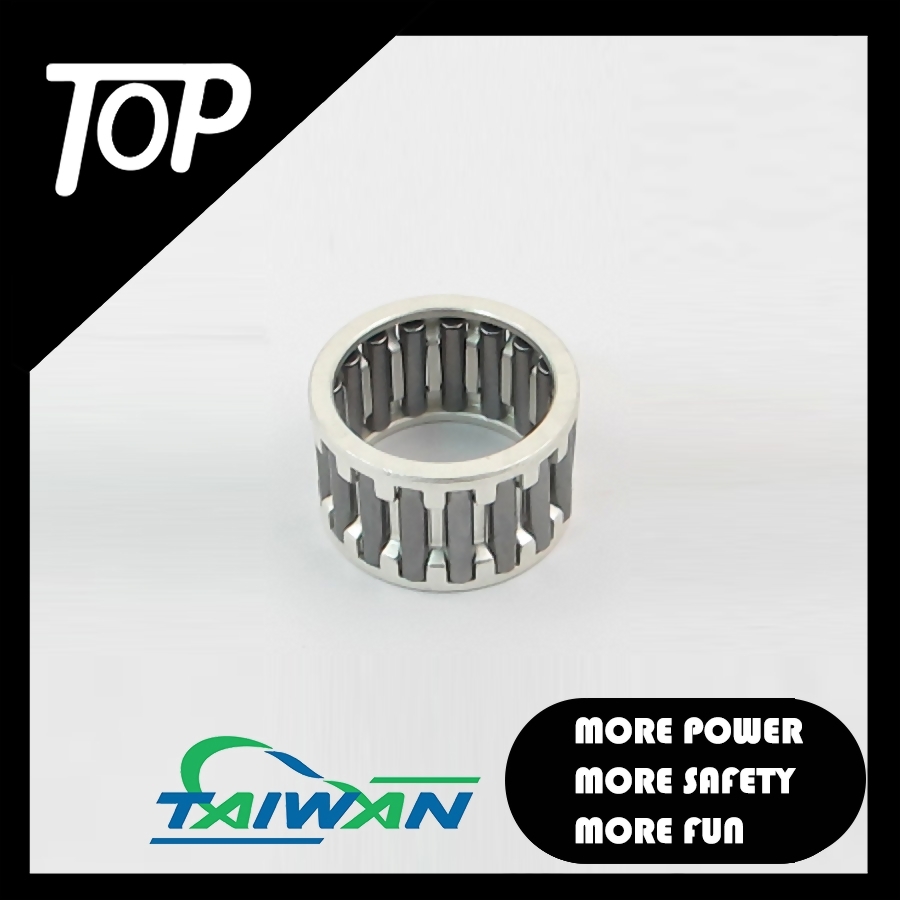

Big-end Bearing (mm): 25*32*20

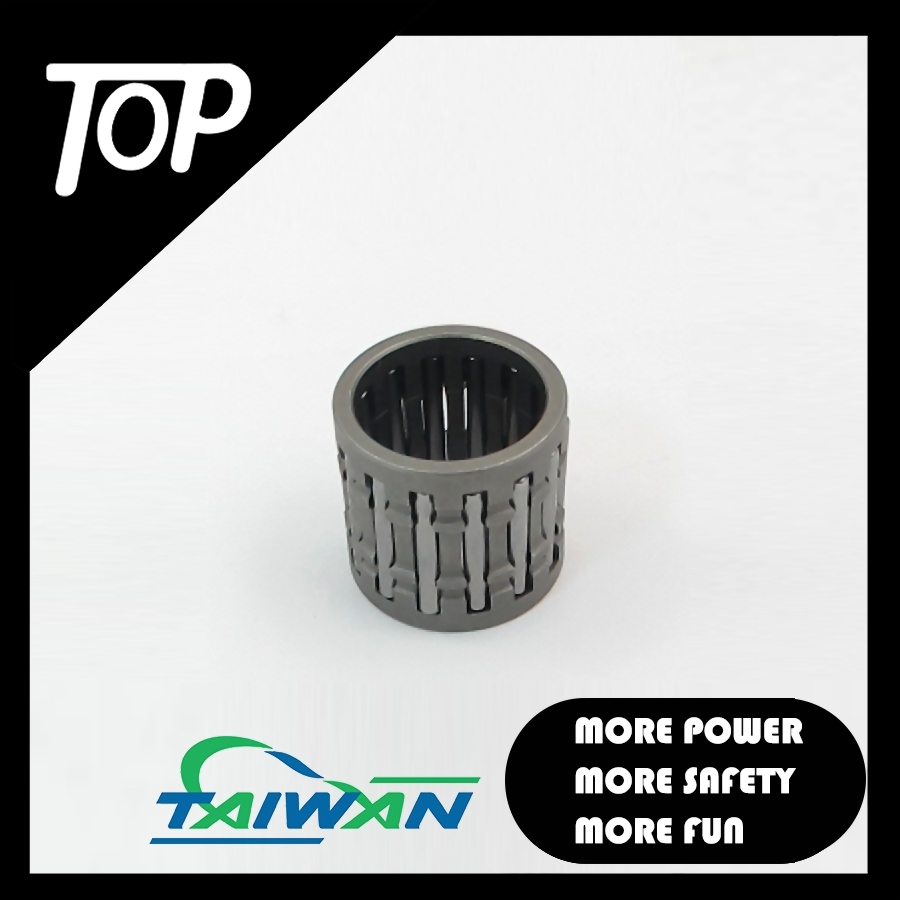

Small-end Bearing (mm): 20*25*24

Washer Thickness (mm): 1.0
