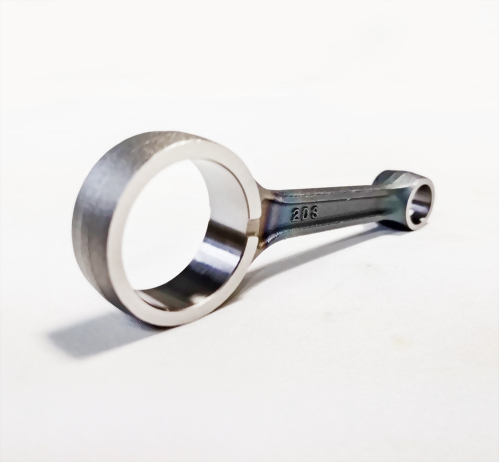

For Yamaha CRYPTON

Application:
Yamaha CRYPTON
Model : 5HV

Application:

Yamaha CRYPTON



Big-end Width (mm): 14

Small-end Width (mm): 14

Big-end Bore (mm): 31

Small-end Bore (mm): 13

Center-to-center (mm): 92

Pin Diameter (mm): 26

Pin Length (mm): 42

Big-end Bearing (mm): 26*31*14

Small-end Bearing (mm): N/A

Washer Thickness (mm): N/A
