For Yamaha 1987-2006 Banshee 350 LONG ROD

Application:
Yamaha 1987-2006 Banshee 350 LONG ROD (115mm)
Model : 30L

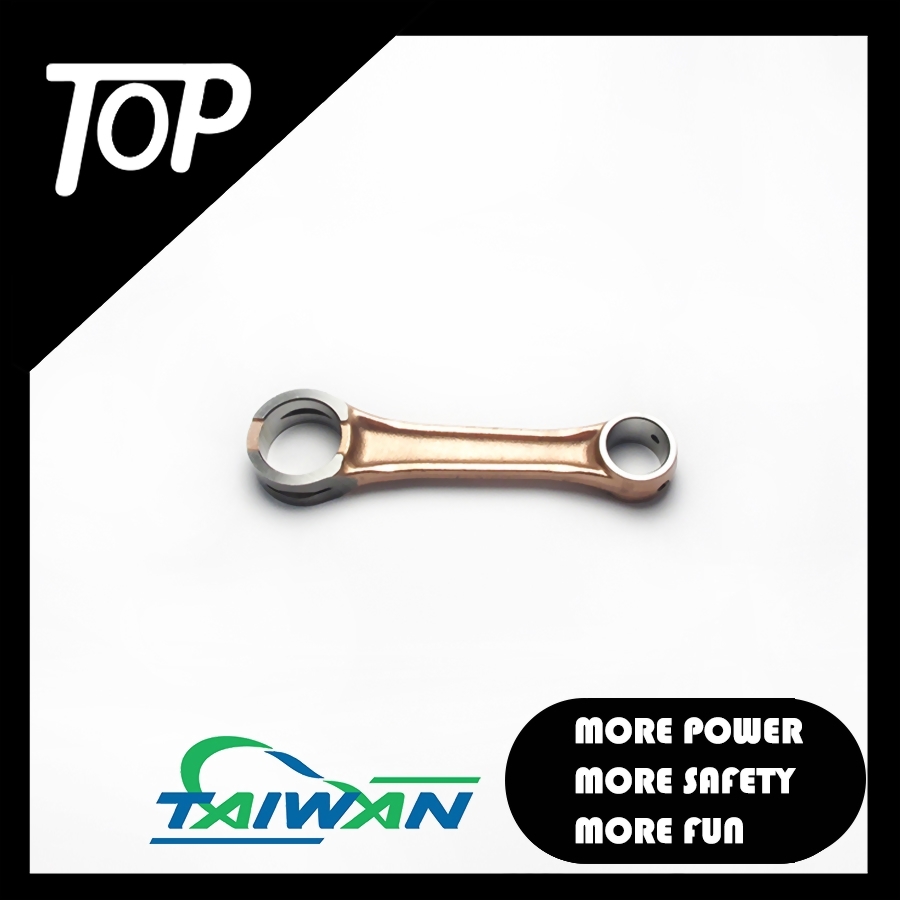

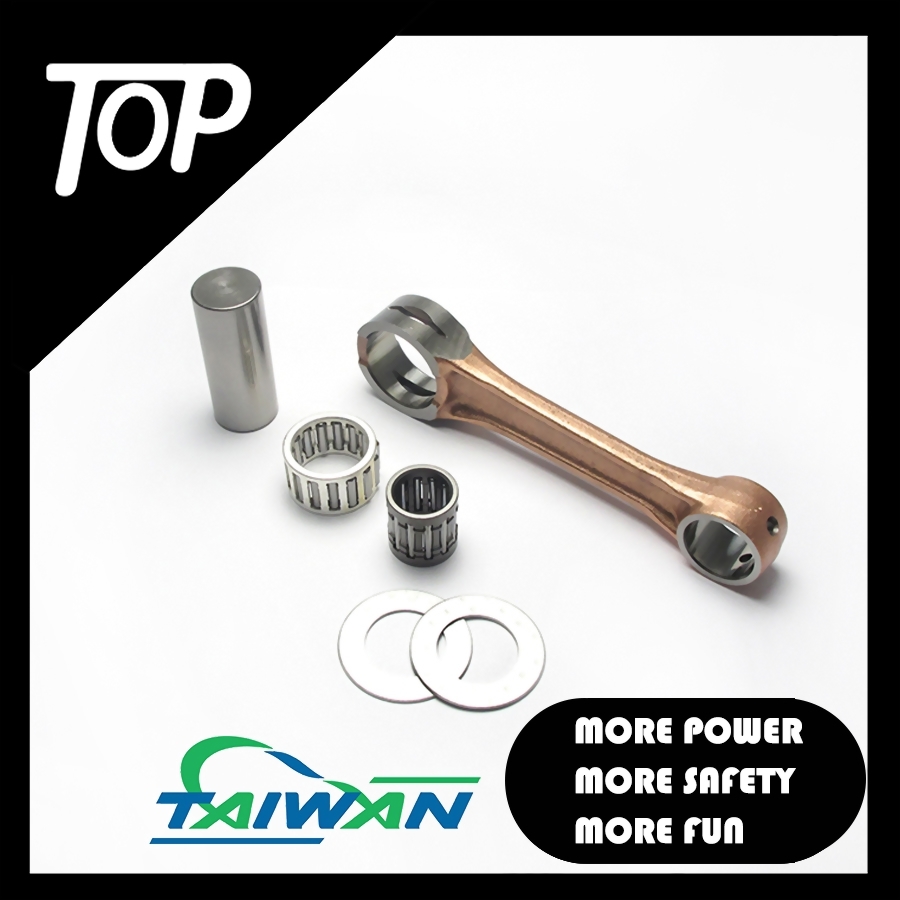

The 30L connecting rod kit is for the famous Yamaha Banshee 350 engine ( (Long rod 115mm)). We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Yamaha 1987-2006 Banshee 350 LONG ROD (115mm)



Big-end Width (mm): 17

Small-end Width (mm): 18

Big-end Bore (mm): 29

Small-end Bore (mm): 21

Center-to-center (mm): 115

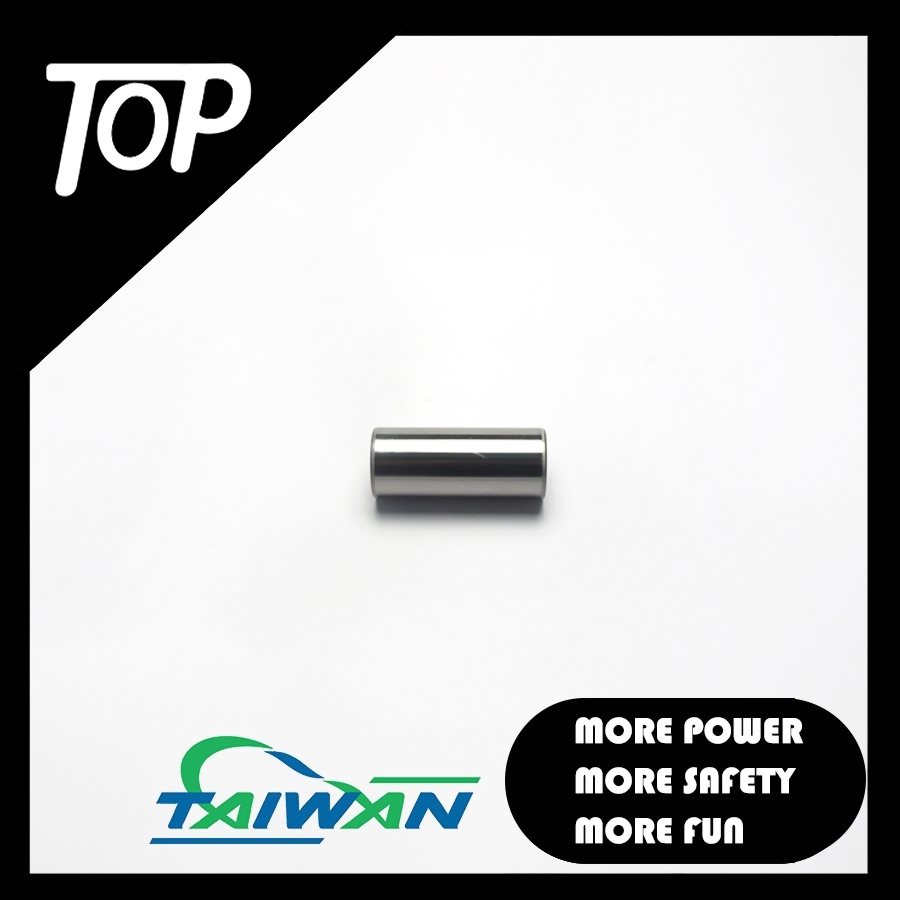

Pin Diameter (mm): 22

Pin Length (mm): 53

Big-end Bearing (mm): 22*29*17

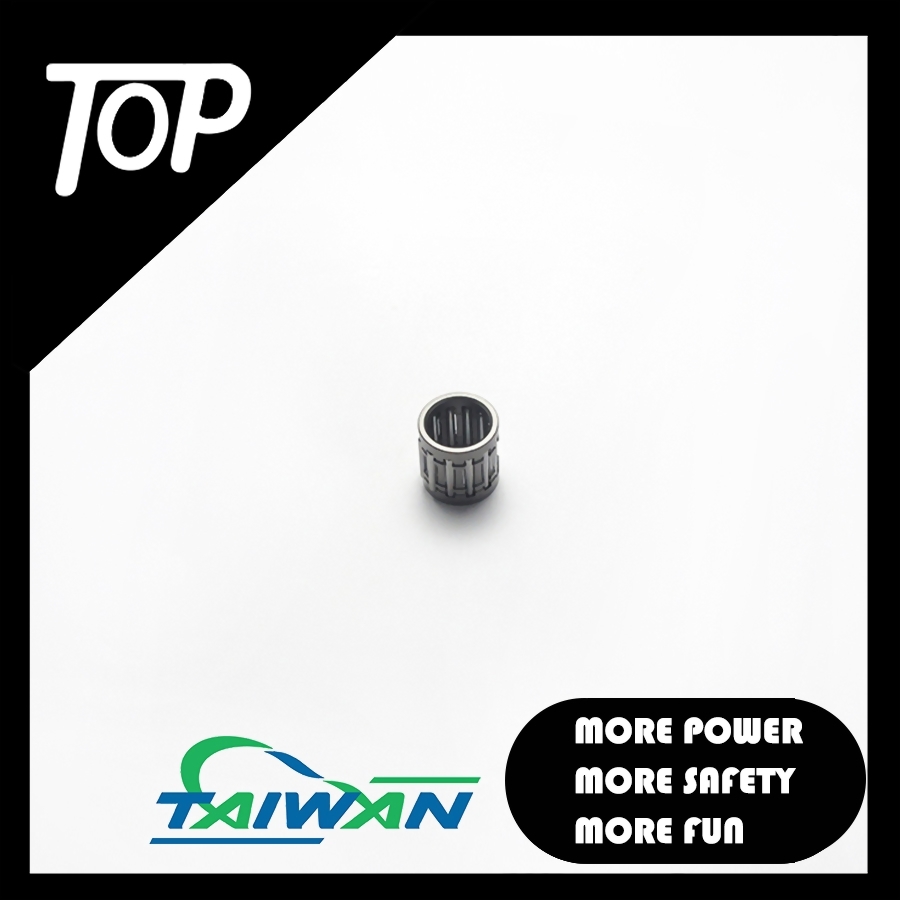

Small-end Bearing (mm): 16*21*22.3

Washer Thickness (mm): 1.0
