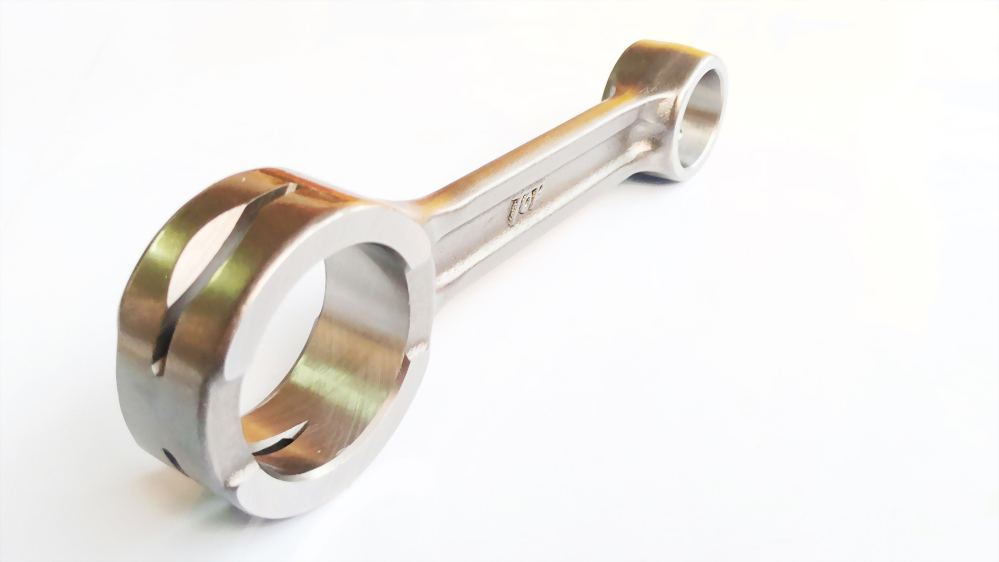

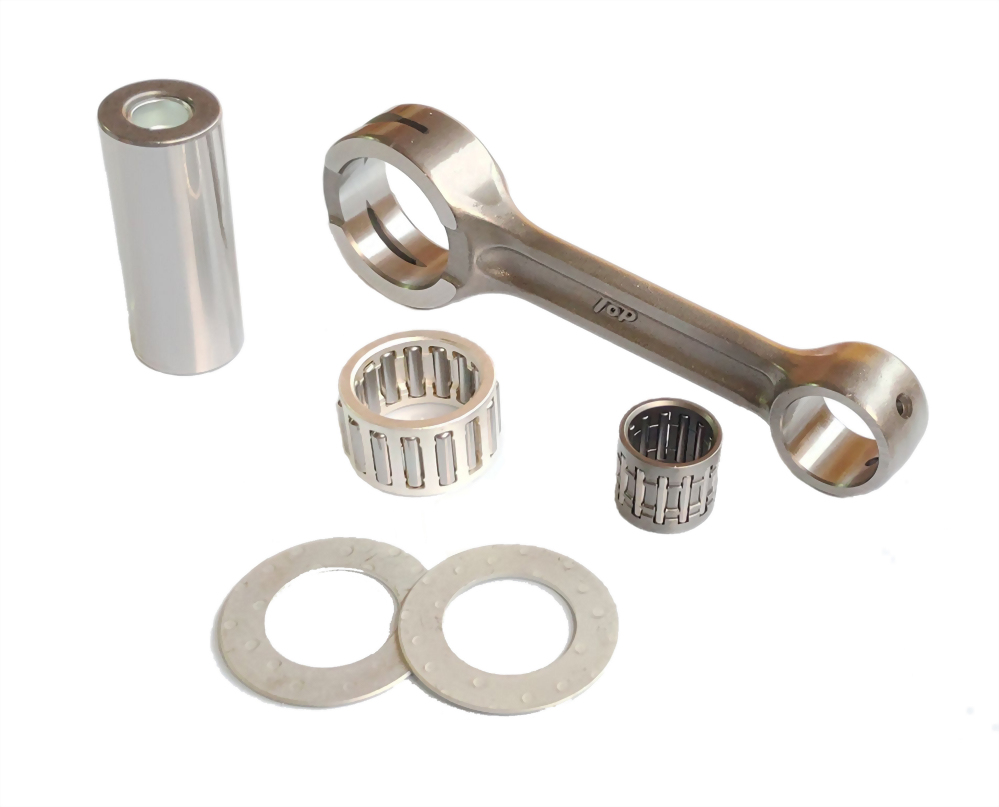

TOP® Connecting Rod Kit for Yamaha YZ125 (2005-2016)

Product Overview

The TOP® connecting rod kit is designed for Yamaha YZ125 models from 2005 to 2016, ensuring exceptional durability and performance. This high-quality kit is ideal for Yamaha YZ125 maintenance and repairs.

Specifications

• Big-end Width: 17 mm
• Small-end Width: 16 mm
• Big-end Bore: 29 mm
• Small-end Bore: 19 mm
• Center-to-center Length: 102 mm

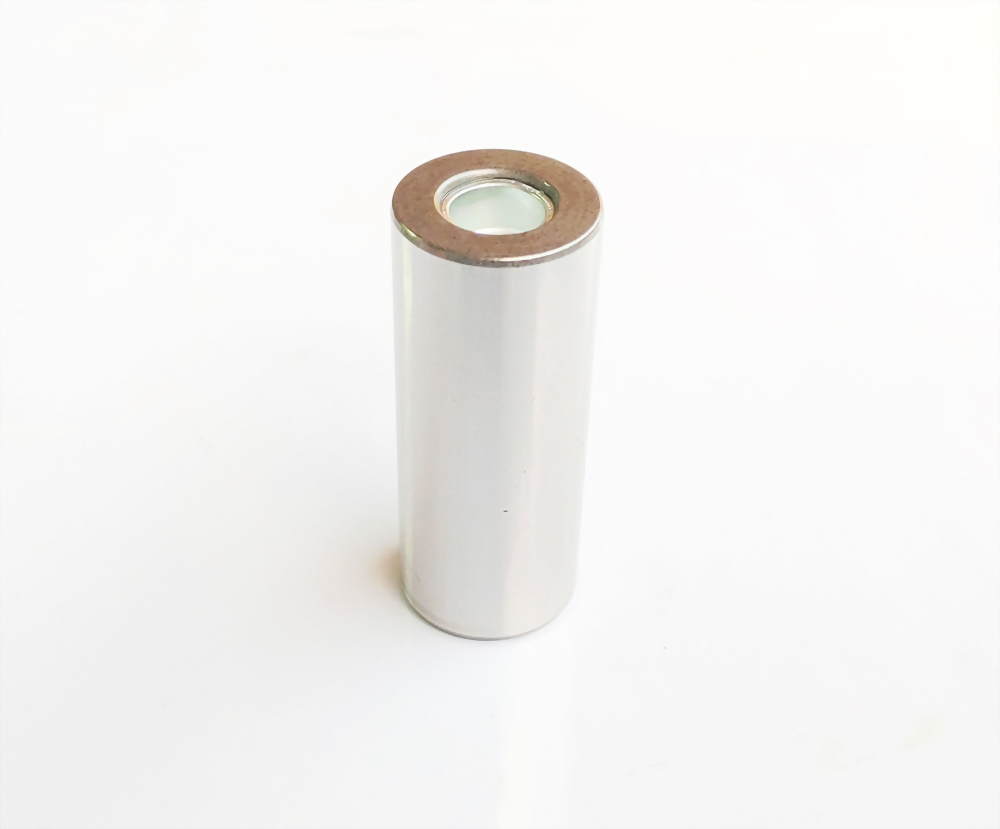

• Pin Diameter: 22 mm
• Pin Length: 54.5 mm

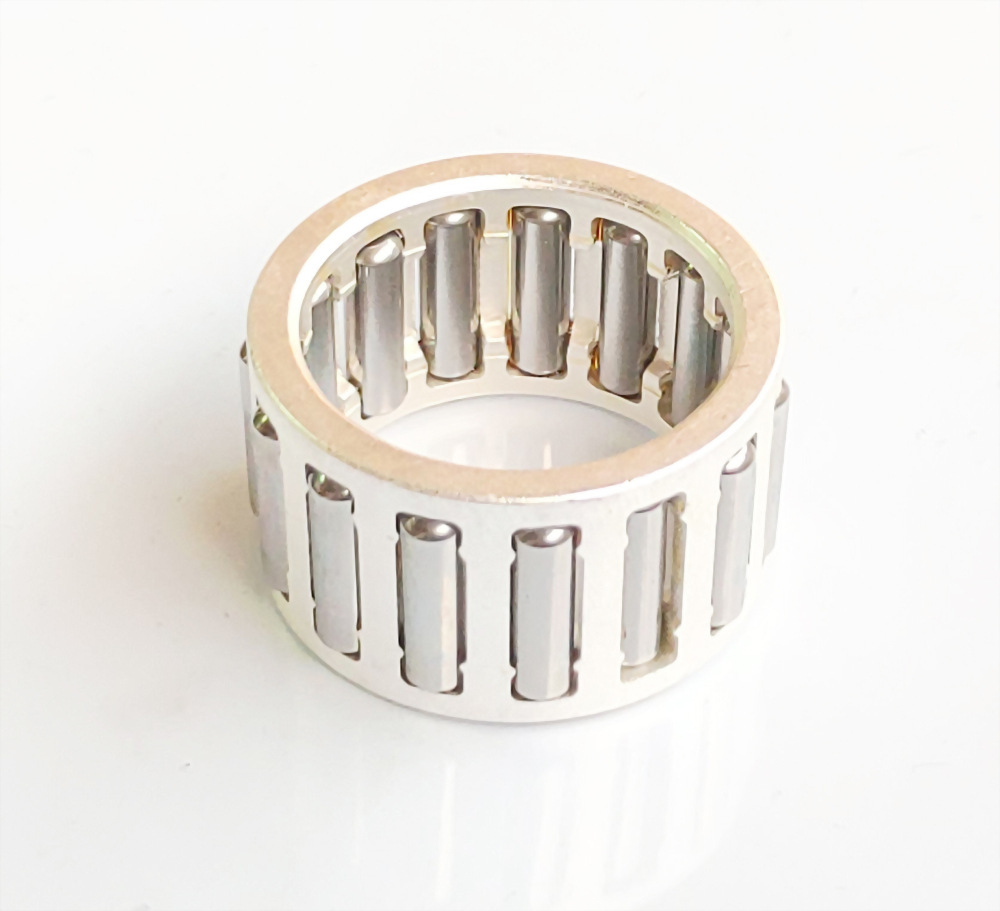

• Big-end Bearing: 22*29*17 mm

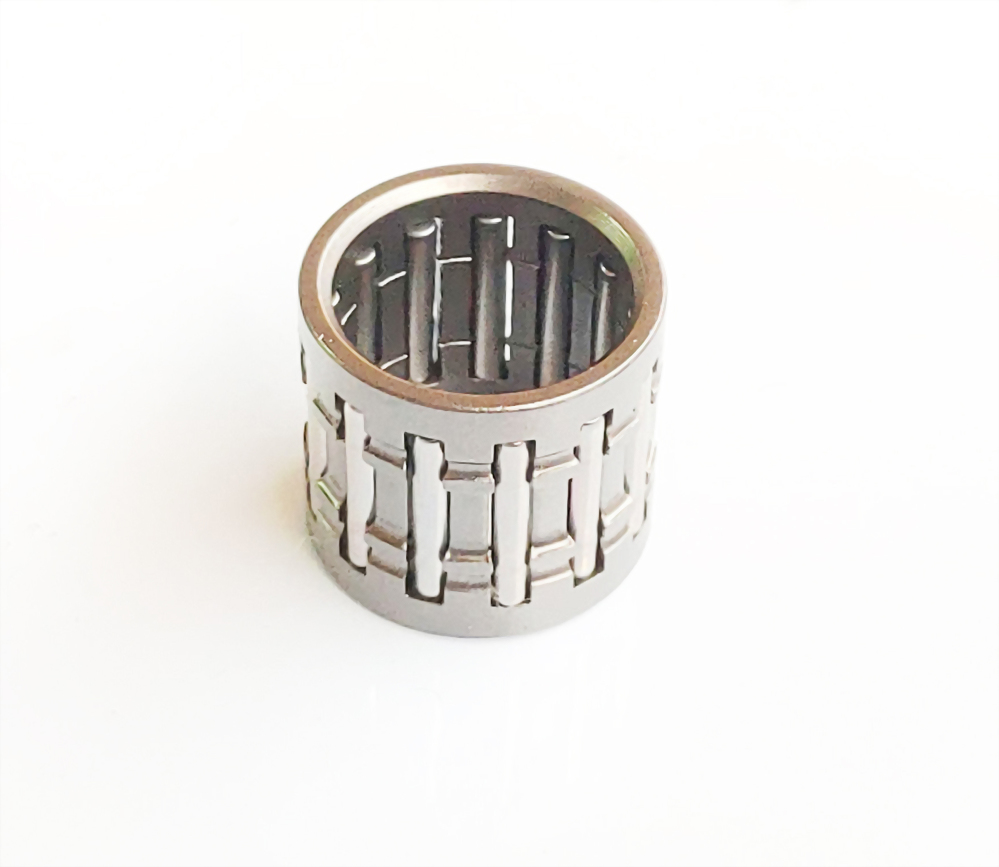

• Small-end Bearing: 15*19*17 mm

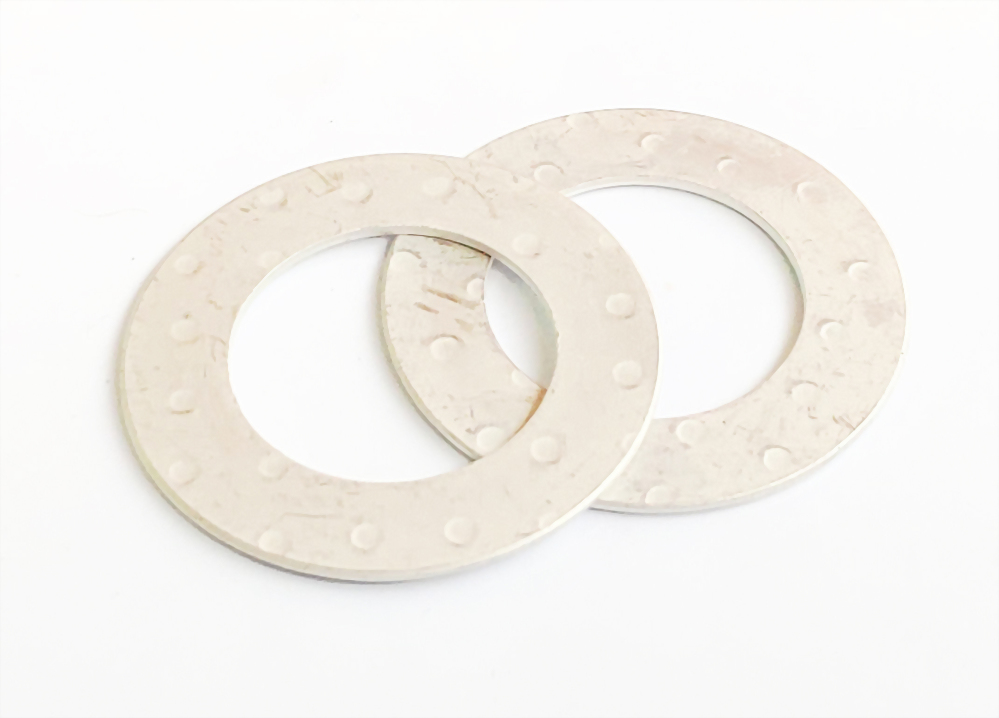

• Washer Thickness: 1.0 mm

Compatible Models

This connecting rod kit is compatible with the following Yamaha model:

• 2005 - 2016 Yamaha YZ125
